Description

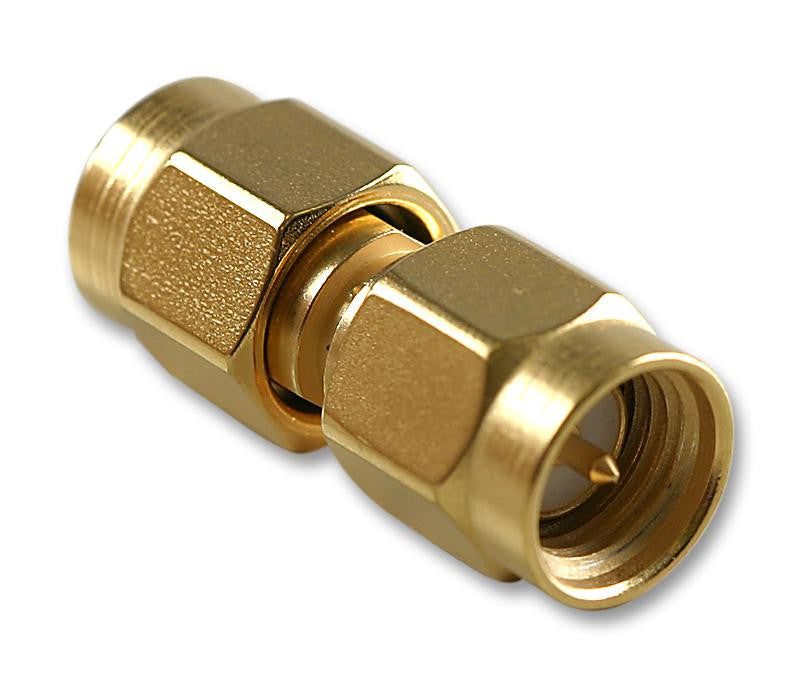

The R125703000 is a male to male SMA Adapter, SMA series, with gold over nickel plated brass center contact, gold over nickel plated stainless steel body, PTFE insulation. The stainless steel SMA connector has been designed for applications where reliability, durability, robustness and high frequency are very important. Radiall offers an extended frequency SMA range allowing coaxial system operation up to 27GHz. This series mates with the standard SMA series and maintains the same mechanical characteristics (part numbers ending with 700, 701 or 702).
- Subminiature coaxial connector
- Screw-on coupling
- High RF performance
- Wide hermetically sealed range
- Meets MIL-C-39012, EC 169-1, CECC 22110, CECC 22111 - 801 to 808 and BS 9210 N006 standards
- -65 to 165�C Temperature rating
Applications
Communications & Networking, Test & Measurement, Aerospace, Defence, Military
Product details
| Convert From Gender | Plug |
| Convert To Gender | Plug |
| Convert From Coax Type | SMA |
| Convert To Coax Type | SMA |
| Connector Type | SMA Coaxial |
| Product Range | - |
| Adapter Body Style | Straight Adapter |
Other details
| Brand | RADIALL |
| Part Number | R125703000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Miscellaneous EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3018.7 |
| 3-5 | ₹ 2987.9 |
| 5-10 | ₹ 2926.29 |
| 10+ | ₹ 2864.69 |
Bulk discount will be automatically applied during checkout based on quantity.
