| ₹ 1846.61 includes GST and import duties. | |
| B2B customers can avail ₹ 281.61 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

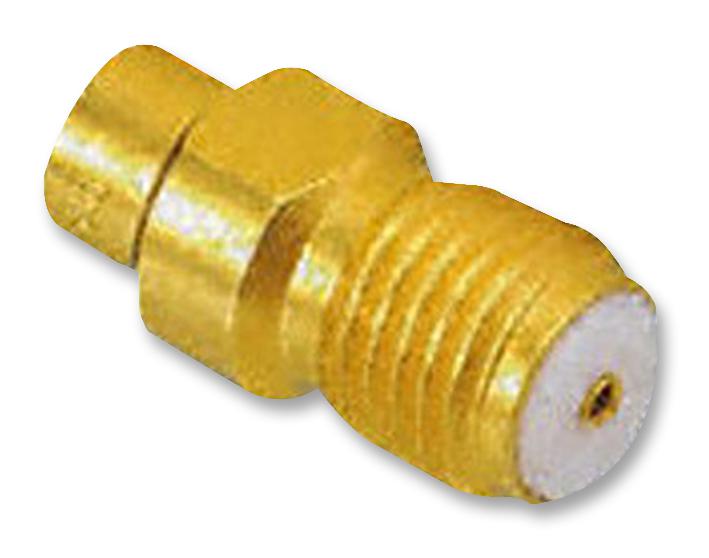

The R125225000 is a solder SMA Straight Jack for use with KS2 and RG402 RF coaxial cables. It has gold over nickel plated stainless steel body with gold over nickel plated beryllium copper centre contact and a PTFE insulator.
- 5000MR Minimum insulation resistance
- 750Veff Minimum dielectric withstanding voltage
- 335Veff Maximum voltage rating
- 500-cycle Minimum mating life
- -65 to 105°C Operating temperature range
RF Communications, Industrial
Other details
| Brand | RADIALL |
| Part Number | R125225000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1809.68 |
| 3-5 | ₹ 1791.21 |
| 5-10 | ₹ 1754.28 |
| 10+ | ₹ 1717.35 |
Bulk discount will be automatically applied during checkout based on quantity.
