Description

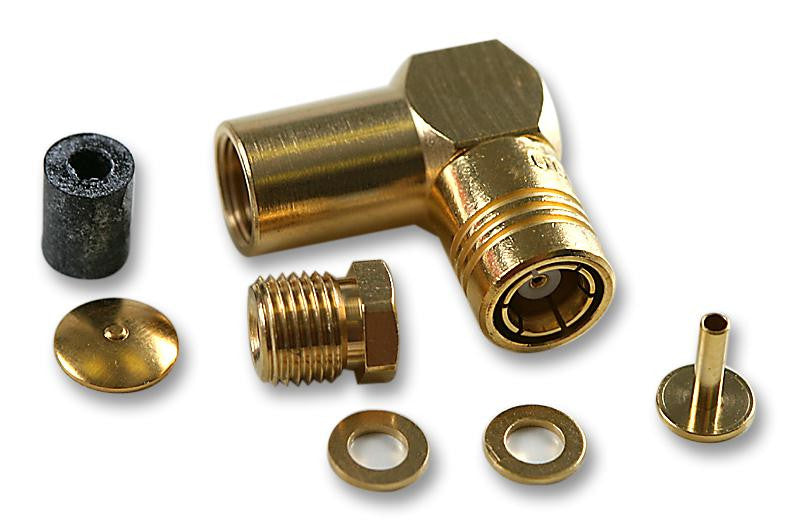

The R114163000 is a right angle SMB Plug, clamp type, with gold over nickel plated beryllium copper contacts, gold over nickel plated brass body, for 2.6/50 S cable. This SMB series plug has PTFE insulation, cable mounting and solder termination. The SMB snap-on subminiature coaxial connector provides a fast and reliable connection for high density packaging for applications up to 4GHz. The design permits quick engagement and disengagement.
- Subminiature coaxial connector
- Snap-on coupling
- Low weight and reduced outline dimensions
- Meets MIL-C-39012 and MIL-C-39012/67-72 standard
- -55 to 100°C Temperature range
Applications
Automotive, Communications & Networking, Aerospace, Defence, Military
Product details
Contact Material | Beryllium Copper |
Contact Plating | Gold Plated Contacts |
Connector Type | SMB Coaxial |
Coaxial Termination | Solder |
Connector Mounting | Cable Mount |
Connector Body Style | Right Angle Plug |
Coaxial Cable Types | RG178, RG178LC, RG196 |
Impedance | 50ohm |
Product Range | - |
Frequency Max | 4GHz |
Other details
Brand | RADIALL |
Part Number | R114163000 |
Quantity | Each |
Technical Data Sheet EN | |
Miscellaneous EN |
