Description

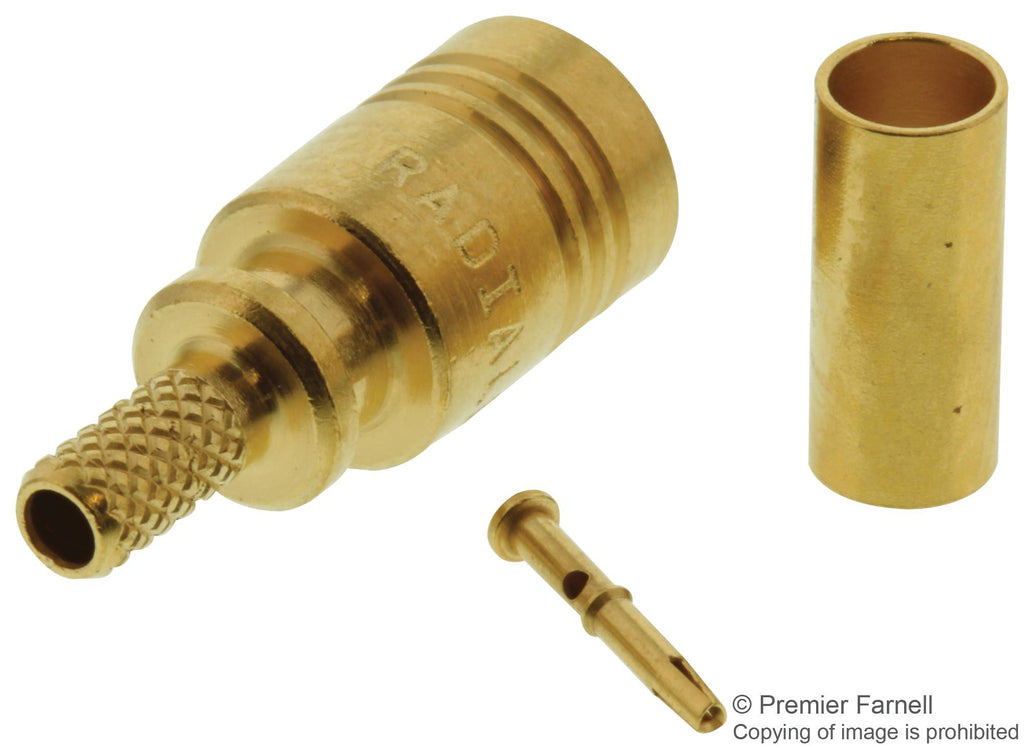

The R114082000 is a straight SMB Plug with gold over nickel plated beryllium copper contacts, gold over nickel plated brass body, for 2.6/50+75 S cable. This SMB series plug has PTFE insulation, cable mounting and crimp termination. The SMB snap-on subminiature coaxial connector provides a fast and reliable connection for high density packaging for applications up to 4GHz. The design permits quick engagement and disengagement.
- Subminiature coaxial connector
- Snap-on coupling
- Low weight and reduced outline dimensions
- Meets MIL-C-39012 and MIL-C-39012/67-72 standard
- -55 to 100�C Temperature range
Applications
Automotive, Communications & Networking, Aerospace, Defence, Military
Product details
| Contact Material | Beryllium Copper |
| Contact Plating | Gold Plated Contacts |
| Connector Type | SMB Coaxial |
| Coaxial Termination | Crimp |
| Connector Mounting | Cable Mount |
| Connector Body Style | Straight Plug |
| Coaxial Cable Types | RG179, RG187, RG188, RG316 |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 4GHz |
Other details
| Brand | RADIALL |
| Part Number | R114082000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
