Description

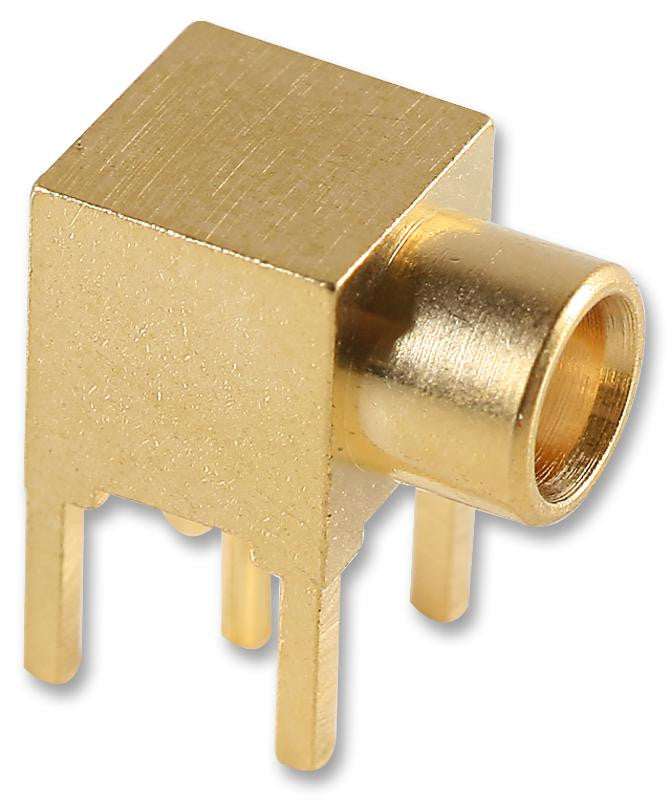

The R113665000 is a right angle MCX Jack Receptacle for PCB solder legs, with gold over nickel plated beryllium copper center contact, gold over nickel plated brass body. This MCX series receptacle has PTFE insulation, PCB mounting and through hole termination. The MCX series connector utilizes the SMB series electrical line and features a particularly simple, compact and robust interface. The MCX series is 30% smaller than the SMB. The MCX series connector helps to miniaturize equipment. It optimizes PCB layouts with its range of models for PCBs including surface mount and press-fit receptacles.
- Subminiature coaxial connector
- Push-pull snap-on mating
- Complies with specification CECC 22220
- -55 to 155�C Temperature range
Applications
Aerospace, Defence, Military, Wireless
Product details
| Contact Material | Beryllium Copper |
| Contact Plating | Gold Plated Contacts |
| Connector Type | MCX Coaxial |
| Coaxial Termination | Through Hole Right Angle |
| Connector Mounting | PCB Mount |
| Connector Body Style | Right Angle Jack |
| Coaxial Cable Types | - |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 6GHz |
Other details
| Brand | RADIALL |
| Part Number | R113665000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
