Description

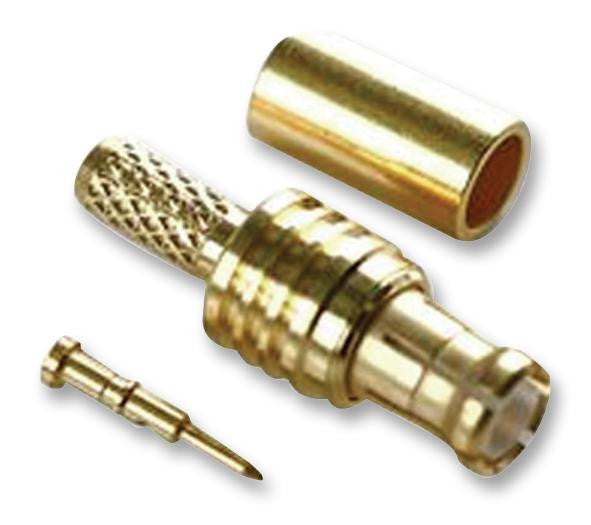

The R113082000 is a straight MCX Plug with gold over nickel plated brass center contact, gold over nickel plated beryllium copper outer contact, gold over nickel plated brass body for 2.6/50 S cable. This MCX series plug has PTFE insulation, cable mounting and crimp termination. The MCX series connector utilizes the SMB series electrical line and features a particularly simple, compact and robust interface. The MCX series is 30% smaller than the SMB. The MCX series connector helps to miniaturize equipment. It optimizes PCB layouts with its range of models for PCBs including surface mount and press-fit receptacles.
- Subminiature coaxial connector
- Push-pull snap-on mating
- Complies with specification CECC 22220
- -55 to 155°C Temperature range
Applications
Aerospace, Defence, Military, Wireless
Product details
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Connector Type | MCX Coaxial |
| Coaxial Termination | Crimp |
| Connector Mounting | Cable Mount |
| Connector Body Style | Straight Plug |
| Coaxial Cable Types | RG316 |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 6GHz |
Other details
| Brand | RADIALL |
| Part Number | R113082000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
