Description

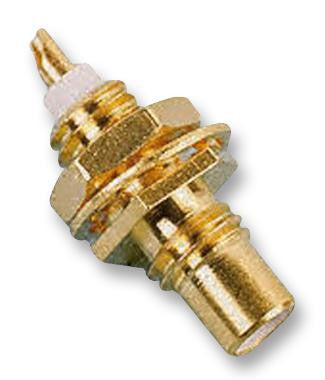

The R112553000 is a straight bulkhead SMC Jack Receptacle with gold over nickel plated brass contact, gold over nickel plated brass body. This SMC series jack receptacle has PTFE insulation, panel mounting and solder termination.
- Subminiature coaxial connector
- Screw-on coupling
- Low weight and reduced outline dimensions
- Meets MIL-C-39012 standard
- -65 to 165�C Temperature rating
Applications
Communications & Networking, Test & Measurement, Aerospace, Defence, Military
Product details
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Connector Type | SMC Coaxial |
| Coaxial Termination | Solder |
| Connector Mounting | Panel Mount |
| Connector Body Style | Straight Bulkhead Jack |
| Coaxial Cable Types | - |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 10GHz |
Other details
| Brand | RADIALL |
| Part Number | R112553000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
