Description

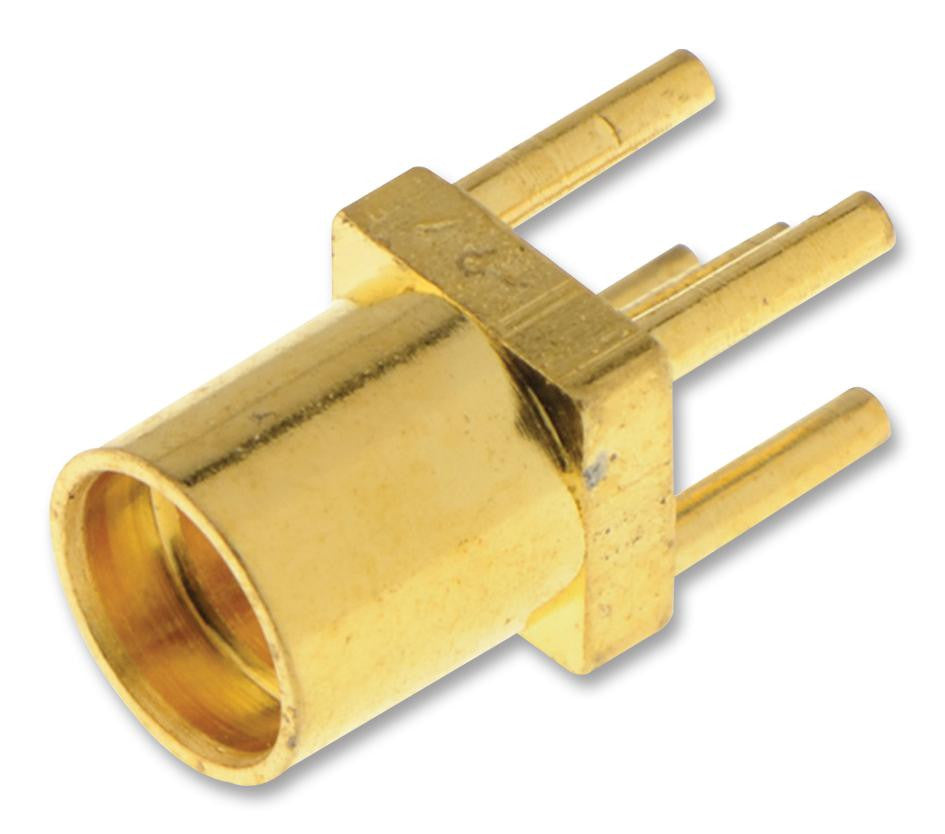

The R110A426000 is a straight MMCX Jack Receptacle for PCB solder legs, with gold-plated beryllium copper female center contact, brass outer contact and gold-plated brass body. This ECO MMCX series receptacle has PTFE insulation, PCB mounting and solder termination.
- -40 to 85�C Temperature range
Applications
Industrial
Product details
| Contact Material | Beryllium Copper |
| Contact Plating | Gold Plated Contacts |
| Connector Type | MMCX Coaxial |
| Coaxial Termination | Solder |
| Connector Mounting | PCB Mount |
| Connector Body Style | Straight Jack |
| Coaxial Cable Types | - |
| Impedance | 50ohm |
| Product Range | ECO Series |
| Frequency Max | 3GHz |
Other details
| Brand | RADIALL |
| Part Number | R110A426000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
