| ₹ 2665.0 includes GST and import duties. | |
| B2B customers can avail ₹ 406.41 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Features & Specs

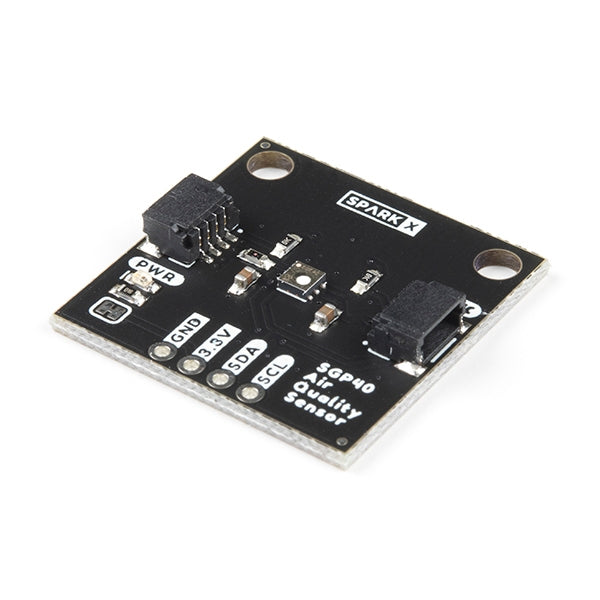

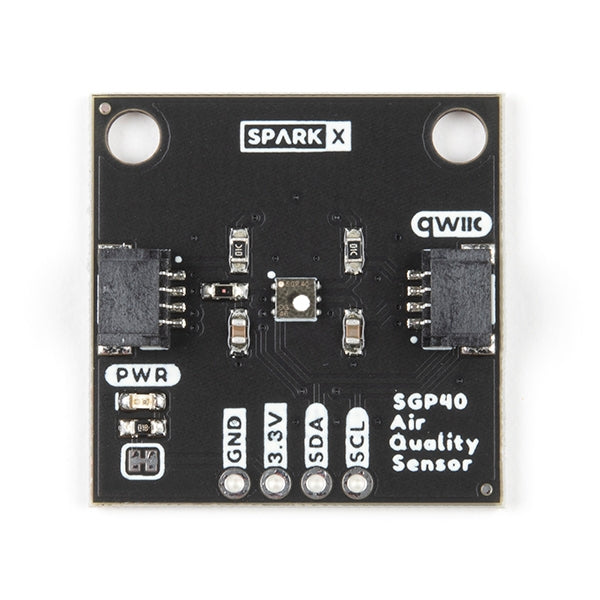

Uses I2C interface (Qwiic-enabled)

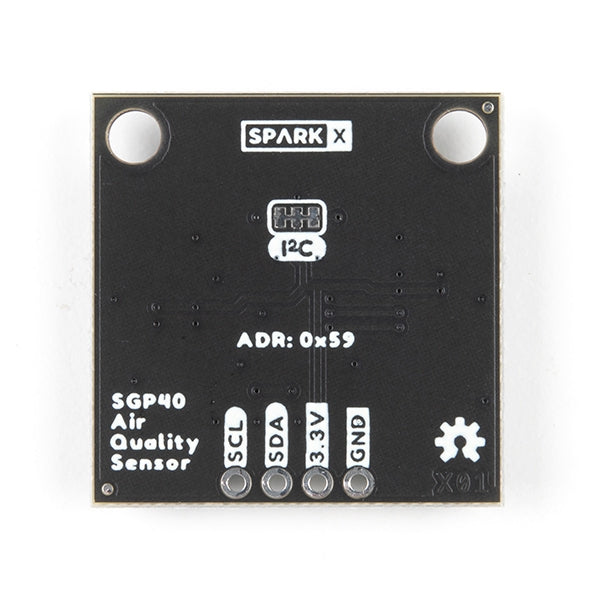

- I2C Address: 0x59
- 2x Qwiic connectors
Operating voltage range:
- 1.7V - 3.6V (Typ. 3.3V)
- The Qwiic interface provides 3.3V
Output signal:
- Digital raw value (SRAW): 0 - 65535 ticks
- Digital processed value (VOC Index): 0 - 500 VOC Index points
Switch-on behavior:
- Time until reliably detecting VOC events: <60s
- Time until specifications are met: <1h
Recommended sampling interval:
- VOC Index: 1s
- SRAW: 0.5s - 10s (Typ. 1s)
Typical current consumption:
- 2.6mA during continuous operation (at 3.3V)
- 34µA when idle (heater off)
Features & Specs
Uses I2C interface (Qwiic-enabled)
- I2C Address: 0x59
- 2x Qwiic connectors
Operating voltage range:
- 1.7V - 3.6V (Typ. 3.3V)
- The Qwiic interface provides 3.3V
Output signal:
- Digital raw value (SRAW): 0 - 65535 ticks
- Digital processed value (VOC Index): 0 - 500 VOC Index points
Switch-on behavior:
- Time until reliably detecting VOC events: <60s
- Time until specifications are met: <1h
Recommended sampling interval:
- VOC Index: 1s
- SRAW: 0.5s - 10s (Typ. 1s)
Typical current consumption:
- 2.6mA during continuous operation (at 3.3V)
- 34µA when idle (heater off)
Documentation
- Sensirion SGP40 Datasheet
- Sensirion VOC Index for Experts
- Sensirion SGP40 Design In Guide
- Schematic
- Eagle Files
- Arduino Library
- Hardware Repo
- Qwiic Information Page
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2611.7 |
| 3-5 | ₹ 2585.05 |
| 5-10 | ₹ 2531.75 |
| 10+ | ₹ 2478.45 |
Bulk discount will be automatically applied during checkout based on quantity.
