Description
QVS VARCA-1P Overview

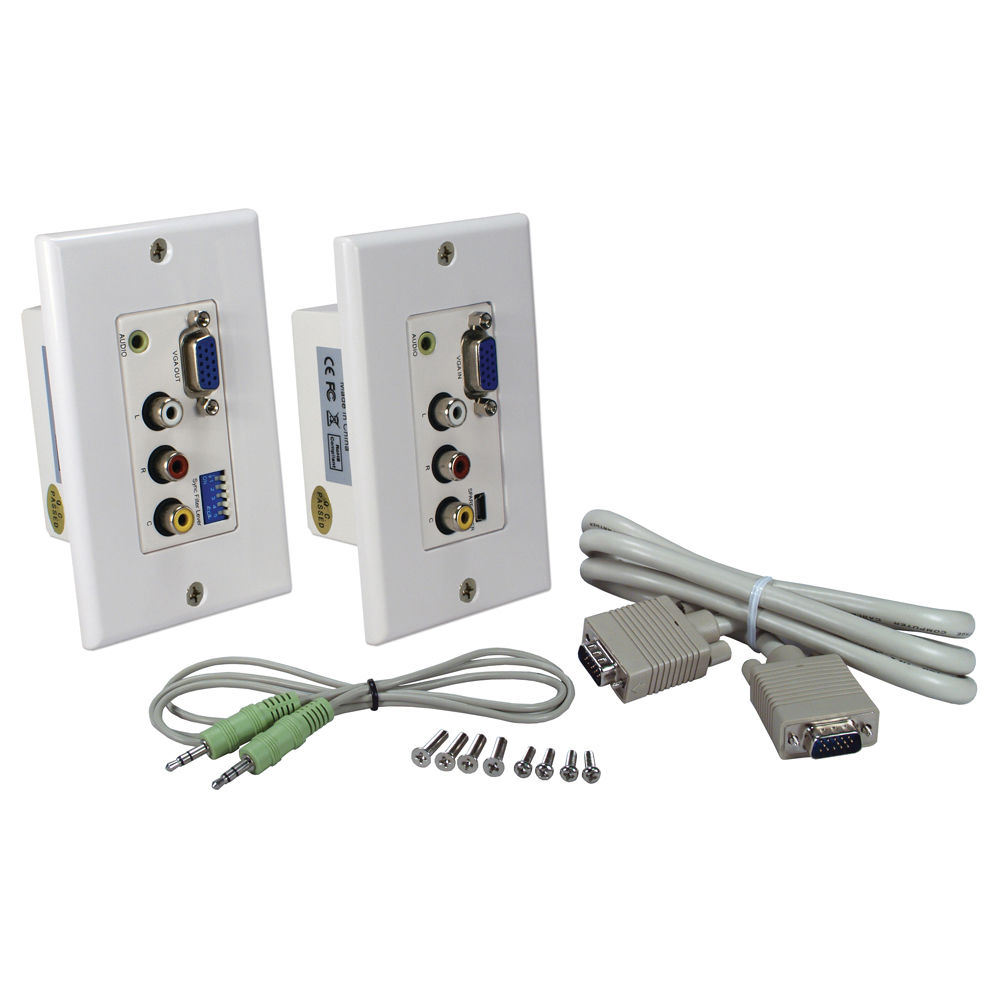

The VARCA-1P PC/VGA & Composite Video with Stereo Audio over Two CAT5e Wall-Plate Extender Kit from QVS includes a transmitter unit, a receiver unit, cables, and mounting screws. It is suitable for computer and regular A/V applications. This wall-plate extender kit has shielded casing to meet government, school, and commercial requirements. Using two CAT5e cables, it provides both PC VGA and stereo audio along with composite audio and video. Both transmitter and receiver have grounding screws. The transmitter unit has a Mini-USB port for optional power. This extender kit supports 1280 x 1024 @ 60Hz up to 98.4'.
Transmits computer & composite audio & video
Works with projector, HDTV and DVD player
Extends up to 100' using dual-CAT5e cable
Decoro-style shielded metal casing with grounding
RoHS, FCC & CE Compliant
UPC: 037229007145
In the Box
- QVS VARCA-1P PC/VGA & Composite Video with Stereo Audio over Two CAT5e Wall-Plate Extender Kit
- VGA Cable
- 3.5mm Cable
- Mounting Screws
- Limited 1-Year Manufacturer Warranty
QVS VARCA-1P Specs
| Signal Type | PC VGA/SXGA & composite |
| Audio | Stereo |
| Video Bandwidth | Up to 100 MHz |
| Maximum Resolution | 1280 x 1024 @ 60 Hz, 98.4' (30 m) |
| Connectors | 1 x 15-pin Sub-D, VGA 1 x 3.5 mm phone jack, stereo audio 2 x RCA, Audio L/R 1 x RCA, video composite 2 x RJ45, CAT5e |
| Insertion Loss | < 3 dB |
| Impedance | RGB: 75 ohms, unbalanced CAT5e: 100 ohms, balanced |
| Video Signal Return Loss | -15 dB max from DC to 60 MHz |
| Certification | RoHS compliant |
| Compatibility | PC, LCD |
| Operating Temperature | 32 to 131°F (0 to 55°C) |
Packaging Info
| Package Weight | 1.65 lb |
| Box Dimensions (LxWxH) | 9.7 x 6.2 x 2.7" |
