Description
QNAP TVS-H Overview
- 1Description
- 2Fast NAS Performance
- 34K Media Playback
- 4Versatile Storage
- 5QuTS Hero
- 6Real-time SnapSync Support

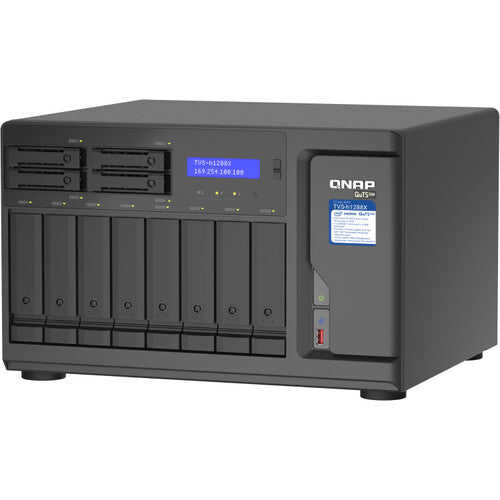

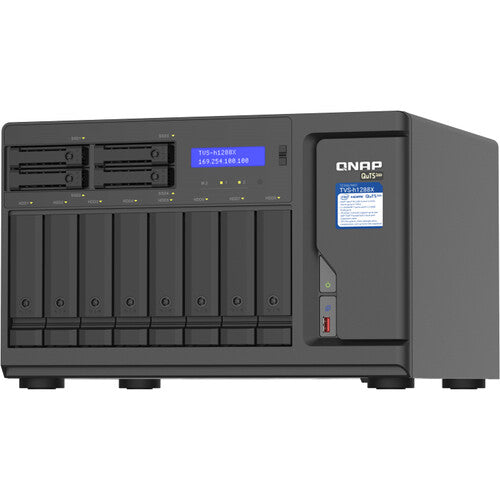

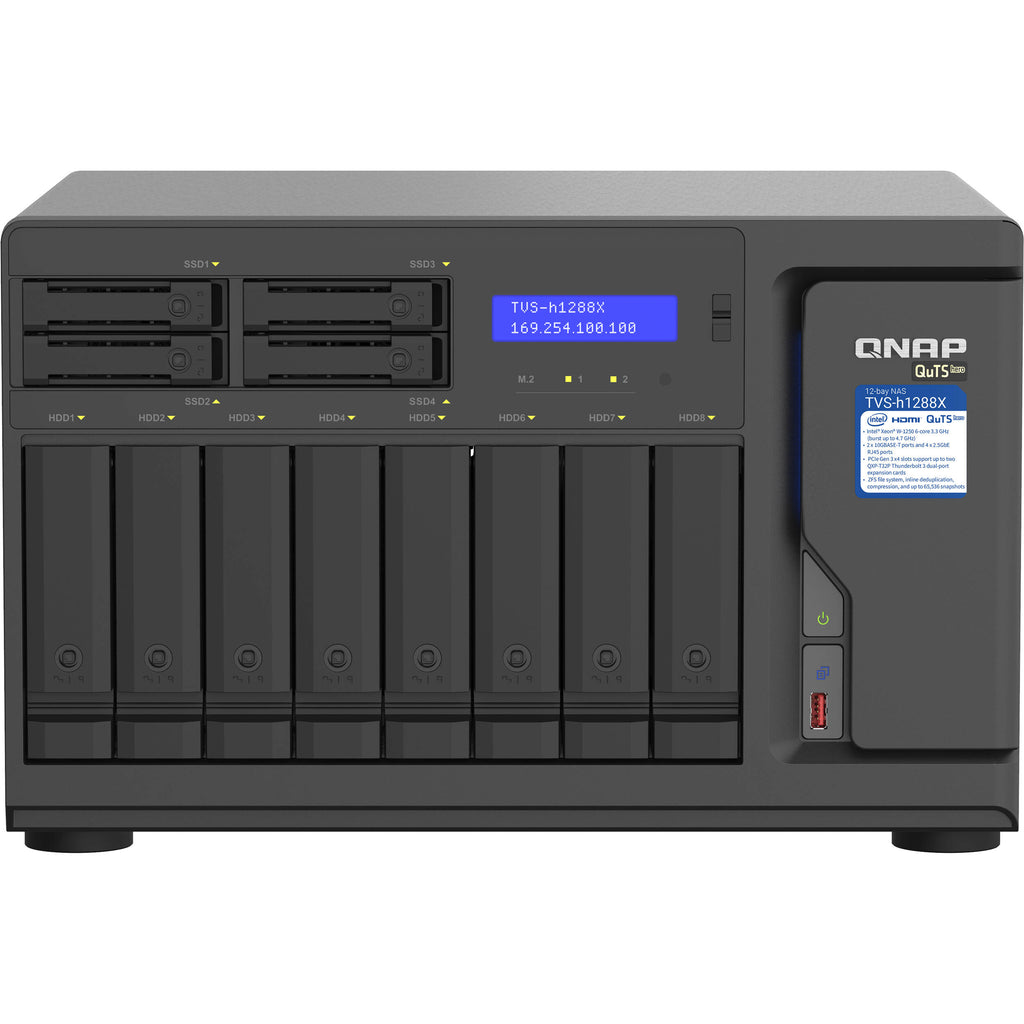

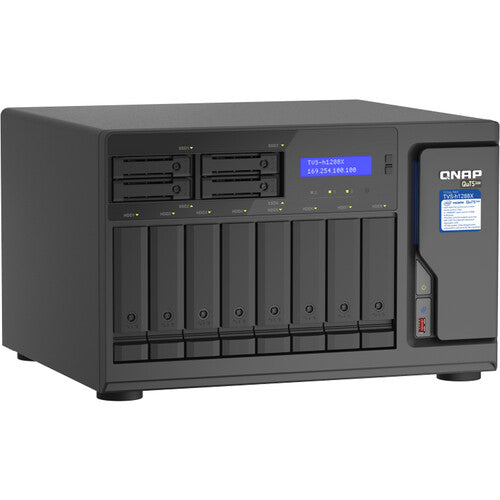

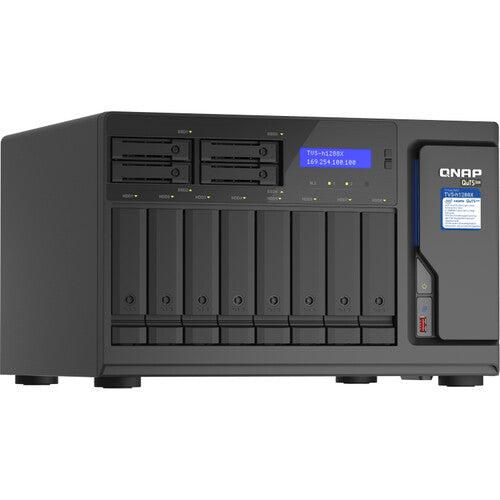

Expand your business's network storage capacity with the exceptionally versatile TVS-h1288X 12-Bay NAS Enclosure from QNAP. Powered by the QuTS Hero operating system and a 3.3 GHz Intel Xeon W-1250 six-core processor with 16GB ECC DDR4 memory, the TVS-h1288X is designed to reliably and securely transfer and share data across your network to streamline workflows and collaboration. The enclosure includes eight 3.5" and four 2.5" hot-swappable SATA III drive bays, and installed drives can be configured in RAID 0, 1, 5, 6, 10, 50, and 60 mode with a hot spare drive. Performance can be further enhanced by installing up to two M.2 2280 or 22110 solid-state cache drives. The TVS-h1288X connects to networks through four 2.5G and two 10G Ethernet ports to optimize the speed and efficiency.
Upgrades such as 25G network adapters and Thunderbolt 3 cards can be installed into the available PCIe 3.0 slots. Other features include 10 Gb/s USB 3.2 Gen 2 Type-A and Type-C ports alongside an HDMI 1.4b output for connecting compatible peripherals. Your data is secured with integrated AES-NI encryption. The TVS-h1288X supports multiple QNAP SATA III and USB Type-C expansion enclosure models for greater capacity.
Fast NAS Performance
4K Media Playback
Versatile Storage
QuTS Hero
Real-time SnapSync Support
In the Box
- QNAP TVS-h1288X 12-Bay NAS Enclosure
- Power Cable
- Ethernet Cable
- 24 x Flat Head Screws for 3.5" HDDs
- 24 x Flat Head Screws for 2.5" HDDs
- 2 x M.2 SSD Heatsinks
- 2 x Drive Tray Keys
- Limited 5-Year Warranty
- Description
- Fast NAS Performance
- 4K Media Playback
- Versatile Storage
- QuTS Hero
- Real-time SnapSync Support
QNAP TVS-H Specs
| CPU | 3.3 GHz Intel Xeon W-1250 6-Core (Maximum Boost: 4.7 GHz) |
| GPU | Intel UHD Graphics P630 |
| Total Installed Memory | 16 GB ECC DDR4 |
| User-Replaceable Memory | 2 x 8 GB |
| Total Memory Slots | 4 x DIMM |
| Maximum Memory Capacity | 128 GB |
| Number of Bays | 8 x 2.5"/3.5" 4 x 2.5" 2 x M.2 (22110) |

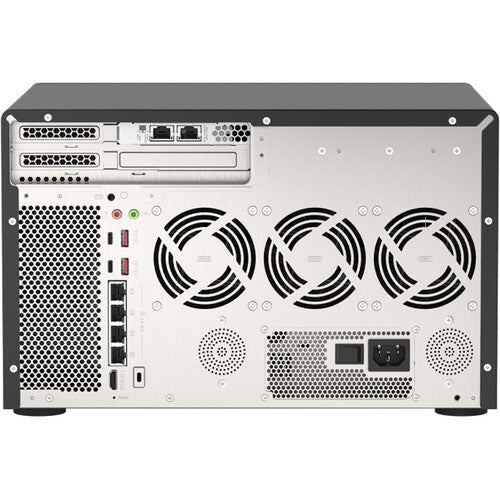

| Connections | 2 x RJ45 (10GbE) 4 x RJ45 (2.5GbE) 2 x USB Type-C (USB 3.1 / USB 3.2 Gen 2 (10 Gb/s)) 3 x USB Type-A (USB 3.1 / USB 3.2 Gen 2 (10 Gb/s)) 1 x HDMI Type-A (HDMI 1.4b) |
| Compatible Drive Interface | SATA II, SATA III |
| Media Card Slots | None |
| Form Factor | Desktop |
| RAID Modes | RAID 0, 1, 10, 5, 50, 6, 60, JBOD |
| Hot-Swap Support | Yes |
| PCI Expansion | 1 x PCIe 3.0 x8 2 x PCIe 3.0 x4 |
| Wake on LAN | Yes |
| Link Aggregation and Failover Support | Yes |
| Supported Protocols | AFP CIFS/SMB FTP HTTP HTTPS IPv4 IPv6 L2TP/IPSec MPIO NFS OpenVPN PPTP Proxy Rsync SAN SFTP SMSC SNMP SSH SSL Syslog TFTP Telnet WebDAV iSCSI |
| iSCSI LUN | 256 |
| iSCSI Target | 256 |
| Max Groups | 200000 |
| Installed Operating System | QTS 4.5.0 |
| OS Compatibility | Windows 7 or Later Windows Server 2008 R2 or Later macOS 10.10 or Later Ubuntu 14.4 or Later CentOS 7 Linux UNIX |
| Supported Browsers | Chrome, Firefox, Internet Explorer, Safari |
| Encryption | 256-Bit AES, FIPS 140-2 Level 2 |
| Security Features | Kensington Security Slot |
| VPN Client Connections | 100 |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Source | AC Adapter |
| Power Consumption | 97.492 W (Typical) 85.216 W (Idle) |
| PSU Wattage | 1 x 550 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 5 to 95% |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Status Monitoring | LCD Screen |
| Audible Alarm | Yes |
| Cooling | 3 x 80 mm Fan 2 x 97 mm Fan |
| Noise Level | 26 dBA |
| Built-In Speakers | None |
| IR Sensor | None |
| Dimensions | 14.56 x 9.24 x 12.59" / 369.82 x 234.7 x 319.79 mm |
| Weight | 24.9 lb / 11.3 kg |
| Package Weight | 32.395 lb |
| Box Dimensions (LxWxH) | 19.4 x 17.6 x 15" |
