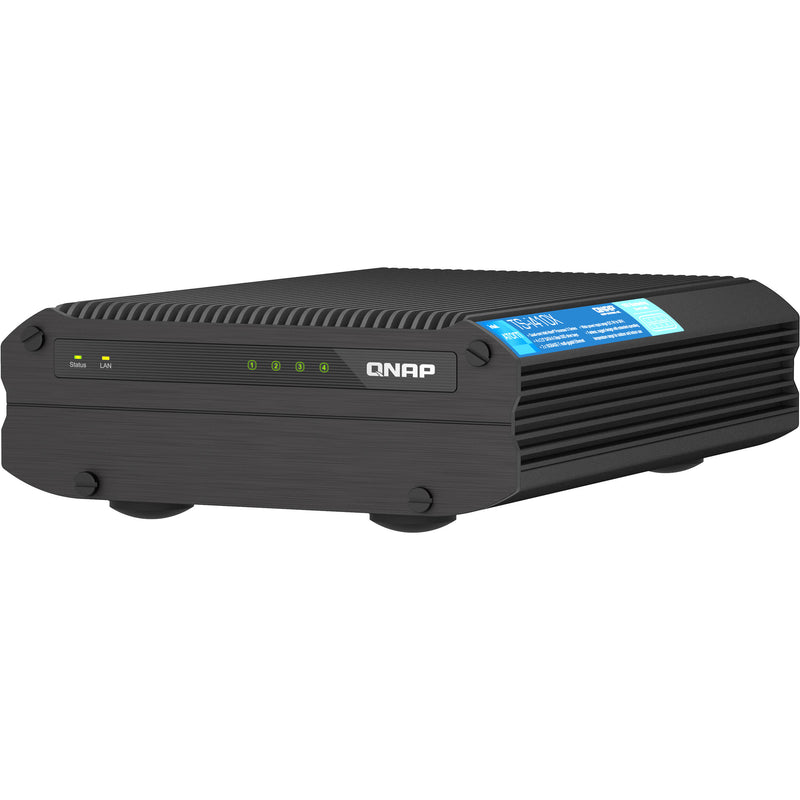

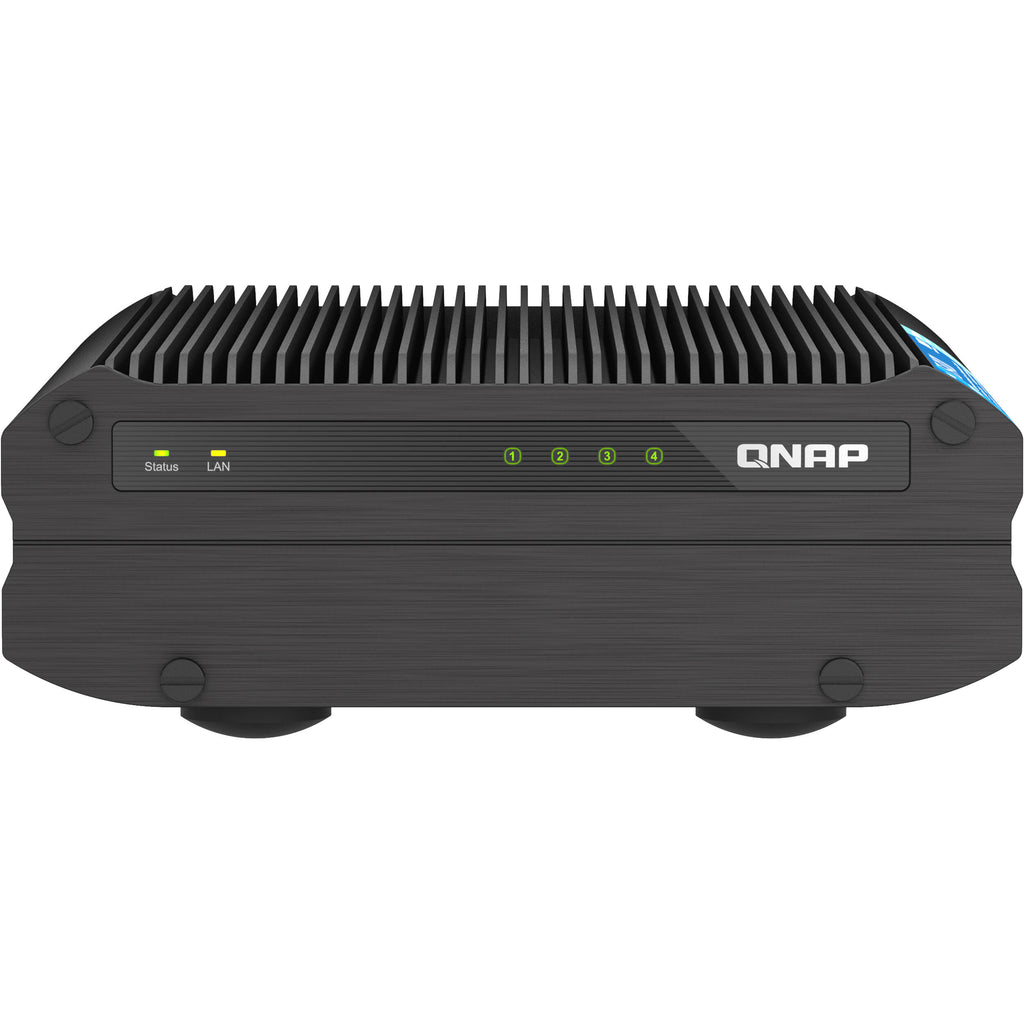

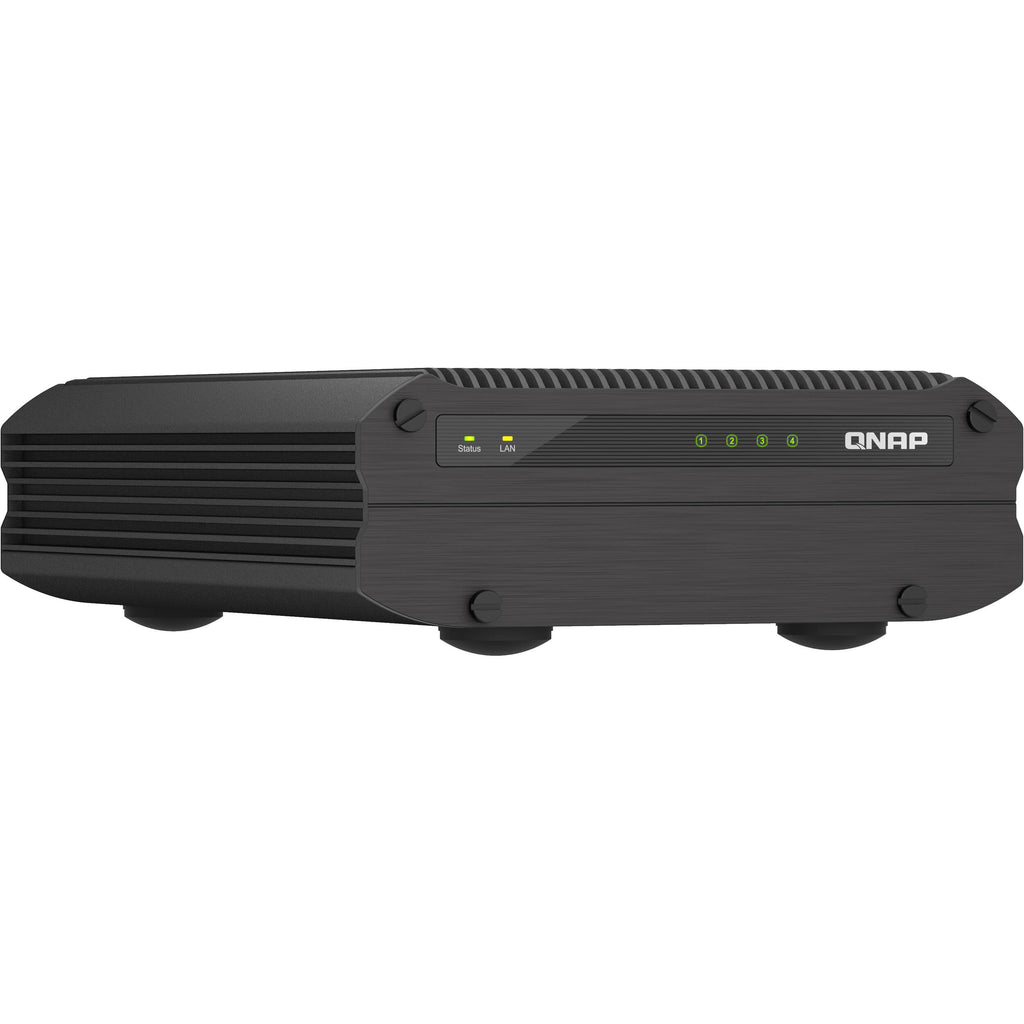

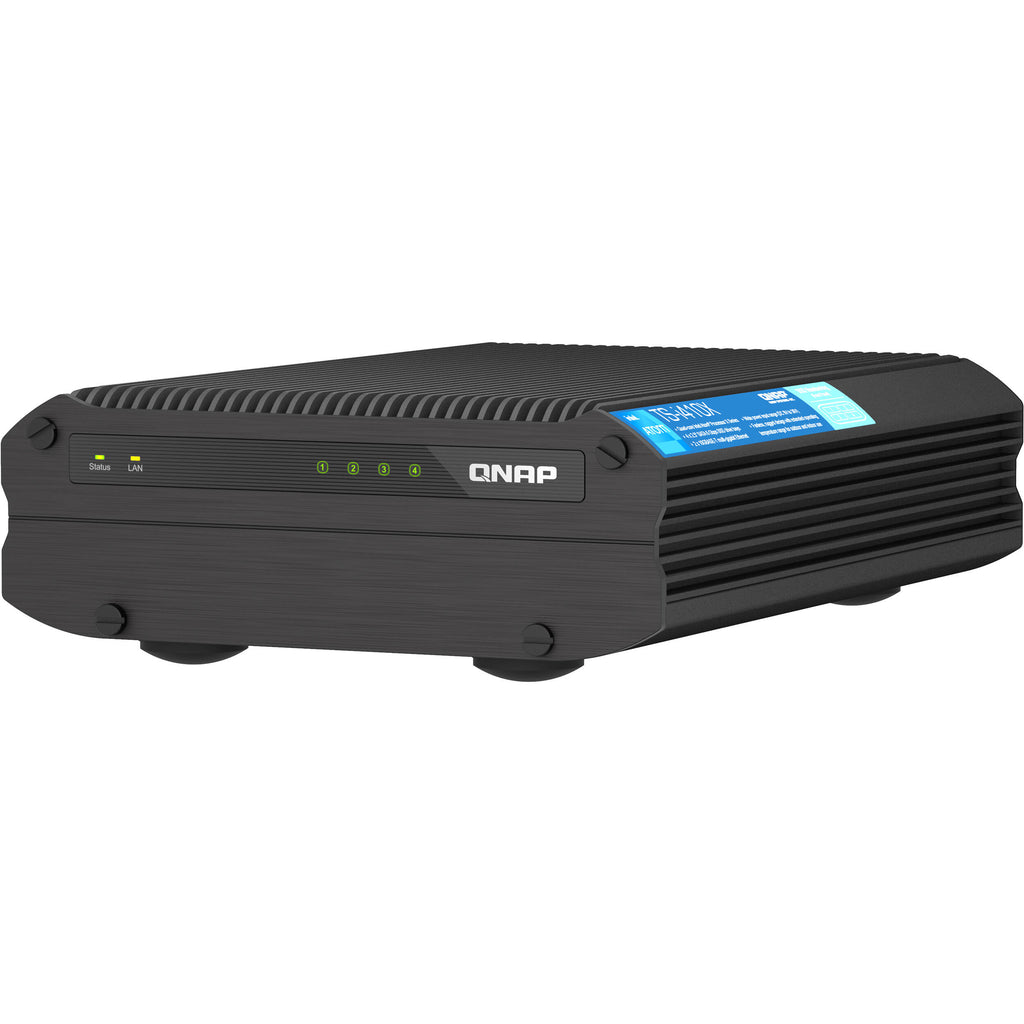

QNAP TS-i410X 4-Bay Industrial NAS Enclosure

2.0 GHz Quad-Core Processor with AES-NI Encrupt

The TS-i410X is powered by a 2.0 GHz Intel Atom x6425E quad-core processor and 8GB of dual-channel memory. With hardware-accelerated AES-NI encryption, the TS-i410X ensures the safety of sensitive business data stored in the NAS. The TS-i410X has four 2.5" SATA 6 Gb/s SSD slots to boost IOPS and meet the performance requirements of demanding applications. Please note, industrial SSDs are recommended.

Long-Term Availability

The TS-i410X is designed for availability and support over an extended period, making it an ideal choice for MSP, SI, and other IT-related businesses and commercial uses requiring matching NAS models for long-term projects.

Industrial-Grade Design

This unit features an industrial-grade hardened hardware design with a 9V ~ 36V DC wide-range power supply. With a fanless design and durable chassis compliant with military-grade MIL-STD-810H specifications, the TS-i410X can operate temperatures from -40°F to 158°F. It can be used as a set-top box, or used with an optional VESA 75 x 75mm wall-mount to provide installation flexibility. Use the included AC adapter for easy installation in a home business or office; a 9 to 36V DC input also recommends TS-i410X industrial and transportation applications with a variety of input voltage requirements.

Please note, the TS-i410X does not support redundant power; to avoid potential injury or damage to components, two power supplies should not be connected simultaneously.

Support for Industrial SSDs

Use of industrial wide-temperature SSDs is recommended. When using industrial wide-temperature SSDs, adjust the disk warning setting to 185°F or 85°C in Storage and Snapshots. Doing this ensures the alert matches the upper limit of SSD operating temperature. By default, the temperature is set at 158°F or 70°C for SSDs.

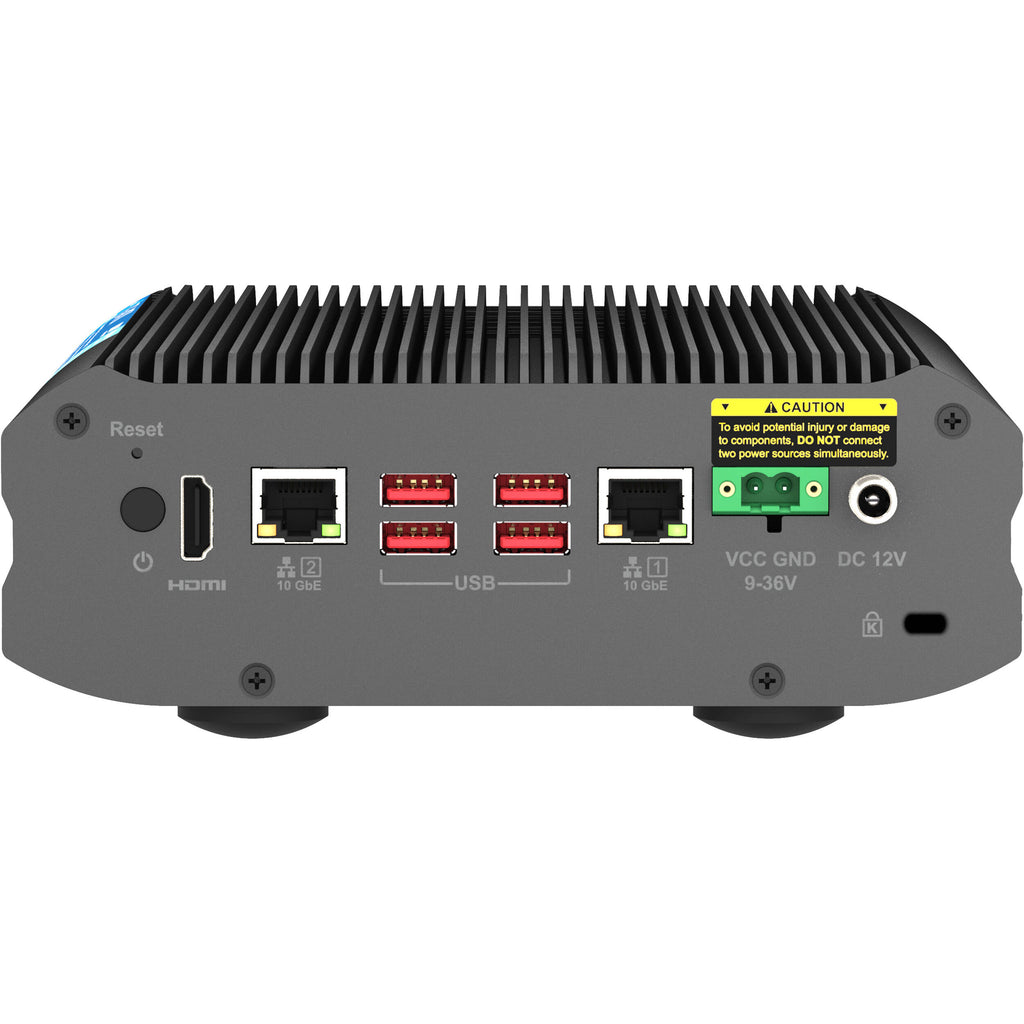

High-Speed 10GbE Connectivity

The TS-i410X provides two 10GBASE-T ports supporting Ethernet speeds up to 10 Gb/s. With QNAP's comprehensive and budget-friendly storage and networking solutions, you can easily and flexibly upgrade workplace or home networks to handle bandwidth-hungry applications. Plus, seven port trunking modes allow you to combine ports for greater bandwidth potential.

Compatible with Industrial-Grade 10GbE Switches

Boost your network performance by pairing the TS-i410X with an industrial-grade 10GbE switch, available separately. QNAP's QSW-IM1200-8C industrial-grade full 10GbE switch is optimized for use with the TS-i410X, accelerating high-speed and reliable network deployment in rugged environments. The QSW-IM1200-8C switch features a robust industrial-grade hardware design, provides Layer 2 management functions with a user-friendly interface, and comes with redundant DC power for reliable operations This design allows the QSW-IM1200-8C to fulfill bandwidth-demanding tasks for varied industrial network environments.

Multiple USB Ports for UPS Support and More

Four USB-A 3.2 Gen 2 ports support speeds up to 10 Gb/s and allow you to quickly backup and transfer large files to and from the TS-i410X. A wide range of USB devices including external hard drives or uninterruptible power supply (UPS) units are also supported for greater functionality and application potential.

Direct 4K HDMI Output for Multimedia and Virtual Machines

The TS-i410X features integrated Intel UHD Graphics that support hardware decoding and real-time transcoding. The HDMI output supports resolutions up to 4K at 30 Hz, benefitting applications such as video production and editing or industrial design that demands high resolution as well as intensive media storage, transfer, and display. By connecting the TS-i410X to an HDMI display, you can operate virtual machines from Virtualization Station or Linux Station, or directly watch multimedia content saved on the NAS.

Please note, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.

M.2 SSD to 2.5" SATA Drive Adapter Support

Install one or more optional QDA-A2MAR adapters in the TS-i410X to use M.2 SATA SSDs and maximize the storage utilization via the 2.5" SATA drive bays. Boost storage efficiency by creating SSD volumes, tiered-storage environments with Qtier technology, or SSD caching. Users can monitor drive health and manage SSD usage from the QTS Storage and Snapshots Manager.

Smart Surveillance Solution for 24/7 Security

QVR Elite is QNAP's subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-i410X and enjoy simplified camera management, storage space allocation, camera live viewing and playback.

Free embedded channels support up to 2 IP cameras; scale camera channels via optional licenses based on monthly subscription plans. A mobile app allows for control and access via a smartphone; use compatible NAS expansion units to scale storage as needs grow.

QTS 5 Operating System

The TS-i410X comes with the QTS 5 operating system as standard, providing a optimal usage experience via an updated system kernel, optimized user interface, and advanced security features. QTS 5 is designed to offer smooth browsing and NAS operation. Intuitive visual design and a convenient search bar in the main menu ensure you find your favorite apps quicker. Plus, when performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.

Comprehensive Backup and Disaster Recovery

The TS-i410X supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed. For Windows, install NetBak Replicator to back up your Windows computer to QNAP NAS. In macOS, just set up the built-in Time Machine to secure your data. Hybrid Backup Sync also makes it easy to back up data from a TS-i410X to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

Take advantage of license-free VMware and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression. Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time. Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.

Multi-Version Snapshots Mitigate Ransomware Threats

The TS-i410X supports block-based snapshots that record the state of the system at any time. This functionality helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware. Take snapshots in seconds and revert the entire volume or LUN back to a specific point in time to prevent loss of important data. Snapshot content can be quickly restored to a local NAS, or restored on a folder or file basis to a local or remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side. Additionally, multiply data protection by backing up snapshot files. Replicate volume and LUN snapshots in the TS-i410X to a remote NAS via Snapshot Replica by copying only the changes made. This helps save time and bandwidth, and can be run manually or on a scheduled basis.

Your File Storage and Collaboration Center

The TS-i410X integrates a range of apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows, Mac, and Linux or UNIX, and provides a smart NAS solution for professionally managing your files.

Use File Station to manage, access, and share all the files in the TS-i410X and view snapshots files, all from your web browser. You can also easily mount remote NAS folders and cloud storage.

Qsync makes any file uploaded to a TS-i410X available via linked devices, such as computers, laptops, and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.

Qsirch, QNAP's powerful Google-like search tool, helps you quickly find images, music, videos, documents, and emails by keywords, color, and other search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.

Employ the Qfiling App to automate your file organization. All you need to do is categorize files and set a schedule; Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.

Comprehensive Security and Privilege Settings

The TS-i410X is loaded with flexible privilege settings and security measures. IP blocking, 2-step verification, HTTPS connection verification, and additional apps help ensure optimal NAS protection against threats like malware and hackers.

The TS-i410X supports simplified yet comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.

QuFirewall protection supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

QVPN supports creating a virtual private network (VPN) client, using the TS-i410X as a VPN server and WireGuard VPN service with an easy-to-use interface for setting up a secure connection. A virtual private network allows secure access to network resources and services across public networks.

Security Counselor provides a security portal for the TS-i410X to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

All-in-One Hosting for Virtual Machines and Containers

By running multiple virtual machines and containers on the TS-i410X, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network and Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Use Virtualization Station to run multiple Windows, Linux, UNIX, Android, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.

Container Station provides access to Experience Docker, LXD, and Kata Containers lightweight virtualization technologies, and allows you to download apps from the built-in Docker Hub Registry, import or export containers, and create abundant microservices.

Linux Station runs Linux applications including apps from the Software Center directly on the NAS and remotely access the Linux desktop from a web browser. The open-source Linux platform is also ideal for Internet of Things development.

Flexible and Economical Storage Expansion

QNAP provides easy ways to expand your storage capacity. Connect expansion enclosures to the TS-i410X, and manage NAS storage expansion with the user-friendly Storage and Snapshots Manager app. Or, mount cloud storage or remote file servers to expand the capacity of the TS-i410X while also centrally managing files on the NAS, cloud storage, and remote devices.

Productivity-Boosting Apps

The TS-i410X provides an App Center that includes feature-rich apps to expand your NAS potential.

• Utilize QmailAgent for email backup and recovery and manage multiple email accounts in their native format with strong security and data integrity.
• Qmiix is an Integration Platform as a Service (iPaaS) solution that enables you to connect apps and devices with QNAP NAS for automating daily tasks for greater productivity.
• Notification Center consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.
• QuObjects provides a high-performance S3 compatible development environment that runs on your TS-i410X to simplify service development workflows, from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.
• Browser Station lets you remotely access protected data on the same LAN as the TS-i410X without going through complex VPN settings.
• QuFTP allows your TS-i410X to function as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.
