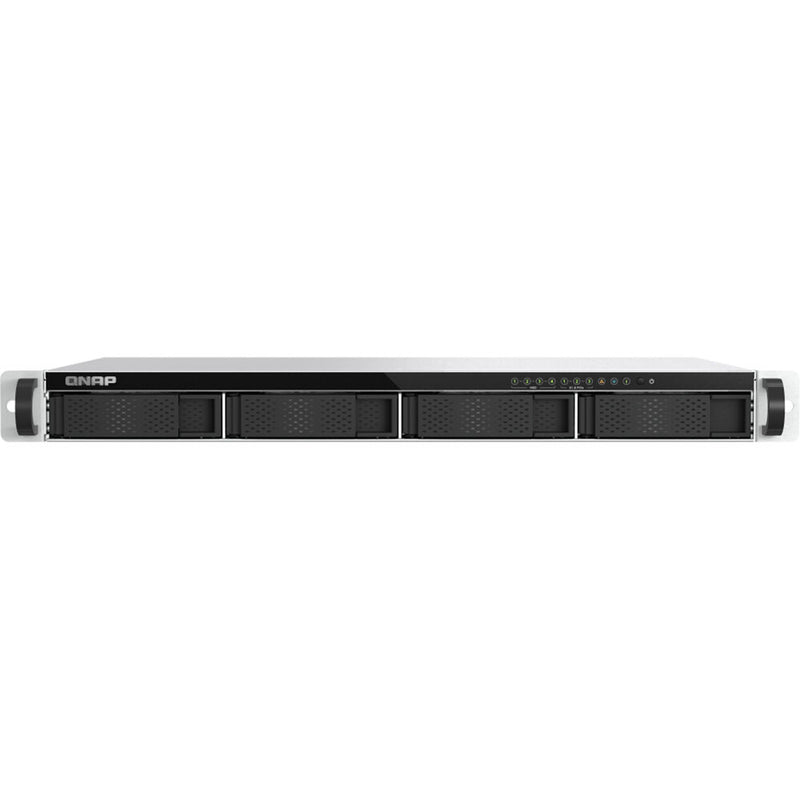

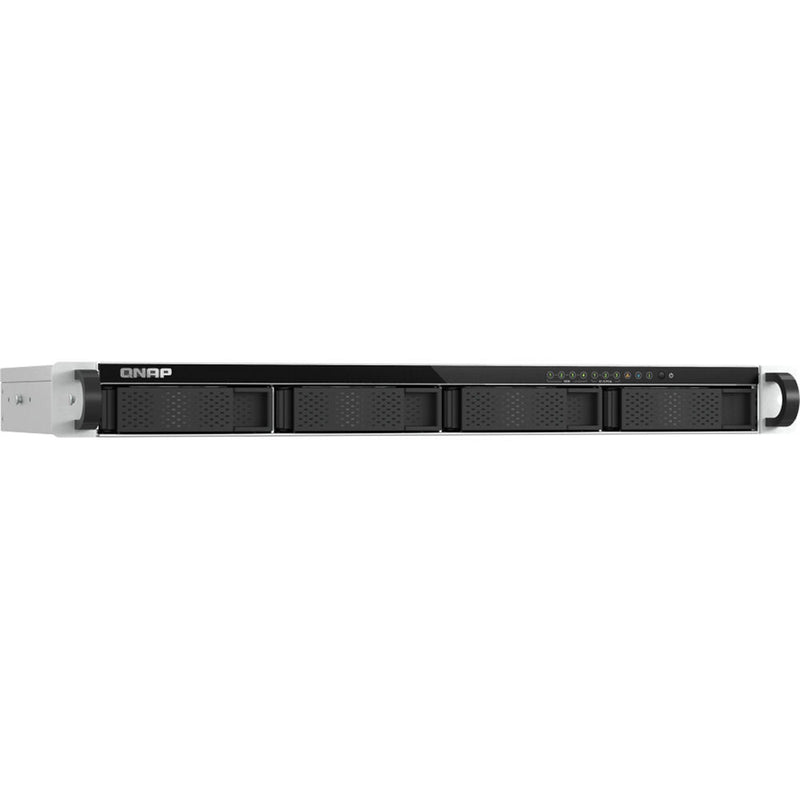

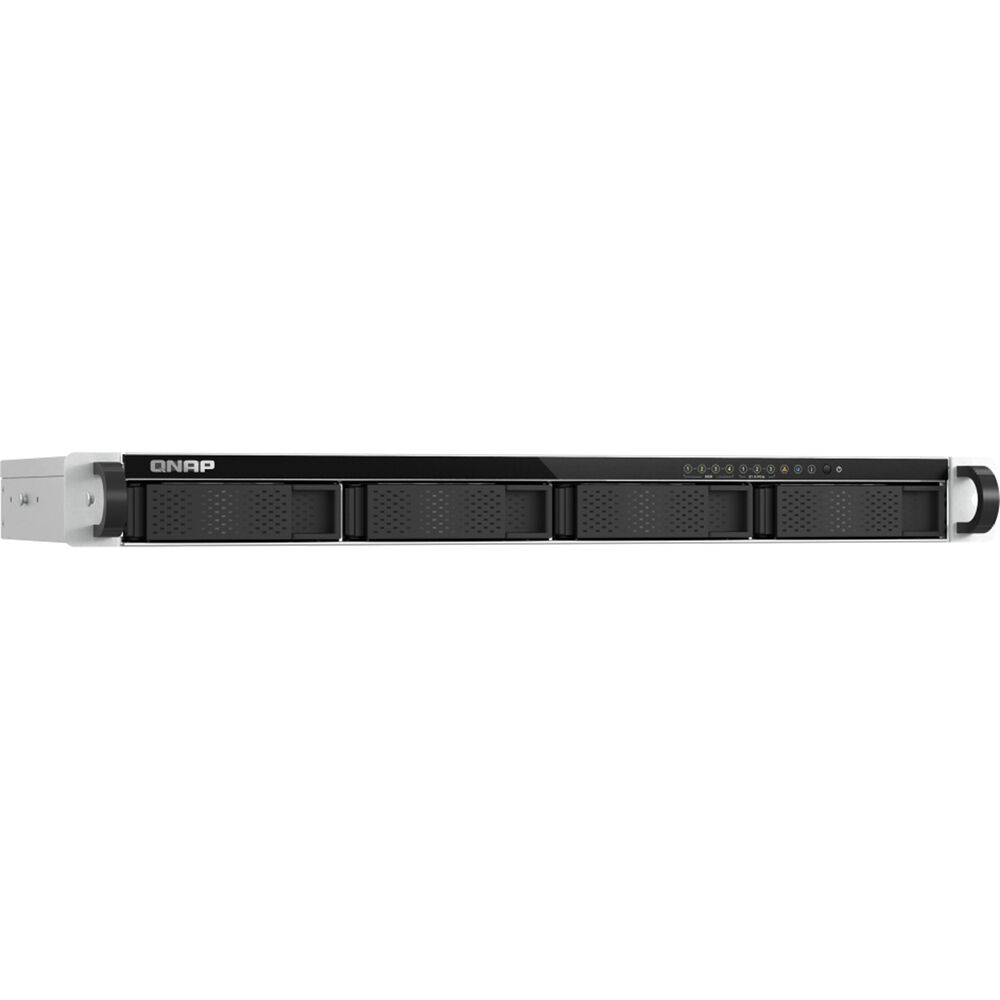

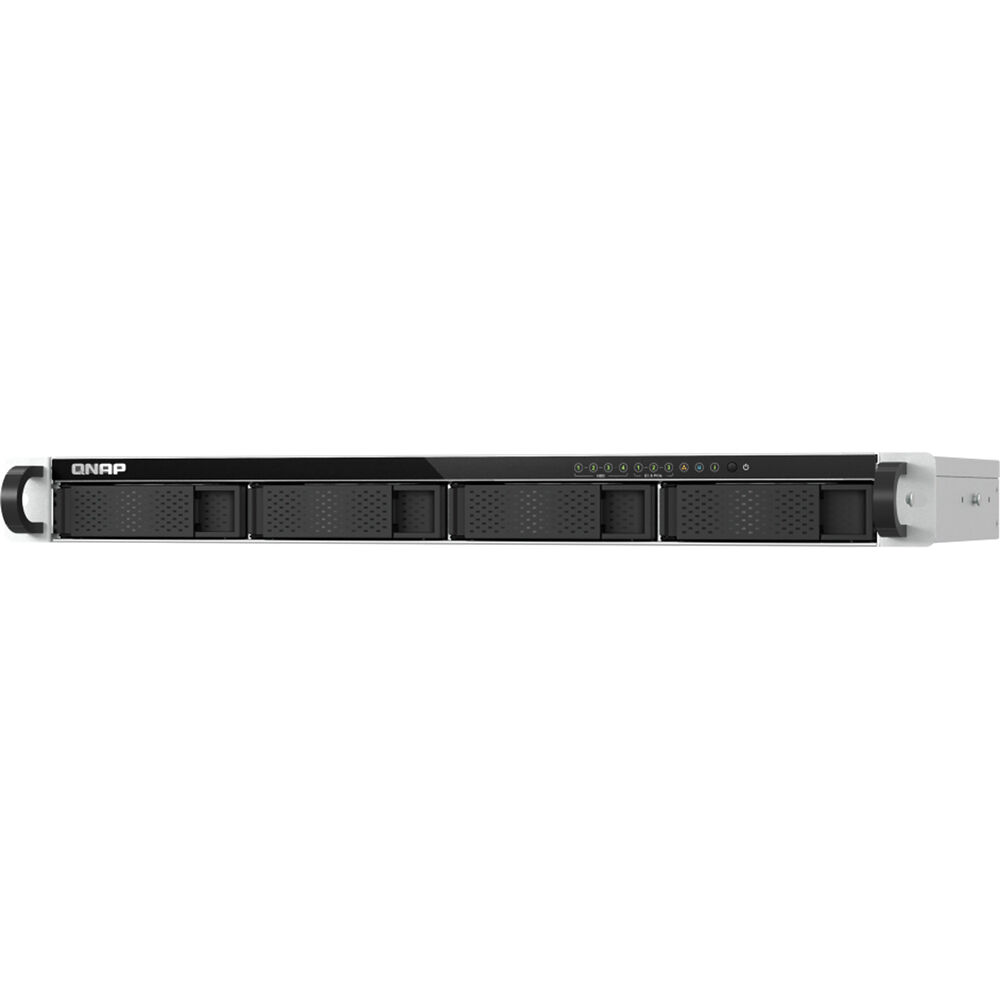

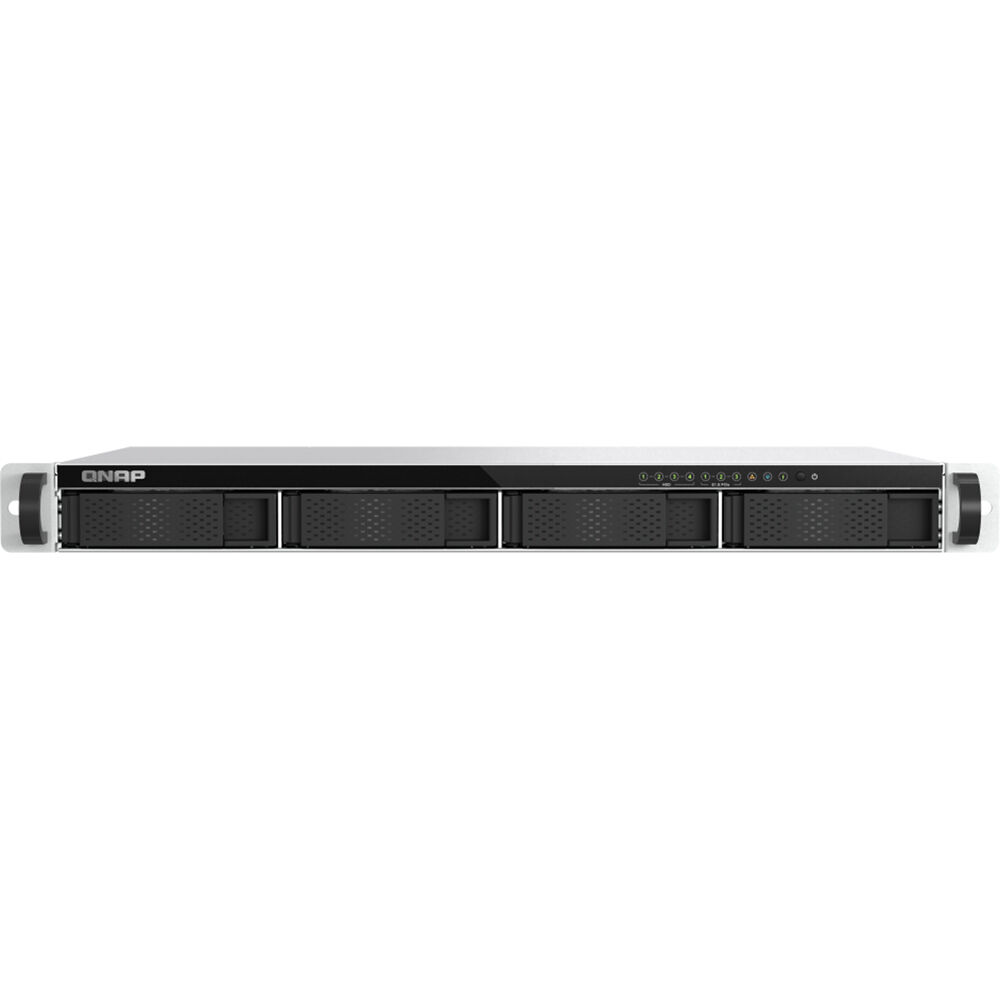

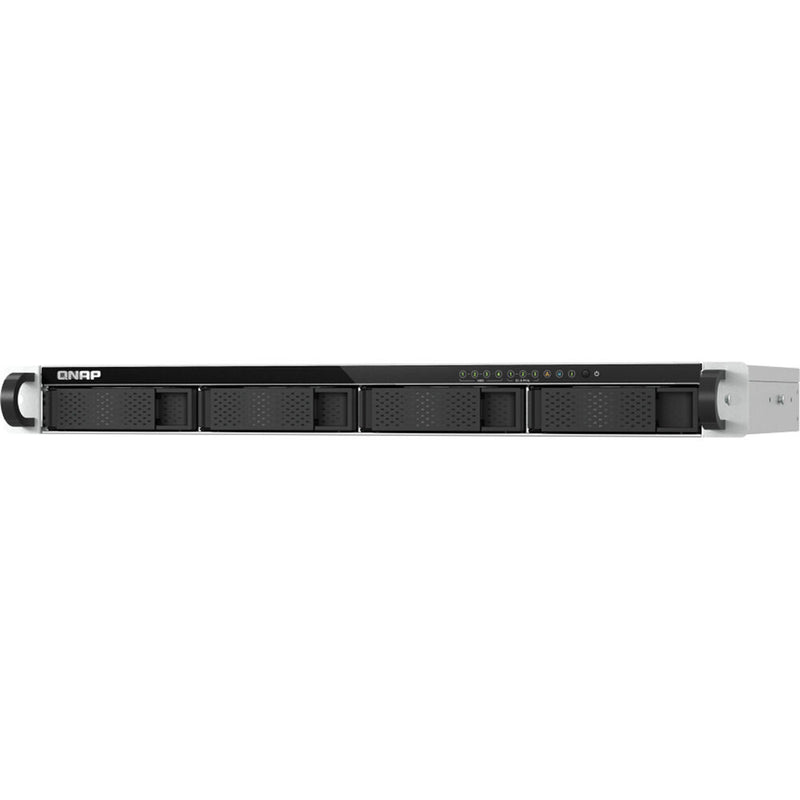

QNAP TS-h765eU 4-Bay NAS Enclosure

1 RU Short-Depth Design for Flexible Deployment

The TS-h765eU has a shorter chassis depth of only 12", making it easy to install in small cabinets and various space-limited environments, including factories, small offices, surveillance rooms, audio/visual rooms, or in-vehicle applications.

Processor

Intel Atom x7405C Quad-Core processor (up to 3.4 GHz).

Memory

Built-in DDR5 non-ECC RAM (supports in-band ECC); upgradable to 16GB (1 x 16GB).

AES-NI Encryption Engine

AES 256-bit hardware-accelerated encryption boosts system performance while securing sensitive data.

Transmission Efficiency

With dual 2.5GbE SMB sequential throughput (1M), users will get read speeds up to 574 MB/s and write speeds up to 591 MB/s. Using dual 10GbE SMB sequential throughput (1M), read speeds reach up to 2358 MB/s and write speeds max out at 2352 MB/s.

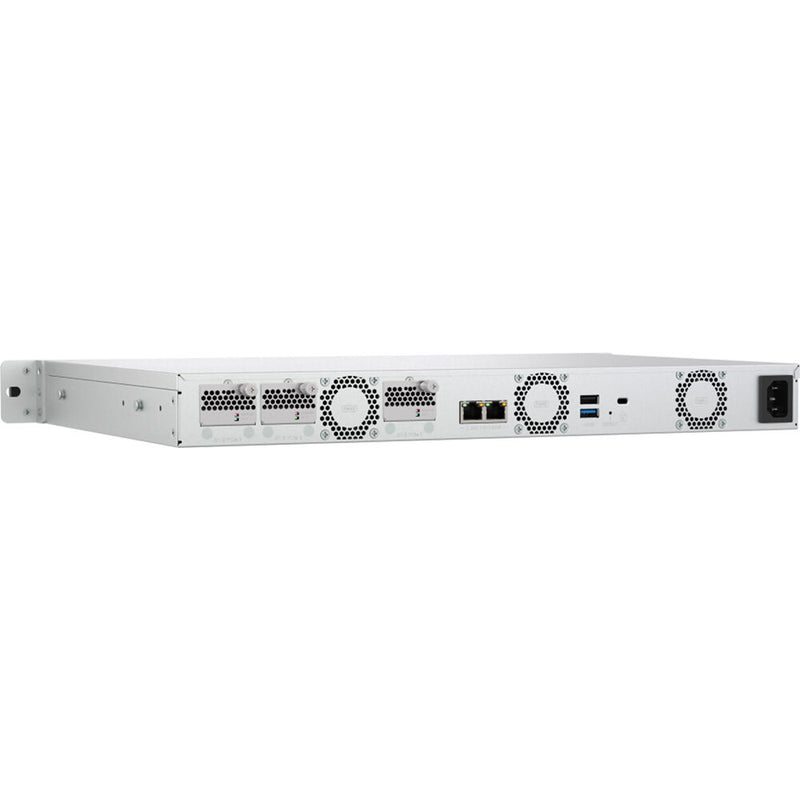

Powerful Expansion with E1.S / M.2 PCIe NVMe Slots

The TS-h765eU comes with three E1.S / M.2 PCIe NVMe slots that offer great NAS flexibility for boosting performance. To reach its full potential, it is recommended to upgrade the TS-h765eU to support high-speed 10GbE networking and pair it with M.2 SSDs.

• Create an SSD System Drive: Use the E1.S / M.2 PCIe NVMe SSD storage pool as the QuTS hero system drive to achieve optimal NAS system performance, efficient application metadata management, and optimized database operations.
• Create an SSD Storage Pool: Create E1.S / M.2 PCIe NVMe SSD volumes to boost intensive data transfer and access performance.
• Enable SSD Caching: Install E1.S / M.2 PCIe NVMe SSDs and enable SSD caching to reduce latency and enhance random read/write efficiency (IOPS) for small files.
• Upgrade to 10GbE: Install a QXG-ES10G1T 10GbE network module for faster network connectivity.

Note: An HS-M2SSD-07 or TPAD-M2SSD-04 thermal kit (optional purchase) is recommended for optimizing M.2 PCIe NVMe SSD cooling efficiency for stable data transfer. Also, before installing a 5.9mm E1.S SSD, please remove the built-in E1.S to M.2 SSD adapter from the slot. Lastly, before installing a 9.5/15mm E1.S SSD, please purchase the TRAY-E1S-01 drive tray for installation.



Surpass the Competitor with Standard 2.5GbE and Flexible 10GbE Upgrade

In modern business IT, a NAS with only 1GbE is a performance bottleneck. The TS-h765eU comes with faster network connectivity which enables businesses to facilitate bandwidth-demanding applications, such as large file access, backup/restore, virtualization, and more.

• Built-in 2.5 GbE: The TS-h765eU comes with two 2.5GbE ports, outperforming similar competitor NAS that only provides 1GbE.
• Upgradable to 10GbE: You can install up to two QXG-ES10G1T E1.S to single 10GbE network modules via the E1.S / M.2 PCIe NVMe slots.
• Enhance Overall Bandwidth: Obtain increased network speed and fault tolerance by configuring Port Trunking.



QuTS hero Operating System

Designed for enterprises, the QuTS hero operating system adopts the highly reliable ZFS file system to provide utmost data integrity and stability for mission-critical storage. QuTS hero further optimizes SSD performance and endurance to meet businesses' stringent demands for performance and reliability.

• Automatic Repair of Corrupted Data: ZFS supports self-healing for silent data corruption, automatically detecting damaged data to ensure data integrity.
• Data Immutability: Enable WORM (Write Once, Read Many) to prevent written data from being overwritten, modified, or deleted, effectively mitigating ransomware threats.
• ZIL (ZFS Intent Log) protects against potential data corruption caused by power failure by safeguarding unwritten data.
• Inline data deduplication reduces storage consumption for maintaining optimal disk capacity.
• Prevent Simultaneous SSD Failure: The patented QSAL algorithm automatically and regularly detects RAID-level SSD lifespan to prevent simultaneous SSD failure, avoiding RAID crashes and data loss.



All-in-One Backup Solution

The TS-h765eU supports various apps that cover all your backup needs.

• NAS/File Server: Supports multiple protocols such as Rsync, FTP and CIFS/SMB for backing up different file servers.
• Cloud: Back up NAS data to/from major cloud services, including QNAP's myQNAPcloud Storage.
• Mac: Set a QNAP NAS as Time Machine backup destination.
• Windows PC/Server: Back up full PC/server systems and manage all backups from multiple devices through a single interface.
• VM: Back up VMware vSphere and Microsoft Hyper-V with dramatically lower costs than others.
• Google Workspace/Microsoft 365: Use QNAP's Boxafe to back up, recover, and manage the data of 10,000+ users over multiple Google Workspace and Microsoft 365.
• WordPress: Backup, restore, or migrate your WordPress site. QNAP NAS can also host a website.
• Google Photos: Migrate archive photos to a QNAP NAS and free up your Google Photos spaces.



Secondary Backup or Restore

By supporting secondary backup, replication, or restore in a single interface, QNAP makes your business Disaster Recovery (DR) quick, easy, and effective.

• NAS and File Server: Use the same interface to configure and run backup, replication, and restore jobs.
• Cloud: Supports advanced technologies to save backup time, spaces, and effort.
• myQNAPcloud Storage: QNAP-hosted cloud storage that only charges for storage space, with transmitting data being completely free.



Real-Time Sync for Seamless Team Collaboration

Whether you're in the office or on the go, you can access the latest files synchronized to TS-h765eU on multiple devices for efficient teamwork. Version Control keeps track of document changes, simplifying file management and restoration.

• Cross-Device Sync: Sync NAS files across multiple devices, including desktops, laptops, tablets, and phones.
• Custom Sync Rules: Set rules for automatic file sync and conflict resolution.
• Team Folders: Share folders with specific teams for collaborative file management.



AI-Powered NAS File Search

• AI-Driven Semantic Search for Images: Use intuitive descriptions and simple-language prompts to find desired images fast. For example, a dog playing on the beach.
• Full-Text Search: Qsirch searches for files based on file name, content, title, metadata, email title and body text, file path, and more.
• Image Search: Search for images by color or object. AI OCR recognizes and enables capturing text from images.
• Document Preview: Preview content of unopened documents, view keyword-relevant paragraphs, and check out a few relevant sentences related to the file subject.
• At-a-Glance File Distribution: Stay informed of storage utilization and distribution of data and files stored on the TS-h765eU via charts and analytics.

Multi-Level Security Strategy for Enterprises

Bolster business data security with resilience from all aspects.

Connection

• Enterprise Private Network Connection: Build secure VPN connection using QVPN Service. Multi-site organizations can leverage QuWAN SD-WAN to quickly set up Mesh VPN for remote workers and branches.
• Filtering Unauthorized Access: Implement QuFirewall to allow/deny specific IP addresses and regions, preventing unauthorized access and cyber threats.

Permission

• Efficient NAS User Management: The TS-h765eU supports Windows AD, Azure AD, and LDAP; Admins can further improve management productivity and NAS security via delegated administration.
• Strengthened NAS Login Security: Set up password-less login or two-factor authentication (2FA) for your NAS accounts to prevent data breaches and unauthorized access.

Transmission: SMB Signing Acceleration

Enable SMB signing to facilitate secure SMB file transfer, while QNAP's exclusive algorithm greatly increases data signing efficiency and data transmission performance.

Assessment

• Security and Risk Assessment: Security Center proactively detects NAS status and unusual file activity, and offers instant protective measures.
• Centralized Notification Management: Centrally manage system events and alert notifications via Notification Center to stay up-to-date with NAS status.
• Block Malware Attacks: Malware Remover regularly scans your NAS. When detecting malware attacks, infected files are immediately blocked and removed to ensure NAS security.

Trusted Storage for Virtualization

• Powerful, Yet Affordable: Cost-effective iSCSI/IP-SAN storage solutions with high bandwidth for reduced latency.
• Flexible & Scalable: Supports multiple protocols and expansion options to meet business needs.
• Data Protection: Offers LUN encryption, snapshots, and backup to ensure data safety.

Compatible with Top-Tier Solutions

The TS-h765eU supports VMware vSphere, Microsoft Hyper-V, and Citrix XenServer mainstream virtualization platforms. With the QNAP CSI Plugin for Kubernetes, the TS-h765eU is also ideal block storage for Kubernetes containerized apps.

Object Storage Certified as Veeam Ready

• Use the TS-h765eU with QuObjects as the premier destination for S3 object storage and backup.
• QuObjects supports Object Lock, validated as Veeam Ready: Object with Immutability.

Run VMs and Containers

With no additional fees, you can run multiple VMs of different OS on TS-h765eU. This allows you to deploy multi-tenant environments and applications to increase management efficiency and save hardware costs.

• VMs: Securely run Windows, Linux, UNIX, and QuTScloud VMs using Virtualization Station.
• Containers: Run Docker, LXD, and Kata containers and download Container apps using Container Station.
• VM High Availability: VM Live Migration and HA (High Availability) guarantee continuous operation and minimal downtime.
• Network & Virtual Switch: Flexibly allocate virtual network resources and configure VLANs to ensure virtual services via the virtual network topology in Network & Virtual Switch.



Surveillance NAS Solution for Business

Surveillance NAS is an easy-to-deploy and cost-effective all-in-one smart surveillance solution. Integrating AI analysis, high-availability failover video surveillance and CMS, Surveillance NAS satisfies professional surveillance demands in all kinds of surveillance scenarios.

• Simplifying Surveillance Structure: An all-in-one surveillance solution integrating NVR and VMS. Record, analyze, and manage videos on surveillance NAS to boost deployment and maintenance efficiency.
• Support ONVIF Cameras: Over 8000 ONVIF cameras from 200+ brands are supported.
• PoE Switch Solution: QNAP offers a one-stop QNAP PoE switch solution designed for connecting the TS-h765eU NAS and IP cameras to simplify network and power cabling.
• Smart AI Surveillance: Surveillance NAS performs AI image identification, analysis, and search on the NVR server side, saving you from having to purchase expensive AI cameras.
• Larger Surveillance Storage: Longer video archiving requirements needs larger storage space.



Use AI-Powered Drive Failure Prediction to Safeguard Your Data

Powered by cloud-based AI engine, DA Drive Analyzer can predict drive failure and lifespan. Enterprises can plan drive replacement in advance to prepare for drive failure before it occurs and prevent data loss.

• Supports SATA / SAS / NVMe drive analysis
• Supports Proxy sever connection
• Completes drive failure prediction in 24 hours
• Customized drive data upload time
• All NAS include 1 drive license for permanently free



Switch to QTS Operating System

The TS-h765eU supports QTS, QNAP's standard NAS operating system. QTS provides great everyday performance and efficient memory utilization. QTS is Suited for cross-teams file sync, and HDD-SSD hybrid storage applications. QuTS hero provides higher data protection and data reduction. Is optimized for SSD-based applications.

Note: You cannot switch a NAS OS with disks installed. You must back up NAS data to another storage space (such as a cloud), remove all disks from the NAS, and then switch the OS.

Extend Hardware Warranty up to 5 Years

The TS-h765eU is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

QNAP TS-H765EU-8G-US Specs

RAID	Yes, Supported RAID Modes: 0 / 1 / 5 / 6 / 10 / 50 / 60
Number of Bays	4x 3.5" SATA III 3x E1.S NVMe

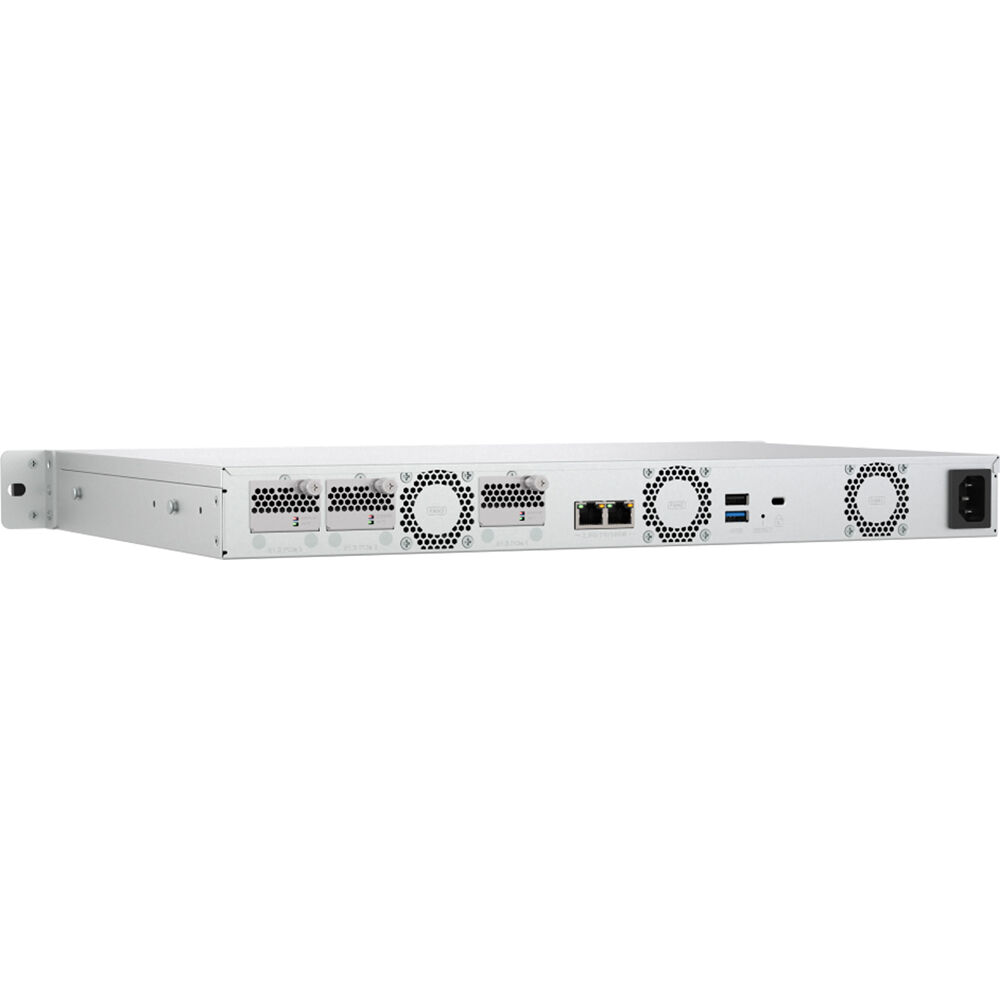

Inputs/Outputs	2x RJ45 2.5GbE 1x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-A 2.0

CPU	Quad-Core: Up to 3.4 GHz
Processor	Intel Atom X7405
Memory	8 GB ECC DDR5
RAM Configuration / Capacity	1x User-Replaceable 8 GB / 1 Slot Supporting up to 16 GB (SO-DIMM)

RAID	Yes, Supported RAID Modes: 0 / 1 / 5 / 6 / 10 / 50 / 60
Transfer Rates	574 MB/s (Read in RAID Mode Unspecified) 591 MB/s (Write in RAID Mode Unspecified)

Number of Bays	4x 3.5" SATA III 3x E1.S NVMe
Inputs/Outputs	2x RJ45 2.5GbE 1x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-A 2.0
Media Card Slots	No
PCI Expansion	No

Link Aggregation and Failover Support	No
iSCSI Support	Yes, 128 LUN / 128 Target

Installed Operating System	QuTS hero h 5.2.3
OS Compatibility	macOS 10.10 or Later Windows 7 to 11 Windows Server 2008 to 2022 Ubuntu 14.4
Mobile App Compatible	Yes: Android & iOS

Encryption	256-Bit AES, FIPS 140-2 Level 1, SED (Hardware-Based)
Security Features	No
VPN Connections	1500 (Client)

Input Power	100 to 240 VAC, 50 / 60 Hz
PSU	1
