Description
QNAP TS-h2477AXU Overview

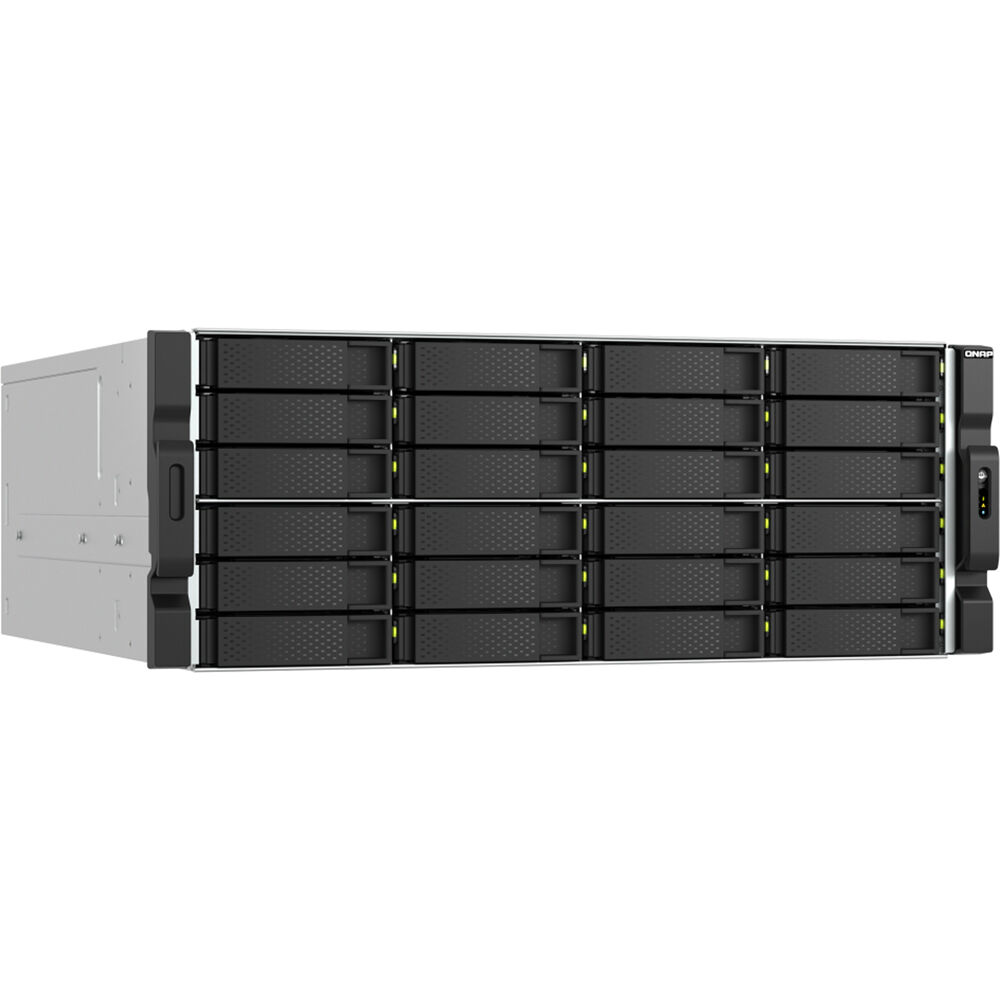

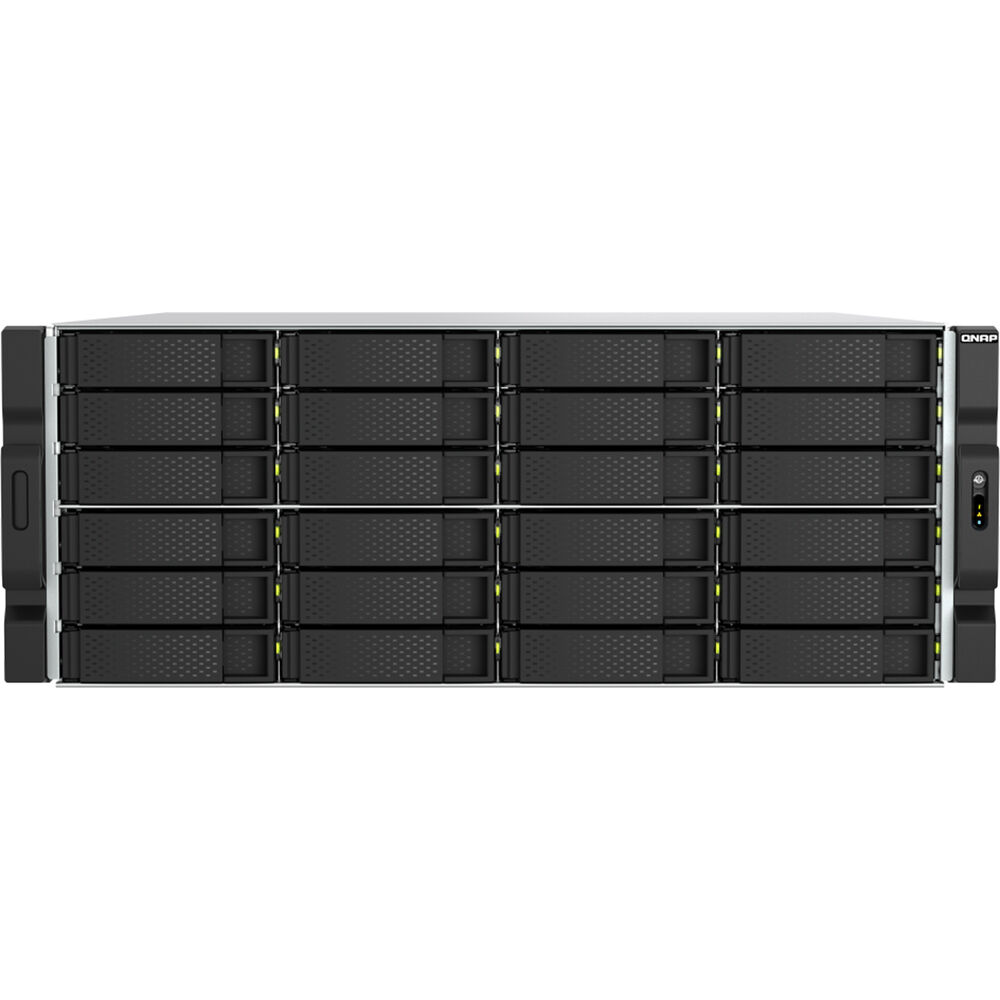

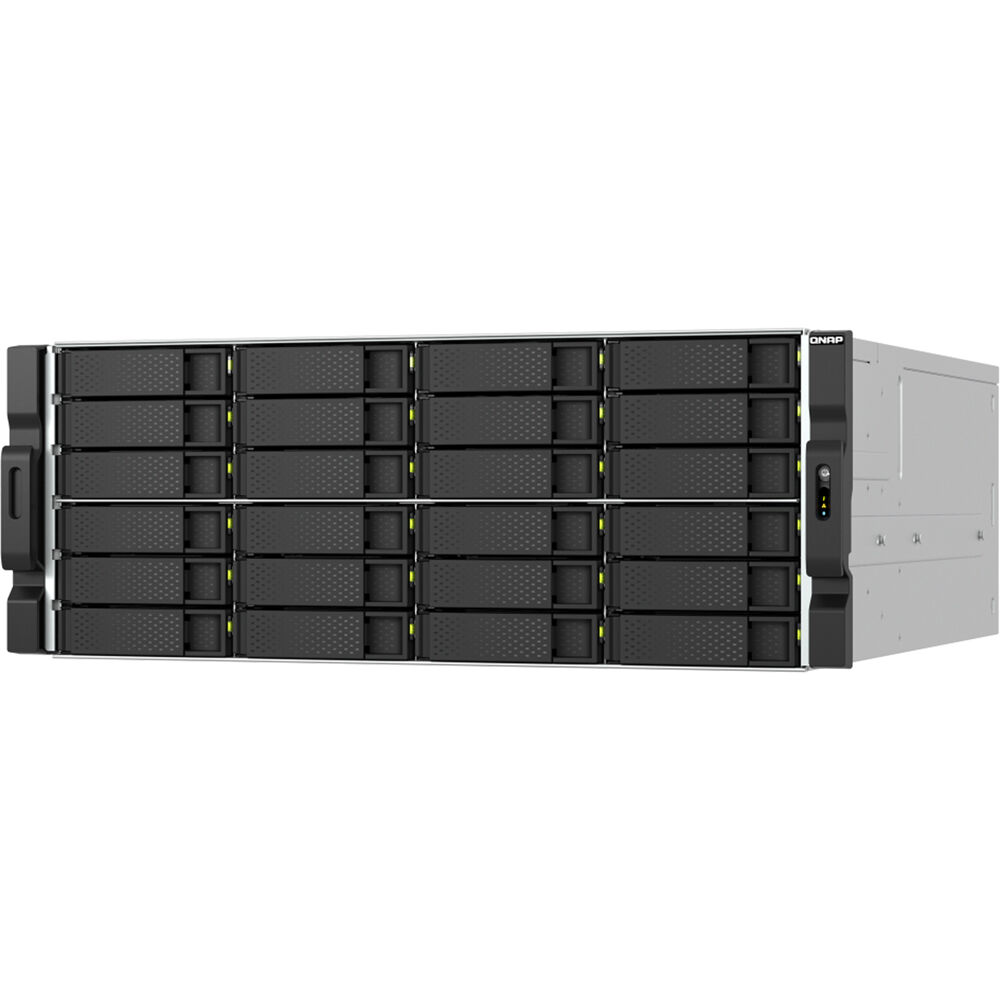

The TS-h2477AXU-RP 24-Bay NAS Enclosure from QNAP is purpose-built for high-performance environments. Its 24 x 3.5"/2.5" SATA III drive bays and dual PCIe Gen 5 M.2 SSD slots handle massive storage volumes and ultra-fast data access, while dual redundant 800W power supplies ensure uninterrupted operation for mission-critical workloads. Powered by a 3.8 GHz AMD Ryzen 7 PRO 7745 8-Core processor, 32GB of DDR5 RAM, and the ZFS file system, it delivers enterprise-level data integrity and protection. This NAS is ideal for mid to large-sized teams running file servers, virtualization platforms, long-term data archiving, media production, and large-scale surveillance recording.

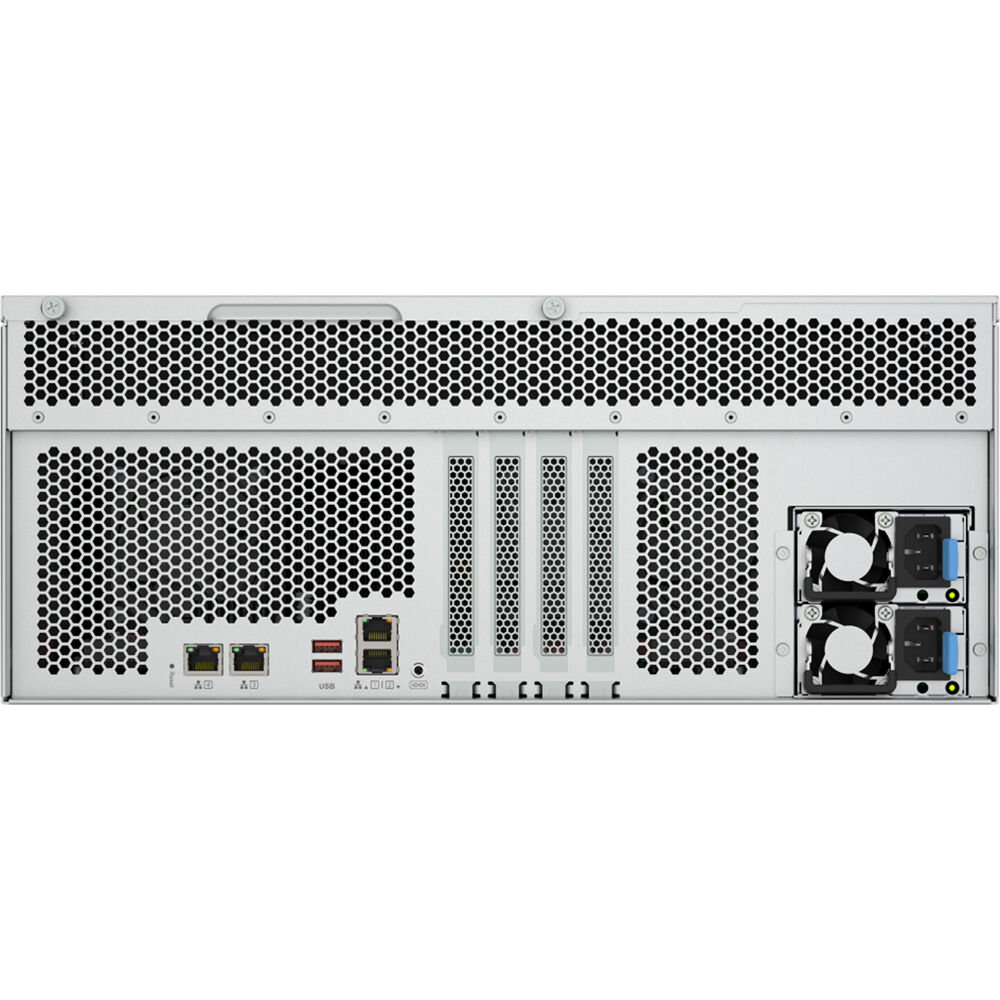

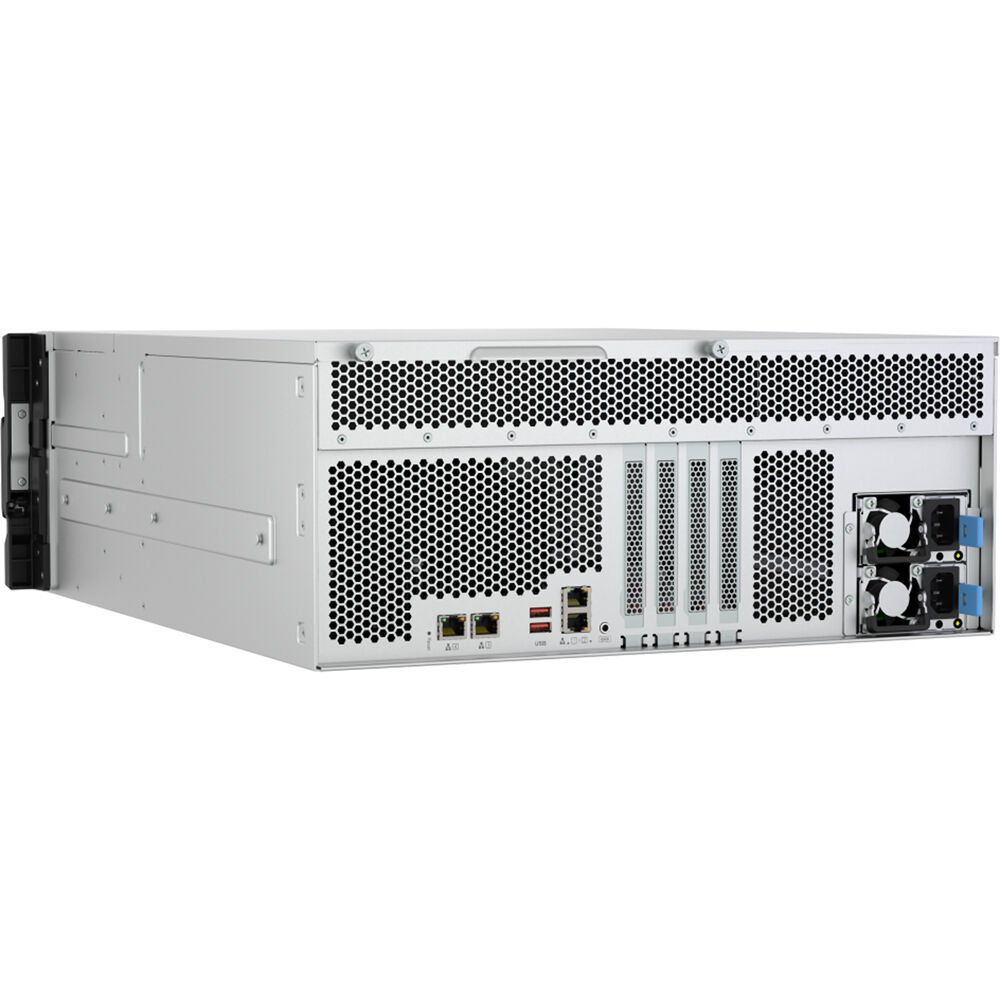

The TS-h2477AXU-RP has two 10GbE ports and two 2.5GbE ports for fast data connections. Peripherals and external storage drives may be added using two USB-A and USB-A 3.2 Gen 2 ports for a maximum throughput of up to 10 Gb/s from compatible devices. Expansions, including 25GbE network cards, M.2 SSDs, GPUs, and additional storage may be added using three PCIe 4.0 expansion slots. Also supported is RAID 0, 1, 5, 6, 10, 50, 60, and JBOD, read speeds of up to 13,094 MB/s and write speeds of up to 12,249 MB/s via 25GbE, AES 256-bit volume encryption, and more. Available operating systems include QTS or QuTS hero.
Enterprise-Grade High-Density Storage for Maximum Space Efficiency
Offers 24-bay HDD capacity with support for M.2 SSDs and dual power supplies, optimizing both space usage and performance. Ideal for centralized backup, cold data archiving, and media asset consolidation, helping enterprises build a stable and efficient storage foundation on-premises.
Powerful Multi-Core Performance for Enterprise Workloads
Engineered for enterprise-grade multitasking and high-performance applications, the TS-h2477AXU-RP ensures stable and seamless computing for virtualization, parallel workloads, and data-intensive tasks.
Processor
A 3.8 GHz AMD Ryzen 7 PRO 7745 processor features 8 cores and 16 threads, with boost speeds up to 5.3 GHz. Integrated AMD Radeon Graphics provides hardware-accelerated graphics processing.
Memory
Equipped with 32GB of DDR5 non-ECC memory that is expandable to 192GB (4 x 48GB).
Transfer Speeds
When using five 25GbE connections, the TS-H2477AXU-RP delivers 4K random reads of up to 1,439, 069 IOPS and 4K random writes of up to 1,045,255 IOPS. Using six 25GbE connections, sequential reads max out at 13,094 MB/s and sequential writes reach as high as 12,249 MB/s.
Flexible Expansion to Petabyte-Scale Storage
The TS-h2477AXU-RP, when equipped with 24 x 30TB drives, provides up to 600TB of storage capacity. You can further scale by connecting multiple high-performance QNAP JBOD expansion units that support SAS or SATA drives. For example, connecting 8 x 24-bay PCIe JBOD TL-R2400PES-RP units adds 192 additional drives, eliminating your storage capacity concerns.
Built-in 10GbE & 2.5GbE, Upgradeable to 25GbE
Supports Port Trunking for Redundant Connections
Dual 10GbE and 2.5GbE ports with optional 25GbE expansion. Aggregates bandwidth and ensures network fault tolerance for stable data transfer under load or failure.
Multi-User Collaboration with Network Switch
Upgrade with a 25GbE expansion card and high-speed switch for seamless multimedia collaboration, enabling efficient file access and real-time editing across multiple workstations.
Dual 10GbE and 2.5GbE ports with optional 25GbE expansion. Aggregates bandwidth and ensures network fault tolerance for stable data transfer under load or failure.
Multi-User Collaboration with Network Switch
Upgrade with a 25GbE expansion card and high-speed switch for seamless multimedia collaboration, enabling efficient file access and real-time editing across multiple workstations.
M.2 PCIe Gen 5 Slots Enable Flexible Upgrades
The TS-h2477AXU-RP features two M.2 2280 PCIe Gen 5 slots which support NVMe SSDs for exceptional read/write speeds. PCIe Gen 5 is backwards compatible with PCIe Gen 4 and Gen 3, providing flexible storage performance and expansion options.
Note: M.2 SSDs are sold separately. Due to limited physical space, you should remove large heatsinks from M.2 SSDs and replace them with QNAP's M.2 SSD heatsink before installing in the TS-h2477AXU-RP.
Note: M.2 SSDs are sold separately. Due to limited physical space, you should remove large heatsinks from M.2 SSDs and replace them with QNAP's M.2 SSD heatsink before installing in the TS-h2477AXU-RP.
SSD Caching or Storage Pool Configuration
Configure SSDs as cache drives or create M.2 NVMe SSD storage pools to accelerate intensive data access and deliver blazing-fast performance.
Power Failure Protection
Add M.2 SSDs to enable ZIL power failure protection, ensuring that the NAS can continue completing unfinished data writes after power outage followed by a power restoration, and preventing data corruption while modifying data.
Optimized PCIe Gen 4 Slots for Advanced Expansion Cards
The TS-h2477AXU-RP has three PCIe Gen 4 slots which provide versatile expansion options, optimizing application performance and overall system efficiency.
Network Expansion: 2.5/10/25GbE Expansion Card
Add more network ports and bandwidth to speed up large file transfers, backups, and virtualization. Port Trunking boosts performance further while ensuring network resilience.
M.2 Slot Expansion: QM2 Expansion Card
Add M.2 SSDs for high-speed storage pools or cache acceleration, reducing latency and improving overall system responsiveness.
GPU Expansion: Graphics Card
Enhance video editing and transcoding capabilities or leverage GPU Passthrough to accelerate virtual machine graphics processing.
Storage Expansion: Storage Expansion Cards
Expand storage capacity by connecting multiple high-performance QNAP JBOD devices, ideal for large-scale data storage, backups, and long-term archiving.
Network Expansion: 2.5/10/25GbE Expansion Card
Add more network ports and bandwidth to speed up large file transfers, backups, and virtualization. Port Trunking boosts performance further while ensuring network resilience.
M.2 Slot Expansion: QM2 Expansion Card
Add M.2 SSDs for high-speed storage pools or cache acceleration, reducing latency and improving overall system responsiveness.
GPU Expansion: Graphics Card
Enhance video editing and transcoding capabilities or leverage GPU Passthrough to accelerate virtual machine graphics processing.
Storage Expansion: Storage Expansion Cards
Expand storage capacity by connecting multiple high-performance QNAP JBOD devices, ideal for large-scale data storage, backups, and long-term archiving.
Meets Diverse Business Needs
Tier 2 Storage
Fulfills high-speed transfer performance as a cost-effective Tier 2 storage solution.
Virtualization
Supports GPU passthrough to VMs by leveraging graphics cards; coupled with inline data deduplication to maximize storage efficiency.
4K/8K Video Editing
Supports up to three additional high-speed 25GbE network cards, delivering the bandwidth needed for 4K/8K media transfer, online editing, and post-production workflows.
PB-Level Storage
Achieve futureproof PB-level storage by connecting up to eight 24-bay TL-R2400PES-RP PCIe JBOD units to the TS-h2477AXU-RP.
Fulfills high-speed transfer performance as a cost-effective Tier 2 storage solution.
Virtualization
Supports GPU passthrough to VMs by leveraging graphics cards; coupled with inline data deduplication to maximize storage efficiency.
4K/8K Video Editing
Supports up to three additional high-speed 25GbE network cards, delivering the bandwidth needed for 4K/8K media transfer, online editing, and post-production workflows.
PB-Level Storage
Achieve futureproof PB-level storage by connecting up to eight 24-bay TL-R2400PES-RP PCIe JBOD units to the TS-h2477AXU-RP.
Secure Data Access at Your Fingertips
Access NAS Data Like from a Local Folder
Map your TS-h2477AXU-RP NAS folders as network drives on your computer, and access files like they were stored locally.
Cross-Platform File Sharing
Supporting SMB/CIFS, AFP, WebDAV, and NFS protocols, the TS-h2477AXU-RP enables seamless file sharing and transfer across Windows, macOS and Linux computers, without compatibility concerns.
Secure Remote Access
Use QVPN to create a secure virtual private network to access to the TS-h2477AXU-RP. Businesses can further leverage QuWAN to swiftly set up Mesh VPNs, allowing employees to easily join VPN and systems on intranet.
Map your TS-h2477AXU-RP NAS folders as network drives on your computer, and access files like they were stored locally.
Cross-Platform File Sharing
Supporting SMB/CIFS, AFP, WebDAV, and NFS protocols, the TS-h2477AXU-RP enables seamless file sharing and transfer across Windows, macOS and Linux computers, without compatibility concerns.
Secure Remote Access
Use QVPN to create a secure virtual private network to access to the TS-h2477AXU-RP. Businesses can further leverage QuWAN to swiftly set up Mesh VPNs, allowing employees to easily join VPN and systems on intranet.
High availability (HA) and Failover with Dual-NAS Architecture
Avoid unplanned downtime and data loss. Create a HA cluster with two TS-h2477AXU-RP - one as the active server, and the other as the passive server. If an unexpected failure or issue with the active server occurs, the passive server provides immediate protection with automatic failover. This ensures continuous storage service and system availability.
Easy Management and Monitoring
Use the High Availability Manager app to easily configure, remove, or rebuild clusters.
Guaranteed Data Consistency
Real-time data sync between active and passive servers minimizes the risk of data loss (RPO).
Ensured Continuity of Critical Business
The passive server takes over within 1 minute if the active server fails (RTO ? 90 secs).
Easy Management and Monitoring
Use the High Availability Manager app to easily configure, remove, or rebuild clusters.
Guaranteed Data Consistency
Real-time data sync between active and passive servers minimizes the risk of data loss (RPO).
Ensured Continuity of Critical Business
The passive server takes over within 1 minute if the active server fails (RTO ? 90 secs).
Trusted Storage for Virtualization
Powerful, Yet Affordable
Cost-effective iSCSI/IP-SAN storage solutions with high bandwidth for reduced latency.
Flexible & Scalable
Supports multiple protocols and expansion options to meet business needs.
Data Protection
Offers LUN encryption, snapshots, and backup to ensure data safety.
Cost-effective iSCSI/IP-SAN storage solutions with high bandwidth for reduced latency.
Flexible & Scalable
Supports multiple protocols and expansion options to meet business needs.
Data Protection
Offers LUN encryption, snapshots, and backup to ensure data safety.
Compatible with Top-Tier Solutions
The TS-h2477AXU-RP supports VMware vSphere, Microsoft Hyper-V, and Citrix XenServer mainstream virtualization platforms. With the QNAP CSI Plugin for Kubernetes, the TS-h2477AXU-RP is also ideal block storage for Kubernetes containerized apps.
Object Storage Certified as Veeam Ready
Use the TS-h2477AXU-RP with QuObjects as the premier destination for S3 object storage and backup. QuObjects supports Object Lock, validated as Veeam Ready - Object with Immutability.
Run VMs and Containers
With no additional fees, you can run multiple VMs of different OS on TS-h2477AXU-RP. This allows you to deploy multi-tenant environments and applications to increase management efficiency and save hardware costs.
VMs
Securely run Windows, Linux, UNIX, QuTScloud VMs using Virtualization Station.
Containers
Run Docker, LXD, Kata Containers and download Container Apps using Container Station.
VM High Availability
VM Live Migration and HA (High Availability) guarantee continuous operation and minimal downtime.
Network & Virtual Switch
Flexibly allocate virtual network resources and configure VLANs to ensure virtual services via the virtual network topology in Network & Virtual Switch.
VMs
Securely run Windows, Linux, UNIX, QuTScloud VMs using Virtualization Station.
Containers
Run Docker, LXD, Kata Containers and download Container Apps using Container Station.
VM High Availability
VM Live Migration and HA (High Availability) guarantee continuous operation and minimal downtime.
Network & Virtual Switch
Flexibly allocate virtual network resources and configure VLANs to ensure virtual services via the virtual network topology in Network & Virtual Switch.
QuTS hero Operating System
Designed for enterprises, the QuTS hero operating system adopts the highly reliable ZFS file system to provide utmost data integrity and stability for mission-critical storage. QuTS hero further optimizes SSD performance and endurance to meet businesses' stringent demands for performance and reliability.
Automatic Repair of Corrupted Data
ZFS supports self-healing for silent data corruption, automatically detecting damaged data to ensure data integrity.
Data Immutability
Defend against ransomware by creating a WORM (Write Once, Read Many) folder to prevent data from being overwritten, modified, or deleted, while also enabling immutable backups.
Power Failure Protection
ZIL (ZFS Intent Log) protects against potential data corruption caused by power failure by safeguarding unwritten data.
Data Reduction
Inline data deduplication1 reduces storage consumption for maintaining optimal disk capacity.
Prevent Simultaneous SSD Failure
The patented QSAL algorithm automatically and regularly detects RAID-level SSD lifespan to prevent simultaneous SSD failure, avoiding RAID crashes and data loss.
Automatic Repair of Corrupted Data
ZFS supports self-healing for silent data corruption, automatically detecting damaged data to ensure data integrity.
Data Immutability
Defend against ransomware by creating a WORM (Write Once, Read Many) folder to prevent data from being overwritten, modified, or deleted, while also enabling immutable backups.
Power Failure Protection
ZIL (ZFS Intent Log) protects against potential data corruption caused by power failure by safeguarding unwritten data.
Data Reduction
Inline data deduplication1 reduces storage consumption for maintaining optimal disk capacity.
Prevent Simultaneous SSD Failure
The patented QSAL algorithm automatically and regularly detects RAID-level SSD lifespan to prevent simultaneous SSD failure, avoiding RAID crashes and data loss.
Multi-Level Security Strategy for Enterprises
Bolster business data security with resilience from all aspects.
Connection
Enterprise Private Network Connection
Build secure VPN connection using QVPN Service. Multi-site organizations can leverage QuWAN SD-WAN to quickly set up Mesh VPN for remote workers and branches.
Filtering Unauthorized Access
Implement QuFirewall to allow/deny specific IP addresses and regions, preventing unauthorized access and cyber threats.
Build secure VPN connection using QVPN Service. Multi-site organizations can leverage QuWAN SD-WAN to quickly set up Mesh VPN for remote workers and branches.
Filtering Unauthorized Access
Implement QuFirewall to allow/deny specific IP addresses and regions, preventing unauthorized access and cyber threats.
Permission
Efficient NAS user management
The TS-h2477AXU-RP supports Windows AD, Azure AD, and LDAP; Admins can further improve management productivity and NAS security via delegated administration.
Strengthened NAS Login Security
Set up passwordless login or two-factor authentication (2FA) for your NAS accounts to prevent data breaches and unauthorized access.
The TS-h2477AXU-RP supports Windows AD, Azure AD, and LDAP; Admins can further improve management productivity and NAS security via delegated administration.
Strengthened NAS Login Security
Set up passwordless login or two-factor authentication (2FA) for your NAS accounts to prevent data breaches and unauthorized access.
Transmission - SMB Signing Acceleration
Enable SMB signing to facilitate secure SMB file transfer, while QNAP's exclusive algorithm greatly increases data signing efficiency and data transmission performance.
Assessment
Security and Risk Assessment
Security Center proactively detects NAS status and unusual file activity, and offers instant protective measures.
Centralized Notification Management
Centrally manage system events and alert notifications via Notification Center to stay up-to-date with NAS status.
Block Malware Attacks
Malware Remover regularly scans your NAS. When detecting malware attacks, infected files are immediately blocked and removed to ensure NAS security.
Security Center proactively detects NAS status and unusual file activity, and offers instant protective measures.
Centralized Notification Management
Centrally manage system events and alert notifications via Notification Center to stay up-to-date with NAS status.
Block Malware Attacks
Malware Remover regularly scans your NAS. When detecting malware attacks, infected files are immediately blocked and removed to ensure NAS security.
Build an Affordable Fiber Channel SAN Environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fiber Channel expansion cards in the TS-h2477AXU-RP, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fiber Channel Target using the iSCSI & Fiber Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
UPC: 885022032143
- QNAP TS-h2477AXU-RP 24-Bay NAS Enclosure
- 10Gb Ethernet Cable
- 72 x Flat Head Screw for 2.5" HDDs
- 96 x Flat Head Screw for 2.5" HDDs
- 2 x Power Cord
- Limited 5-Year Manufacturer Warranty
-
3.5" Hard DrivesEssential
-
2.5" Hard DrivesEssential
No additional resources available
QNAP TS-h2477AXU Specs
Key Specs
| RAID |
Yes: Supported RAID Modes: 0 / 1 / 5 / 10 / 50 / 60
|
| Number of Bays |
24x 2.5"/3.5" SATA II, SATA III (Hot-Swap)
2x M.2 (2280) NVMe |
| Inputs/Outputs |
2x RJ45 10GbE
2x RJ45 2.5GbE 2x USB-A 3.1/3.2 Gen 2 |
Computing
| CPU |
8-Core: 3.8 to 5.3 GHz
|
| Processor |
AMD Ryzen 7 PRO 7745
|
| GPU |
AMD Radeon
|
| Memory |
32 GB DDR5
|
| RAM Configuration / Capacity |
1x User-Replaceable 32 GB Module / 4 Slots Supporting up to 192 GB
|
Drives
| RAID |
Yes: Supported RAID Modes: 0 / 1 / 5 / 10 / 50 / 60
|
| Transfer Rates |
13094 MB/s (Read)
12249 MB/s (Write) |
General
| Number of Bays |
24x 2.5"/3.5" SATA II, SATA III (Hot-Swap)
2x M.2 (2280) NVMe |
| Inputs/Outputs |
2x RJ45 10GbE
2x RJ45 2.5GbE 2x USB-A 3.1/3.2 Gen 2 |
| Media Card Slots |
No
|
| PCI Expansion |
1x PCIe 4.0 x8
2x PCIe 4.0 x4 |
Networking
| Link Aggregation and Failover Support |
Yes
|
| iSCSI Support |
Yes: 128 LUN
|
Software
| Installed Operating System |
No
|
| OS Compatibility |
Windows 7 to 11
macOS 10.10 or Later Ubuntu 14 or Later CentOS 7 or Later Linux UNIX Windows Server 2008 R2 or Later |
| Mobile App Compatible |
Yes: Android & iOS
|
Security
| Encryption |
Yes, AES-NI
|
| Security Features |
No
|
| VPN Connections |
100 (Client)
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1210888.0 |
| 3-5 | ₹ 1198532.0 |
| 5-10 | ₹ 1173820.0 |
| 10+ | ₹ 1149108.0 |
Bulk discount will be automatically applied during checkout based on quantity.
