Description

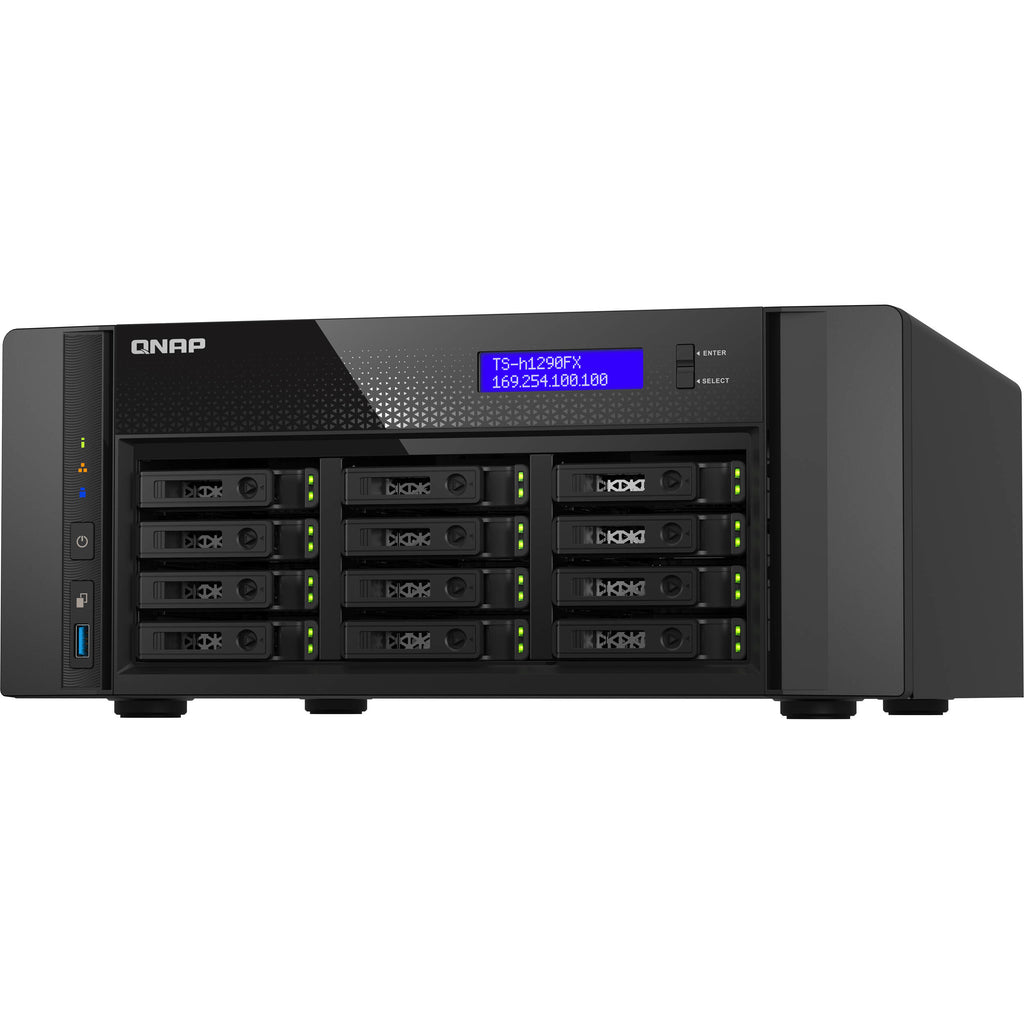

QNAP TS-H1290FX External HDD/SSD Overview
Take on demanding collaborative projects such as editing 8K videos by enhancing your office or studio's network storage capacity with the QNAP TS-H1290FX-7232P-64G-US 12-Bay NAS Enclosure. Designed to support all solid-state storage devices, up to twelve 2.5" U.2 NVMe PCIe 4.0 x4 or SATA III drives may be installed into its available bays and configured for RAID 0, 1, 5, 6, 10, 50, 60, or Single modes with up to triple parity and triple mirroring. The TS-H1290FX-7232P-64G-US is also outfitted with a 3.1 GHz AMD EPYC 7232P eight-core processor with 64GB of ECC DDR4 memory to deliver smooth, accurate data transfers through its two integrated 2.5G RJ45 ports and two 25G SFP28 ports. Three PCIe 4.0 slots are available for entry-level graphics cards, additional NICs, M.2 SSD cache drive adapters, and other expansions.
When fully configured with U.2 NVMe PCIe 4.0 SSDs in RAID 5 mode and six 25G Ethernet ports, this NAS can reach random download and upload speeds of up to 816051 IOPS and 318011 IOPS, respectively. Your data can be secured by 256-bit AES encryption. The TS-h1290FX is designed to operate quietly from your desktop and uses the QuTS hero 5 operating system.
QNAp TS-h1290FX NAS
All-Flash NAS
Supporting all NVMe flash storage, the TS-h1290FX is designed to deliver high random read and write IOPS for tackling I/O-intensive and latency-sensitive applications.
Optimized SSD Performance
Inline data deduplication and compression, pool over-provisioning, and TRIM maximize SSD performance and lifespan.
25G & 2.5G Connectivity
Two 25G SFP28 and dual 2.5G RJ45 high-speed connectivity accelerates virtualization, intensive file access, and large backup/restoration tasks. Adding separately sold compatible QNAP network cards allows you to connect up to 20 workstations directly to the TS-h1290FX without having to use a network switch.
Software Compatibility
The TS-h1290FX is ideal for video editing teams, as it is compatible with software applications such as Adobe Premiere Pro, Final Cut Pro X, Avid Media Composer, and DaVinci Resolve.
QuTS hero Operating System
Enhanced NAS Performance & Data Integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
Inline Data Deduplication, Compression & Compaction
Advanced block-based data reduction technologies help to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%.
Hosting Virtual Machines & Containers
By running multiple virtual machines and containers on the TS-h1290FX, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Comprehensive Security
This NAS includes flexible privilege settings and security measures. In addition to IP blocking, two-step verification, HTTPS connection, a variety of apps help ensure optimal protection against threats like malware and hackers.
UPC: 885022022861
In the Box
- QNAP TS-H1290FX-7232P-64G-US 12-Bay NAS Enclosure
- Power Cables
- Ethernet Cable
- 48 x Flat Head Screws for 2.5" Drives
- 2 x Drive Tray Keys
QNAP TS-H1290FX External HDD/SSD Specs
Computing
| CPU | 3.1 to 3.2 GHz 8-Core |
| Processor | AMD EPYC 7232P |
| Total Installed Memory | 64 GB ECC DDR4 |
| User-Replaceable Memory | 8 x 8 GB |
| Total Memory Slots | 8 x DIMM |
| Maximum Memory Capacity | 1 TB |
| Flash Memory | 5 GB |
General
| Number of Bays | 12 x 2.5"/U.2 |
| I/O | 2 x RJ45 (2.5GbE) 2 x SFP28 (25GbE) 3 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s)) |
| Compatible Drive Interface | SATA III, U.2 |
| Media Card Slots | None |
| Form Factor | Desktop |
| RAID | RAID 0, 1, 10, 5, 50, 6, 60, JBOD, Single |
| Hot-Swap Support | Yes |
| PCI Expansion | 3 x PCIe 4.0 (x16 Electrical) 1 x PCIe 4.0 (x8 Electrical, Occupied) |
| Wake on LAN | Yes |
| Link Aggregation and Failover Support | Yes |
Networking
| Supported Protocols | AFP CIFS/SMB FTP HTTP HTTPS IPv4 IPv6 L2TP/IPSec SNMP v2 SNMP v3 SSH Telnet |
| iSCSI Target | 256 |
| Max Concurrent Connections | 10,000 |
| Max Folders | 256 |
| Max Sync Tasks | 400 |
| Max Groups | 512 |
| Max User Accounts | 16,000 |
Software
| Installed Operating System | QuTS hero 5.0.0 |
| Supported File Systems | Internal: ZFS External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT |
| OS Compatibility | macOS 10.10 or Later Windows 7 or Later Windows Server 2008 R2 or Later Ubuntu 14.4 or Later CentOS 7 or Later Linux UNIX *As of March, 2022: Check with manufacturer for the most up-to-date compatibility |
| Supported Browsers | Chrome, Edge, Firefox, Safari |
| Supported Languages | Brazilian Portuguese Czech Danish Dutch English Finnish French German Greek Hungarian Italian Japanese Korean Norwegian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish |
Security
| Encryption | 256-Bit AES |
| Security Features | Kensington Security Slot |
Electrical
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Source | AC Adapter |
| PSU Wattage | 1 x 750 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 5 to 95% |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
Physical
| Status Monitoring | LED Indicator |
| Audible Alarm | Yes |
| Cooling | 2 x 92 mm Fans |
| Noise Level | 23.1 to 35 dBA |
| Built-In Speakers | None |
| IR Sensor | None |
| Dimensions | 14.49 x 14.25 x 5.91" / 36.8 x 36.2 x 15.01 cm |
| Weight | 19.8 lb / 9.0 kg |
Packaging Info
| Package Weight | 24.795 lb |
| Box Dimensions (LxWxH) | 20.9 x 19.8 x 10.7" |
