QNAP S-AI642-8G External HDD/SSD Overview
- 1Description
- 2Computing Performance
- 3Expandability
- 4Professional Surveillance
- 5Hardware Transcoding
- 6Fast File Transfers

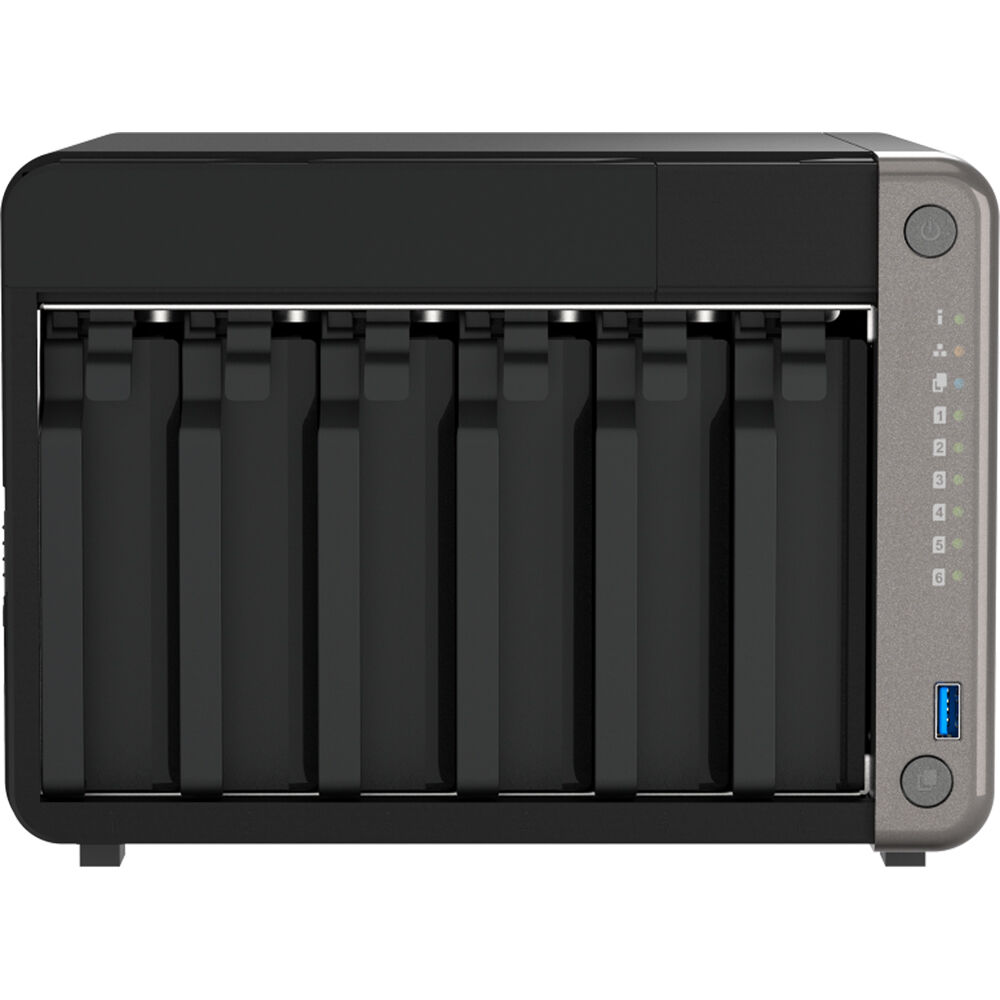

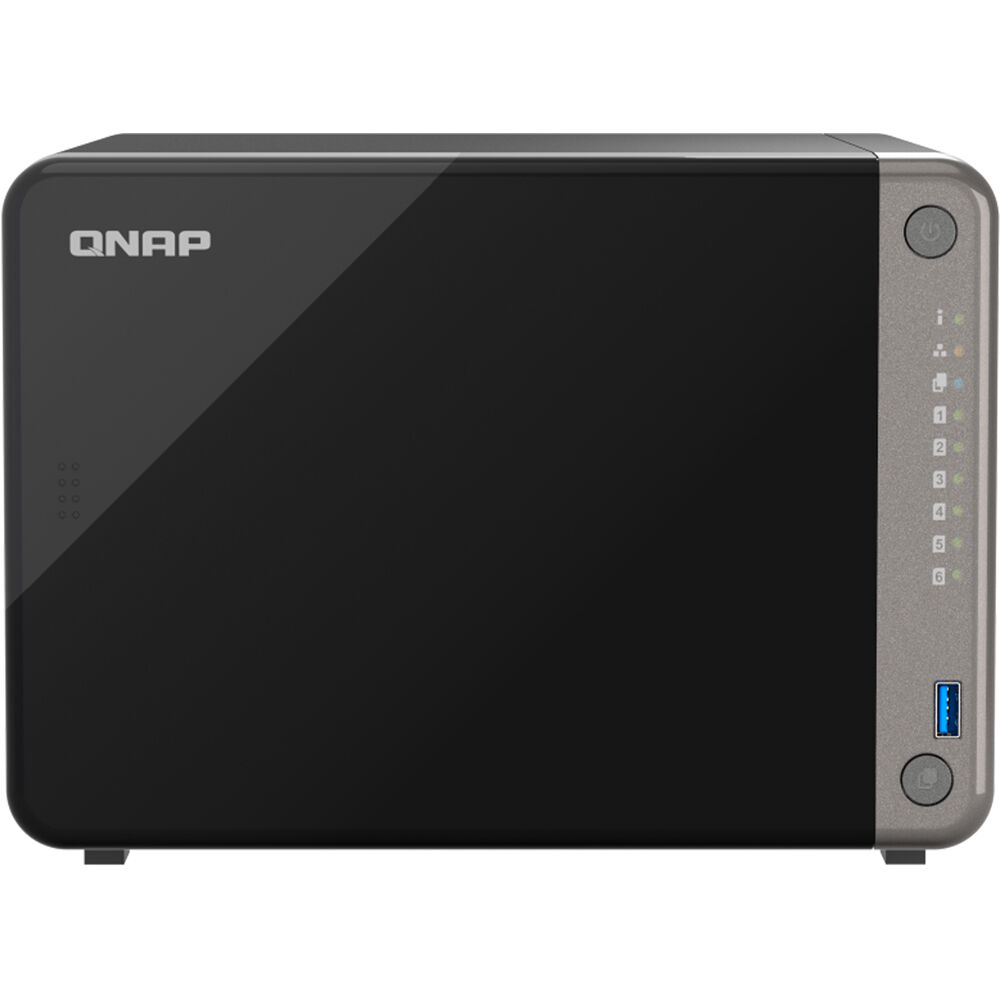

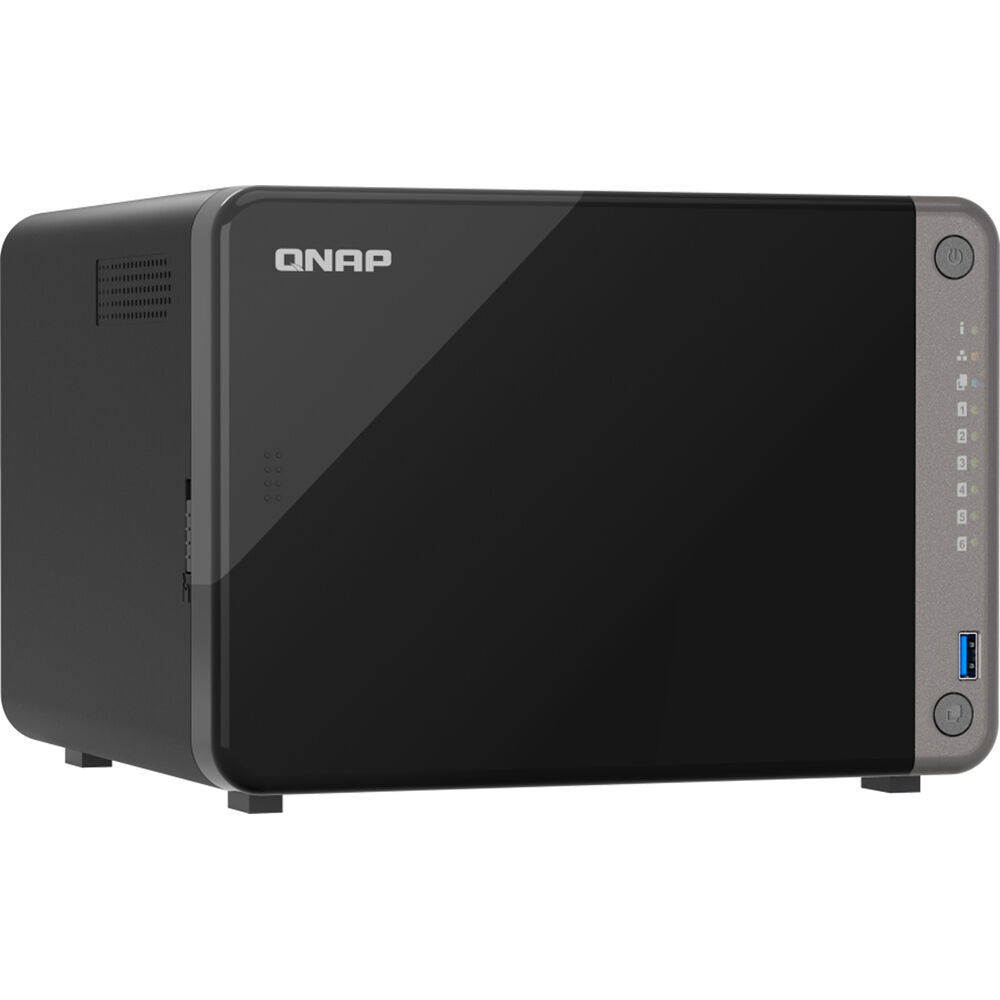

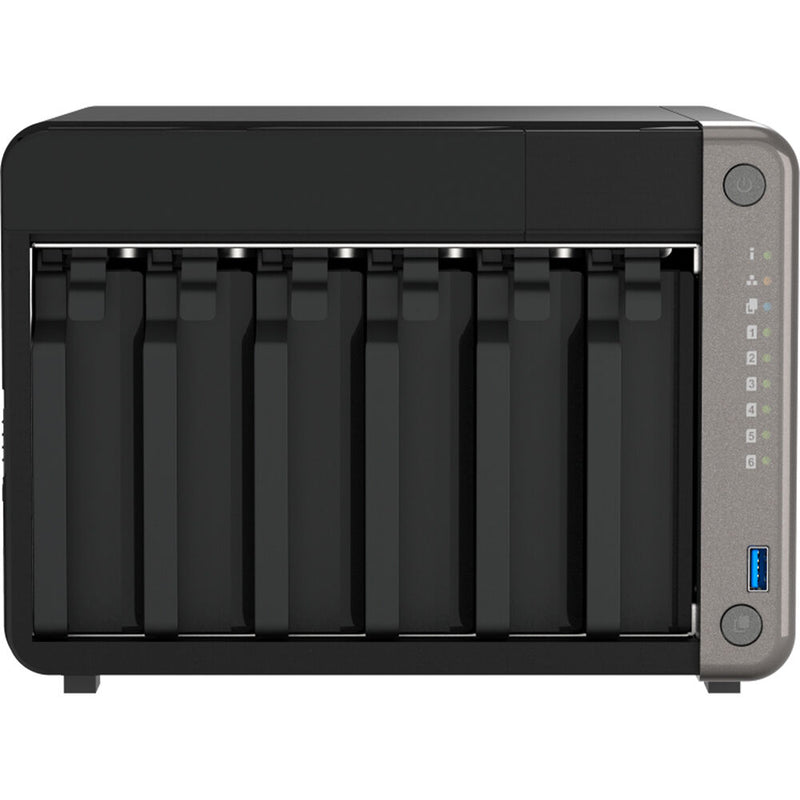

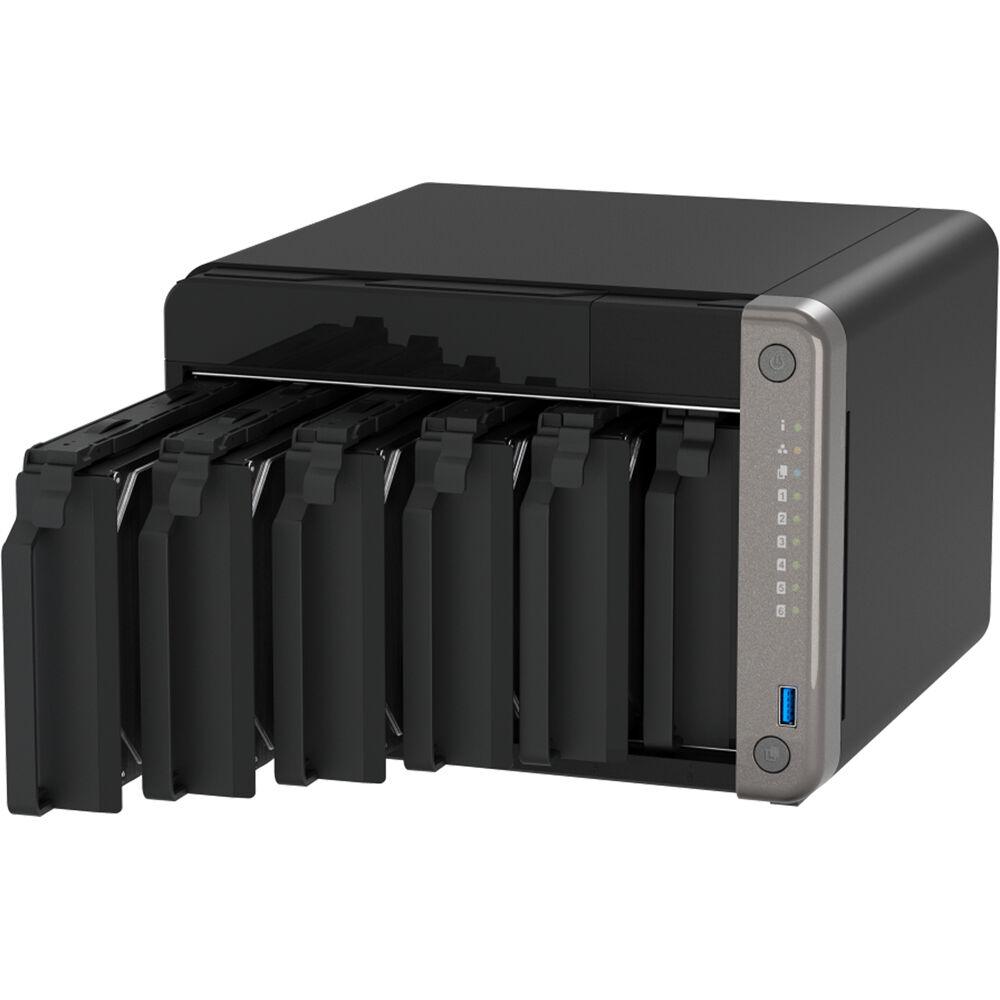

Designed primarily to support surveillance, photo, and video applications, the QNAP TS-AI642-8G 6-Bay NAS Enclosure combines AI-powered applications and efficient hardware to accelerate image recognition. With six 3.5/2.5" SATA III drive bays that can be configured for RAID 0, 1, 5, 6, 10, or 50, this NAS also delivers the performance to backup and archive your data.

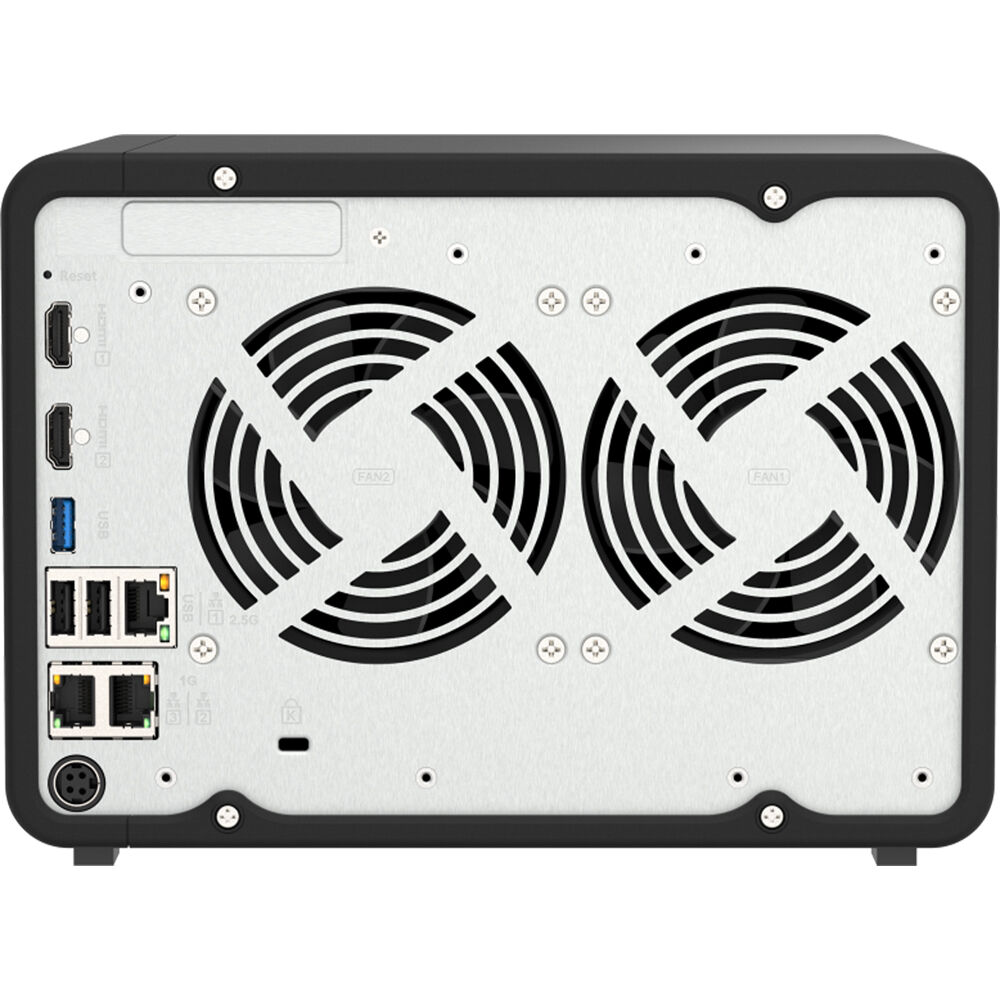

Integrate the TS-AI642 into your network using the one 2.5G Ethernet and dual 1G Ethernet ports. Dual HDMI ports are available, allowing you to connect 4K monitors directly to the NAS for viewing while using the two USB-A 2.0 ports for a keyboard and mouse. The two USB-A 3.2 Gen 2 ports let you transfer up to 10 Gb/s with compatible expansions and storage devices. You can also add a separately purchased IR remote control. This NAS uses the QTS 5.1.0 operating system.
Computing Performance
The equipped 64-bit ARM Cortex 8-core processor features a built-in 6 TOPS NPU (Neural network Processing Unit) that helps to boost the performance of face and object image recognition.
Expandability
Install a compatible expansions such as a network, SSD, and USB 3.2 Gen 2 cards into the available PCI 3.0 x2 slot.
Professional Surveillance
The QVR Elite app allows you to deploy up to 64 channels, and two are included for free.
Hardware Transcoding
ARM NEON technology helps to accelerate video processing for better media experiences.
Fast File Transfers
This NAS can achieve up to 294 MB/s read and 293 MB/s write speeds through the 2.5G Ethernet connection with five 1TB SSDs installed in RAID 5 mode. Using the two 1G ports can reach read and write speeds of up to 236 MB/s.
UPC: 885022026685
In the Box
- QNAP TS-AI642-8G 6-Bay NAS Enclosure
- Power Adapter & Cable
- Ethernet Cable
- 18 x Flat Head Screw for 3.5" Drive
- 18 x Flat Head Screw for 2.5" Drive
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Computing Performance
- Expandability
- Professional Surveillance
- Hardware Transcoding
- Fast File Transfers
QNAP S-AI642-8G External HDD/SSD Specs
Key Specs
| Number of Bays |
6x 2.5"/3.5"
|
| Inputs/Outputs |
1x RJ45 2.5GbE
2x RJ45 Gigabit Ethernet 2x USB-A 2.0 2x USB-A 3.1/3.2 Gen 2 2x HDMI 1.4b |
| Compatible Drive Interface |
SATA III
|
| RAID |
RAID 0/1/5/6/10/50
|
Computing
| CPU |
8-Core:
Up to 2.2 GHz Cortex A76 (4 Cores) Up to 1.8 GHz Cortex A55 (4 Cores) |
| GPU |
Mali G610 MC4
|
| Total Installed Memory |
8 GB
|
| Flash Memory |
4 GB
|
General
| Number of Bays |
6x 2.5"/3.5"
|
| Inputs/Outputs |
1x RJ45 2.5GbE
2x RJ45 Gigabit Ethernet 2x USB-A 2.0 2x USB-A 3.1/3.2 Gen 2 2x HDMI 1.4b |
| Compatible Drive Interface |
SATA III
|
| Media Card Slots |
No
|
| Form Factor |
Desktop
|
| RAID |
RAID 0/1/5/6/10/50
|
| Hot-Swap Support |
Yes
|
| PCI Expansion |
1x PCIe 3.0 x2
|
| Wake on LAN |
Yes
|
| Link Aggregation and Failover Support |
Yes
|
Networking
| Supported Protocols |
AFP
CIFS/SMB FTP FTPS FXP HTTP HTTPS IPv4 IPv6 SNMP v2 SNMP v3 iSCSI |
| iSCSI Target |
128
|
| Max Concurrent Connections |
1500
|
| Max Folders |
512
|
| Max Groups |
512
|
| Max User Accounts |
4096
|
| Max Volume Number |
128
|
| Max Cameras Supported |
64
|
Software
| Installed Operating System |
QTS 5 1.0
|
| Supported File Systems |
Internal: EXT4
External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT |
| OS Compatibility |
macOS 10.10 or Later
Windows 7 or Later Windows Server 2003 R2 or Later Ubuntu 14.4 Linux UNIX |
| Mobile App Compatible |
Yes: Android & iOS
|
| Supported Browsers |
Chrome, Edge, Firefox, Safari
|
Security
| Encryption |
256-Bit AES
|
| Security Features |
Kensington Security Slot
|
| VPN Client Connections |
100
|
Electrical
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Source |
AC Adapter
|
| Power Consumption |
33.33 W (Typical)
14 W (Idle) |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
5 to 95%
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
Physical
| Color |
Black
|
| Status Monitoring |
LED Indicator
|
| Audible Alarm |
Yes
|
| Cooling |
2x 90 mm Fans
|
| Built-In Speakers |
No
|
| Dimensions |
9.25 x 8.9 x 6.73" / 23.5 x 22.6 x 17.09 cm
|
| Weight |
6.4 lb / 2.9 kg
|
Packaging Info
| Package Weight |
9.725 lb
|
| Box Dimensions (LxWxH) |
15.1 x 13.4 x 10.1"
|
