Description
QNAP TS-673A- External HDD/SSD Overview
- 1Description
- 2Dual 2.5GbE Ports
- 3Expansion Ready
- 4Supports NVIDIA Graphics Cards
- 5Dual M.2 SSD Slots
- 6Supports VMs
- 7QTS Operating System
- 8AMD Ryzen Processor
- 92.5GbE Switch
- 10Supports QuTS hero
- 11SSD Caching
- 12Qtier Technology
- 13Easy and Secure File Management
- 14Supports GPU-Accelerated Computing
- 15Affordable Fibre Channel SAN Environment
- 16High-Speed 2.5GbE VM Backup Solution
- 17QNAP Backup and Data Protection Solutions
- 18Easy Storage Expansion
- 19Qsirch
- 20Boxafe
- 21QuMagie
- 22USB 3.2 Gen 2

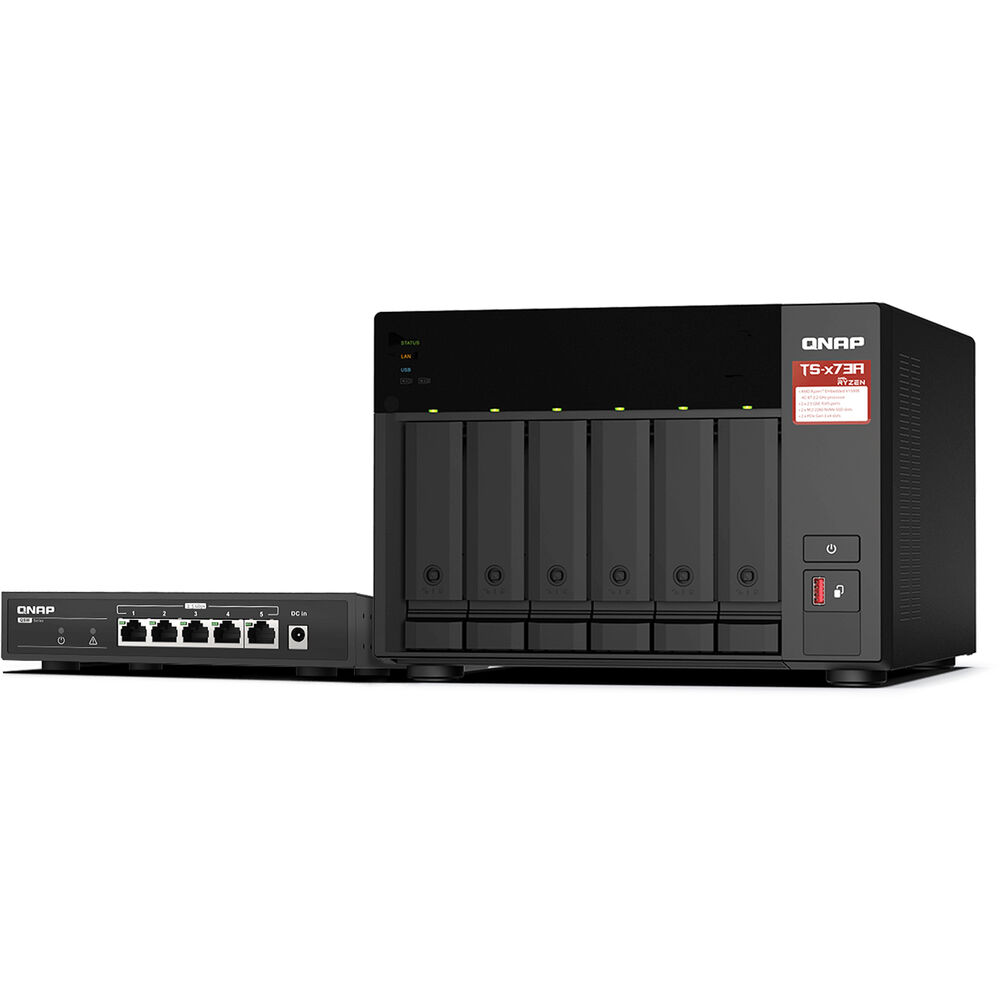

Upgrade to a high speed network and data storage center in your home or office with the TS-673A 6-Bay NAS Enclosure with QSW-1105-5T Network Switch from QNAP. This bundle combines the TS-673A 6-Bay NAS Enclosure with a QSW-1105-5T 5-Port 2.5GbE Network Switch.
The TS-673A has six 2.5/3.5" SATA III drive bays, which support RAID 0, 1, 5, 6, 10, 50, JBOD, and Single configurations to balance between security and performance. You can also boost performance with up to two M.2 NVMe PCIe solid-state cache drives while using Qtier 2.0 to continually optimize your data storage. Featuring a 2.2 GHz AMD Ryzen Embedded V1500B Quad-Core processor with 8GB of DDR4 memory, this NAS enclosure is ideal for high-speed backups, virtual machines, and more. It connects to you network using two 2.5GbE ports and also features PCIe 3.0 x4 expansion, three USB-A 3.2 Gen 2 ports, and one USB-C 3.2 Gen 1 port.
The QSW-1105-5T has five 2.5GbE ports that are compatible with existing Cat 5e cables and features a fanless design for quiet operations, plus user-friendly plug-and-play setup. Built with a desktop form factor, the QSW-1105-5T offers network loop detection and blocking functions, making it simple to create a high-speed network environment for your home or business.
Dual 2.5GbE Ports
Both 2.5GbE ports are backwards compatible with 1GbE/ 100MbE speeds. Up to 5 Gb/s transfer speeds can be achieved by using port trunking.
Expansion Ready
Add extra functionality with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel adapters. Please note, the TS-673A uses high-profile expansion cards.
Supports NVIDIA Graphics Cards
Supports entry-level NVIDIA graphics cards for video processing or GPU-passthrough to VMs.
Dual M.2 SSD Slots
Two M.2 PCIe NVMe slots accommodate SSDs, available separately. Employ Qtier Technology and SSD caching for constant storage optimization.
Supports VMs
Host containerized applications and virtual machines with various operating systems.
QTS Operating System
Features QTS operating system and supports switching to ZFS-based QuTS hero for greater reliability.
AMD Ryzen Processor
The TS-673A features a 2.2 GHz AMD Ryzen V1500B quad-core processor and 8GB of DDR4 RAM. Supporting up to 64GB of memory, this enclosure also features USB 3.2 Gen 2 ports for speeds up to 10 Gb/s. Furthermore, one USB Type-C port enables fast transfers of large media files across devices, providing you with a more efficient workflow.
2.5GbE Switch
Transform your network with a wallet-friendly 2.5GbE switch Upgrading your network shouldn't break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. QNAP offers 2.5GbE switches that support Multi-Gigabit NBASE-T and allows you to use existing Cat 5e cables to connect multiple computers and NAS for implementation of high-speed, secure, and scalable network environments without going over budget.
Supports QuTS hero
The TS-673A also supports QuTS hero, QNAP's ZFS-based NAS operating system. Providing end-to-end data integrity, data reduction (inline data deduplication, compression and compaction), and more, QuTS hero uses additional system resources to ensure an optimal environment for protecting business data.
Please note, QTS and QuTS hero use different file systems. You must remove all the drives from the TS-673A before switching from QTS to QuTS hero. QuTS hero requires a NAS with at least 8GB of memory, and inline Data Deduplication requires a NAS with at least 16GB memory. For optimal performance, 32GB memory is recommended. It is recommended to create an SSD RAID with at least two SSDs for the QuTS hero system drive to attain optimal system performance. Please note that M.2 SSD hot-swapping is only supported by M.2 SSD slots on PCIe cards (such as the QM2). M.2 SSD slots that are built into the NAS do not support hot-swapping.
Please note, QTS and QuTS hero use different file systems. You must remove all the drives from the TS-673A before switching from QTS to QuTS hero. QuTS hero requires a NAS with at least 8GB of memory, and inline Data Deduplication requires a NAS with at least 16GB memory. For optimal performance, 32GB memory is recommended. It is recommended to create an SSD RAID with at least two SSDs for the QuTS hero system drive to attain optimal system performance. Please note that M.2 SSD hot-swapping is only supported by M.2 SSD slots on PCIe cards (such as the QM2). M.2 SSD slots that are built into the NAS do not support hot-swapping.
SSD Caching
SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications including databases and virtualization and can significantly improve overall workflows.
Qtier Technology
Qtier Technology empowers the TS-673A with auto tiering that helps continuously optimize storage efficiency by automatically moving data between M.2 SSDs, 2.5-inch SSDs, and high-capacity HDDs based on the data's access frequency. Qtier 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, maximizing the advantages of SSDs.
Easy and Secure File Management
File Station allows direct management of files stored on the TS-673A and in the cloud. Users can easily upload files from their PC, drag and drop files between folders, rename and delete files, and configure file or folder permissions to prevent unauthorized access. Microsoft Office Online can also be used to directly view or edit Microsoft Office documents stored on the TS-673A. Confidential and sensitive data can be encrypted to add extra security.
Supports GPU-Accelerated Computing
Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-673A features PCIe slots to support high-profile graphics cards that do not need power cables, including NVIDIA GeForce GTX1650 graphics cards to boost performance of applications such as video editing , 4K UHD transcoding, imaging processing in QTS, and performance of virtual machines via GPU passthrough.
Affordable Fibre Channel SAN Environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing a QNAP 16Gb Fibre Channel card (QXP-16G2FC 16Gb) in the TS-673A, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
High-Speed 2.5GbE VM Backup Solution
With Hyper Data Protector, the TS-673A becomes an agentless backup tool for unlimited VMware vSphere and Microsoft Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling, and recovery compression. With 2.5GbE connectivity, backup and restoration times are greatly reduced, providing a cost-effective solution for disaster recovery.
QNAP Backup and Data Protection Solutions
QNAP provides comprehensive solutions for virtually all data protection requirements. Discover an array of apps and utilities to help you back up various sources, including Boxafe, Hyper Data Protector, Hybrid Backup Sync, NetBak Replicator, and Snapshot.
Easy Storage Expansion
QNAP provides easy storage capacity expansion solutions. Upgrade RAID capacity by swapping out lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business. Or, attach two TR-004 RAID expansion enclosures or one 8-bay TL-D800S SATA 6 Gb/s JBOD, and use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion. You can also install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Qsirch
QNAP's powerful, Google-like search tool for quickly finding specific images, music, videos, documents, and emails by keywords, color, and other search conditions.
Boxafe
Backup and sync files, emails, calendars, and contacts from Google Workspace and Microsoft Office 365 into the TS-673A to safeguard enterprise cloud data.
QuMagie
An AI-powered photo management app, QuMagie supports automated photo categorization with AI Albums, an iOS Live Photo display, and a search tool for hassle-free photo management and sharing.
USB 3.2 Gen 2
Doubling the speed of its predecessor, USB 3.2 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices and is synonymous with USB 3.1 Gen 2.
UPC: 885022020928
In the Box
- QNAP TS-673A 6-Bay NAS Enclosure
- Ethernet Cable
- Power Cable
- 18 x Flat Head Screws for 3.5" Drives
- 18 x Flat Head Screws for 2.5" Drives
- 2 x M.2 SSD Heatsinks
- 2 x Drive Tray Keys
- Limited 3-Year Manufacturer Warranty
- Ethernet Cable
- Power Cord
- 18 x Flat Head Screws for 3.5" HDDs
- 18 x Flat Head Screws for 2.5" HDDs
- 2 x M.2 SSD Heatsinks
- 2 x Drive Tray Keys
- Power Supply
- 2 x Bracket Screws
- 2 x Anchors
- 4 x Foot Pads
Table of Contents
- Description
- Dual 2.5GbE Ports
- Expansion Ready
- Supports NVIDIA Graphics Cards
- Dual M.2 SSD Slots
- Supports VMs
- QTS Operating System
- AMD Ryzen Processor
- 2.5GbE Switch
- Supports QuTS hero
- SSD Caching
- Qtier Technology
- Easy and Secure File Management
- Supports GPU-Accelerated Computing
- Affordable Fibre Channel SAN Environment
- High-Speed 2.5GbE VM Backup Solution
- QNAP Backup and Data Protection Solutions
- Easy Storage Expansion
- Qsirch
- Boxafe
- QuMagie
- USB 3.2 Gen 2
QNAP TS-673A- External HDD/SSD Specs
Key Specs
| Number of Bays |
6x 2.5"/3.5"
2x M.2 (2280) |
| Inputs/Outputs |
2x RJ45 2.5GbE
3x USB-A 3.1/3.2 Gen 2 1x USB-C 3.0 / 3.1/3.2 Gen 1 |
| Compatible Drive Interface |
SATA II, SATA III
|
| RAID |
RAID 0/1/5/6/10/50
|
Computing
| CPU |
Quad-Core: Up to 2.2 GHz
|
| Processor |
AMD Ryzen V1500B
|
| Total Installed Memory |
8 GB DDR4
|
| User-Replaceable Memory |
1x 8 GB
|
| Total Memory Slots |
2x SO-DIMM
|
| Maximum Memory Capacity |
64 GB
|
| Flash Memory |
5 GB
|
General
| Number of Bays |
6x 2.5"/3.5"
2x M.2 (2280) |
| Inputs/Outputs |
2x RJ45 2.5GbE
3x USB-A 3.1/3.2 Gen 2 1x USB-C 3.0 / 3.1/3.2 Gen 1 |
| Compatible Drive Interface |
SATA II, SATA III
|
| Media Card Slots |
No
|
| Form Factor |
Desktop
|
| RAID |
RAID 0/1/5/6/10/50
|
| Hot-Swap Support |
Yes
|
| PCI Expansion |
2x PCIe 3.0 (x4 Electrical)
|
| Wake on LAN |
Yes
|
Networking
| Supported Protocols |
FTP
FXP SFTP TFTP |
| iSCSI Target |
256
|
| Max Concurrent Connections |
2000
|
Software
| Installed Operating System |
QTS 4.5.2
|
| Supported File Systems |
Internal: EXT4
External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT |
| OS Compatibility |
macOS 10.10 or Later
Ubuntu 14.4 or Later CentOS 7 or Later UNIX Windows 7 or Later |
