Description
QNAP TS-473A External HDD/SSD Overview
- 1Description
- 2PCIe Expansion
- 3USB 3.2 Gen 2 Support
- 4QTS Operating System

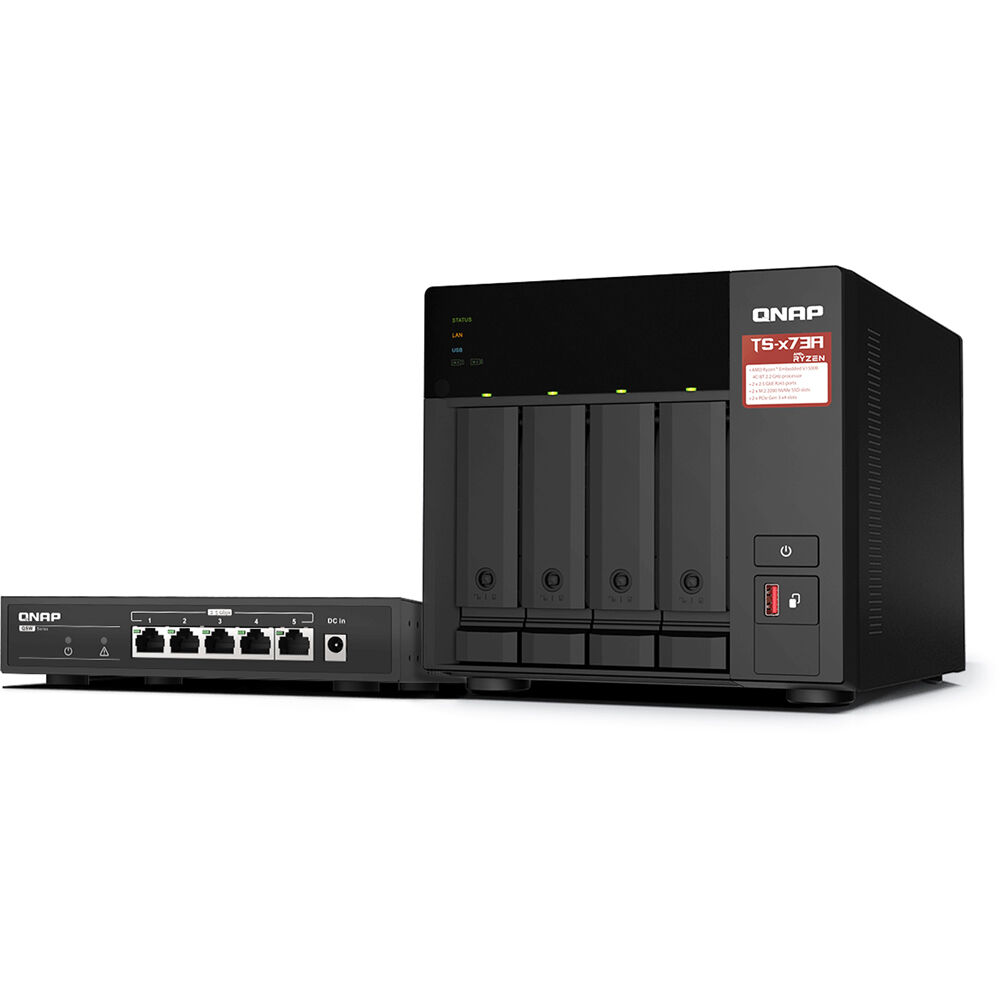

Upgrade to a high speed network and data storage center in your home or office with the TS-473A 4-Bay NAS Enclosure with QSW-1105-5T Network Switch from QNAP. This bundle combines the TS-473A 6-Bay NAS Enclosure with a QSW-1105-5T 5-Port 2.5GbE Network Switch.
The TS-473A has four 2.5/3.5" SATA III drive bays, which support RAID 0, 1, 5, 6, 10, JBOD, and Single configurations to balance between security and performance. You can also boost performance with up to two M.2 NVMe PCIe solid-state cache drives while using Qtier 2.0 to continually optimize your data storage. Featuring a 2.2 GHz AMD Ryzen Embedded V1500B Quad-Core processor with 8GB of DDR4 memory, this NAS enclosure is ideal for high-speed backups, virtual machines, and more. It connects to you network using two 2.5GbE ports and also features PCIe 3.0 x4 expansion, three USB-A 3.2 Gen 2 ports, and one USB-C 3.2 Gen 1 port.
The QSW-1105-5T has five 2.5GbE ports that are compatible with existing Cat 5e cables and features a fanless design for quiet operations, plus user-friendly plug-and-play setup. Built with a desktop form factor, the QSW-1105-5T offers network loop detection and blocking functions, making it simple to create a high-speed network environment for your home or business.
In the Box
- QNAP TS-473A-8G-US 4-Bay NAS Enclosure
- Power Cable
- Limited 3-Year Manufacturer Warranty
- Ethernet Cable
- Power Cord
- 12 x Flat Head Screws for 3.5" HDDs
- 12 x Flat Head Screws for 2.5" HDDs
- 2 x M.2 SSD Heatsinks
- 2 x Drive Tray Keys
- Power Supply
- 2 x Bracket Screws
- 2 x Anchors
- 4 x Foot Pads
- Description
- PCIe Expansion
- USB 3.2 Gen 2 Support
- QTS Operating System
QNAP TS-473A External HDD/SSD Specs
| Number of Bays |
4x 2.5"/3.5"
2x M.2 (2280) |
| Inputs/Outputs |
2x RJ45 2.5GbE
3x USB-A 3.1/3.2 Gen 2 1x USB-C 3.0 / 3.1/3.2 Gen 1 |
| Compatible Drive Interface |
SATA II, SATA III
|
| RAID |
RAID 0/1/5/6/JBOD
|
| CPU |
Quad-Core: Up to 2.2 GHz
|
| Processor |
AMD Ryzen V1500B
|
| Total Installed Memory |
8 GB DDR4
|
| User-Replaceable Memory |
1x 8 GB
|
| Total Memory Slots |
2x SO-DIMM
|
| Maximum Memory Capacity |
64 GB
|
| Number of Bays |
4x 2.5"/3.5"
2x M.2 (2280) |
| Inputs/Outputs |
2x RJ45 2.5GbE
3x USB-A 3.1/3.2 Gen 2 1x USB-C 3.0 / 3.1/3.2 Gen 1 |
| Compatible Drive Interface |
SATA II, SATA III
|
| Form Factor |
Desktop
|
| RAID |
RAID 0/1/5/6/JBOD
|
| Hot-Swap Support |
Yes
|
| PCI Expansion |
2x PCIe 3.0 (x4 Electrical)
|
| Wake on LAN |
Yes
|
| Link Aggregation and Failover Support |
Yes
|
| Supported Protocols |
AFP
CIFS/SMB FTP FTPS HTTP HTTPS IPv4 IPv6 L2TP/IPSec SFTP SMTP SNMP v2 SNMP v3 SSH SSL TFTP Telnet WebDAV iSCSI |
| Max Groups |
4096
|
| Max Volume Number |
128
|
| Max Cameras Supported |
8
|
| Installed Operating System |
QTS 4.5.2
|
| Supported File Systems |
EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
|
| Encryption |
256-Bit AES
|
| Security Features |
Password Protection
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 3.5 A
|
| Power Consumption |
29.792 W (Typical)
19.576 W (Standby) |
| PSU Wattage |
1 x 250 W
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
5 to 95%
|
| Status Monitoring |
LED Indicator
|
| Audible Alarm |
Yes
|
| Cooling |
1x Fan
|
| Noise Level |
21.4 dBA
|
| Dimensions |
11.06 x 7.85 x 7.41" / 280.92 x 199.39 x 188.21 mm
|
| Weight |
11.1 lb / 5.0 kg
|
| Package Weight |
13.465 lb
|
| Box Dimensions (LxWxH) |
15 x 13.5 x 9.9"
|
