Description
QNAP TS-464-8G Overview
- 1Description
- 22.5GbE NAS
- 32.0 Intel Celeron N5095 Quad-Core Processor for Optimized Performance
- 4Upgrade to Dual-Port 10GbE
- 5Expand Storage Capacity up to 16 Hard Drives
- 6Accelerate AI-Powered Image Recording and Caching with TPU and PCIe Expansion
- 7Abundant I/O Capabilities with PCIe Expansion
- 8One Touch Copy Backup with USB 3.2 Gen 2
- 9Smoother Mobile Experience with GPU
- 10Use Your NAS Like a PC
- 11QTS 5 - Fast, Smooth, and Easy to Use
- 12Simple Backup
- 13Back Up All Your Devices
- 14Remote Replication for NAS Data
- 15Smart Storage
- 16Snapshots Protection
- 17Smart Surveillance
- 18Build Surveillance with Affordable Deployment Costs
- 19Live Surveillance Monitoring, Remote Management, and Smart AI
- 20All-in-One Solution for Hosting Virtual Machines and Containers
- 21Enhanced Cybersecurity and Data Protection
- 22A Health Check for Your Hard Drives
- 23Extend Hardware Warranty up to 5 Years

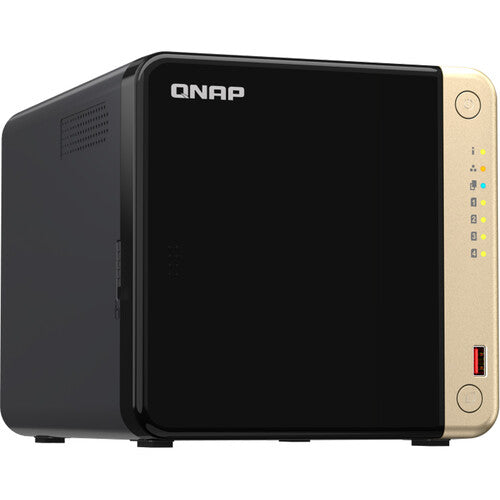

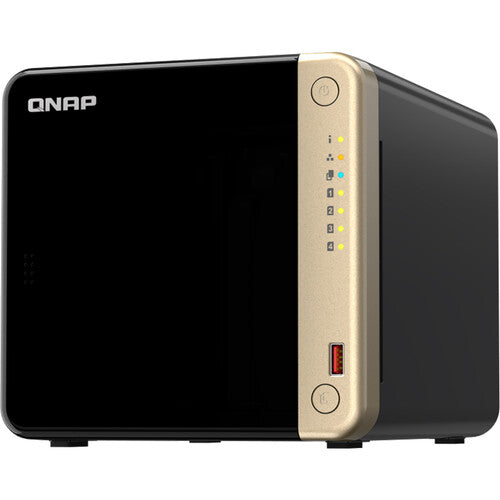

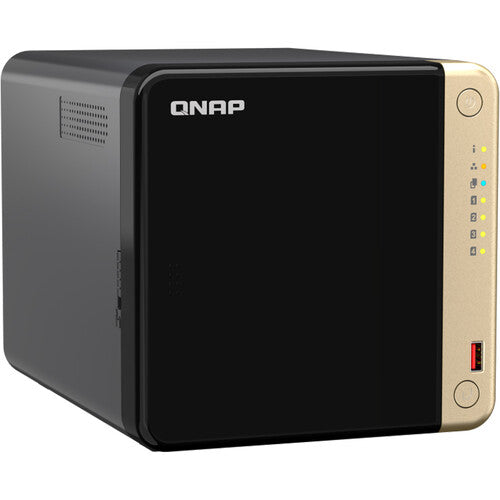

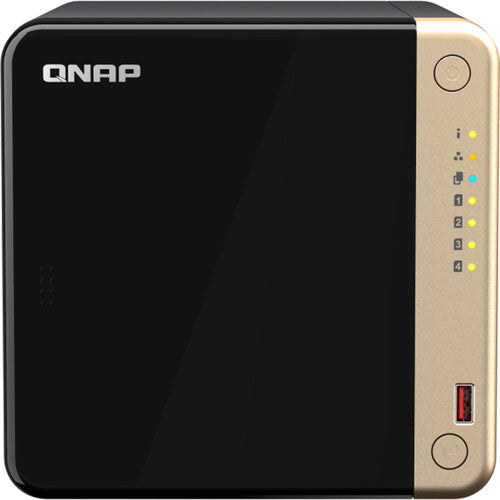

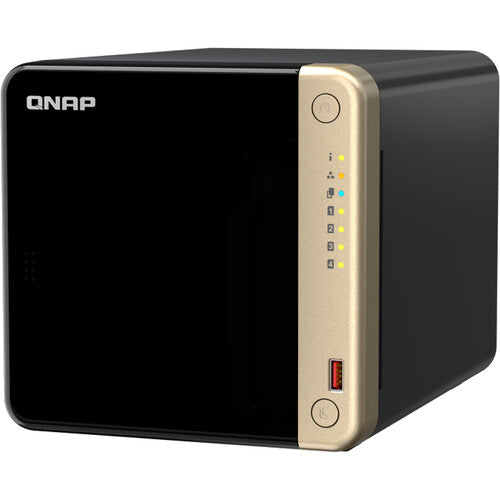

Powered by an Intel Celeron N5095 Quad-Core processor, the TS-464 4-Bay NAS Enclosure from QNAP features two 2.5GbE RJ45 ports and Port Trunking for up to 5 Gb/s combined bandwidth. With M.2 PCIe 3.0 and PCIe 3.0 slots, the TS-464 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-464 comes with 8GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.
This unit has four SATA III 6 Gb/s drive bays, all of which natively support 3.5" hard drives, as well as 2.5" hard drives and SSDs. Should users need to expand the overall capacity of their TS-464, optional expansion units may be connected.

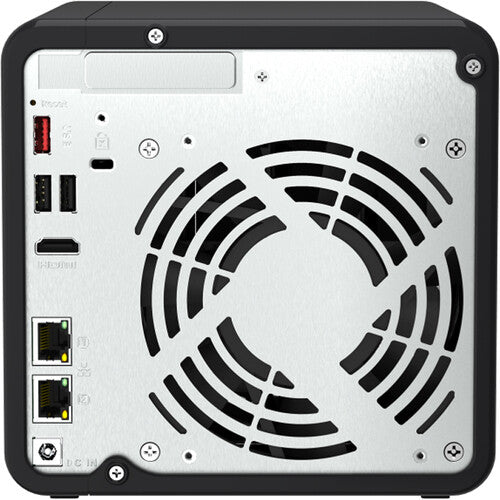

Also featured are two USB-A 3.2 Gen 2 Type-A ports and two USB-A 2.0 ports, which allow it to be connected to external peripherals. Network connectivity is achieved via the two 2.5 Gigabit Ethernet ports with port trunking failover support, which helps to provide redundancy in the case that a LAN connection malfunction occurs on one port.
The TS-464 runs on the QTS hero 5.0.1 operating system. Supported RAID modes include RAID 0, 1, 5, 6, and 10, For those who do not require a RAID, JBOD and Single are also available, allowing each drive bay to be individually utilized.
QNAP has engineered the TS-464 to be energy efficient. Not only does it offer a 120mm cooling fan, the server supports numerous scheduled power on / off cycles and hard-drive hibernation to further minimize power consumption and operation expenses. The TS-464 operates using a 90W AC adapter and includes an Ethernet cable, a power cord, 12 flat head screws for 3.5" HDDs, and 12 flat head screws for 2.5" HDDs. Protection is provided by a limited 3-year hardware warranty.
2.5GbE NAS
With increasing availability on switches, motherboards, and laptops, this is the year of 2.5GbE. The 2.5GbE TS-464 NAS is as fast as a single-port 10GbE NAS. By setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports to unleash network potential and increase fault tolerance, TS-464 delivers transfer speeds of up to 589 MB/s.
2.0 Intel Celeron N5095 Quad-Core Processor for Optimized Performance
Processor
2.0 GHz Intel Celeron N5095 Quad-Core processor, burst up to 2.9 GHz.
GPU
Built-in Intel UHD Graphics to speed up video processing and graphical computing.
Memory
8GB of memory.
Encryption Engine
Features Intel AES-NI 256 hardware-accelerated encryption to boost system performance while securing sensitive data.
2.0 GHz Intel Celeron N5095 Quad-Core processor, burst up to 2.9 GHz.
GPU
Built-in Intel UHD Graphics to speed up video processing and graphical computing.
Memory
8GB of memory.
Encryption Engine
Features Intel AES-NI 256 hardware-accelerated encryption to boost system performance while securing sensitive data.
Upgrade to Dual-Port 10GbE
With a superior hardware design, you can install a dual-port 10GbE network card QXG-10G2TB in the TS-464. Combining 10GbE networking, a quad-core processor, and M.2 SSD caching, the TS-464 unleashes its full performance potential, with reads of up to 1647 MB/s and writes of up to 1632 MB/s.
Expand Storage Capacity up to 16 Hard Drives
The TS-464 supports four 3.5" hard drives that can be configured as RAID 5. By connecting a TL-D1600S QNAP storage expansion unit, you can add an additional twelve hard drives to the TS-464 to meet growing storage requirements.
Accelerate AI-Powered Image Recording and Caching with TPU and PCIe Expansion
TS-464 has two M.2 PCIe Gen3 slots for installing NVMe SSD or Edge TPU.
Install M.2 NVMe SSDs for Cache Acceleration or Efficient Tiered Storage
If you have a huge number of small files requiring read/write operations, you can easily boost IOPS of TS-464 by configuring its two M.2 SSDs as a cache disk. When transmitting bigger files, you can create a storage pool with two M.2 SSDs. With Qtier automatically moving hot data to SSD and cold data to hard drives, TS-464 allows you to enjoy exceptional application performance.
Accelerate AI-Powered Image Recognition with TPU
By leveraging a Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-464 can perform high-speed face and object recognition. Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.
Note: Purchase this item from Coral website
Install M.2 NVMe SSDs for Cache Acceleration or Efficient Tiered Storage
If you have a huge number of small files requiring read/write operations, you can easily boost IOPS of TS-464 by configuring its two M.2 SSDs as a cache disk. When transmitting bigger files, you can create a storage pool with two M.2 SSDs. With Qtier automatically moving hot data to SSD and cold data to hard drives, TS-464 allows you to enjoy exceptional application performance.
Accelerate AI-Powered Image Recognition with TPU
By leveraging a Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-464 can perform high-speed face and object recognition. Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.
Note: Purchase this item from Coral website
Abundant I/O Capabilities with PCIe Expansion
QNAP offers a wide range of expansion cards to add versatile functions to your NAS. The TS-464 has one PCIe Gen 3 x2 slot that supports various expansion cards for expanding application potential.
QM2 Card - QM2-2P10G1TB
Add a 10GbE port and two M.2 SSD slots at the same time.
QM2 Card - QM2-2P-344A
Add two M.2 SSDs to create a storage pool with larger capacity caching with the built in M.2 SSDs.
Wi-Fi 6 Adapter
Install a Wi-Fi 6 adapter to turn the TS-464 into a Wi-Fi NAS, allowing accessing NAS data via a wireless network.
QM2 Card - QM2-2P10G1TB
Add a 10GbE port and two M.2 SSD slots at the same time.
QM2 Card - QM2-2P-344A
Add two M.2 SSDs to create a storage pool with larger capacity caching with the built in M.2 SSDs.
Wi-Fi 6 Adapter
Install a Wi-Fi 6 adapter to turn the TS-464 into a Wi-Fi NAS, allowing accessing NAS data via a wireless network.
One Touch Copy Backup with USB 3.2 Gen 2
TS-464 provides two 10 Gb/s USB 3.2 Gen 2 ports for faster file transfer to/from USB 3.2 Gen 2 devices. The One Touch Copy button also allows you to back up the contents of USB devices to the TS-464 with a single button press.
Smoother Mobile Experience with GPU
Taking a lot of photos with your smartphone? Qfile mobile app will help you free up space by automatically backing up photos to the TS-464. With Intel® UHD Graphics, the TS-464 greatly speeds up converting videos to 1080p / 720p, allowing for smooth streaming to mobile devices over varying mobile network speeds.
Use Your NAS Like a PC
QNAP's exclusive Virtualization Station enables running multiple Windows/Linux virtual machines. By connecting a keyboard, mouse, and HDMI monitor, you can easily use the TS-464 as a PC.
QTS 5 - Fast, Smooth, and Easy to Use
The TS-464 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.
Brighter and Smoother
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.
Get Started with the Notice Board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.
Smooth and Reactive User Interface
Whether clicking buttons, switching between apps, expanding/collapsing windows - every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.
Brighter and Smoother
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.
Get Started with the Notice Board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.
Smooth and Reactive User Interface
Whether clicking buttons, switching between apps, expanding/collapsing windows - every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.
Simple Backup
Superior hardware performance with an all-in-one Backup Solution to speed up backup/recovery tasks.
Back Up All Your Devices
PC and Mac Backup
Sync your computer files to NAS with Qsync. The TS-464 also supports Time Machine for Mac computers.
License-Free VM Backup
Back up multiple VMware and Hyper-V VMs using Hyper Data Protector
File Server Backup
Supports multiple protocols such as Rsync, FTP, and CIFS for backing up different file servers.
SaaS Business Backup Solution
Use Boxafe to easily back up Google Workspace and Microsoft 365 business account data.
Google Photos and WordPress Backup
The exclusive MARS service enables backing up Google Photos and WordPress databases and files to NAS.
Sync your computer files to NAS with Qsync. The TS-464 also supports Time Machine for Mac computers.
License-Free VM Backup
Back up multiple VMware and Hyper-V VMs using Hyper Data Protector
File Server Backup
Supports multiple protocols such as Rsync, FTP, and CIFS for backing up different file servers.
SaaS Business Backup Solution
Use Boxafe to easily back up Google Workspace and Microsoft 365 business account data.
Google Photos and WordPress Backup
The exclusive MARS service enables backing up Google Photos and WordPress databases and files to NAS.
Remote Replication for NAS Data
Back Up Data from One NAS to Another
Back up data on a local NAS to another remote NAS using Hybrid Backup Sync. You can also deduplicate your backup using QuDedup to save time and storage space.
Back Up NAS Data to the Cloud
Hybrid Backup Sync supports mainstream public cloud services for backing up or syncing data from NAS to cloud.
Cloud Storage Gateway
VJBOD Cloud connects cloud object storage (Bucket) and back up data from NAS to the cloud.
Back Up NAS Snapshots
Use Snapshot Replica to back up NAS snapshots to another NAS and recover when needed.
Back up data on a local NAS to another remote NAS using Hybrid Backup Sync. You can also deduplicate your backup using QuDedup to save time and storage space.
Back Up NAS Data to the Cloud
Hybrid Backup Sync supports mainstream public cloud services for backing up or syncing data from NAS to cloud.
Cloud Storage Gateway
VJBOD Cloud connects cloud object storage (Bucket) and back up data from NAS to the cloud.
Back Up NAS Snapshots
Use Snapshot Replica to back up NAS snapshots to another NAS and recover when needed.
Smart Storage
QNAP's exclusive apps provide easy-to-use file storage and collaboration tools. Snapshots also help protect important data from Ransomware.
Snapshots Protection
Volume and LUN Snapshots
"Snapshots" record the complete status of your NAS system and data. Certain data and files can be reverted when needed.
Versioning
Regularly create snapshots. The more snapshots you have, the lower the risk of data loss.
Smart Snapshot Space Management
QNAP supports smart snapshot space management to ensure there is enough space for new snapshots.
"Snapshots" record the complete status of your NAS system and data. Certain data and files can be reverted when needed.
Versioning
Regularly create snapshots. The more snapshots you have, the lower the risk of data loss.
Smart Snapshot Space Management
QNAP supports smart snapshot space management to ensure there is enough space for new snapshots.
Smart Surveillance
The TS-464 provides a professional surveillance NAS solution, compatible with 6000+ IP cameras of 190+ brands and thousands of ONVIF network cameras.
Build Surveillance with Affordable Deployment Costs
All-in-One Surveillance
Say goodbye to expensive and complicated PC NVR. QNAP's integrated surveillance NAS solution offers a subscription licensing solution or perpetual licensing solution for flexible deployment based on your needs.
Connect to HDMI Monitor
The TS-464 supports HDMI output for direct surveillance video playback, removing the need for a dedicated workstation.
Surveillance Failover
Install the high-availability QVR Guard app to automatically takeover recording tasks if a QVR Pro server fails.
Say goodbye to expensive and complicated PC NVR. QNAP's integrated surveillance NAS solution offers a subscription licensing solution or perpetual licensing solution for flexible deployment based on your needs.
Connect to HDMI Monitor
The TS-464 supports HDMI output for direct surveillance video playback, removing the need for a dedicated workstation.
Surveillance Failover
Install the high-availability QVR Guard app to automatically takeover recording tasks if a QVR Pro server fails.
Live Surveillance Monitoring, Remote Management, and Smart AI
Live Surveillance and Video Monitoring
Monitor live feeds and receive alert event notifications from client applications on PCs or mobiles.
Large-Scale Central Management
Centrally control up to 256 Surveillance NAS (licenses sold separately) in different locations in QVR Center.
AI Surveillance Event Search
Instead of manually searching through a whole day of event videos, QVR Smart Search helps you efficiently search through hundreds of hours of video recordings from hundreds of cameras to find specific events.
MP4 Surveillance Videos
With GPU-accelerate video conversion, surveillance videos can be converted to various file formats or resolutions for smoother playback on multiple devices.
Monitor live feeds and receive alert event notifications from client applications on PCs or mobiles.
Large-Scale Central Management
Centrally control up to 256 Surveillance NAS (licenses sold separately) in different locations in QVR Center.
AI Surveillance Event Search
Instead of manually searching through a whole day of event videos, QVR Smart Search helps you efficiently search through hundreds of hours of video recordings from hundreds of cameras to find specific events.
MP4 Surveillance Videos
With GPU-accelerate video conversion, surveillance videos can be converted to various file formats or resolutions for smoother playback on multiple devices.
All-in-One Solution for Hosting Virtual Machines and Containers
By running multiple virtual machines and containers on the TS-464, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows, Linux, UNIX, Android, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC).
Container Station
Experience Docker, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry, import/export containers, and create abundant microservices.
Linux Station
Run Linux applications directly on the NAS and remotely access the Linux desktop from a web browser. The open-source Linux platform is also ideal for Internet of Things development.
Virtualization Station
Run multiple Windows, Linux, UNIX, Android, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC).
Container Station
Experience Docker, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry, import/export containers, and create abundant microservices.
Linux Station
Run Linux applications directly on the NAS and remotely access the Linux desktop from a web browser. The open-source Linux platform is also ideal for Internet of Things development.
Enhanced Cybersecurity and Data Protection
The TS-464 is loaded with comprehensive privilege settings and security measures. Besides, there are abundant apps that help ensure optimal NAS protection against threats like malware and hackers.
Account Security
Supports Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems. Use 2-Step Authentication for all user accounts to protect against brute force attacks.
Secure Remote Access
myQNAPcloud Link allows convenient remote connection to NAS through the Internet. Or you can use QVPN to set up a VPN connection to the NAS with enhanced security.
NAS Firewall
QuFirewall restricts and blocks suspicious packets sent by proxy servers and the onion routing (Tor) based on user rules. QuFirewall also dynamically updates its block list based on detected malicious packets.
Malware Protection
Regularly scan your TS-464 using the latest malware definitions. If infected files are detected, they are immediately removed to ensure NAS data security.
Account Security
Supports Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems. Use 2-Step Authentication for all user accounts to protect against brute force attacks.
Secure Remote Access
myQNAPcloud Link allows convenient remote connection to NAS through the Internet. Or you can use QVPN to set up a VPN connection to the NAS with enhanced security.
NAS Firewall
QuFirewall restricts and blocks suspicious packets sent by proxy servers and the onion routing (Tor) based on user rules. QuFirewall also dynamically updates its block list based on detected malicious packets.
Malware Protection
Regularly scan your TS-464 using the latest malware definitions. If infected files are detected, they are immediately removed to ensure NAS data security.
A Health Check for Your Hard Drives
Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.
S.M.A.R.T. and Back Block Scanning
If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.
DA Drive Analyzer
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.
Seagate IronWolf Health Management
When using supported IronWolf or IronWolf Pro hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.
S.M.A.R.T. and Back Block Scanning
If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.
DA Drive Analyzer
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.
Seagate IronWolf Health Management
When using supported IronWolf or IronWolf Pro hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.
Extend Hardware Warranty up to 5 Years
The TS-464 is backed by a limited 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
UPC: 885022024674
In the Box
- QNAP TS-464 4-Bay NAS Enclosure
- Ethernet Cable
- Power Cord
- 12 x Flat Head Screws for 3.5" HDDs
- 12 x Flat Head Screws for 2.5" HDDs
- AC Adapter
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- 2.5GbE NAS
- 2.0 Intel Celeron N5095 Quad-Core Processor for Optimized Performance
- Upgrade to Dual-Port 10GbE
- Expand Storage Capacity up to 16 Hard Drives
- Accelerate AI-Powered Image Recording and Caching with TPU and PCIe Expansion
- Abundant I/O Capabilities with PCIe Expansion
- One Touch Copy Backup with USB 3.2 Gen 2
- Smoother Mobile Experience with GPU
- Use Your NAS Like a PC
- QTS 5 - Fast, Smooth, and Easy to Use
- Simple Backup
- Back Up All Your Devices
- Remote Replication for NAS Data
- Smart Storage
- Snapshots Protection
- Smart Surveillance
- Build Surveillance with Affordable Deployment Costs
- Live Surveillance Monitoring, Remote Management, and Smart AI
- All-in-One Solution for Hosting Virtual Machines and Containers
- Enhanced Cybersecurity and Data Protection
- A Health Check for Your Hard Drives
- Extend Hardware Warranty up to 5 Years
QNAP TS-464-8G Specs
Computing
| CPU | 2 to 2.9 GHz Quad-Core |
| Processor | Intel Celeron N5095 |
| GPU | Intel UHD Graphics |
| Total Installed Memory | 8 GB |
| Flash Memory | 4 GB |
General
| Number of Bays | 4 x 2.5"/3.5" 2 x M.2 (2280) |
| Inputs/Outputs | 2 x RJ45 2.5GbE 2 x USB-A 3.1/3.2 Gen 2 2 x USB-A 2.0 1 x HDMI 2.1 |
| Compatible Drive Interface | SATA III |
| Media Card Slots | None |
| Form Factor | Tower |
| RAID | RAID 0, 1, 10, 5, 6, JBOD, Single |
| Hot-Swap Support | Yes |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 82917.8 |
| 3-5 | ₹ 82071.7 |
| 5-10 | ₹ 80379.5 |
| 10+ | ₹ 78687.3 |
Bulk discount will be automatically applied during checkout based on quantity.
