QNAP TL-R1620SDC External HDD/SSD Overview
-
1Description
-
2Compatibility
-
3DataBolt Bandwidth Optimization
-
4Multipath Routing
-
5Flexible Daisy Chaining
-
6NAS Storage Management
-
7Multi-Server SAS Zoning
-
8Short Depth Design

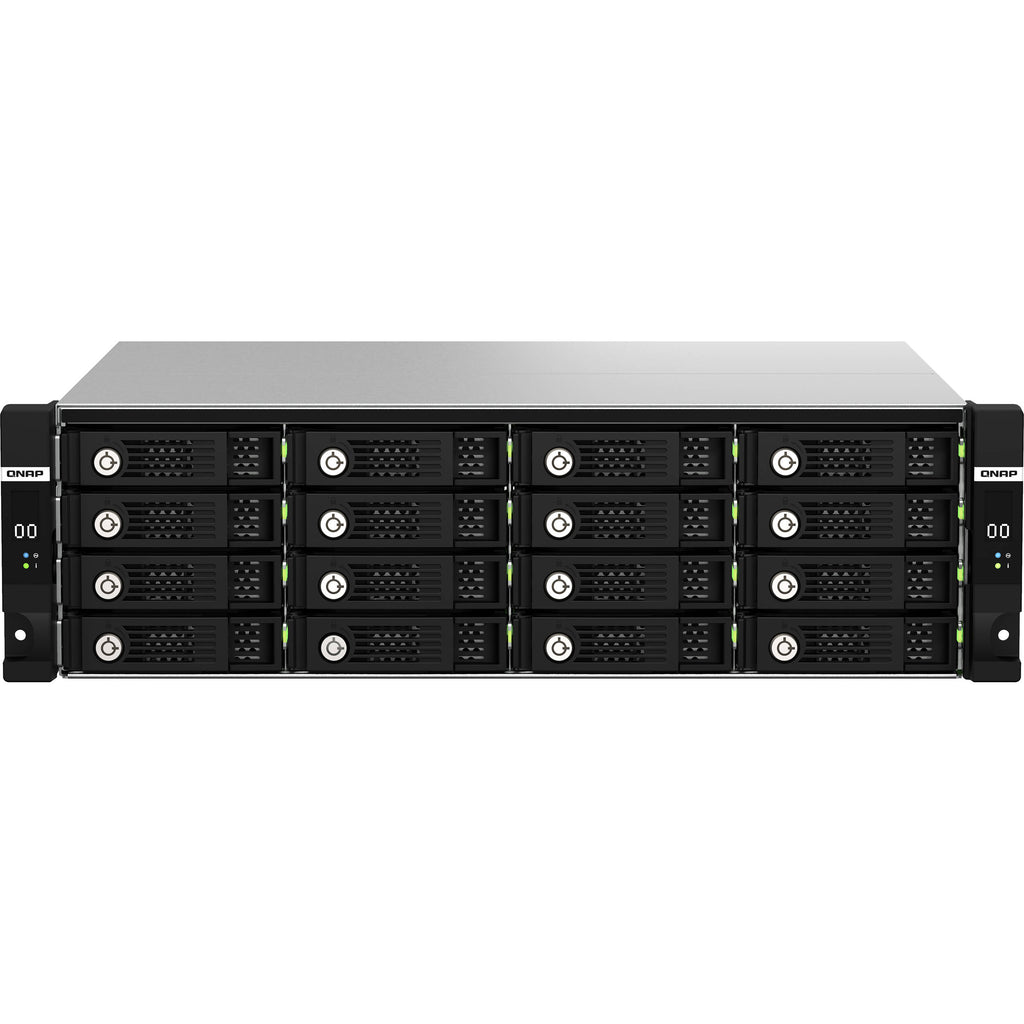

Quickly grow the storage capacity of your compatible QNAP NAS or server system with the TL-R1620SDC 16-Bay SAS-3 / SATA III JBOD Expansion Enclosure with Dual Controllers. This 3 RU rackmount storage enclosure features sixteen 2.5"/3.5" bays that support both 12 Gb/s SAS-3 and 6 Gb/s SATA III drives in JBOD configuration, delivering fast and reliable storage for large backups, virtualization applications, surveillance recordings, and more. Featuring six 12 Gb/s SFF-8644 wide ports, it uses the Broadcom SAS DataBolt bandwidth optimization technology to achieve 12 Gb/s transfer speeds by combining two 6 Gb/s devices. With daisy chaining, multipath routing, and link aggregation support, you can achieve up to 96 Gb/s transfer rates from multiple JBODs with 4.6PB of raw storage. This enclosure is designed to operate with a mini SAS compatible NAS running QTS / QuTS hero 4.5.1 or later or a computer running Windows Server 19.
Compatibility
QNAP NAS with QTS / QuTS hero 4.5.1 or later or PC/server running Windows Server 2019. Host systems must have at least one mini-SAS HD (SFF-8644) port available.
DataBolt Bandwidth Optimization
SAS DataBolt uses an intelligent data buffer for transferring data to drives at speeds that match the performance of the host NAS or server. Even if you have 6 Gb/s drives installed, the host will always transfer data at 12 Gb/s.
Multipath Routing
Daisy chained enclosures can use multipath routing to automatically switch data transmission routes when one fails due to a malfunctioning port or cable to help ensure uninterrupted operation. The TL-R1620SDC also features a redundant 550W power supply to ensure system uptime.
Flexible Daisy Chaining
Up to 16 expansion enclosures can be daisy chained together via high-speed mini-SAS cables, using link aggregation to deliver speeds of up to 96 Gb/s and 4.6PB of raw storage capacity. The TL-R1620SDC supports TL SAS JBODs with NAS and server systems. The EXP SAS JBOD configuration may be used with NAS devices.
NAS Storage Management
Installing the Storage & Snapshot Manager onto your NAS allows you to manage your storage space by configuring RAID groups, storage pools, and snapshots. You can also set up the JBOD as a storage volume for the host NAS to quickly expand your storage.
Multi-Server SAS Zoning
The QNAP JBOD Manager app can be used to divide your server's storage space into four separate zones, allowing different host servers access to only one zone through specific mini SAS ports. The app also provides operating status and connection topology information in addition to letting you update the firmware of all connected TL-R1620SDC enclosures.
Short Depth Design
This 3 RU rackmount enclosure may be quickly installed onto standard server racks or small AV cabinets.
![]()
UPC: 885022021444
In the Box
- QNAP TL-R1620SDC 16-Bay SAS-3 / SATA III JBOD Expansion Enclosure with Dual Controllers
- 2 x Power Cables
- 2 x Mini SAS Cables (SFF-8644)
- 48 x Flat Head Screws for 2.5" Drives
- 64 x Flat Head Screws for 3.5" Drives
- 2 x Drive Bay Keys
- Limited 5-Year Warranty
Table of Contents
- Description
- Compatibility
- DataBolt Bandwidth Optimization
- Multipath Routing
- Flexible Daisy Chaining
- NAS Storage Management
- Multi-Server SAS Zoning
- Short Depth Design
QNAP TL-R1620SDC External HDD/SSD Specs
General
| Number of Bays |
16 x 2.5"/3.5" |
| I/O |
6 x Mini SAS (SFF-8644) (SAS-3 (12 Gb/s)) |
| Compatible Drive Interface |
SAS-3, SATA III |
| Hot-Swap Support |
Yes |
| Carrier-Less Drive Bays |
No |
Electrical
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Source |
AC Adapter |
| Power Consumption |
212.24 W (Typical) |
| PSU Wattage |
2 x 550 W (Supports Redundancy) |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
5 to 95% |
| Storage Temperature |
-4 to 158°F / -20 to 70°C |
Physical
| Cooling |
3 x 80 mm Fans |
| Noise Level |
36 dBA |
| Weight |
27.0 lb / 12.3 kg |
