Description
QNAP QXG Overview

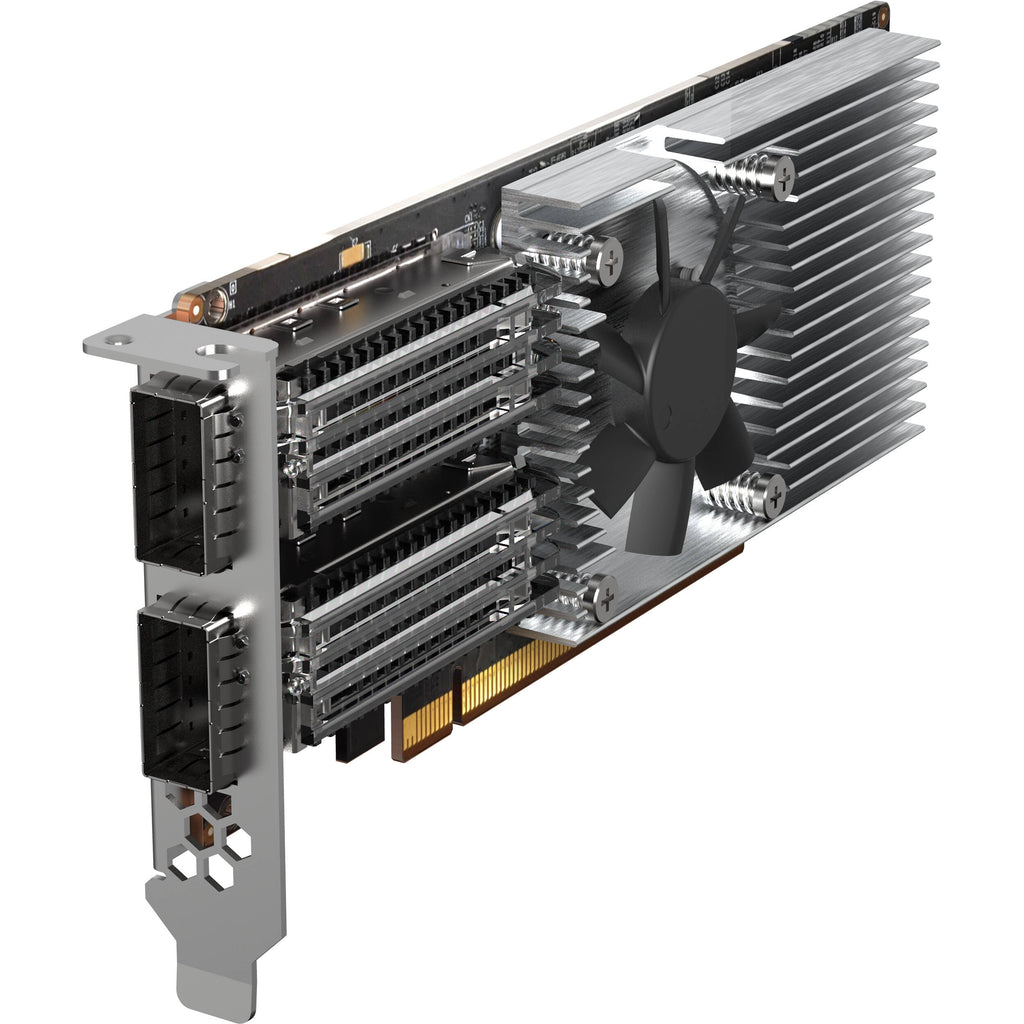

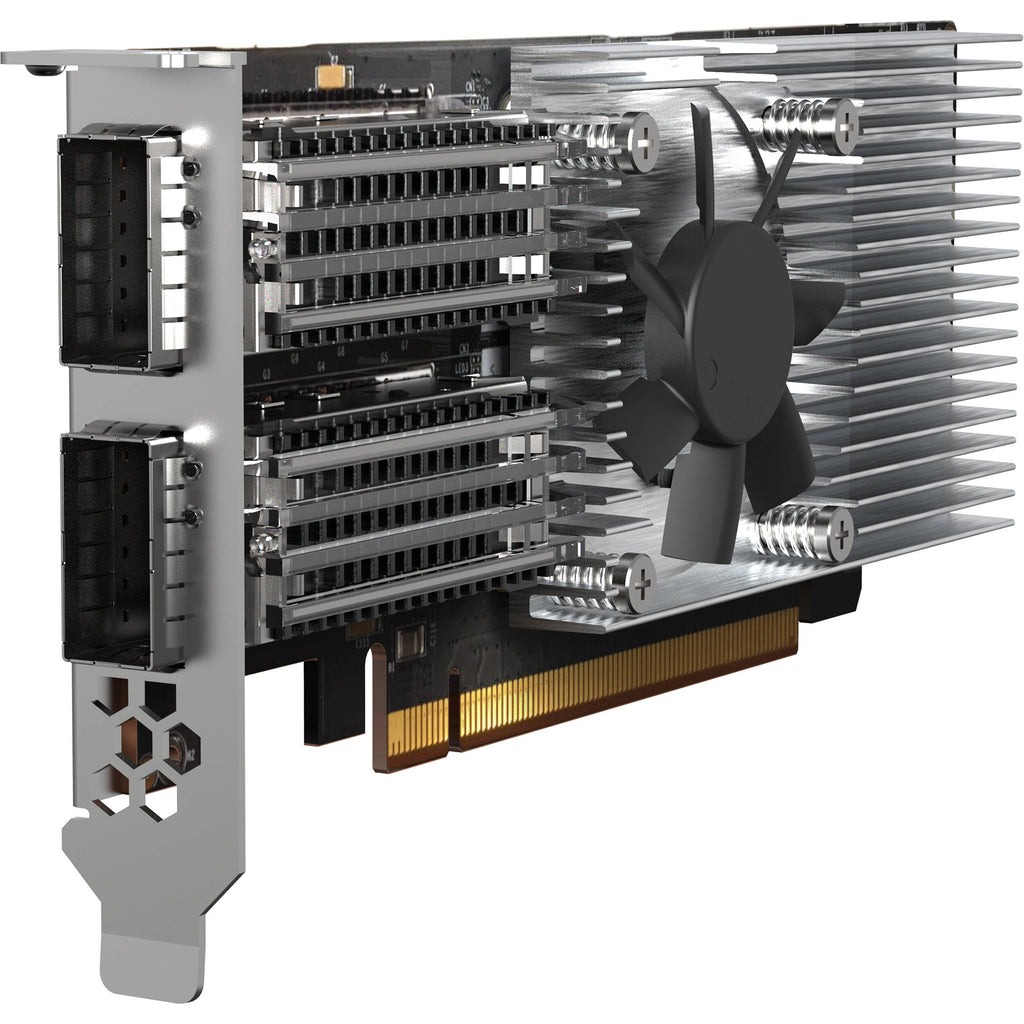

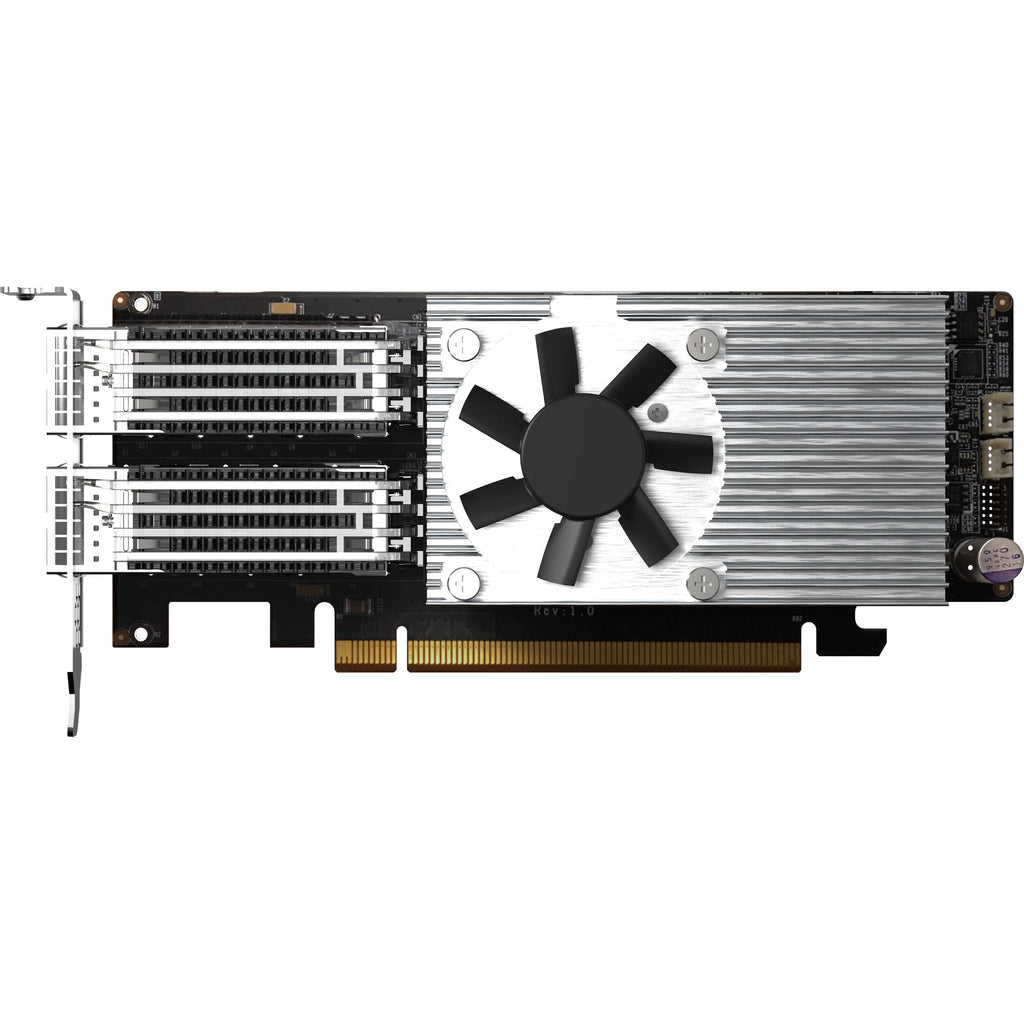

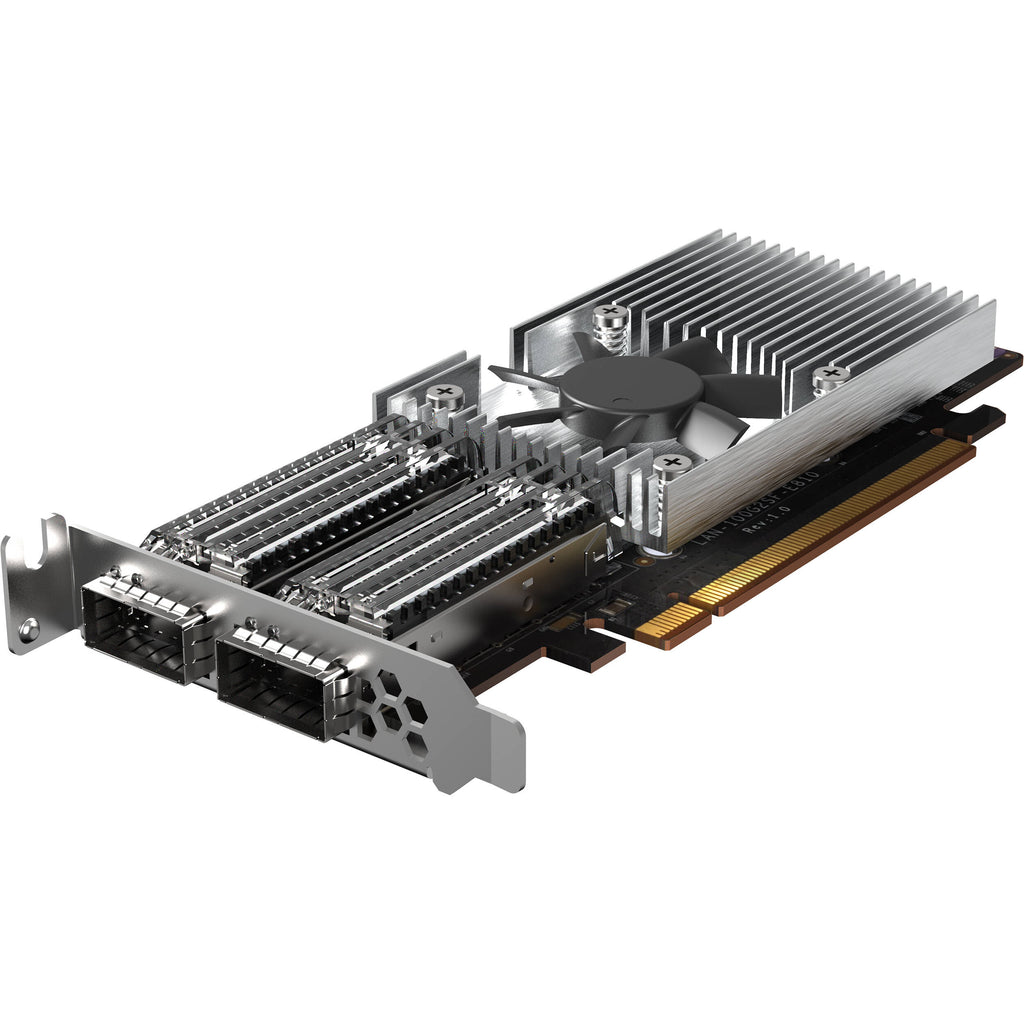

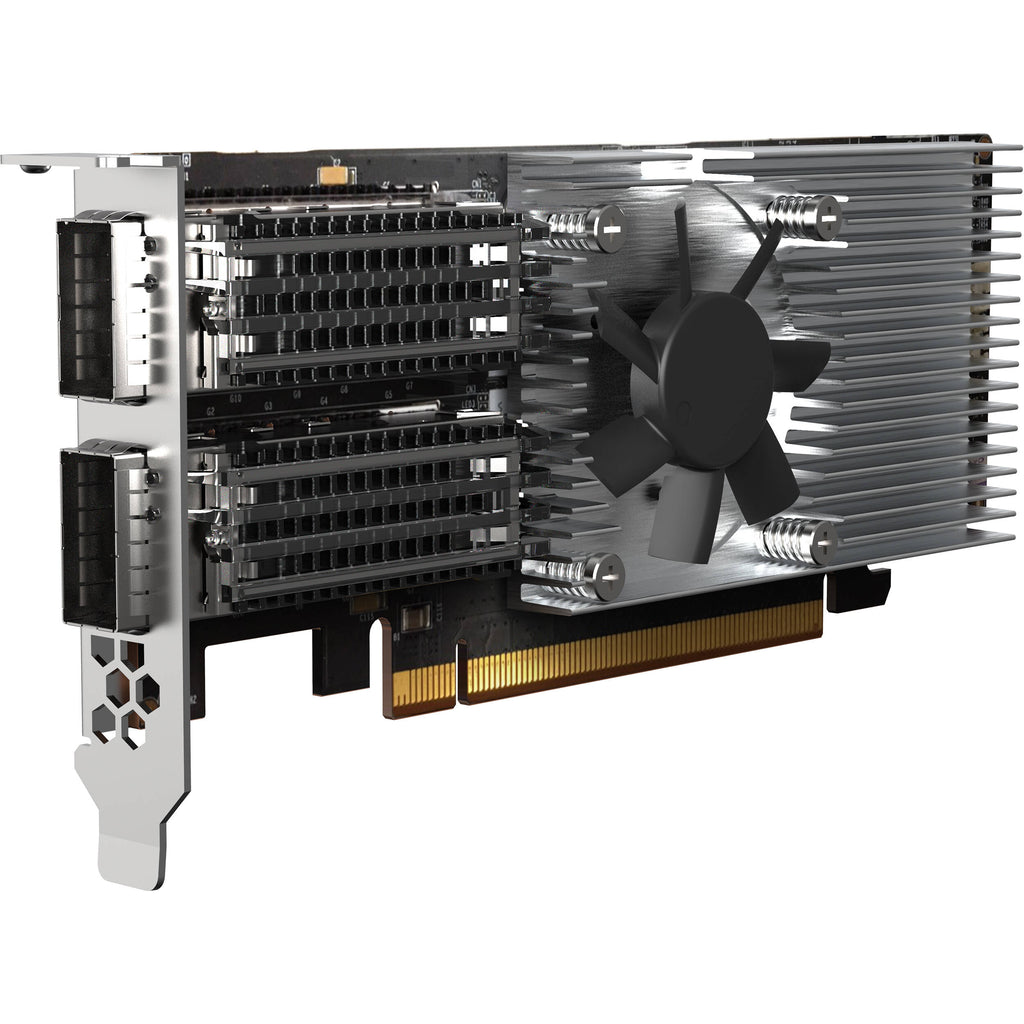

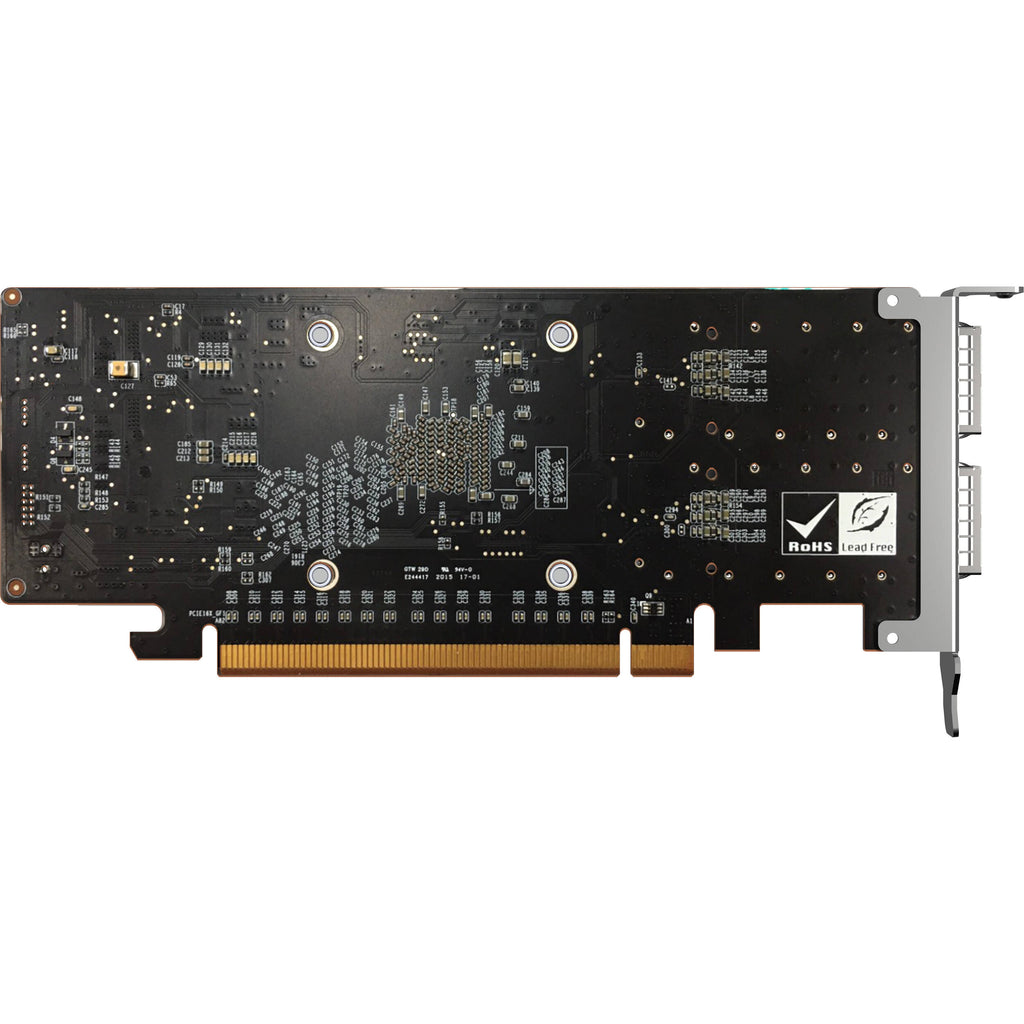

Boost network efficiency and increase performance for I/O intensive and latency-sensitive virtualization and data centers with the QXG-100G2SF-E810 Dual-Port 100GbE PCIe 4.0 x16 Network Expansion Card from QNAP. This network expansion card supports PCIe 4.0 x16 and provides up to 100 Gb/s of bandwidth to help overcome performance bottlenecks, especially when using all-flash storage to realize enhanced performance from ever-demanding IT challenges.
General Features
Ensure Reliable Data Transfers with Forward Error Correction (FEC)
The QXG-100G2SF-E810 supports FEC to overcome packet loss, a potentially common occurrence in fast, long-distance networks. FEC helps the receiving side detect and recover lost data to correct bit errors, thus ensuring reliable data transmission over "noisy" communication channels. With three FEC modes, you can use a suitable cable and switch to build an optimal network environment.
Pair with High-Speed Switches for High-Performance, Low-Latency Data Centers
The QXG-100G2SF-E810 network expansion card can be connected to a switch, either with a QSFP28 cable or a QSFP28 to (4) SFP28 cable. You can also configure network redundancy to achieve network failover via the switch for continuous service and high availability.
100GbE to 100GbE
Use a 100GbE switch. Set one 100GbE connection as the main route and the other 100GbE as a backup route.
100GbE to 4 x 25GbE
Use a QNAP 25GbE switch and a QSFP28 to (4) SFP28 cables to connect the 100GbE port on the QXG-100G2SF-E810 to four 25GbE ports on the switch. Set a group of QSFP28 to (4) SFP28 connection as the main route and the other as a backup route.
Unleash the Full Potential of the NVMe All-Flash TS-h2490FU
Supporting twenty-four (24) U.2 NVMe Gen 3 x4 SSDs, QNAP's flagship TS-h2490FU NVMe all-flash storage features a PCIe Gen 4 x16 slot that enables the QXG-100G2SF-E810 to fully realize 100GbE performance and eliminate bottlenecks in modern data centers, virtualization, cloud applications, and mission-critical backup/restore tasks.
Supports Windows and Linux Servers/Workstations
Besides QNAP devices, the QXG-100G2SF-E810 supports many platforms, including Windows 10, Windows Server, and Linux/Ubuntu, allowing you to attain optimal business performance for a wider range of system applications and services. The higher bandwidth density with reduction in links helps reduce cabling footprint and operational costs.
Faster Server
Faster server connections within data centers accelerate data aggregation and operational performance.
Denser Compute
Boost the productivity of compute-demanding tasks such as cloud computing, virtual machines, containers, and more.
Bigger Data
Empower the movement of large files from surveillance streams, 4K/8K media, Internet of Things, and more.
UPC: 885022021345
In the Box
- QNAP QXG-100G2SF-E810 Dual-Port 100GbE PCIe 4.0 x16 Network Expansion Card
- QIG
- Full-Height Bracket
- Low-Profile Bracket (Pre-Installed)
- Limited 2-Year Warranty
QNAP QXG Specs
General
| Host Interface | PCI Express 4.0 x16 |
| External Connections | 2 x RJ45 |
| Controller | Intel Ethernet Controller E810 |
| OS Compatibility | Windows 10 Windows Server Linux Ubuntu |
Physical
| Form Factor | Low-Profile |
Packaging Info
| Package Weight | 0.695 lb |
| Box Dimensions (LxWxH) | 10.2 x 4.2 x 2.4" |
