Description
QNAP QSW-M7308R-4X-US Overview
- 1Description
- 2High-Bandwidth Network
- 3Easy Management
- 4Layer 2 Network
- 5Space-Saving Design
- 6Optimize Network Performance
- 7Powerful Security & Efficiency
- 8Dependable Performance

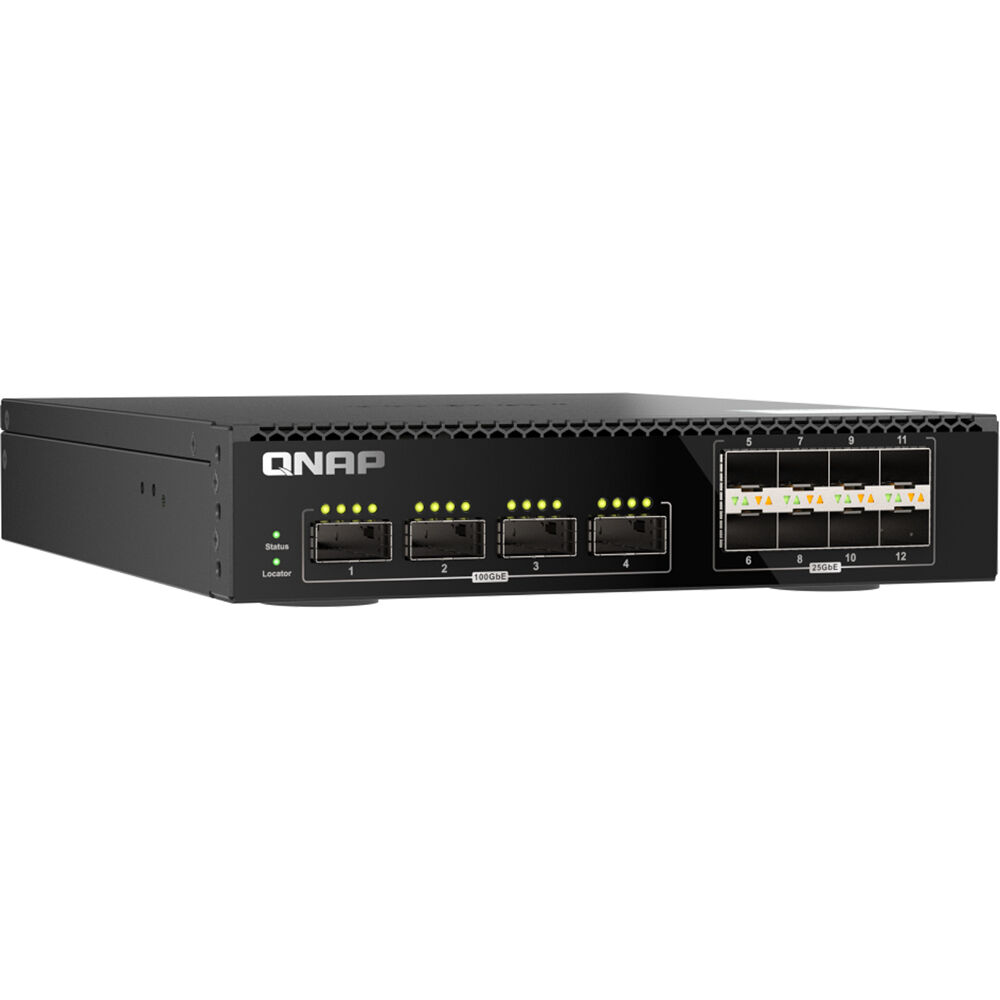

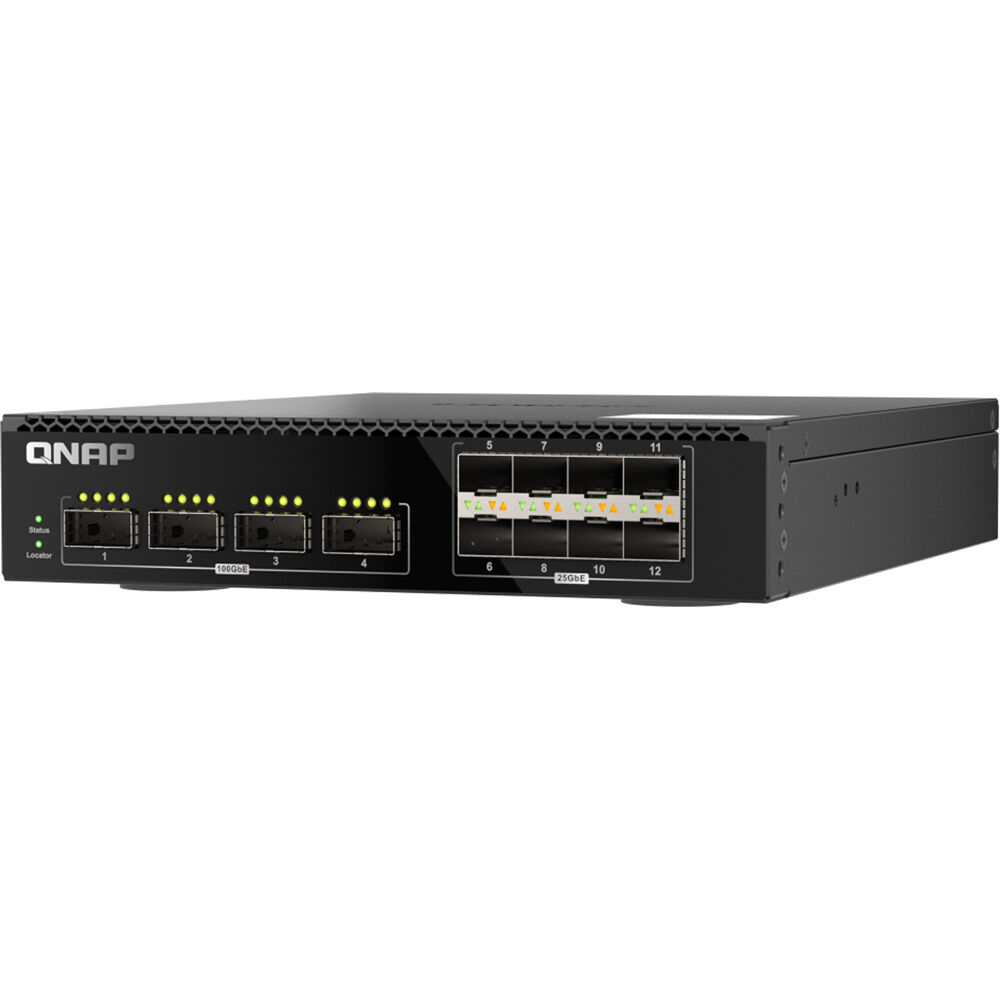

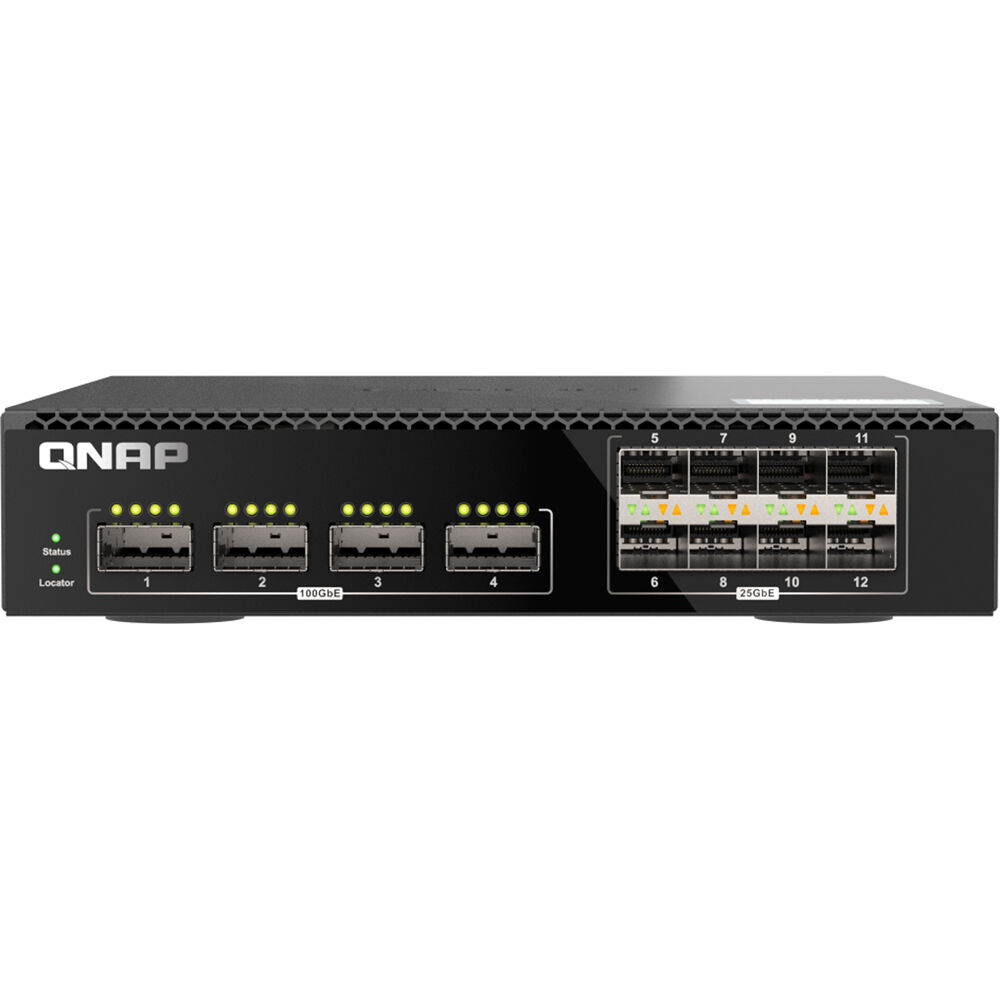

Sporting four 100G QSFP28 and eight 25G SFP28 ports, the QNAP QSW-M7308R-4X 100G QSFP28 / 25G SFP28 Managed Network Switch is designed to support demanding, high-bandwidth applications such as big data storage, video editing, virtualization, and AI.
High-Bandwidth Network
The four 100G QSFP28 and eight 25G SFP28 fiber ports offer a backbone switching capacity of up to 1200 Gb/s for uplinking server rooms.
Easy Management
The user-friendly QNAP Switch System (QSS) centralizes and simplifies central network management with an overview dashboard, port management, and settings guide.
Layer 2 Network
Layer 2 management features such as LACP, VLAN, ACL and LLDP allow you to efficiently control network bandwidth and enhance security.
Space-Saving Design

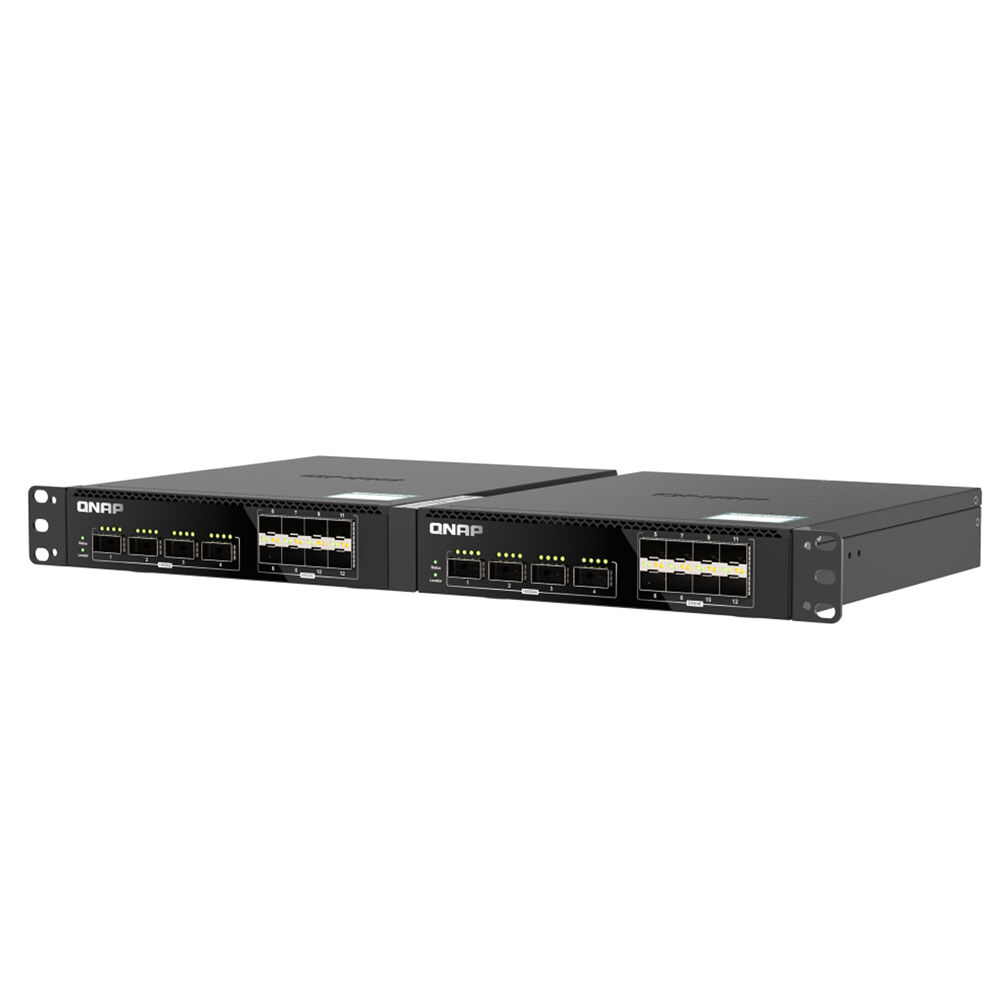

The half-width rackmount design allows two QSW-M7308R-4X to be installed in a 1 RU rack space.
Optimize Network Performance
Powerful Security & Efficiency
Dependable Performance

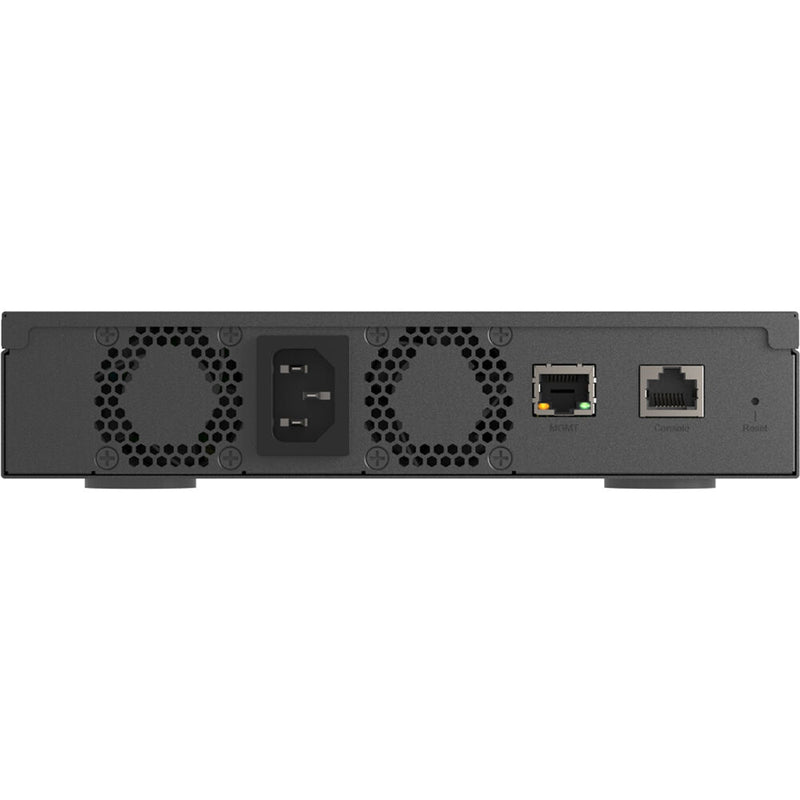

The metal housing works with the dual fans to maintain optimal temperatures for reliable performance, even when under full load.
UPC: 885022026647
In the Box
- QNAP QSW-M7308R-4X 12-Port 100G QSFP28 / 25G SFP28 Managed Network Switch
- Power Cable
- Rackmount Kit
- Foot Pads
- Screw Pack
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- High-Bandwidth Network
- Easy Management
- Layer 2 Network
- Space-Saving Design
- Optimize Network Performance
- Powerful Security & Efficiency
- Dependable Performance
QNAP QSW-M7308R-4X-US Specs
Key Specs
| Inputs/Outputs |
8 x SFP28 25 Gb/s
4 x QSFP28 100 Gb/s |
Interfaces
| Inputs/Outputs |
8 x SFP28 25 Gb/s
4 x QSFP28 100 Gb/s |
Protocols
| Layer Services Supported |
Layer 2
|
| Supported Protocols |
DHCP Server
IGMP Snooping |
| Jumbo Frames Support |
9000 Bytes
|
| MAC Address Table Size |
32K
|
Standards
| Supported IEEE Standards |
802.1ab, 802.1p, 802.1q, 802.1w, 802.3, 802.3ab, 802.3ad, 802.3ae, 802.3by, 802.3u, 802.3x, 802.3z
|
Performance
| Switching Bandwidth |
1200 Gb/s
600 Gb/s (Non-Blocking) |
Electrical
| Power Draw |
100.00 W (Max)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Supply Type |
Internal
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
5 to 95% ()
|
General
| Certifications |
CE, FCC, VCCI, BSMI
|
| Cooling System |
Fan
|
| Indicator Lights |
Link/Activity/Speed, Power, Status
|
| Dimensions |
9.8 x 8.1 x 1.7" / 248.8 x 207 x 43.3 mm
|
| Weight |
3.92 lb / 1.78 kg
|
Packaging Info
| Package Weight |
5.87 lb
|
| Box Dimensions (LxWxH) |
14 x 13.6 x 4.3"
|
