Description
QNAP QSW-M2106PR-2S2T-US Overview
- 1Description
- 2General Features
- 3Optimize Network Performance
- 4Powerful Security & System Functions

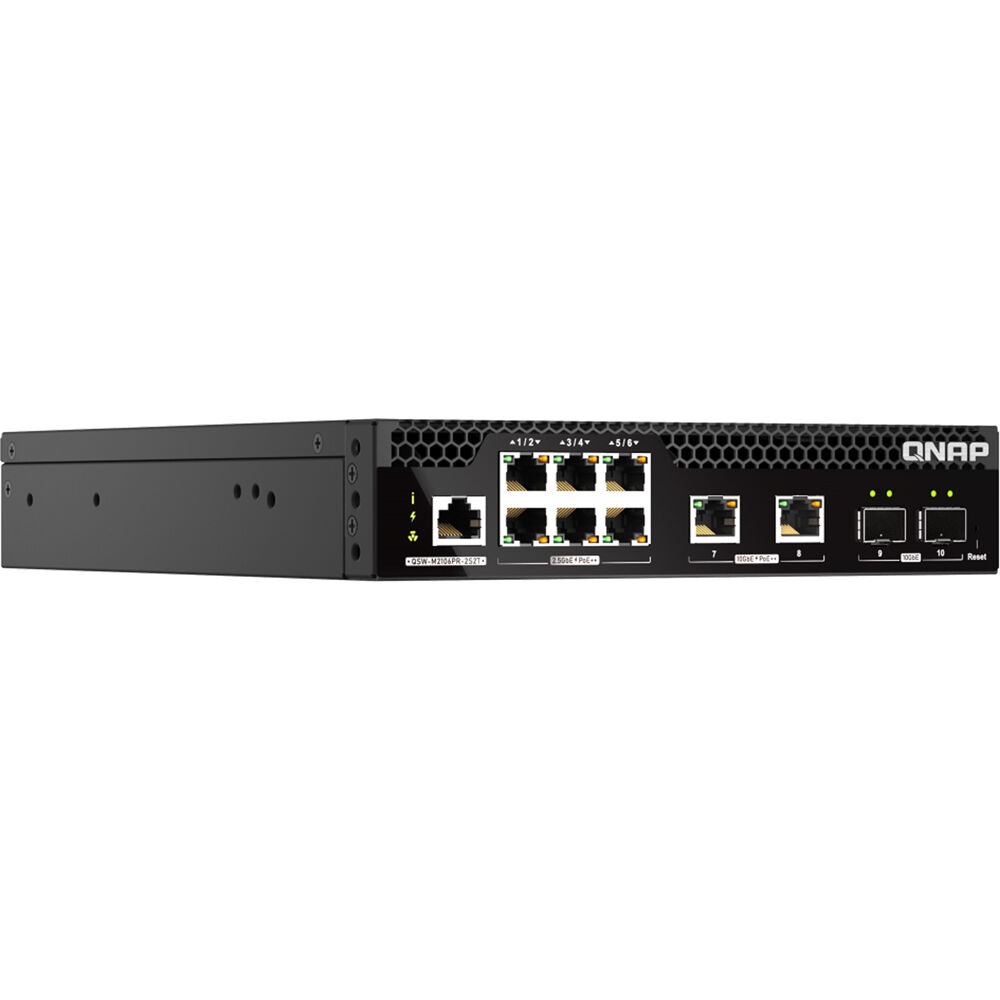

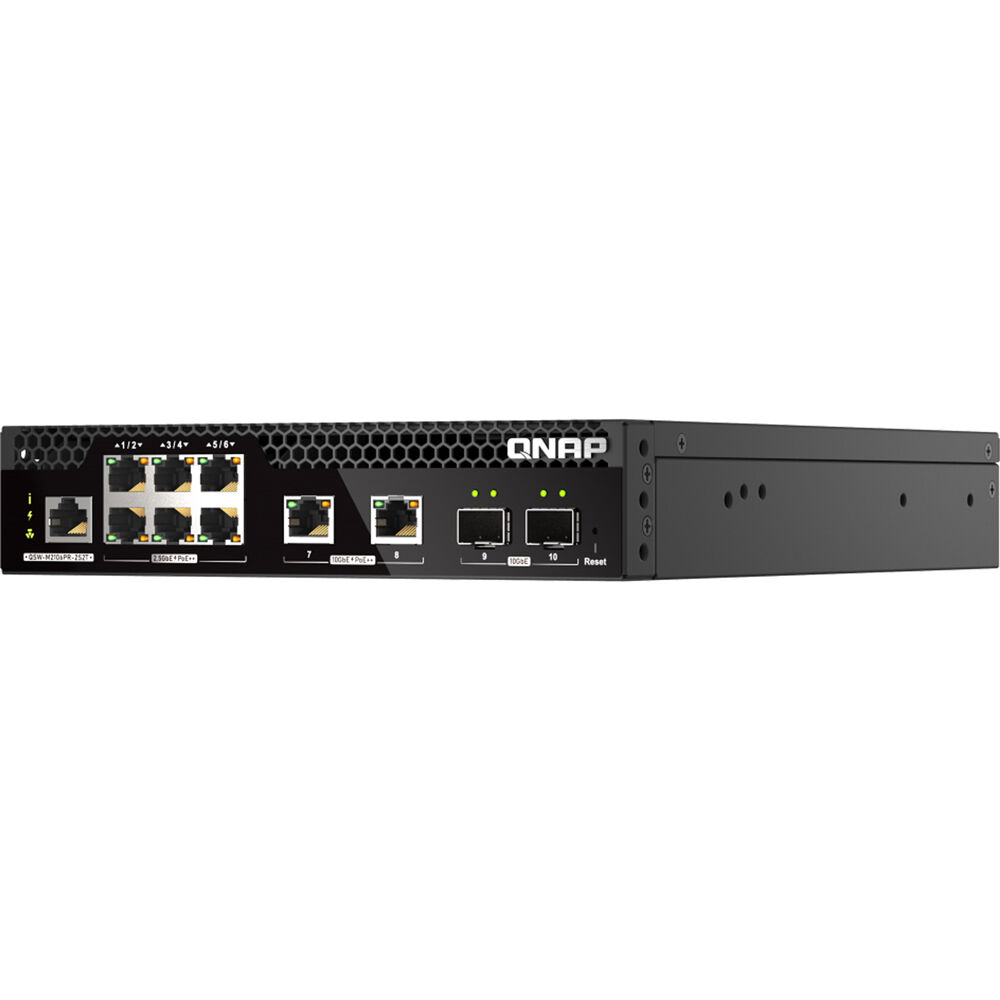

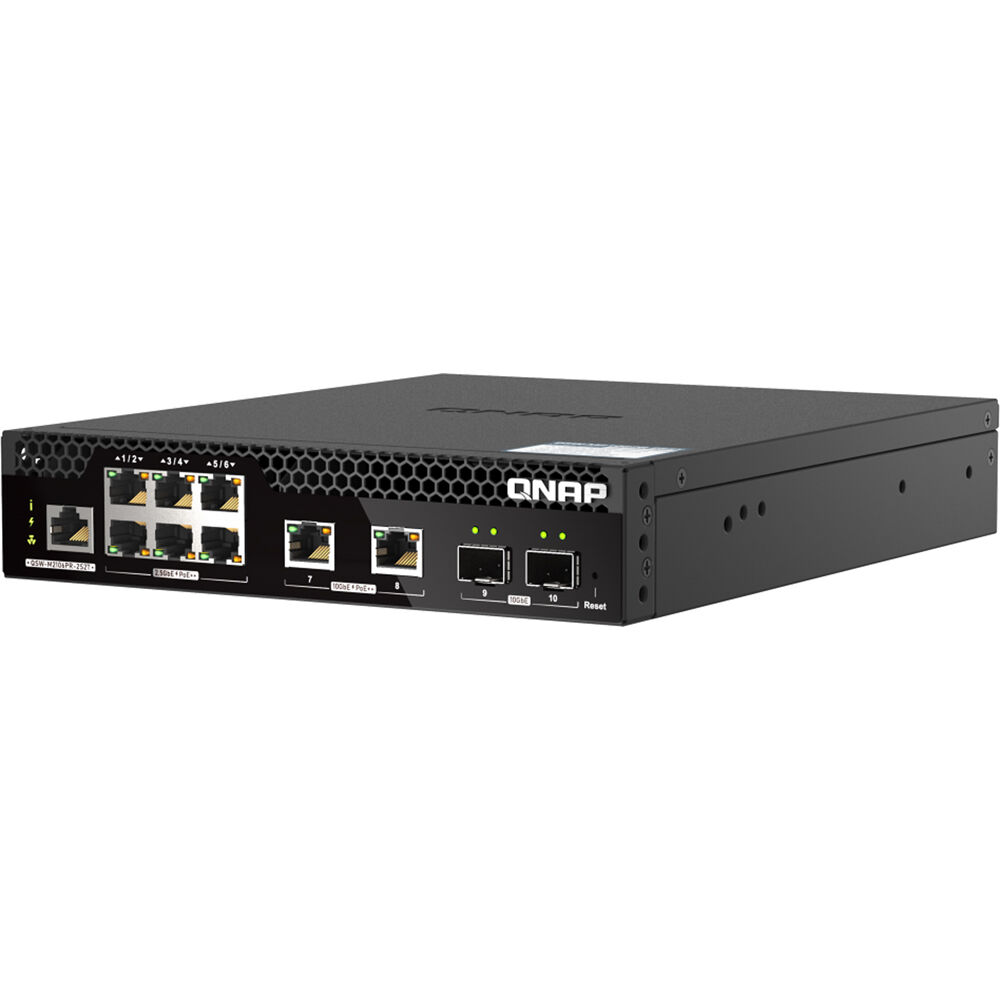

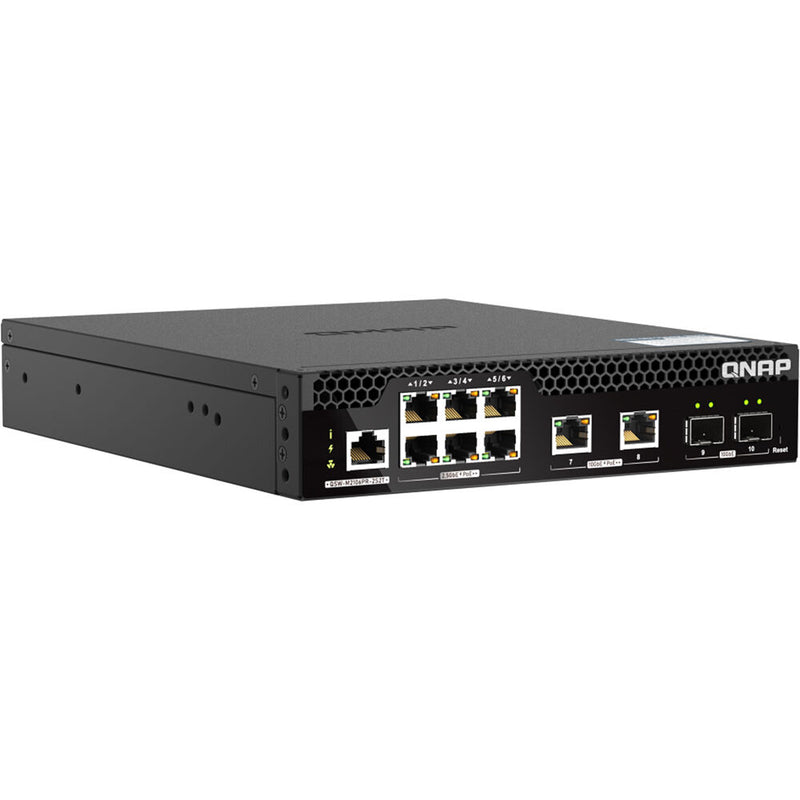

Designed with offices, hotels, malls, and other businesses in mind, the QSW-M2106PR-2S2T 10-Port PoE++ Compliant Multi-Gig Network Switch from QNAP delivers high speed and versatility to support advanced equipment. Featuring a half-width rackmount design, this compact switch can fit into small spaces such as cabinets and closets. With six 2.5Gb and two 10Gb Ethernet ports, each of which support up to 90W of power with a 310W budget, you can operate advanced PoE devices such as 4K IP cameras, Wi-Fi 7 access points, and digital signage.
Two SFP+ ports are available for 10Gb fiber connections. In addition to having a 55 Gb/s non-blocking switching capacity, the QSW-M2106PR-2S2T offers easy management over its extensive Layer 2 features with an intuitive web-based interface.
General Features
Half-Width Design
With a half-width rackmount design, a QSW-M2106PR-2S2T can be installed in a 1 RU rack space with another half-width rackmount switch for efficient physical space utilization and tidy cabling.
Dependable Performance
With a compact metal body, the QSW-M2106PR-2S2T provides stable and reliable operations while staying near-silent even when under full load. The front-panel LEDs also assist in viewing the current system status.
QNAP Switch System
The QNAP Switch System (QSS) features an easy-to-use web-based interface with Layer 2 management and value-added functions to simplify network set up and management.
Optimize Network Performance
LACP
Link Aggregation combines multiple network connections to increase throughput and protect against connection failure.
VLAN
Virtual Networks allows groups of devices from different networks to be combined into a single network.
QoS
QoS (Quality of Service) prioritizes bandwidth usage to optimize network resource allocation.
IGMP Snooping
IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.
Powerful Security & System Functions
ACL
Filters packets based on rules to offer firewall-like security protection.
LLDP
Allows devices to advertise device information to directly-connected peers/neighbors to simplify troubleshooting processes.
RSTP
Ensures loop-free topology for Ethernet networks by blocking or forwarding traffic.
Flow Control
Balances traffic between a sender and a receiver to avoid network congestion.
UPC: 885022025152
In the Box
- QNAP QSW-M2106PR-2S2T 10-Port PoE++ Compliant 10Gb / 2.5Gb Managed Network Switch
- Power Cable
- Rackmount Kit
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- General Features
- Optimize Network Performance
- Powerful Security & System Functions
QNAP QSW-M2106PR-2S2T-US Specs
Key Specs
| Inputs/Outputs |
2 x 10Gb SFP+
2 x 10Gb Ethernet (RJ45) PoE (Type 4) 6 x 2.5 Gb/s Ethernet (RJ45) PoE (Type 4) |
| PoE Power Budget |
310 W
|
Interfaces
| Inputs/Outputs |
2 x 10Gb SFP+
2 x 10Gb Ethernet (RJ45) PoE (Type 4) 6 x 2.5 Gb/s Ethernet (RJ45) PoE (Type 4) |
Protocols
| Layer Services Supported |
Layer 2 Support
|
| Supported Protocols |
DHCP Server
IGMP Snooping IPv4 Link Aggregation |
| Jumbo Frames Support |
9000 Bytes
|
| MAC Address Table Size |
16K
|
Standards
| Supported IEEE Standards |
802.1ab, 802.1p, 802.1q, 802.1w, 802.3, 802.3ab, 802.3ad, 802.3ae, 802.3an, 802.3az, 802.3bt, 802.3bz, 802.3u, 802.3x, 802.3z
|
Performance
| Switching Bandwidth |
55 Gb/s (Non-Blocking)
|
Electrical
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| PoE Power Budget |
310 W
|
| PoE per Port |
90 W
|
| Power Supply Type |
Internal
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
5 to 95% (Non-Condensing)
|
General
| Certifications |
CE, FCC, VCCI, BSMI
*as per Manufacturer |
| Cooling System |
Fan
|
| Indicator Lights |
Fan, Link/Activity/Speed, PoE, Status
|
| Rack Form Factor |
1 RU
|
| Dimensions |
9.8 x 8.1 x 1.7" / 248.8 x 207 x 43.3 mm
|
| Weight |
3.9 lb / 1.8 kg
|
Packaging Info
| Package Weight |
5.945 lb
|
| Box Dimensions (LxWxH) |
13.7 x 13.5 x 3.1"
|
