Description
QNAP QSW-L3208-2C6T Overview

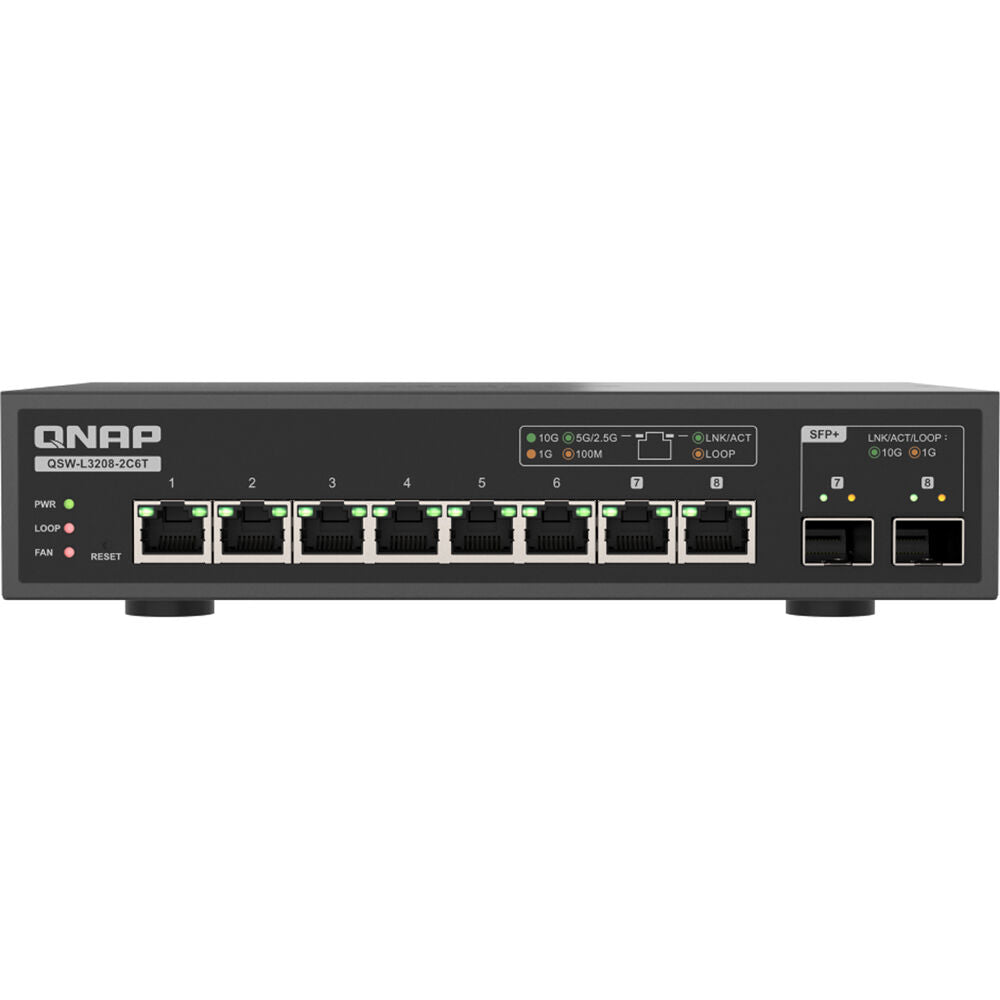

Add 10 Gb/s compatible computers, NAS enclosures, servers, and other devices to your network with the QSW-L3208-2C6T-US 6-Port 10G Managed Network Switch from QNAP. Ideal for small to medium businesses and retail environments, this Lite Managed desktop switch includes six 10G RJ45 ports that deliver smooth data transfers with a 160 Gb/s (80 Gb/s non-blocking) switching capacity. Two SFP+ ports are available for up to 10 Gb/s fiber uplinks.
LACP
LACP (Link Aggregation Control Protocol) combines multiple network connections into a single high-speed link, increasing total bandwidth and enabling faster performance.
VLAN
VLAN (Virtual LAN) allows for segmentation of departmental networks, enabling more efficient and organized traffic management.
QoS
QoS (Quality of Service) manages traffic flow and allocates bandwidth priority to ensure performance-critical applications receive sufficient resources.
IGMP Snooping
IGMP Snooping manages multicast streams accurately to prevent packet loss or duplication during video streams.
Port Mirroring
Port Mirroring duplicates traffic from one port to another for monitoring and troubleshooting purposes.
Flow Control
Flow Control balances data transmission between fast-sending and slower-receiving devices, helping maintain smooth and stable network performance.
Loop Detection and Prevention
If the QSW-L3208-2C6T automatically detects and locks looped ports to ensure the network environment quickly resumes normal operation.

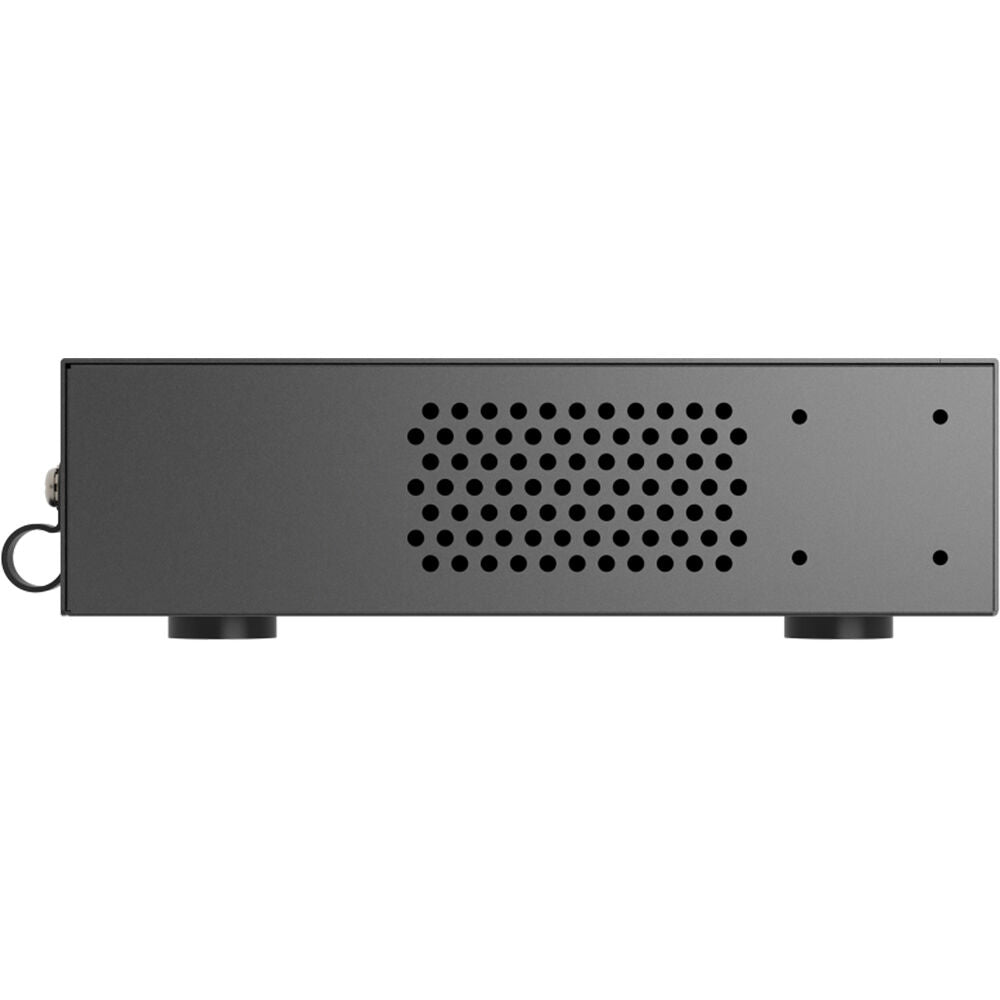

Effective Heat Dissipation
With a compact metal body that optimizes cooling performance, the QSW-L3208-2C6T provides stable and reliable performance, even when under full load. The front-panel LEDs also assist in viewing the current system status.
UPC: 885022028597
Items Included
- QNAP QSW-L3208-2C6T-US 6-Port 10G Managed Network Switch
- Power Adapter
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
QNAP QSW-L3208-2C6T Specs
Key Specs
| Inputs/Outputs |
6x RJ45 10 GbE
2x SFP+ 10 GbE |
| Stackable |
No
|
| Switching Bandwidth |
160 Gb/s
80 Gb/s (Non-Blocking) |
| Stackable |
No
|
Protocols
| Layer Services Supported |
Layer 2
|
| Supported Protocols |
Auto-MDIX/MDI
|
| Jumbo Frames Support |
12,000 Bytes
|
| MAC Address Table Size |
16K
|
Performance
| Switching Bandwidth |
160 Gb/s
80 Gb/s (Non-Blocking) |
Electrical
| Power Draw |
36.00 W
|
| Input Power |
12 VDC at 3 A
|
| Power Supply Type |
External
|
General
| Certifications |
BSMI, CE, FCC, IC, KC, RCM, UKCA, VCCI
|
| Operating Conditions |
32 to 104?F / 0 to 40?C up to 90% Humidity
|
| Cooling System |
Fan
|
| Material of Construction |
Metal
|
| Indicator Lights |
Yes
|
| Rack Mountable |
No
|
| Dimensions |
8.3 x 6.3 x 1.7" / 210 x 160 x 44 mm
|
| Weight |
2.84 lb / 1.29 kg
|
Packaging Info
| Package Weight |
3.72 lb
|
| Box Dimensions (LxWxH) |
13.4 x 9.2 x 2.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
