Description
QNAP QGD-1602-C3558 Overview
- 1Description
- 2VM Hosting
- 3Comprehensive Connectivity
- 4Layer 2 Network
- 5Mesh VPN

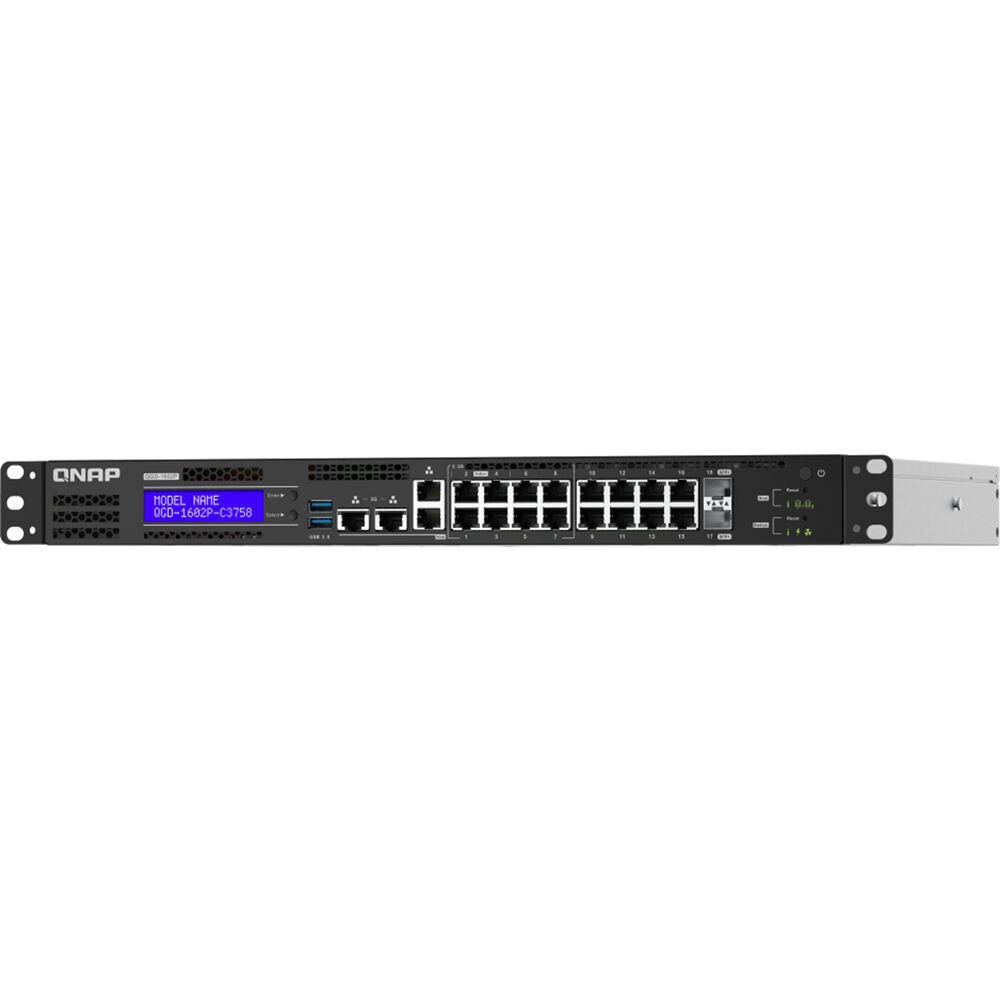

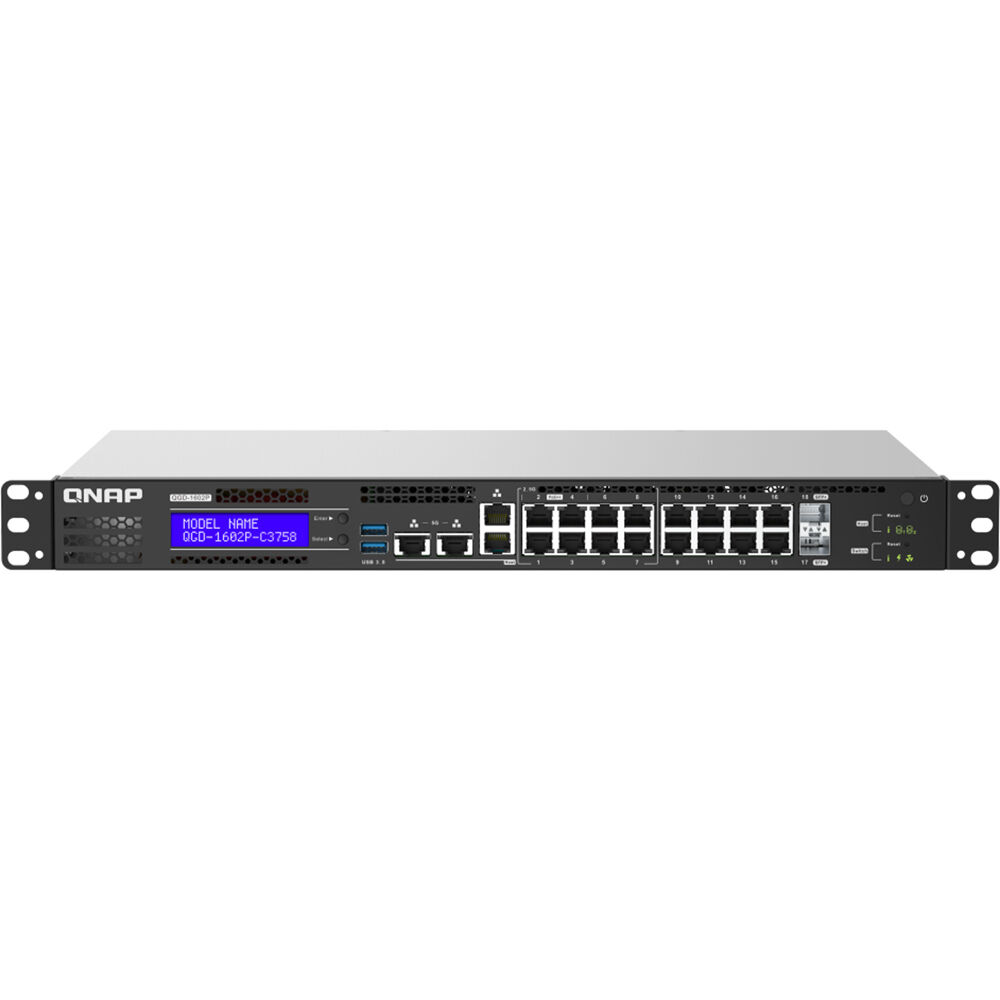

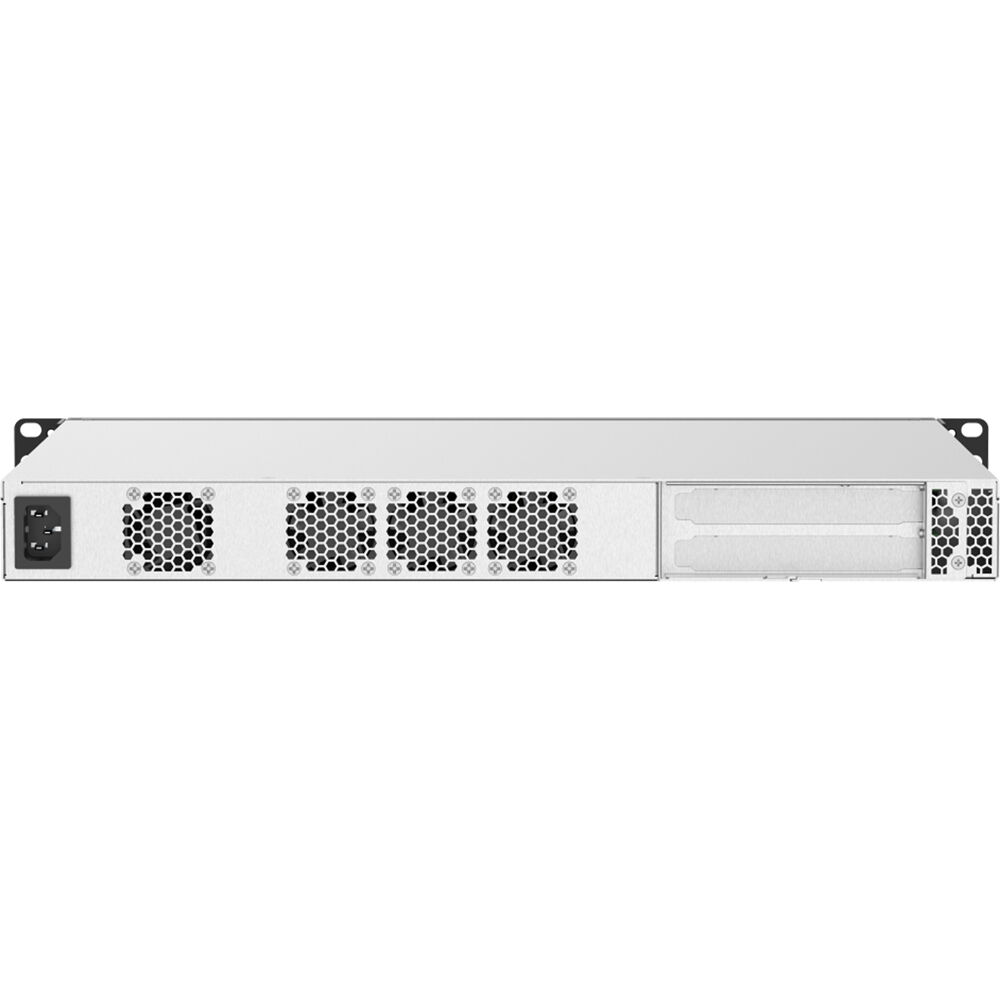

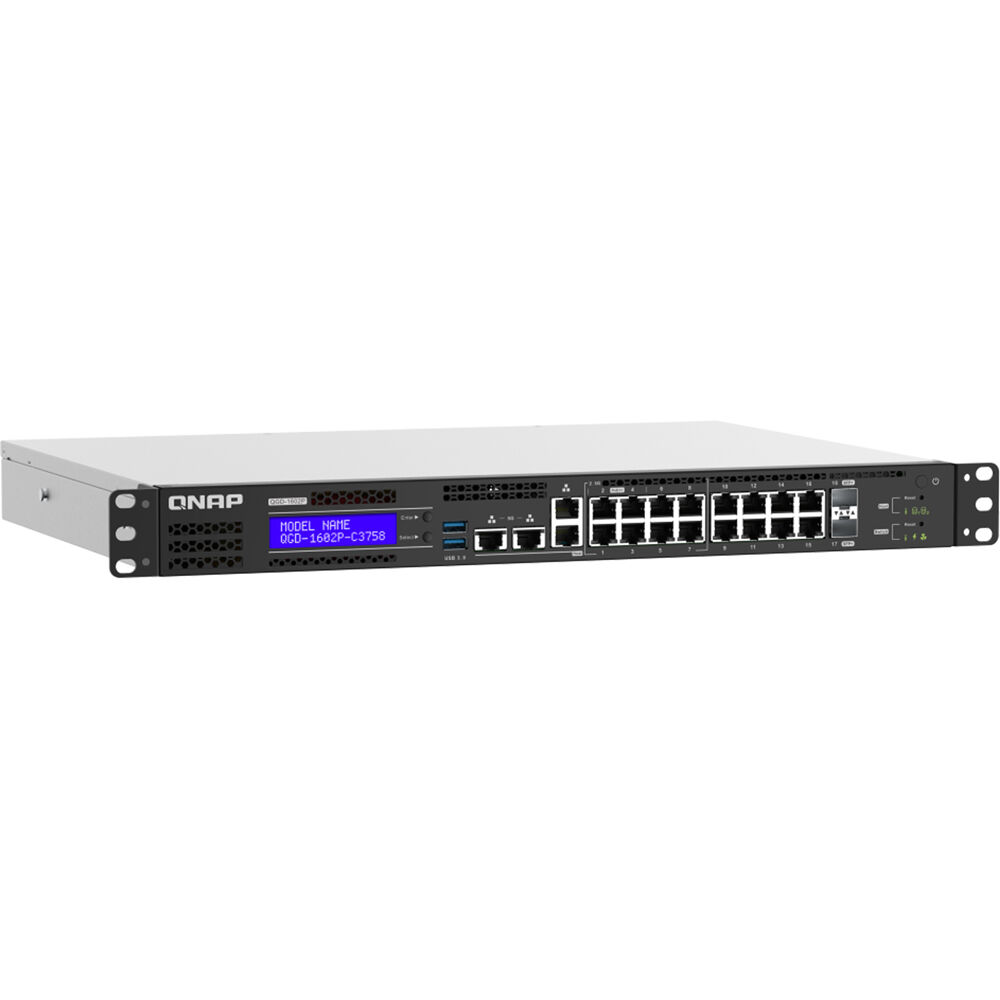

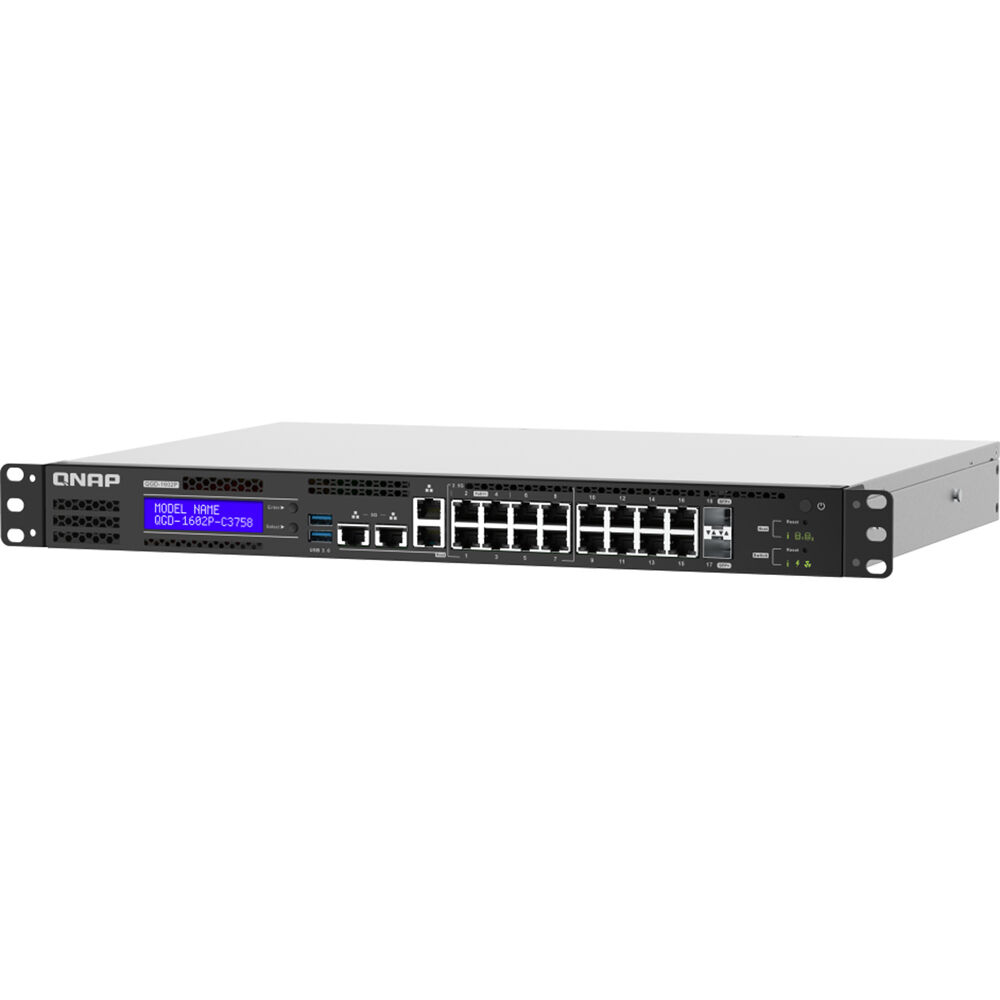

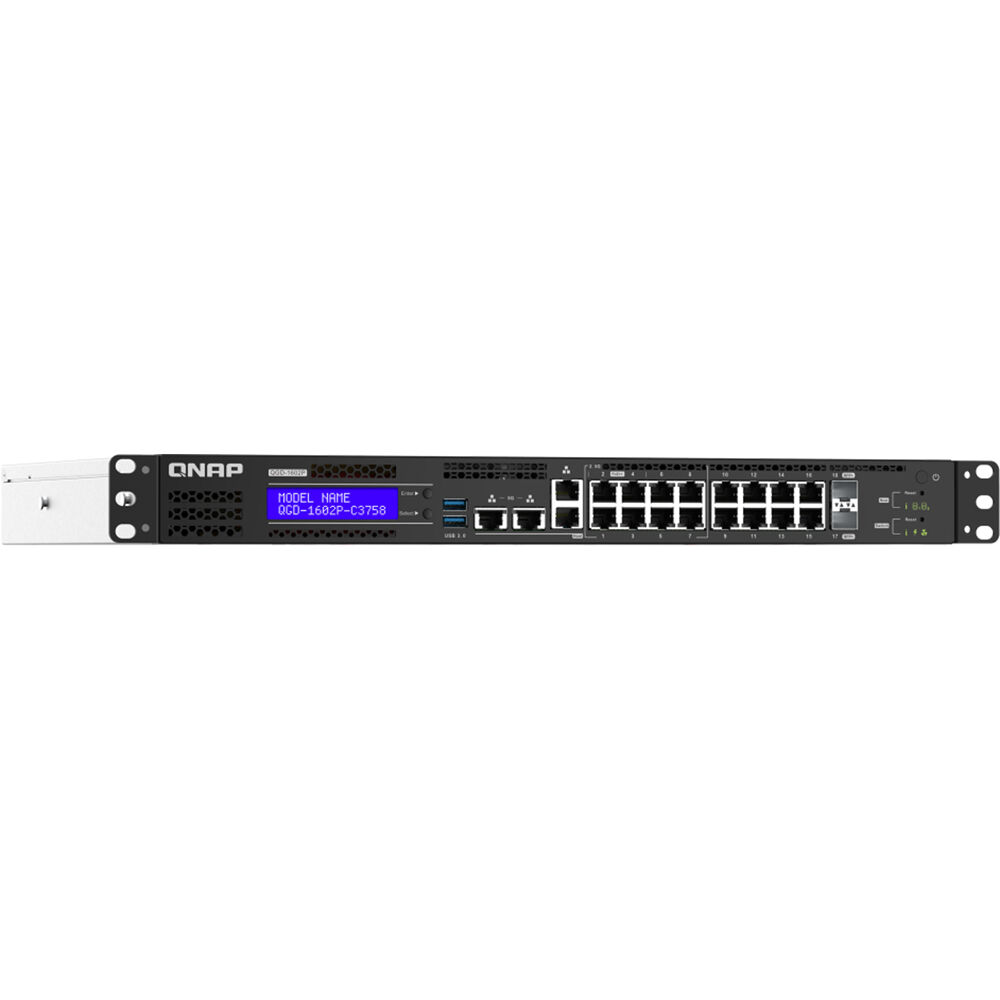

Designed to host up to 6 virtual machines, the QNAP QGD-1602P-C3758-16G 16-Port Multi-Gig PoE++ Compliant Managed Switch & NAS Enclosure provides a comprehensive solution for small-to-medium-scale businesses, hotels, and stores to expand their networks and grow as needed.
Powered by a 2.2 GHz Intel Atom C3758 8-Core processor with 16GB of DDR4 memory, this web-managed rackmount switch supports high-bandwidth applications with a 96 Gb/s (48 Gb/s non-blocking) switching capacity. Four of its eight 2.5G Ethernet ports provide up to 90W of PoE to compatible devices such as advanced IP cameras, Wi-Fi 6 access points, and digital signage. The remaining 2.5G ports and all eight 1G Ethernet ports support up to 30W PoE with a total power budget of 370W. Dual 10G SFP+ slots are available for fiber uplinks. Additionally, the two 5G and dual 1G RJ45 management ports may be connected to multiple hosts, LAN devices, or the internet.
Expand the QGD-1602P with up to two separately purchased 2.5" SATA III drives and two M.2 NVMe PCIe 3.0 SSD cache drives to add NAS storage to your network. Up to 64GB of DDR4 memory may be installed across two SO-DIMM slots and two PCIe 3.0 x4 slots are also available for expansions such as wireless network adapters and USB 3.2 Gen 2 cards. You can also add external storage drives using the two USB-A 3.2 Gen 1 ports.
In the Box
- QNAP QGD-1602P-C3758-16G 16-Port Multi-Gig PoE 4 Compliant Managed Switch & NAS Enclosure
- Power Cable
- Flat Head Screw Pack for 2.5" Drives
- Ethernet Cable
- Rackmount Kit
- 4 x Rubber Feet
- Limited 2-Year Manufacturer Warranty
- Description
- VM Hosting
- Comprehensive Connectivity
- Layer 2 Network
- Mesh VPN
QNAP QGD-1602-C3558 Specs
| Inputs/Outputs |
2 x SFP+ 10 GbE
8 x RJ45 2.5 GbE PoE+ 8 x RJ45 Gigabit Ethernet PoE+ 2 x USB-A 3.0 / 3.1/3.2 Gen 1 (LAN) 2 x RJ45 Gigabit Ethernet (LAN) |
| PoE Power Budget |
370 W
|
| Inputs/Outputs |
2 x SFP+ 10 GbE
8 x RJ45 2.5 GbE PoE+ 8 x RJ45 Gigabit Ethernet PoE+ 2 x USB-A 3.0 / 3.1/3.2 Gen 1 (LAN) 2 x RJ45 Gigabit Ethernet (LAN) |
| Number of Bays |
2x 2.5"
|
| PCI Expansion |
2x PCIe 3.0 x4 [x2 Mechanical] (Available)
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server IGMP Snooping Link Aggregation MAC Filtering |
| MAC Address Table Size |
32K
|
| Security Features |
Wireless Encryption
|
| SNMP Support |
2c, 3
|
| Supported IEEE Standards |
802.1p, 802.1q, 802.3ab, 802.3ae, 802.3af (PoE 15.4 W), 802.3an, 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W), 802.3bz, 802.3u, 802.3x, 802.3z
|
| Switching Bandwidth |
48 Gb/s (Non-Blocking)
96 Gb/s |
| Flash Memory |
4 GB
|
| Processor |
Intel Atom C3758
|
| CPU |
8-Core: Up to 2.2 GHz
|
| Memory |
16 GB DDR4
|
| OS Compatibility |
Windows 7 to 11
macOS 10.7 or Later Linux UNIX Windows Server 2003 to 2022 |
| Power Draw |
500.00 W (Max)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| PoE Power Budget |
370 W
|
| PoE per Port |
30 W
|
| Power Supply Type |
Internal
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
5 to 95%
|
| Certifications |
CE, FCC, VCCI, BSMI, RCM, UL
|
| Cooling System |
Fan
|
| Indicator Lights |
Diagnostic, Fan, Link/Activity/PoE, Link/Activity/Speed, PoE
|
| Dimensions |
17.13 x 12.9 x 1.74" / 43.51 x 32.8 x 4.42 cm
|
| Weight |
9.63 lb / 4.37 kg
|
| Package Weight |
12.405 lb
|
| Box Dimensions (LxWxH) |
20.9 x 15.9 x 6.2"
|
