Description

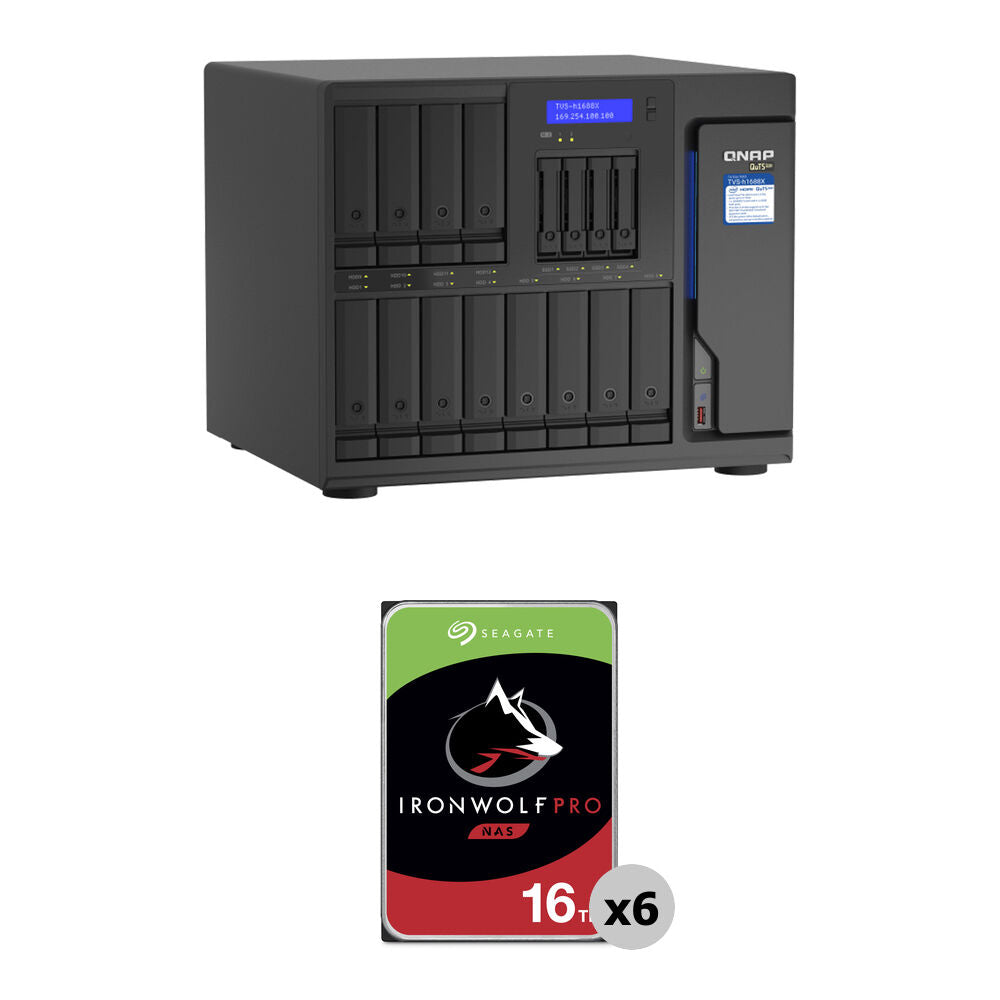

This Kit combines the QNAP TVS-h1688X 16-Bay NAS Enclosure with six Seagate 16TB IronWolf Pro 7200 rpm SATA III 3.5" Internal NAS HDDs for a total storage capacity of 96TB.

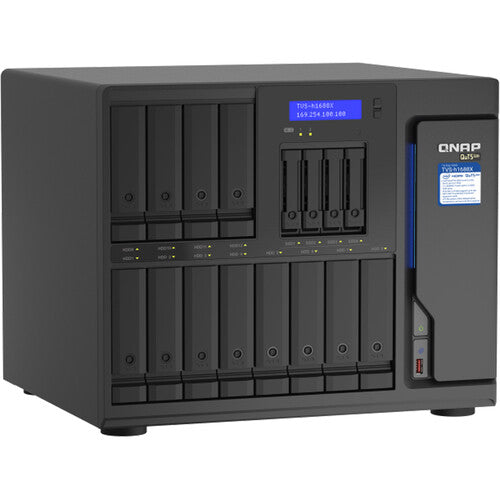

Expand your network storage capacity to support demanding workflows such as video post-production and archiving with the TVS-h1688X 16-Bay NAS Enclosure from QNAP. This 16-bay NAS enclosure includes twelve 3.5" and four 2.5" SATA III drive bays. Installed drives can be configured in RAID 0, 1, 5, 6, 10, 50, or 60 mode with support for triple parity and triple mirror setups for added data security. Performance can be further enhanced by installing up to two M.2 PCIe solid-state cache drives into the available slots. Combined with its 3.3 GHz Intel Xeon W-1250 six-core processor and 32GB of ECC memory, which can be expanded to 128GB, the TVS-h1688X-W1250-32G can deliver sequential read speeds of up to 1403 MB/s. With four 2.5G Ethernet and two 10G Ethernet ports, this NAS enclosure is designed to deliver the bandwidth to support virtualization, intensive file access, large backup and restoration tasks, and media transfers.

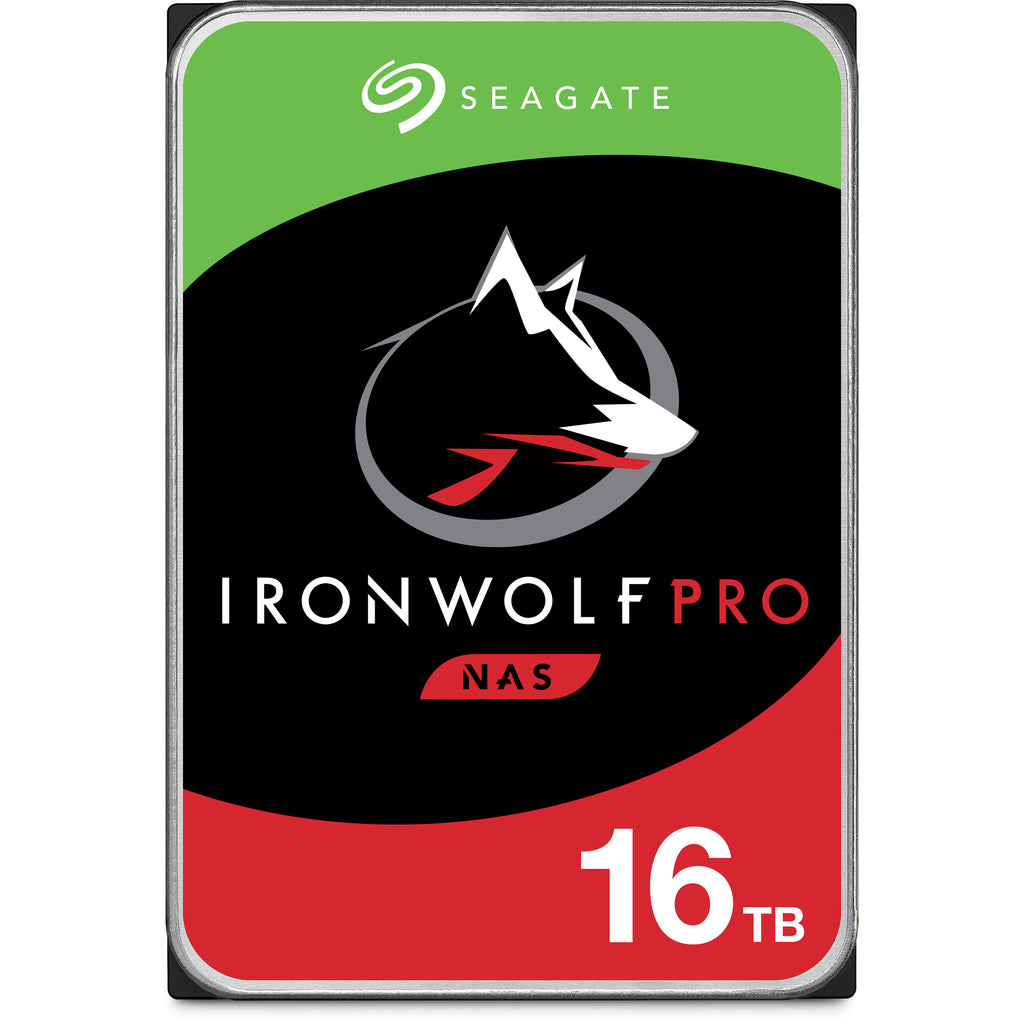

Designed to deliver performance, reliability, and dependability in multi-bay, multi-user RAID and NAS environments within commercial and enterprise settings, the 16TB IronWolf Pro 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24/7 operation, or 8760 hours per year. This 16TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 256MB cache, providing users with ample storage capacity with data transfer speeds of up to 270 MB/s. The IronWolf Pro also has an MTBF rating of 2.5 million hours and a workload rate of up to 550TB per year. Seagate's AgileArray technology provides dual-plane balancing, time-limited error recovery (TLER), and rotational vibration (RV) sensors to deliver enhanced RAID performance. Included is a limited 3-year Data Recovery Service that helps you retrieve damaged data in the event of a mechanical error, accident, or natural disaster, and overall protection is provided by a limited 5-year warranty.
Items Included
- QNAP TVS-h1688X 16-Bay NAS Enclosure
- Power Cable
- Ethernet Cable
- 36 x Flat Head Screws for 3.5" HDDs
- 36 x Flat Head Screws for 2.5" HDDs
- 2 x M.2 SSD Heatsink
- 2 x Drive Bay Keys
- Limited 3-Year Manufacturer Warranty
- 6 x Seagate 16TB IronWolf Pro 7200 rpm SATA III 3.5" Internal NAS HDD (CMR)
- Limited 5-Year Manufacturer Warranty
- Limited 3-Year Manufacturer Warranty (Rescue Data Recovery Services)
Additional Resources
QNAP TVS-h1688X 16-Bay NAS Enclosure
| RAID |
Yes: Supported RAID Modes: 6 / 10 / 50 / 5 / 60 / 0 / 1
|
| Number of Bays |
2x M.2 (2280/22110) NVMe
12x 2.5"/3.5" SATA II, SATA III 4x 2.5" SATA II, SATA III |
| Inputs/Outputs |
4x RJ45 2.5GbE
2x RJ45 10GbE 2x USB-C 3.1/3.2 Gen 2 4x USB-A 3.1/3.2 Gen 2 1x HDMI |
| CPU |
6-Core: 3.3 to 4.7 GHz
|
| Processor |
Intel Xeon W-1250
|
| GPU |
Intel UHD Graphics 630
|
| Memory |
32 GB ECC DDR4
|
| RAM Configuration / Capacity |
2x User-Replaceable 16 GB / 4 Slots Supporting up to 128 GB
|
| RAID |
Yes: Supported RAID Modes: 6 / 10 / 50 / 5 / 60 / 0 / 1
|
| Number of Bays |
2x M.2 (2280/22110) NVMe
12x 2.5"/3.5" SATA II, SATA III 4x 2.5" SATA II, SATA III |
| Inputs/Outputs |
4x RJ45 2.5GbE
2x RJ45 10GbE 2x USB-C 3.1/3.2 Gen 2 4x USB-A 3.1/3.2 Gen 2 1x HDMI |
| Media Card Slots |
No
|
| PCI Expansion |
1x PCIe 3.0
2x PCIe 3.0 |
| Link Aggregation and Failover Support |
No
|
| iSCSI Support |
Yes: 256 LUN
|
| Installed Operating System |
QTS 4.5
|
| OS Compatibility |
macOS 10.10 or Later
Windows 7 or Later Windows Server 2008 or Later UNIX Ubuntu 10.4 or Later CentOS 7 or Later Linux |
| Mobile App Compatible |
No
|
| Encryption |
Yes, 256-Bit AES
|
| Security Features |
Kensington Security Slot, Lockable Bay Door
|
| VPN Connections |
100 (Client)
|
| Input Power |
100 to 240 VAC, 60 / 50 Hz
|
| Power Consumption |
108.67 W (Typical)
91.26 W (Idle) |
| PSU |
1 x 500 W
|
| Operating Conditions |
32 to 72?F / 0 to 40?C at 5 to 95% Humidity
|
| Storage Conditions |
-4 to 158?F / -20 to 70?C
|
| Certifications |
No
|
| Cooling |
3x 80 mm Fans
|
| Noise Level |
25.8 dBA
|
| Dimensions |
14.56 x 12.59 x 11.96" / 36.98 x 31.98 x 30.38 cm
|
| Weight |
29.6 lb / 13.4 kg
|
| Package Weight |
37 lb
|
| Box Dimensions (LxWxH) |
19.3 x 18.1 x 17.4"
|
