Description

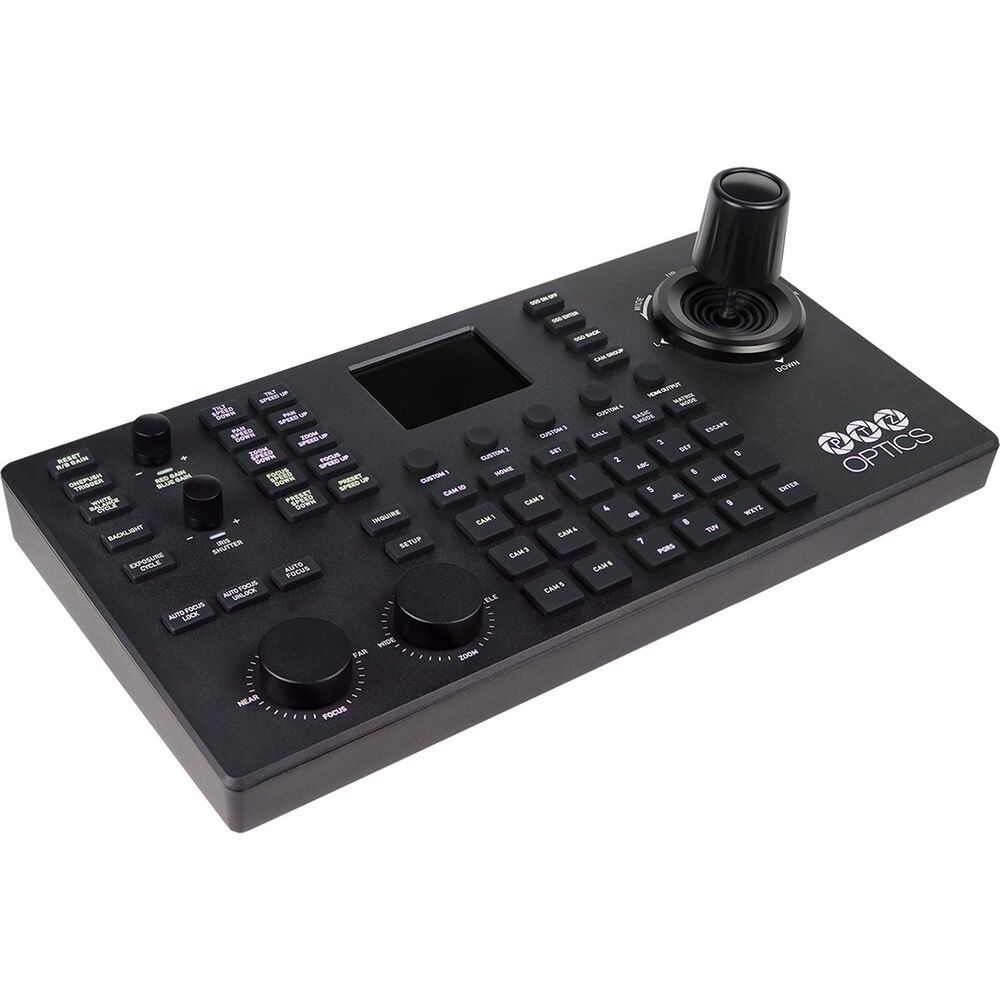

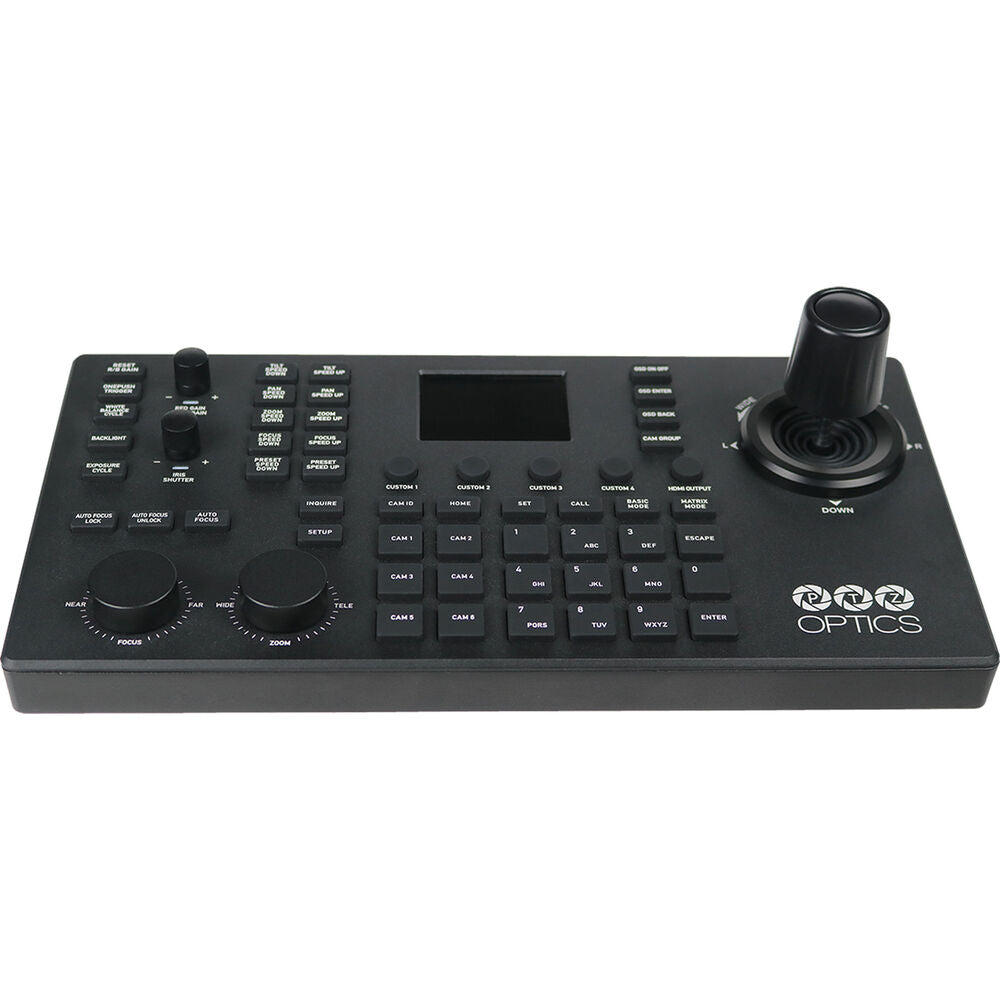

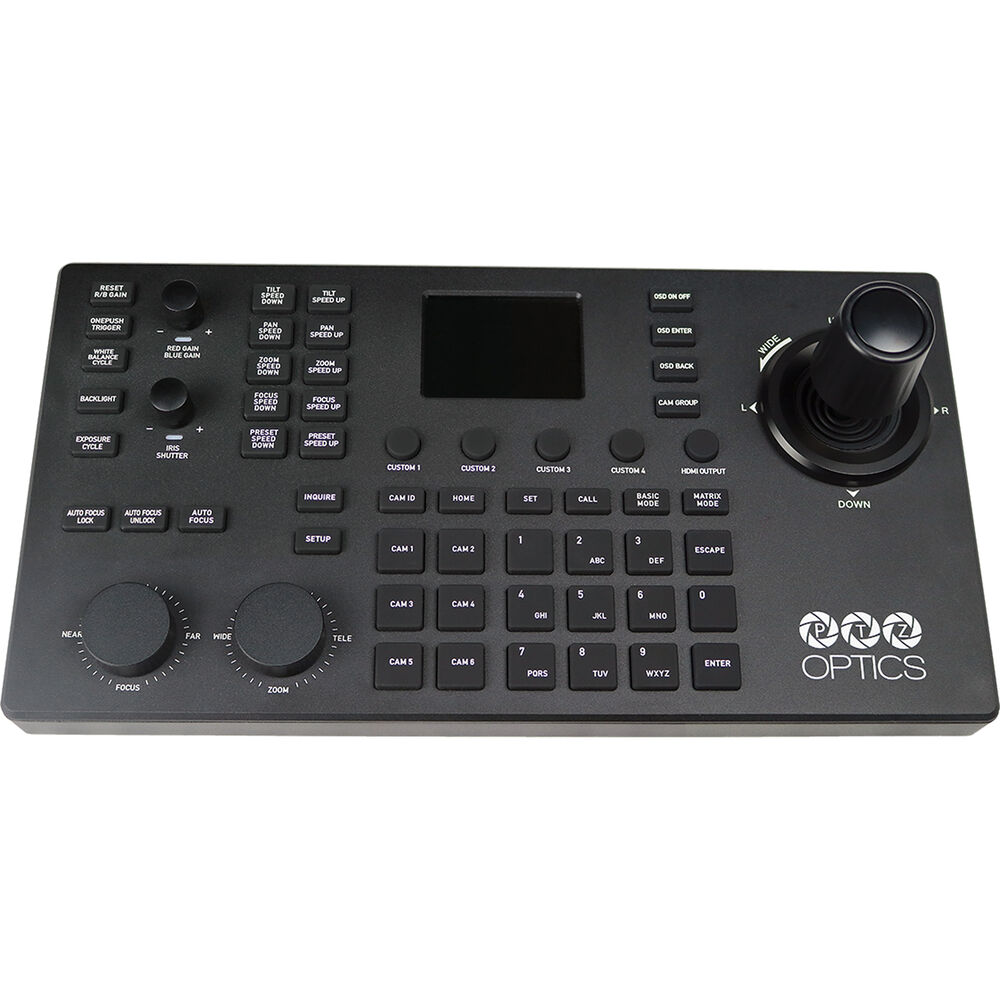

PTZOptics PT-SUPERJOY-G1 Overview
Control up to 28 PTZ cameras using NDI, IP, or serial with the SuperJoy NDI|HX/IP & Serial PTZ Camera Joystick Controller from PTZOptics. The SuperJoy offers joystick and button control for up to 28 PTZ cameras, in four groups of seven cameras each, with support for NDI, VISCA, VISCA-over-IP, Pelco-P, and Pelco-D protocols over IP and serial RS-232, RS-422, and RS-485 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen.
The controller also offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras. An HDMI output allows you to send the camera video to a remote streaming unit, and the status information can also be included in the output. Other features include glowing buttons for working in the dark, 255 camera presets, nine quick presets, and four super preset buttons. You can import and export configurations using IP or via the USB port.
The SuperJoy supports a variety of camera models and manufacturers, and you can simultaneously control multiple brands such as HuddleCamHD, Sony, PTZOptics, BirdDog, and NewTek. The unit comes with an 8' long RS-232C cable and 12 VDC power supply, or it can be powered using Power-over-Ethernet (PoE).
Features
In the Box
- PTZOptics SuperJoy NDI|HX/IP & Serial PTZ Camera Joystick Controller
- 12 VDC Power Adapter
- RS-232C Cable (8')
- Limited 2-Year Warranty
PTZOptics PT-SUPERJOY-G1 Specs
| Number of Supported Cameras | 4 Channels via IP (7 Per Group) 4 Channels via Serial (7 Per Group) |
| Supported Control Protocols | IP Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA |

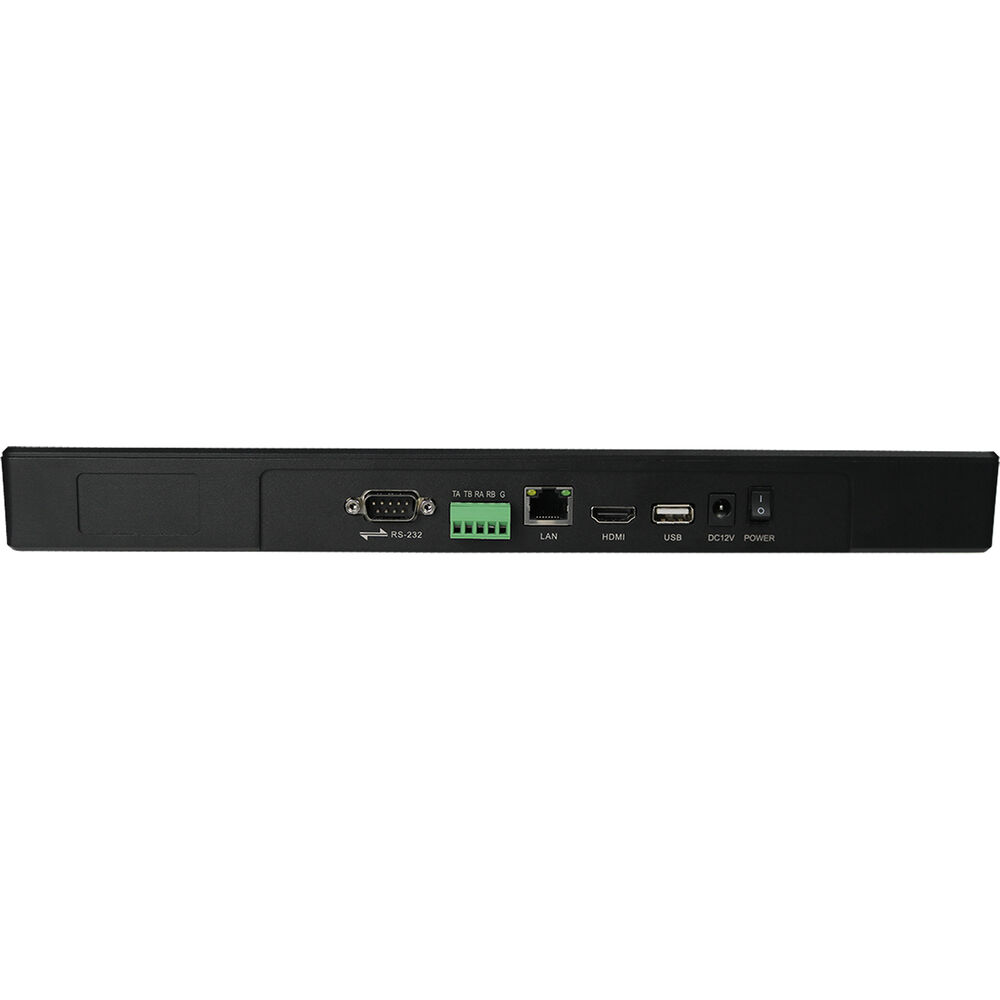

| Control Interface | 1 x RJ45 (LAN) 1 x Terminal Block (RS-422, RS-485) Output 1 x DE-15/DB-15 (Pelco-D, Pelco-P, RS-232, VISCA) Output |
| Other I/O | 1 x USB Type-A Input |
| Video Connectors | 1 x HDMI Type A (Loop Output) |
| Controls | 1 x Pan/Tilt, Zoom Joystick |
| Presets | 255 via IP, RS-232, VISCA |
| Touchscreen | No |
| PoE Support | PoE 802.3af |
| Power Connectors | 1 x Barrel / Coaxial |
| Power Consumption | 6 W |
| DC Input Power | 12 VDC |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Operating Humidity | 10 to 90% |
| Security Lock Support | None |
| Dimensions | 14.6 x 7.1 x 4" / 37 x 18 x 10.1 cm |
| Weight | 3.7 lb / 1.7 kg |
| Package Weight | 5.465 lb |
| Box Dimensions (LxWxH) | 14.7 x 8.5 x 4.9" |
PTZOptics PT-SUPERJOY-G1 Reviews
Easy to set up, easy to config
This controller has been incredibly easy to configure and use. While some functions required the manual to figure out, others are so intuitive that I was able to figure them out via trial and error on the first try. This is a solid addition to our livestream ecosystem.
Great Upgrade
Great upgrade from the last gen. I love the HDMI out showing you the selected cam. Not all the more complex controls are intuitive but once you learn its a great controller.
SuperJoy for Super Presets
OK device aside from one aspect. One of the selling points is that the Custom buttons can send presets to multiple cameras at the same time. This is true but only for PTZ branded cameras. It will not work with NewTek cameras.
They got it right with this one.
We use this in a church sanctuary to control three PTZ cameras. Previously, we had PTZ's IP SuperController, which was frankly, a pretty bad experience. We took a chance one this newer iteration and we love it. Solidly built, responds well, controls what we need and most importantly has not once had to reboot itself at the slightest static shock.
