| ₹ 236265.0 includes GST and import duties. | |
| B2B customers can avail ₹ 36030.41 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

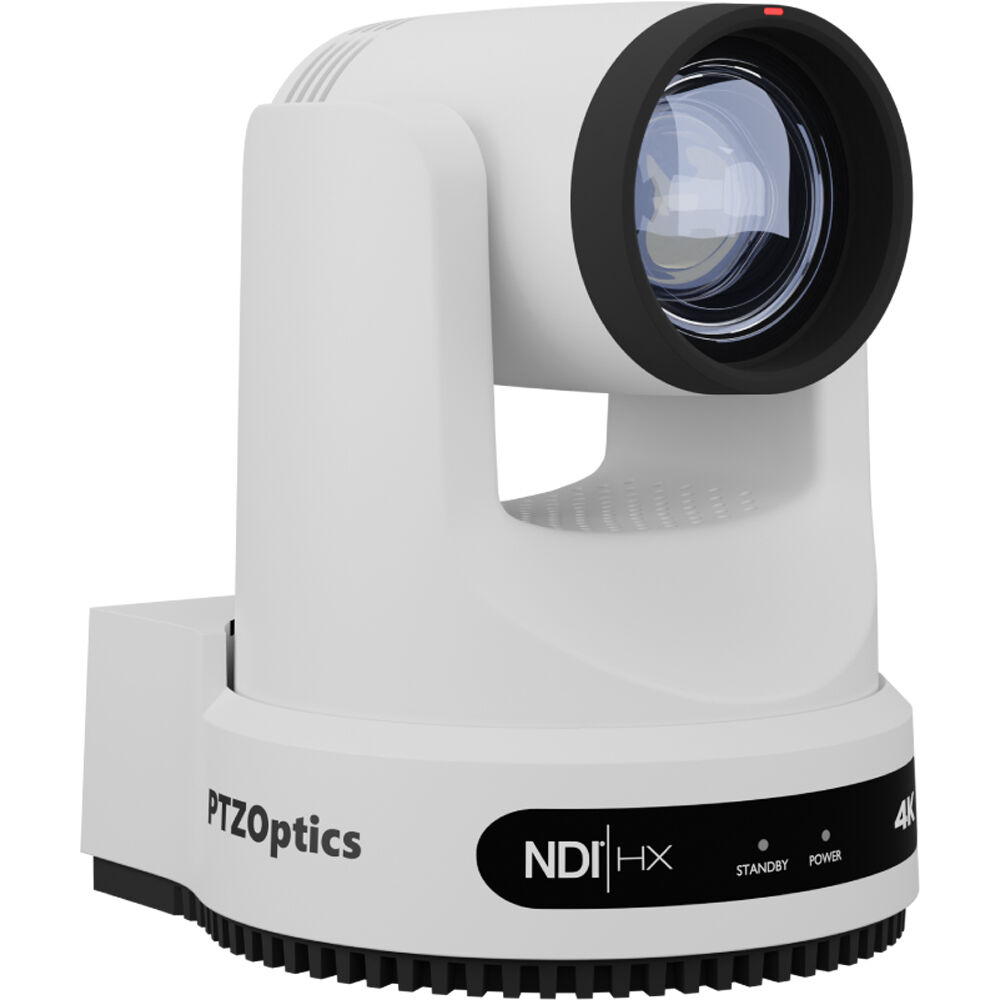

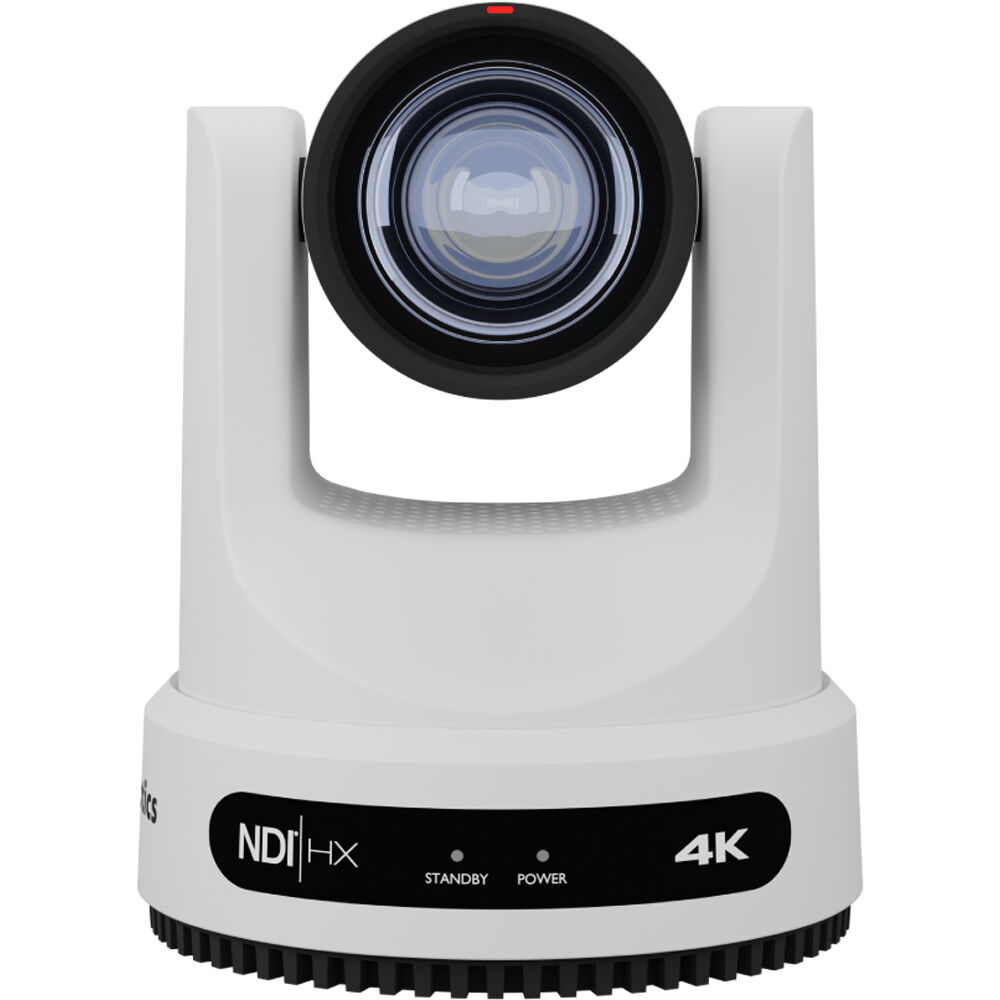

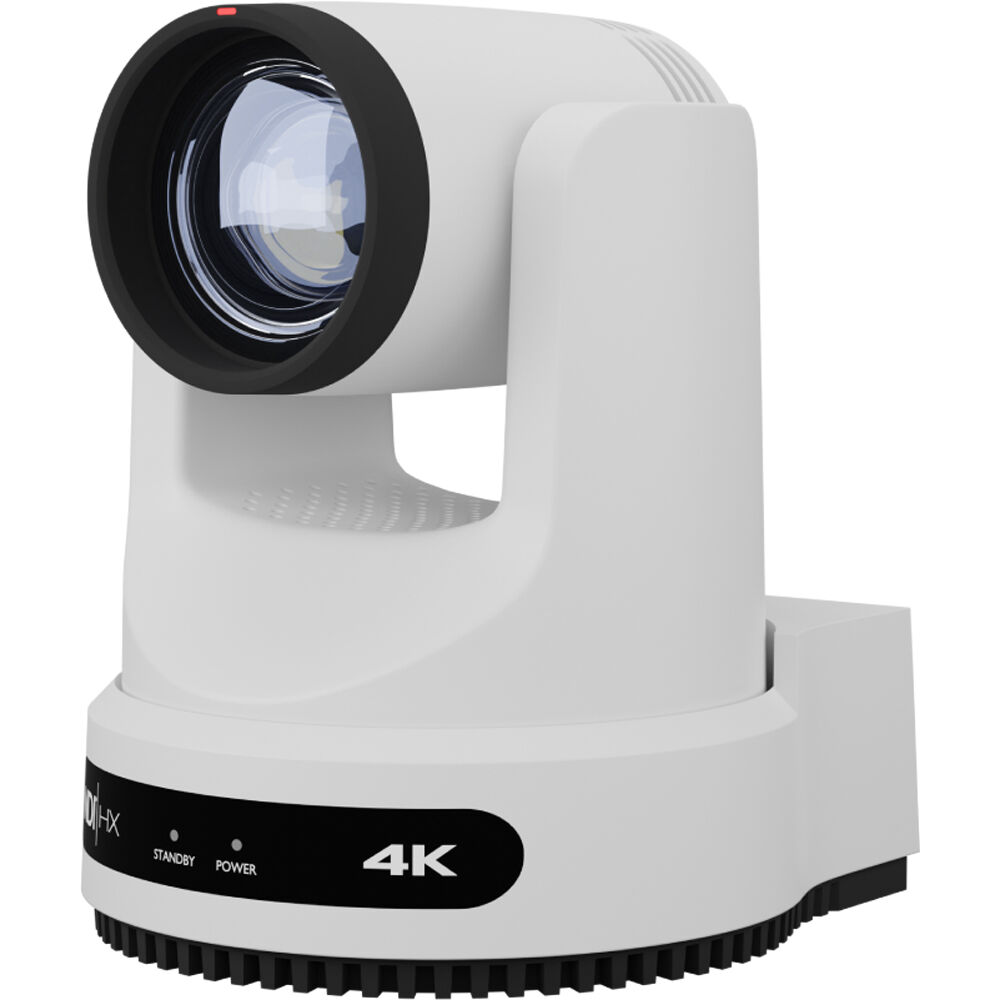

PTZOptics PT12X-4K Overview
Add a high-resolution streaming and tracking camera to your classroom, house of worship, or conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with the Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom from PTZOptics. The Move 4K camera captures resolutions up to UHD 4K60 via IP and HDMI, 1080p60 over 3G-SDI, and it features auto-tracking for presentations where your subject moves around the room, great for education, how-to, and corporate environments without the need for an operator. Its wide dynamic range, 3D noise reduction, and low-bandwidth, high-quality NDI|HX 3 capabilities provide a sharp, consistent image, even in low light.
The camera's features include a 1/2.5" 4K CMOS 8.51MP sensor for crisp imagery. The built-in zoom lens has an optical zoom range of 12x, and you can zoom in further with up to 16x digital zoom. With 255 programmable preset positions via serial, you can set the camera to rapidly move between positions using IP, RS-232, or RS-485 with separately available controllers, or by using IR control with the included remote. It also features a tally light, and it is photo booth capable. The video output is compressed using H.265, H.264, or MJPEG formats, and you can transmit up to two simultaneous streams using SRT, RTSP, and RTMP protocols.
The camera supports external audio input via a 3.5mm stereo line-level jack for embedding audio into your stream, and a 3.5mm audio output. Power is provided by the included AC adapter or via PoE+ (Power-over-Ethernet) on a supported network.
In the Box
- PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (White)
- IR Remote Control
- 12 VDC Power Adapter
- USB-A to USB-A Cable
- RS-232 Cable
- 2 x AA Battery
- Limited 5-Year Manufacturer Warranty
PTZOptics PT12X-4K Specs
| Image Sensor | 1/2.5"-Type CMOS |
| Sensor Resolution | Effective: 8.51 Megapixel (3840 x 2160) |
| IR Cut Filter | No |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
| Shutter Type | Electronic Global Shutter |
| Shutter Speed | 1/30 to 1/10000 Seconds |
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| Optical Zoom Ratio | 12x |
| Max Digital Zoom | 16x |
| Field of View | Horizontal: 72.5 to 6.9° Vertical: 44.8 to 3.9° |
| External Recording Modes | SDI/BNC HD (1920 x 1080p) at 25/29.97/50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94/60.00 fps HD (1280 x 720) at 59.94/60.00 fps HDMI / RJ45 / USB UHD 4K (3840 x 2160) at 25/29.97/50/59.94/60.00 fps HD (1920 x 1080p) at 25/29.97/50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94/60.00 fps HD (1280 x 720) at 59.94/60.00 fps |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264, H.265, MJPEG, RTMP, RTSP, SRT 640 x 360 to 3840 x 2160 to 320 x 240 to 720 x 480 to |
| IP Multi-Stream Support | Simultaneous H.264, H.265, MJPEG, RTMP, RTSP: UHD 4K, 1080p, 720p, 480p, 360p |
| Presets | 255 |
| Move Speed | Pan: 1.7 to 100°/sec Tilt: 1.7 to 69.9°/sec |
| Movement Range | Tilt: 120° (-30 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | IP IR NDI Pelco-D Pelco-P RS-232 RS-485 VISCA |

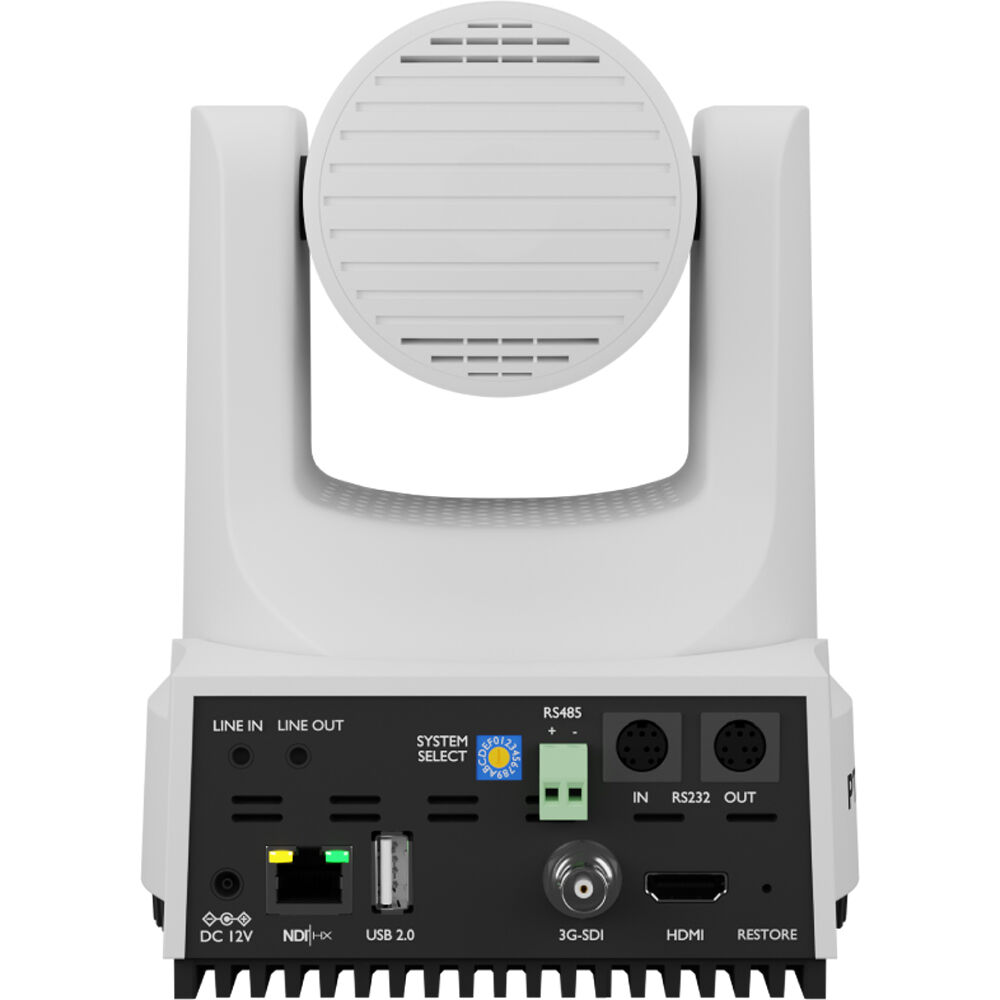

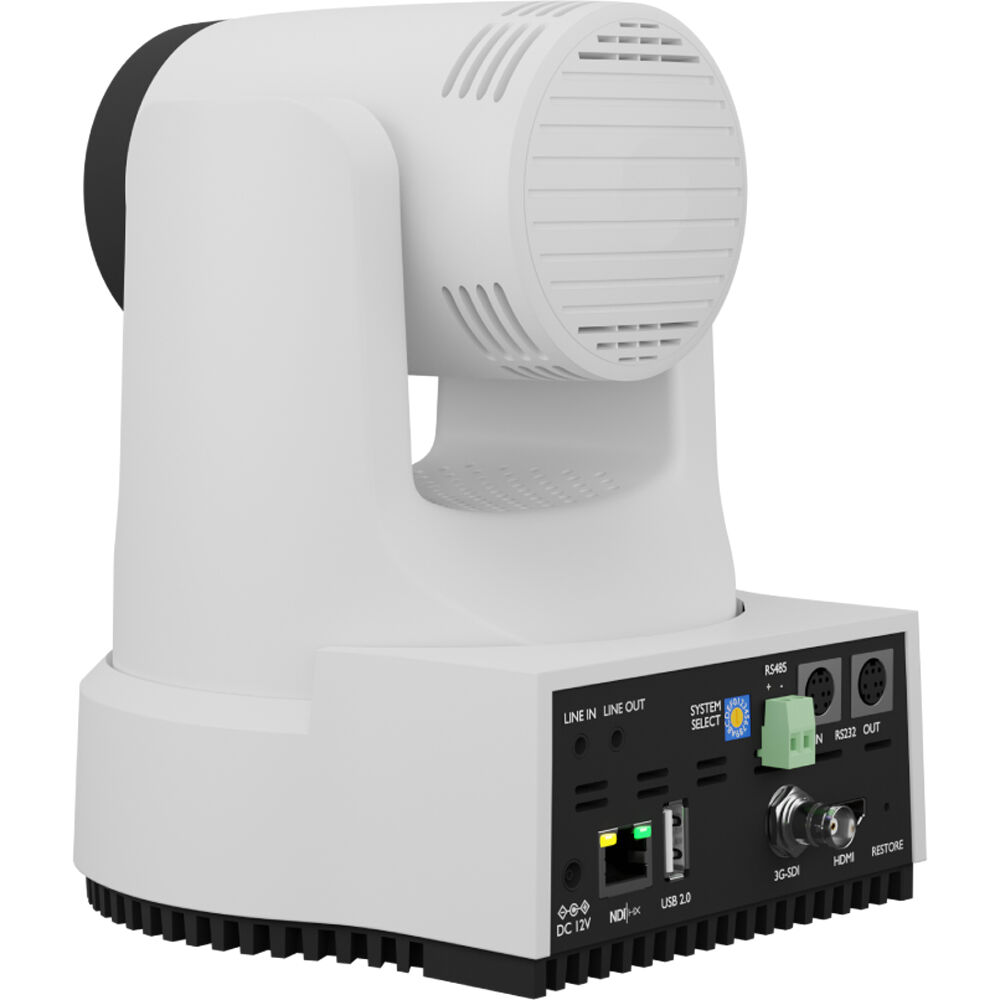

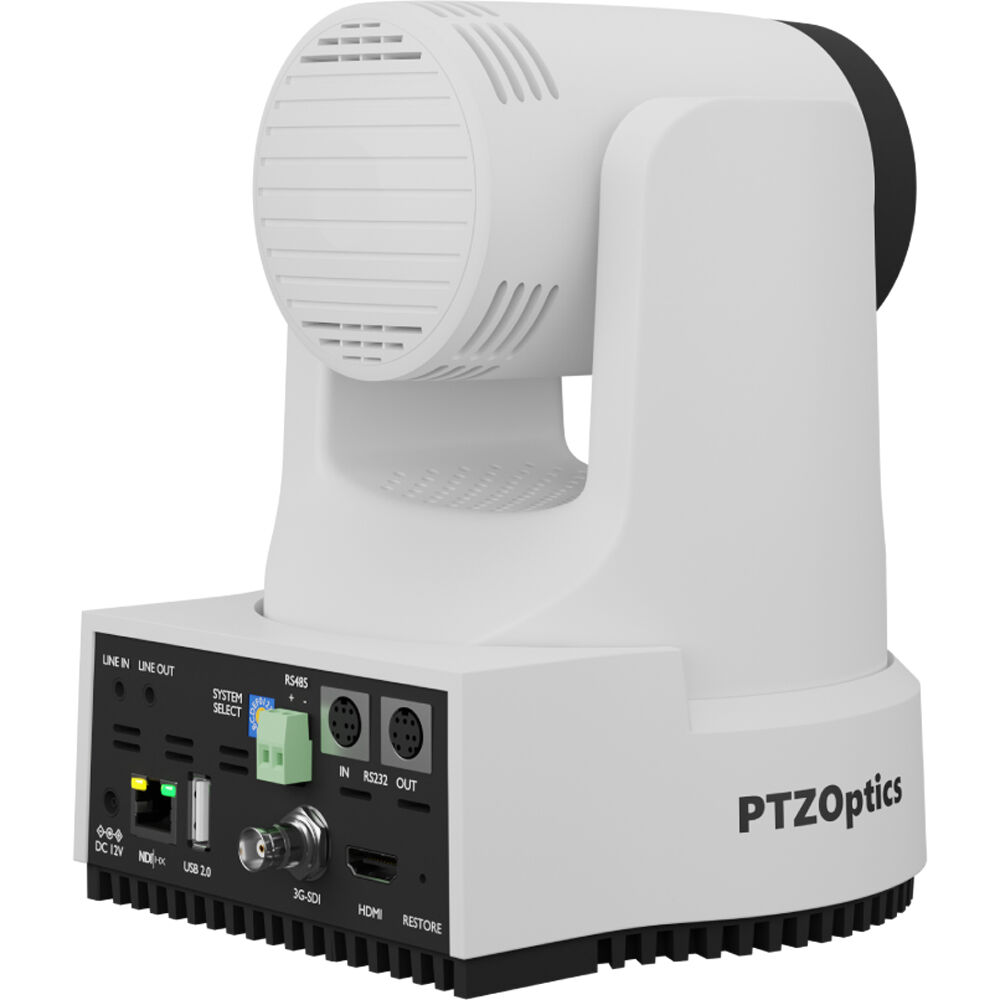

| Video I/O | 1 x HDMI 2.0 Output 1 x BNC (3G-SDI) Output 1 x RJ45 (NDI) Output 1 x USB-A 2.0 Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input 1 x 1/8" / 3.5 mm TRS Stereo Line Output |
| Other I/O | 1 x D-Sub 8-Pin (RS-232) Control Input 1 x D-Sub 8-Pin (RS-232) Control Output 1 x Block 2-Pin (RS-485) Control Input/Output |
| Built-In Speaker | No |
| PoE Support | PoE+ 802.3at |
| Power I/O | 1 x DC (12VDC) Input |
| Power Consumption | Device: 12 VDC at 2 A (12 W) |
| Operating Temperature | 22 to 72°F / -10 to 40°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Material of Construction | Aluminum, Plastic |
| Dimensions (W x H x D) | 6.6 x 6.5 x 5.6" / 168.4 x 164.5 x 141.5 mm |
| Weight | 3.24 lb / 1.47 kg |
| Package Weight | 6.25 lb |
| Box Dimensions (LxWxH) | 10.9 x 9.8 x 9.1" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 231539.7 |
| 3-5 | ₹ 229177.05 |
| 5-10 | ₹ 224451.75 |
| 10+ | ₹ 219726.45 |
Bulk discount will be automatically applied during checkout based on quantity.
