Description
PTZCam TALLY8 Overview

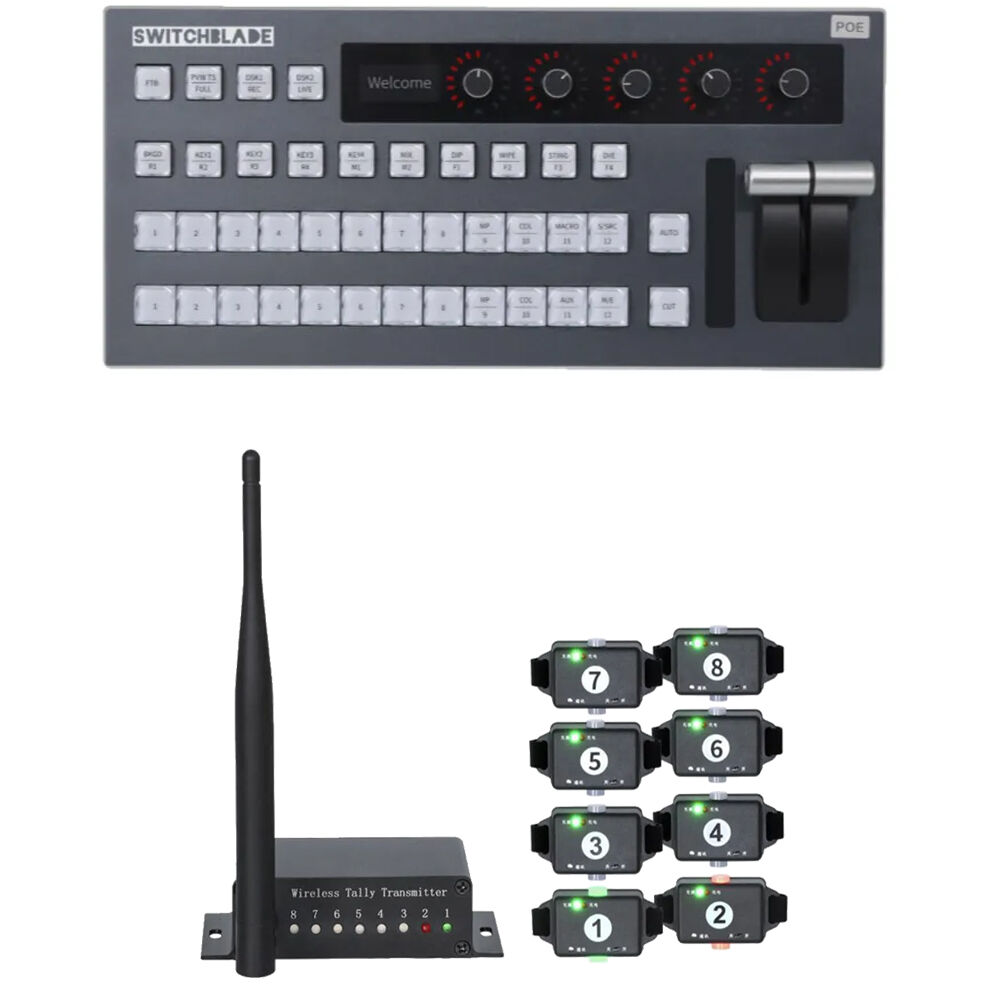

Add tally lights and a control surface to your vMix broadcasting system with this TALLY8 8-Light Wireless Tally System with 12-Channel vMix Control Surface from PTZCam. The set includes the 8-light tally system and the Switchblade Systems VMC12 Control Panel.
The wireless tally system includes eight lights and a wireless base station to signal tally to up to eight devices. The VMC12 is compatible with the vMix system, providing controls for transitions, effects, overlays, recording, streaming, and playback.

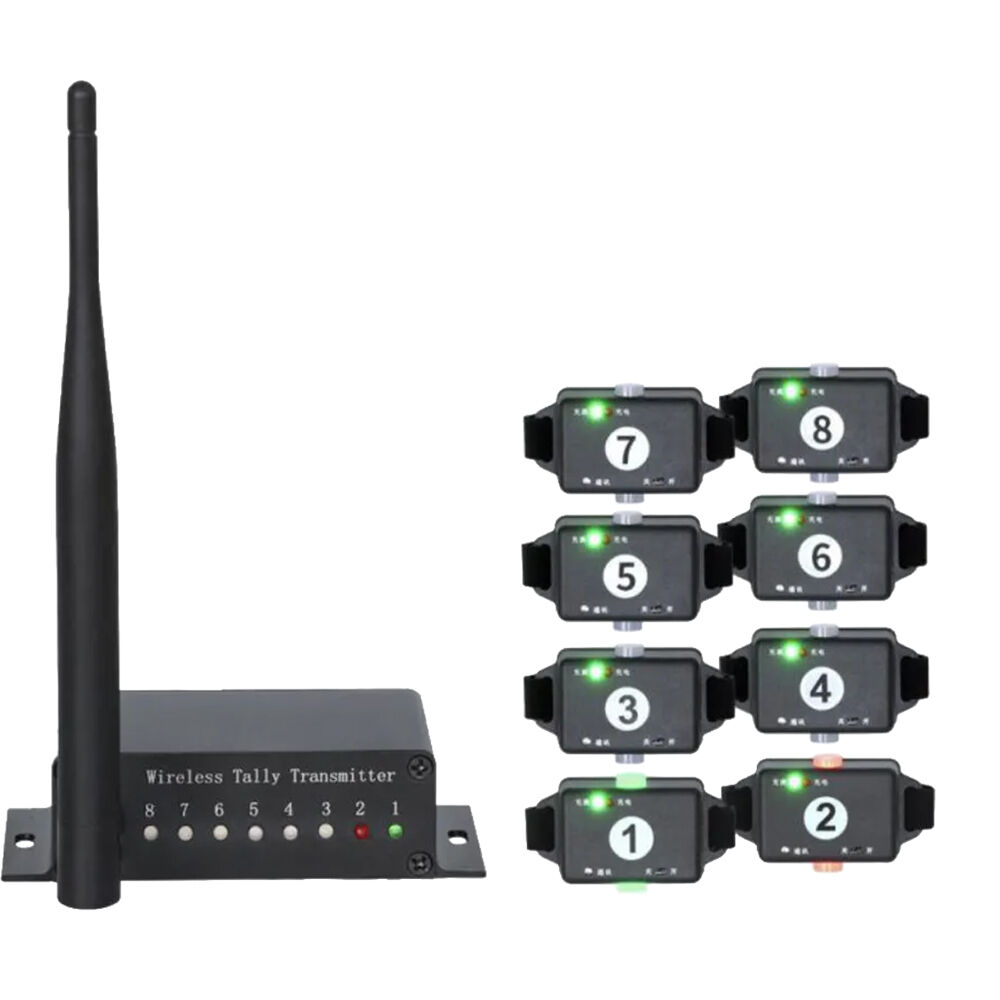

Add wireless tally lights to your multi-camera production with this TALLY8 8-Camera Wireless Tally System from PTZCam. This tally system is designed to work with vMix broadcast software and includes a wireless host unit, eight two-color tally lights, micro-USB charging cables, a power adapter, and a USB-A to DB25 connection cable. The DB25 connects the host unit to the supported PTZCam Switch N8 or Switchblade VMC12 control panel to utilize the tally lights.
The lights can connect to the host unit from up to 984' away, and all the units operate via their built-in long-life batteries that are charged using the included USB cables. Each light includes a shoe mount and a hook-and-loop strap for flexible installation options. Low transmission power allows the units to connect without interfering with other wireless equipment.

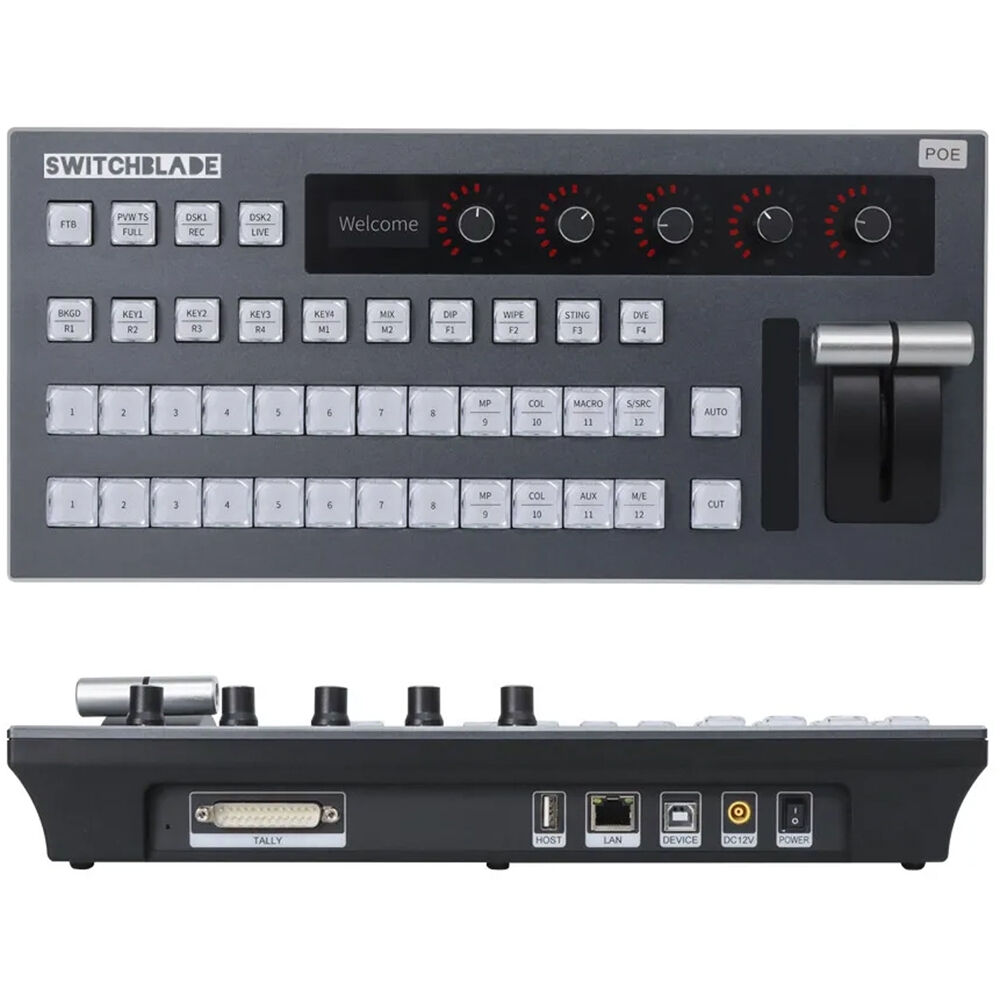

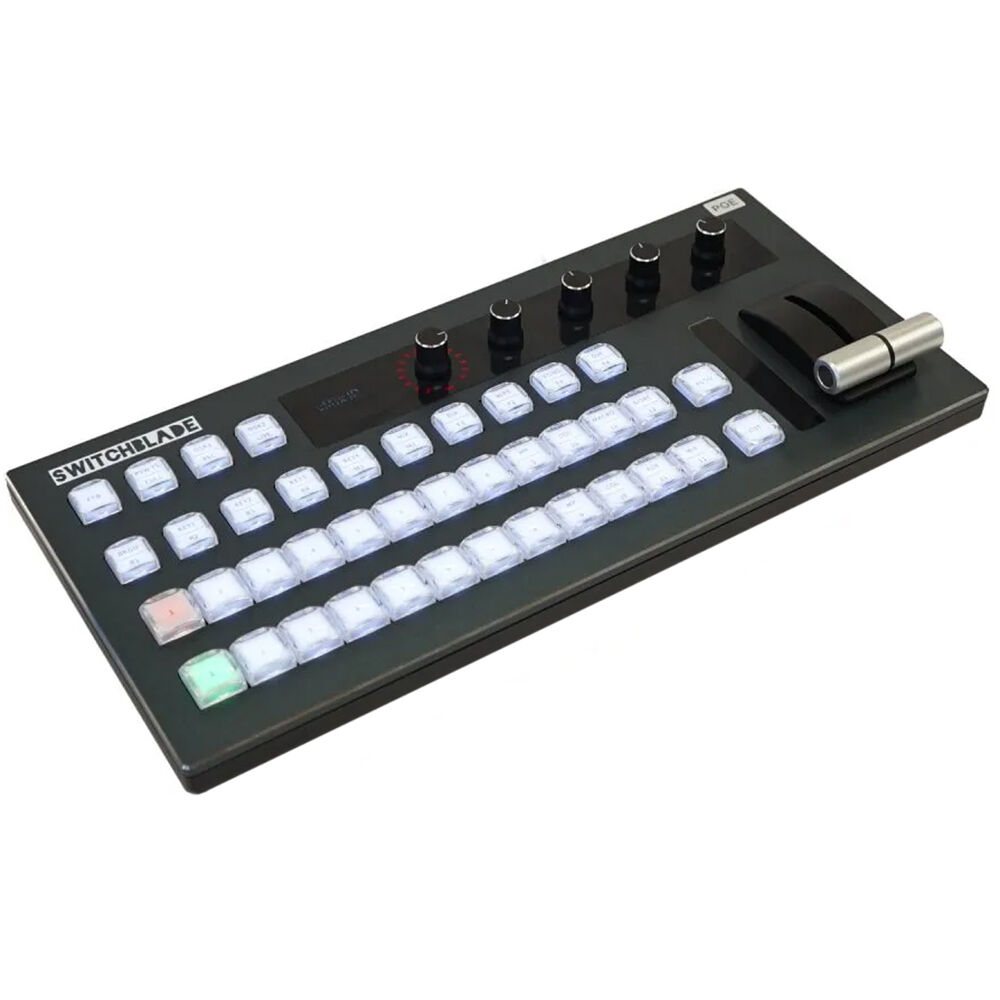

Control your vMix-based software switcher or Blackmagic Design ATEM with the VMC12 Control Panel for vMix and Blackmagic Design ATEM from Switchblade Systems. Designed with bright LED backlit buttons and a professional T-bar that facilitates common commands, including crossfades, wipes, digital video effects, and downstream keying, the VMC12 is an ideal companion to any Switchblade system and is suited for experienced and novice users alike. Connect an optional Ethernet cable to it from your computer and the VMC12 perfectly integrates with the functions of vMix software and Blackmagic Design ATEM systems, and that same cable can even provide power to the unit using PoE (Power over Ethernet) technology.
- Connection Methods: IP connection via RJ45 LAN (POE 802.3af supported) and USB 2.0 cable direct connection
- Input Control: 12 channel preview/program
- Transitions: 4 transitions mappable to buttons
- Overlays: 4 overlay channels (R1 / R2 / R3 / R4)
- Playback Control: 2 playback channels (M1 / M2)
- Other Controls: Record, Stream
- Connection method: IP connection via RJ45 LAN (POE 802.3af supported)
- Input control: 12 channels
- Transition effects: 5 transition buttons (mix / dip / wipe / sting / DVE)
- Upstream keyer control: 4 key buttons (background / key 1 / key 2 / key 3 / key 4)
- Downstream keyer control: 2 DSK buttons
- FTB: supported
- Preview transition: supported
- Macros: supported
- S/SRC: supported
- M/E: supported
- AUX: supported
In the Box
- PTZCam TALLY8 8-Camera Wireless Tally System for vMix
- 8 x Tally Light
- Wireless Host Station
- Power Adapter
- Micro-USB Power Cable Set
- USB-A to DB25 Cable
- Limited 1-Year Manufacturer Warranty
- Switchblade Systems VMC12 Control Panel for vMix and Blackmagic Design ATEM
- Power Adapter
- USB Cable
- Limited 1-Year Manufacturer Warranty
PTZCam TALLY8 8-Camera Wireless Tally System for vMix Specs
| Compatibility |
PTZCam Switch N8 Controller
Switchblade Systems VMC12 Control Panel |
| USB I/O |
1 x Micro-USB (Power Only) Female Input
|
| Wireless |
2.4 GHz Radio/RF
*Built-In |
| Battery Chemistry |
Lithium-Ion
|
| Battery Capacity |
2000 mAh
|
| DC Input Power |
5 VDC
|
| Power Consumption |
500 mW
|
| Operating Current |
400 mA
|
| Mounting |
1 x Shoe Adapter on Each Light
1 x Hook-and-Loop on Each Light |
| Dimensions |
4.13 x 2.56 x 0.7" / 104.9 x 65.02 x 17.8 mm (Host)
2.6 x 1.4 x 0.7" / 67.3 x 36 x 18.8 mm (Light) |
| Weight |
1.1 lb / 500 g (Host)
7.1 oz / 200 g (Light) |
Switchblade Systems VMC12 Control Panel for vMix and Blackmagic Design ATEM Specs
| Compatibility |
Blackmagic Design ATEM
vMix |
| Audio Controls |
Master Audio Level and 4 Individual Channels
|
| Transitions |
Auto, Cut, T-Bar Transitions
|
| Display & Indicators |
Configuration and Customization via OLED Menu Display
|
| Indicator Light |
Red / Green LED
|
| Tally |
12-Channel Preview and Program Control
|
| USB I/O |
1 x USB-B Integrated Male Input/Output
1 x USB-A Female Input/Output |
| Other I/O |
1 x RJ45 (LAN, IP, PoE)
|
| Power Source |
AC Adapter with Power Brick (Included), PoE
|
| DC Input Power |
12 VDC at 0.3 A
|
| Power Consumption |
4 W
|
| Operating Current |
0.3 A
|
| PoE |
IEEE 802.3af
|
| Operating Temperature |
14 to 104°F / -10 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
13.9 x 6.5 x 2.6" / 354 x 165 x 67 mm
|
| Weight |
3.3 lb / 1.5 kg
|
| Package Weight |
5.025 lb
|
| Box Dimensions (LxWxH) |
19.3 x 10 x 5.8"
|
