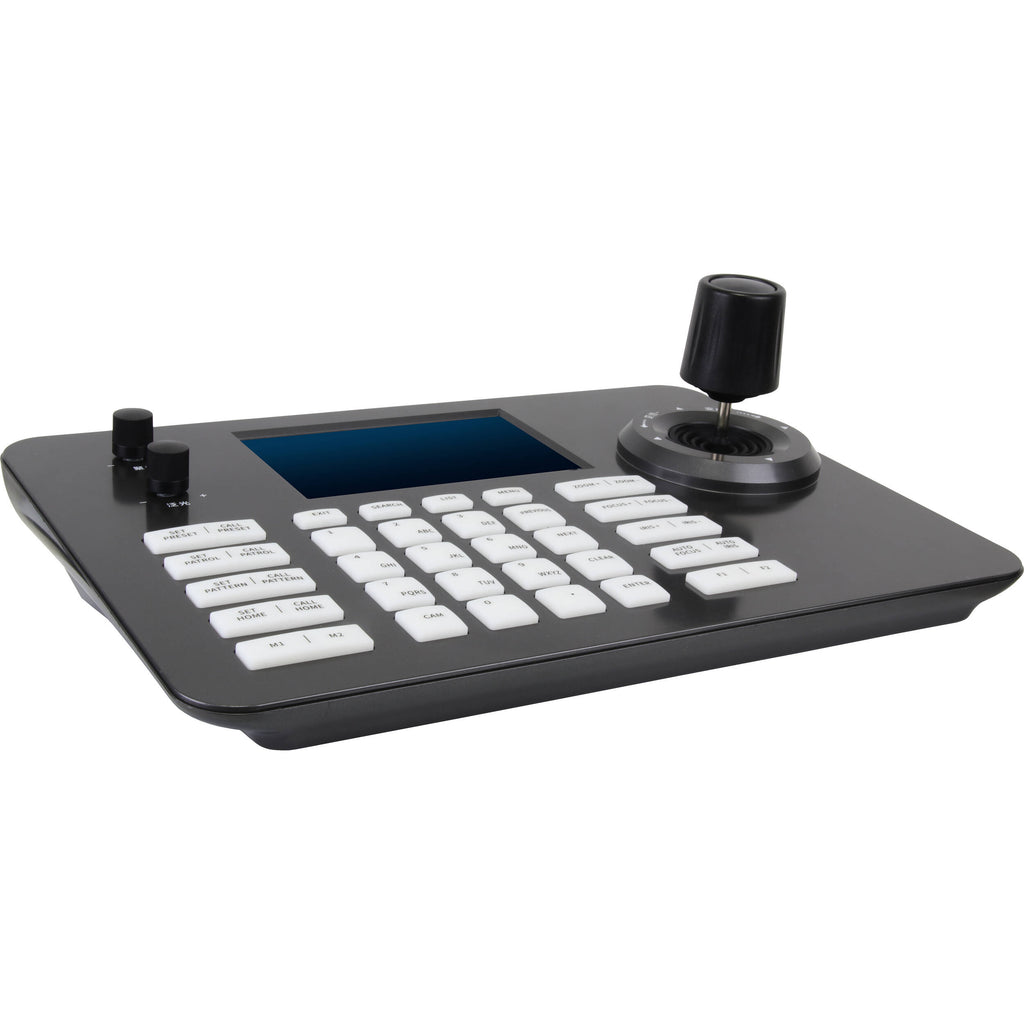

PTZCam PTZC-S3-IP Overview
Control your PTZ cameras using IP communication with this handy PTZ View IP Control Surface with Video Decoder from PTZCam. The PTZ View offers 4D joystick and button control for up to 999 PTZ cameras with support for the VISCA control protocol over IP. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates a TFT LCD screen. It supports ONVIF communication standards, runs the open Linux operating system, and features built-in H.264/H.265 video decoders to view the active camera feed up to 1080p on the built-in 800 x 480 color display.
The controller offers camera select buttons, presets, knobs for pan/tilt/zoom speed control, iris buttons, and settings to control the finer settings on the PTZ cameras. It also features a key-touch beep feature that can be turned on and off. You can power the camera using a power adapter or via PoE (Power-over-Ethernet) on a supported network to save cable runs.
Features
4D pan/tilt joystick, button control, and color LCD screen
Control up to 999 PTZ cameras
Preview single camera on 800 x 480 TFT LCD screen using video decoder and ONVIF communication
Supports preview for up to 1920 x 1080 resolution
Control speed of pan/tilt and zoom in/out; control focus and iris
VISCA-over-IP communication protocol
Power-over-Ethernet (PoE) support or power via power adapter
![]()
UPC: 616050682341
In the Box
- PTZCam PTZ View IP Control Surface with Video Decoder
- 12 VDC Power Adapter
- Limited 1-Year Warranty
PTZCam PTZC-S3-IP Specs
General
| Number of Supported Cameras |
999 Channels via IP |
| Supported Control Protocols |
IP
VISCA |
| Control Interface |
1 x RJ45 (LAN) |
| Controls |
1 x Pan/Tilt, Zoom, Focus Joystick
9 x Camera Selection Button |
Display
| Resolution |
800 x 480 |
| Touchscreen |
No |
Power
| PoE Support |
Yes |
| Power Connectors |
1 x Barrel / Coaxial |
| Power Consumption |
>6 W |
| DC Input Power |
12 VDC at 2 A |
Environmental
| Operating Temperature |
14 to 131°F / -10 to 55°C |
| Storage Temperature |
14 to 140°F / -10 to 60°C |
Physical
| Security Lock Support |
None |
| Dimensions |
11.7 x 8.3 x 4.67" / 29.7 x 21 x 11.87 cm |
| Weight |
2 lb / 890 g |
Packaging Info
| Package Weight |
3.345 lb |
| Box Dimensions (LxWxH) |
13.4 x 11 x 5.9" |
