Description
Proton PCI-CAM Overview

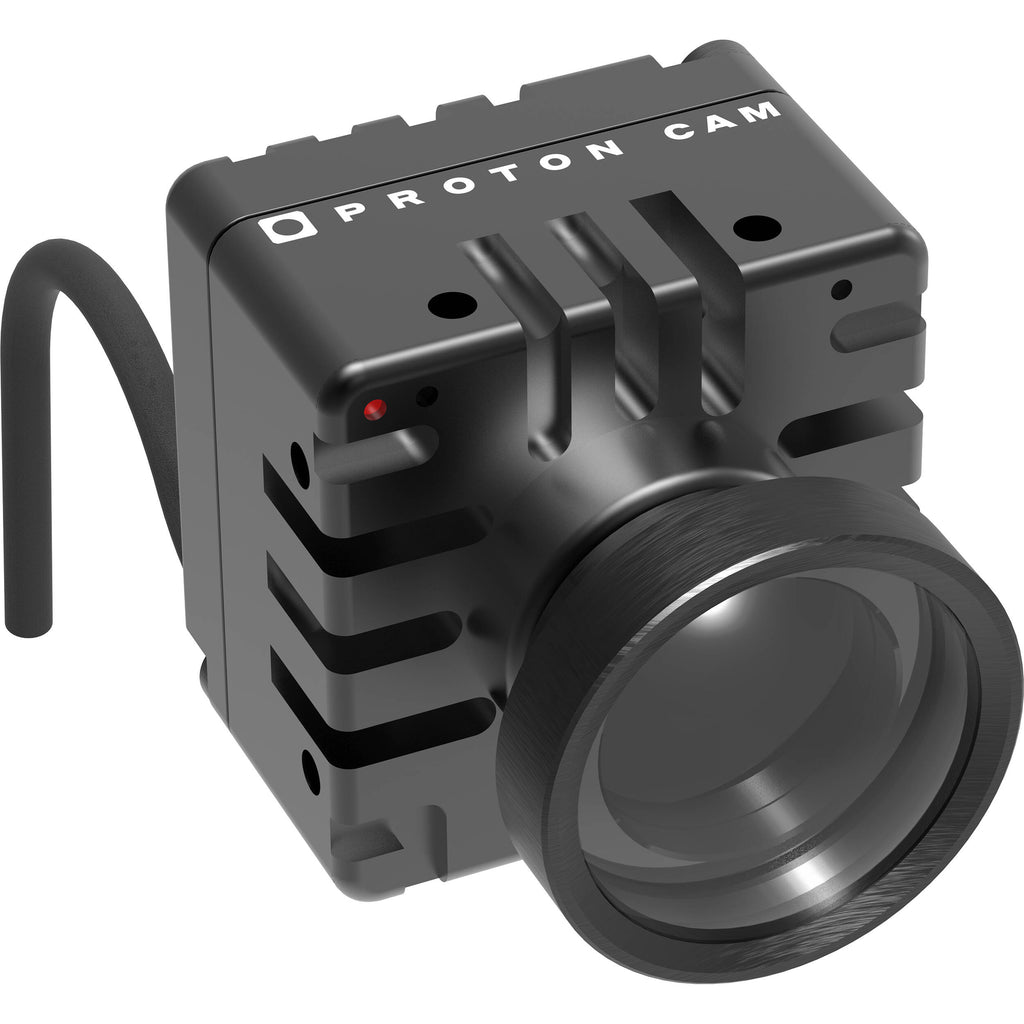

The CAM Full HD Mini Broadcast Camera from Proton is a very compact, cube-sized camera with HDR support. It is equipped with 12-bit sensor technology and high sensitivity. The versatile device captures vibrant images even in low light, boasting an ultrawide angle of up to 124° when used with an optional 2.2mm lens. Its compact housing features eight 2.5mm holes for individual mounting options and a bracket that can be attached to the top or bottom of the camera to provide an additional 1/4"-20 thread for tripod mounting or another type of stand or truss.

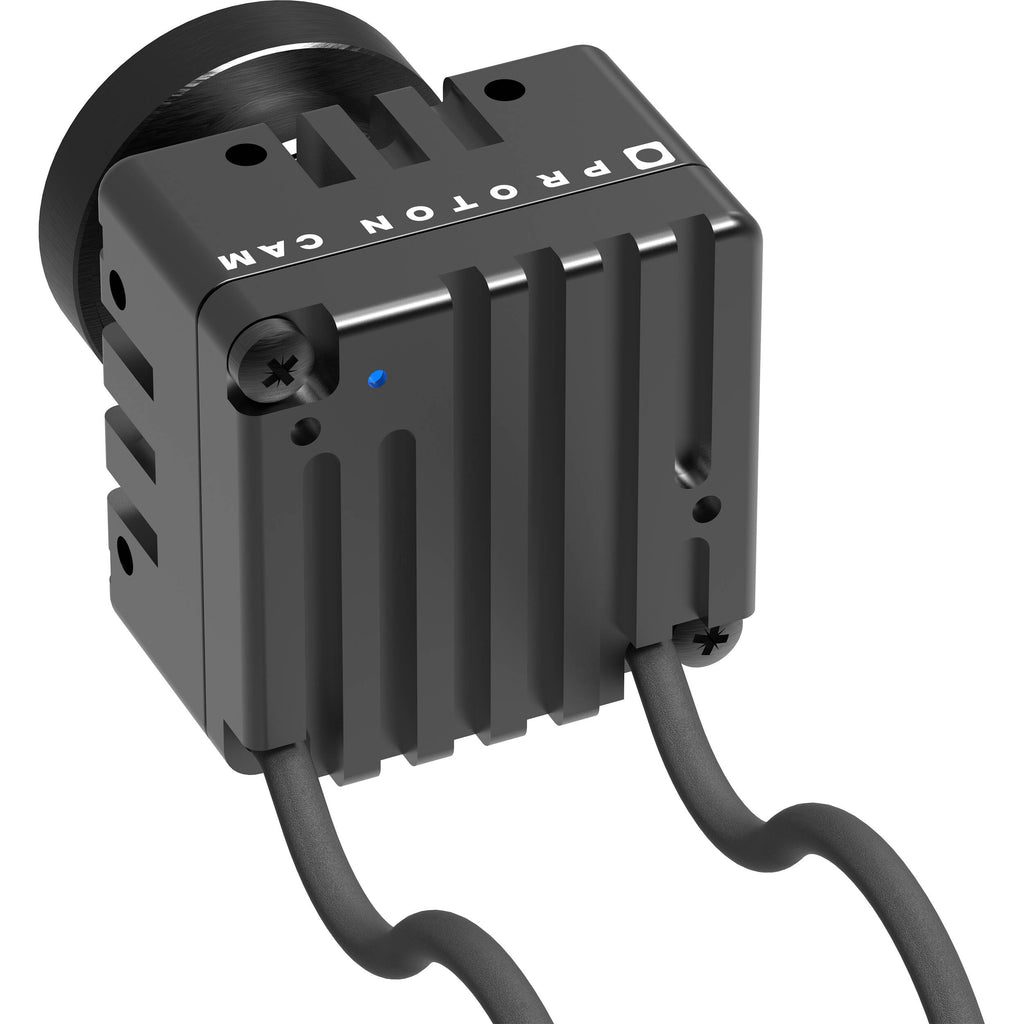

The 97° distortion-free, 3.2mm f/2.3 lens comes already mounted on the camera's M12/S lens mount, but it can be swapped with other optional lenses. The camera supports resolutions up to 1080p60 and RS-485 control. A 6' cable with BNC/SDI connectivity is integrated into the camera. There are integrated status LEDs on the front and rear of the camera, as well as an integrated tally light.
Items Included
- Proton CAM Full HD Mini Broadcast Camera
- 3.2mm f/2.3 Lens (M12/S Mount)
- Limited 6-Month Manufacturer Warranty
Additional Resources
No additional resources available
Proton PCI-CAM Specs
| Lens Mount |
M12/S
|
| Field of View |
Horizontal: 124° with a 2.2mm Lens
Vertical: 85° with a 2.2mm Lens Horizontal: 97° with a 3.2mm Lens Vertical: 64° with a 3.2mm Lens |
| ISO Range |
75-2400
200-6400 (Low-Light Mode) |
| Shutter |
6 ?s, 1 fps
|
| Resolutions |
1080p at 23:98/24/25/29:97/30/47/48/50/59:94/60 fps
1080i at 50/59:94/60 fps |
| Microphone Type |
Integrated Stereo Microphone
|
| Video I/O |
1x BNC (3G-SDI) Output ( Built-In SDI Cable )
|
| Power Source |
Plug-In Power (Built-In)
|
| DC Input Power |
4.5 to 25 VDC
|
| Power Consumption |
2.5 W
|
| Mounting |
1x 1/4"-20 Thread
8x M2.5 Thread |
| Color |
Black
|
| Certifications |
EU, FCC, RoHS
|
| Operating Conditions |
-22 to 167°F / -30 to 75°C
|
| Cable Length |
6' / 1.8 m
|
| Dimensions |
1.1 x 1.1 x 0.9" / 28 x 28 x 23 mm
|
| Weight |
0.9 oz / 24.5 g (Body Only)
0.2 oz / 5.5 g (Lens) 2 oz / 57 g (Cable) |
| Package Weight |
0.29 lb
|
| Box Dimensions (LxWxH) |
7.1 x 5.45 x 1.75"
|
