Description

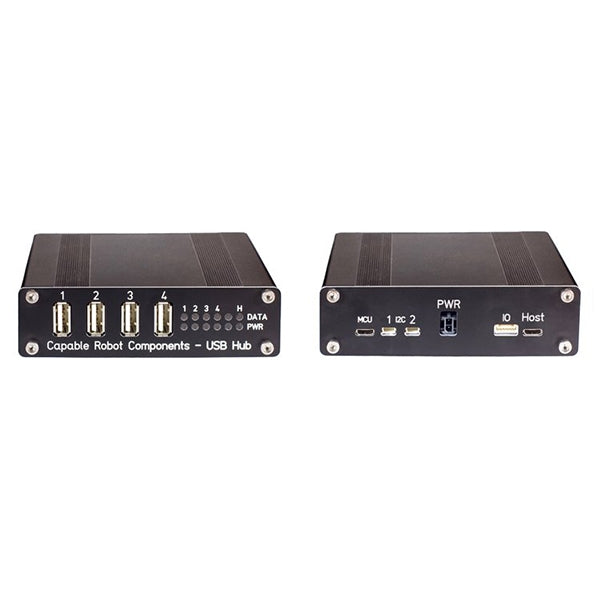

A USB hub with per-port power and data disconnects + dev board + I2C, GPIO, and SPI bridges
Features & Specs
- USB high-speed hub:
- 4x USB high-speed (480mbps) downstream ports
- 1x USB high-speed (480mbps) upstream ports
- 5th endpoint on USB hub exposes I2C, SPI, UART, and 2x GPIO
- Data lines to each USB port can be disconnected via software commands. This allows errant USB devices to be "unplugged" virtually and re-enumerated
- USB digital signals can be boosted to help drive long cables
- Power monitoring and control:
- 5V power on each downstream port can be individually turned on and off
- Monitor the power consumed by each port at up to 200Hz at a resolution of 13mA
- Adjustable (per-port) current limits between 0.5A and 2.6A
- Onboard regulator supports 12V to 24V power input and generates 6A of 5V power for downstream USB devices; both voltages can be monitored by the internal MCU. No power is drawn from the upstream USB port
- Input power is protected from over-voltage events and reverse-polarity connection
- Physical IO:
- mikroBUS header to add additional sensors and connectivity. Solder jumpers allow the UART and SPI pins to connect to either the USB hub or the MCU
- JST GH connector with UART and 2x GPIO, controlled by the USB hub
- 2x Sparkfun Qwiic connectors enable easy attachment of I2C sensors to the USB hub or to the internal MCU

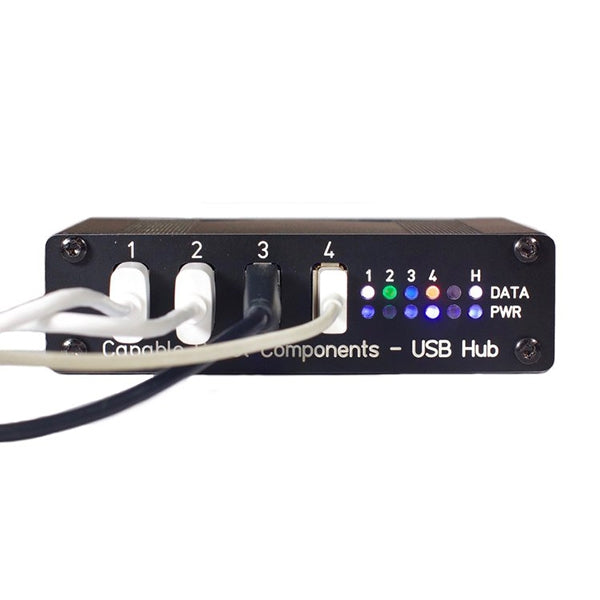

- 5x RGB status LEDs to visualize port power draw
- 5x RGB status LEDs to visualize port connection types
Features & Specs
- USB high-speed hub:
- 4x USB high-speed (480mbps) downstream ports
- 1x USB high-speed (480mbps) upstream ports
- 5th endpoint on USB hub exposes I2C, SPI, UART, and 2x GPIO
- Data lines to each USB port can be disconnected via software commands. This allows errant USB devices to be "unplugged" virtually and re-enumerated
- USB digital signals can be boosted to help drive long cables
- Power monitoring and control:
- 5V power on each downstream port can be individually turned on and off
- Monitor the power consumed by each port at up to 200Hz at a resolution of 13mA
- Adjustable (per-port) current limits between 0.5A and 2.6A
- Onboard regulator supports 12V to 24V power input and generates 6A of 5V power for downstream USB devices; both voltages can be monitored by the internal MCU. No power is drawn from the upstream USB port
- Input power is protected from over-voltage events and reverse-polarity connection
- Physical IO:
- mikroBUS header to add additional sensors and connectivity. Solder jumpers allow the UART and SPI pins to connect to either the USB hub or the MCU
- JST GH connector with UART and 2x GPIO, controlled by the USB hub
- 2x Sparkfun Qwiic connectors enable easy attachment of I2C sensors to the USB hub or to the internal MCU
- 5x RGB status LEDs to visualize port power draw
- 5x RGB status LEDs to visualize port connection types
