Description
Proaim QUAD-4 PRO Overview

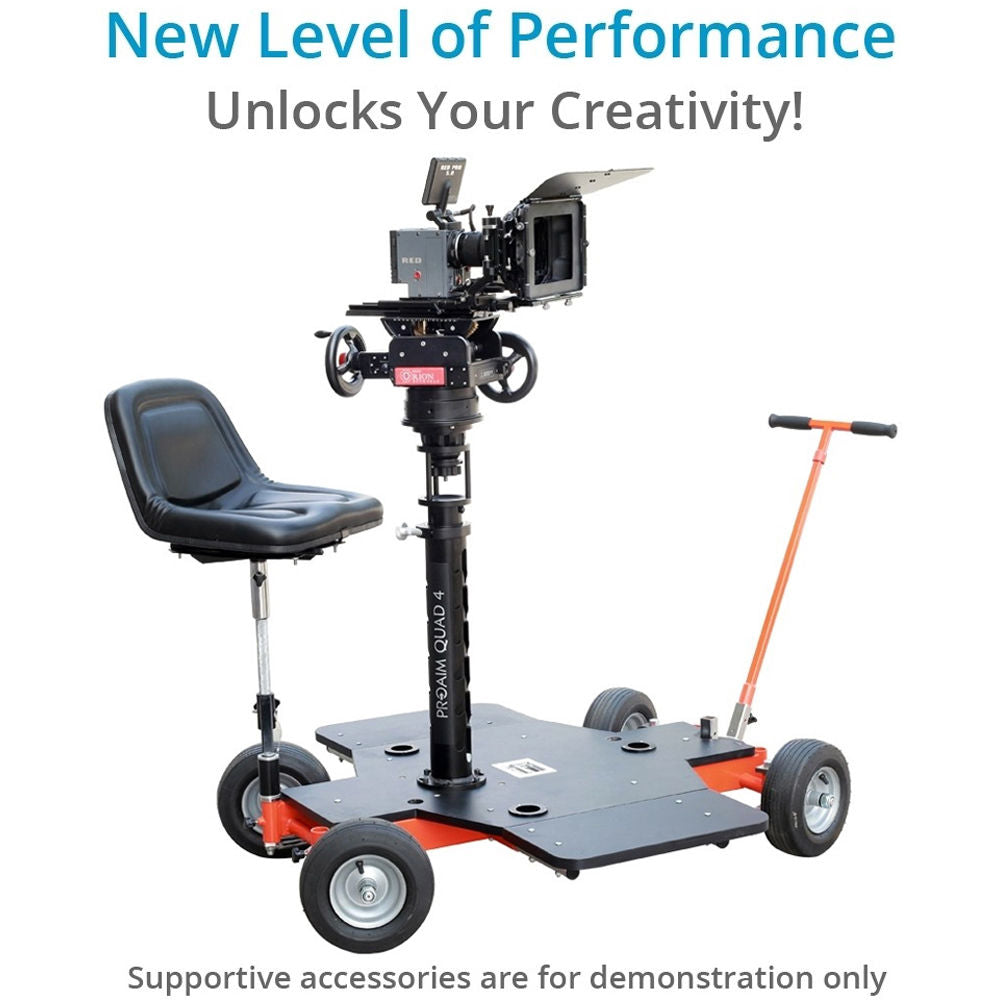

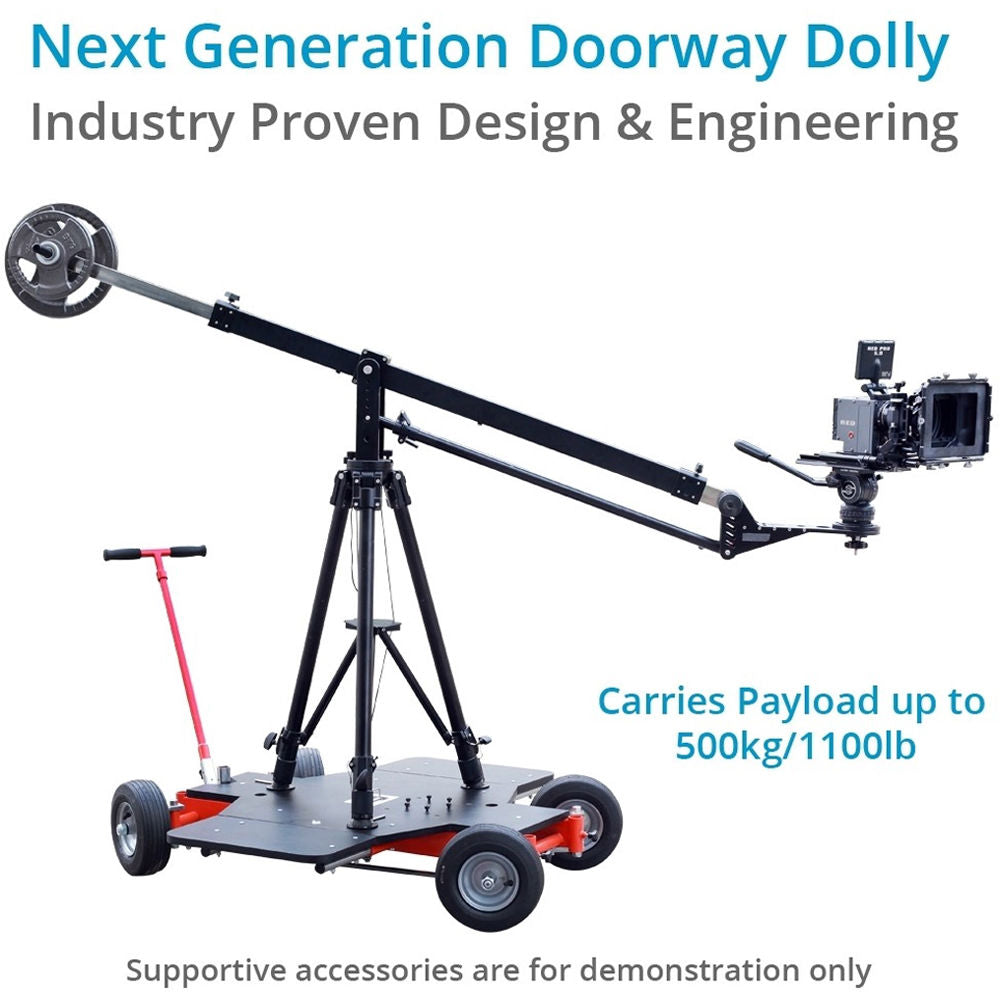

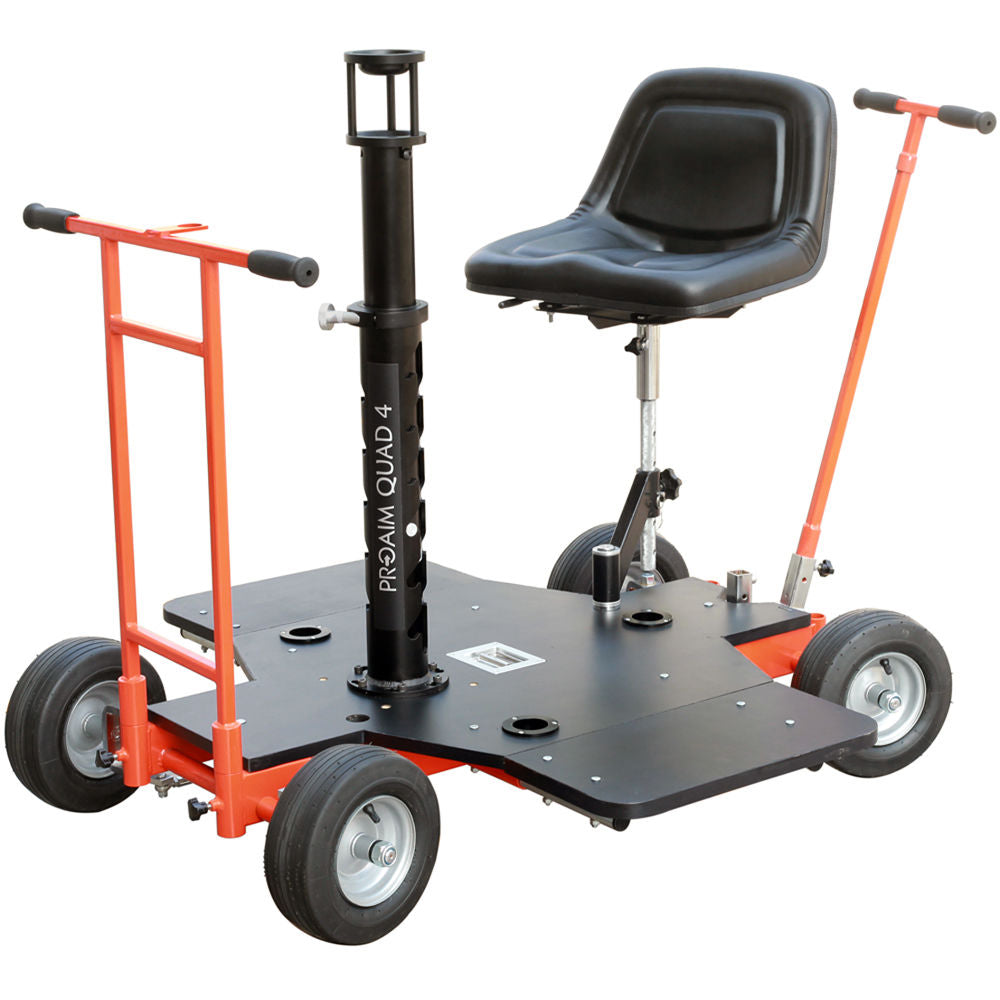

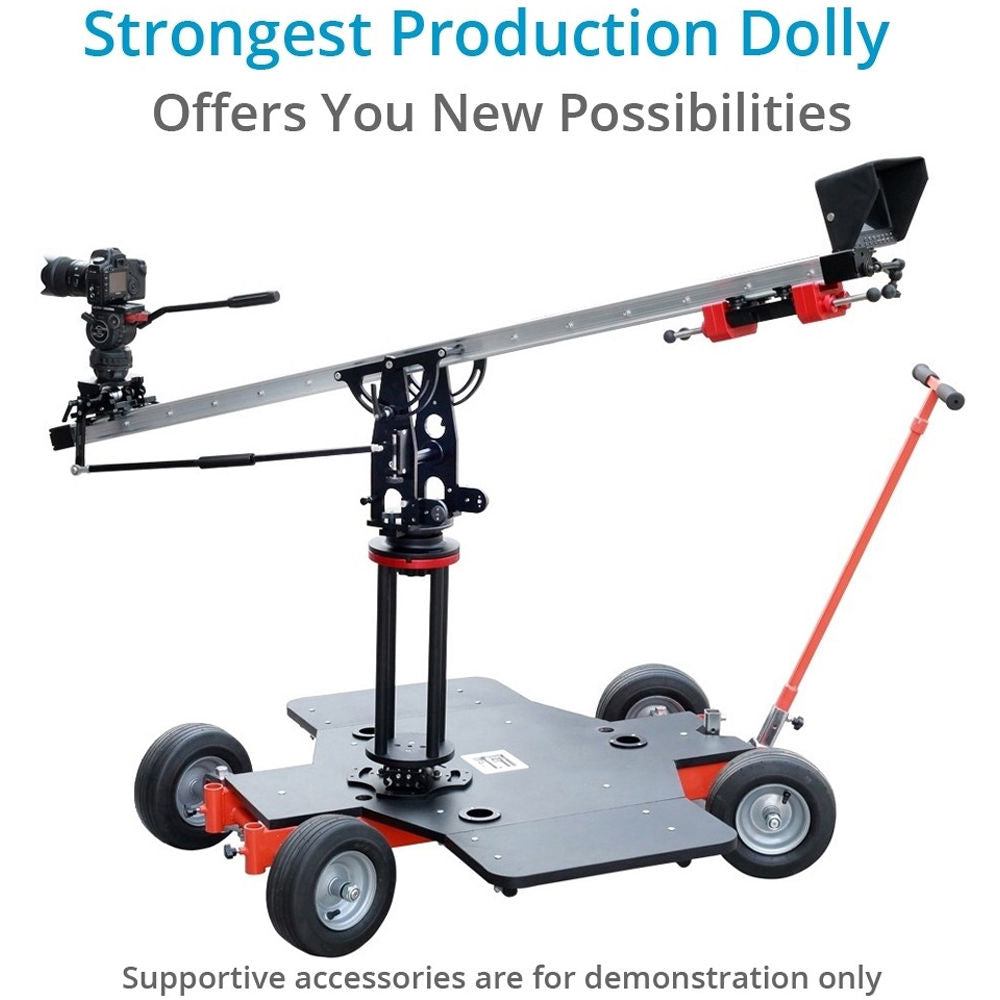

With a payload of 1100 lb, the Quad-4 Doorway Dolly with Bazooka from Proaim features a wooden platform, a telescopic bazooka with 100mm bowl, four pneumatic wheels, a push/pull bar with a foam handle, and an operator seat.

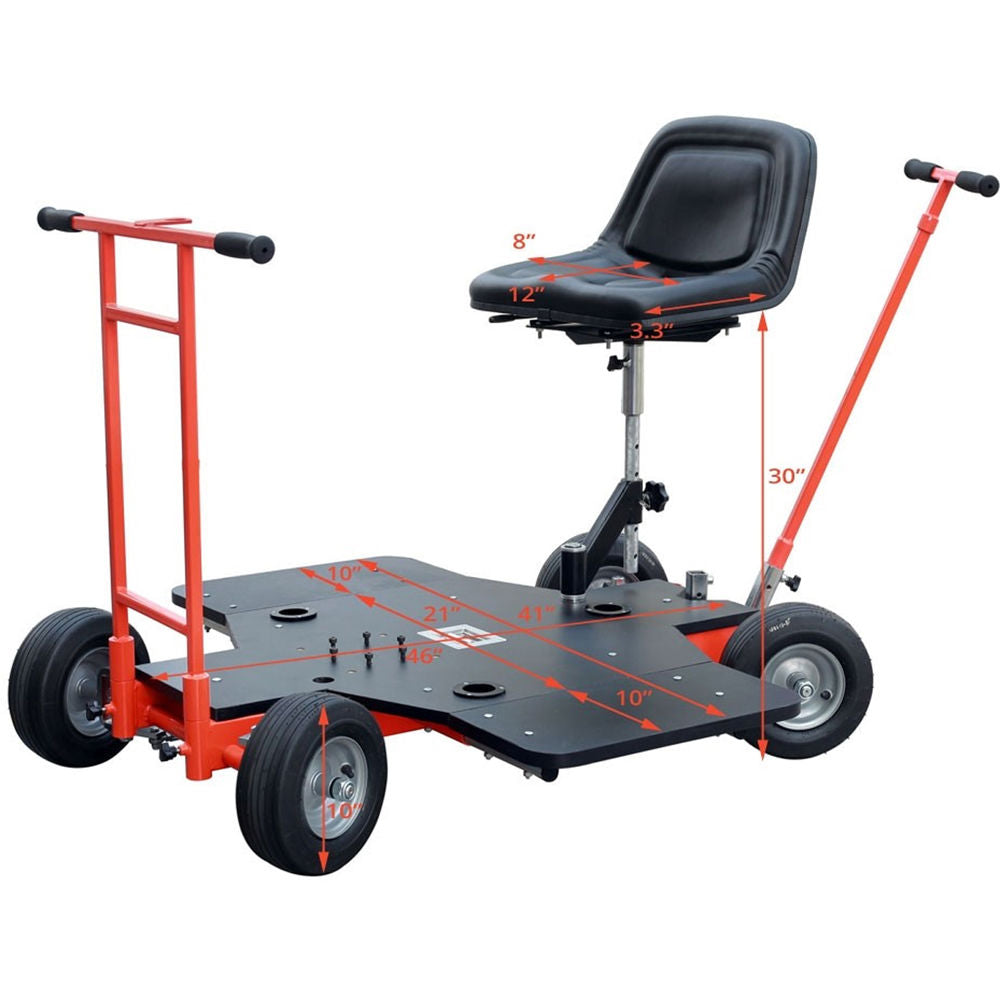

The wooden platform features removable side boards that add an extra 10" width per side, a non-slip surface, and a recessed camera tie-down. The four pneumatic wheels provide a full range of movement for greater turning flexibility with the capability of maneuvering in a tight, 6' circle. The telescopic push/pull steering bar tilts down 340° and can be locked into place.
The comfortable operator seat can be installed in four different positions for achieving different filming angles. It can be adjusted forwards and backward to suit your needs. The telescopic bazooka has a height adjustment range of 32 to 46" for flexible camera positioning. It features a Euro adapter at the bottom and a riser with a 100mm bowl on top.
In the Box
- Proaim Quad-4 Doorway Dolly with Bazooka
- Dolly Seat
- Steering Push/Pull Bar
- 4 x Pneumatic Wheel
- Bazooka with Euro Adapter & 100mm Bowl Riser
- Limited 1-Year Warranty
Proaim QUAD-4 PRO Specs
| Load Capacity | 1100 lb / 500 kg |

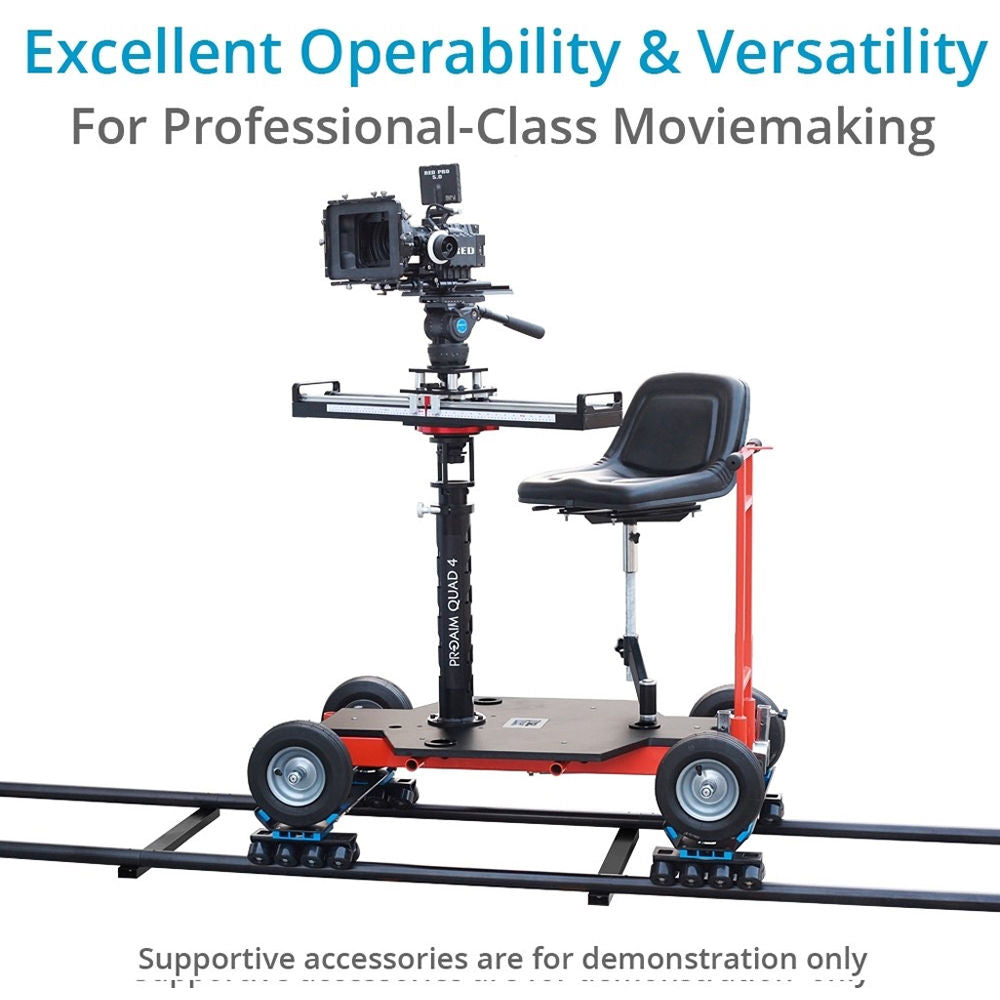

| Compatible Tracks | K-STRS-00 and TRK-16-25 Track Rail Diameter of 0.9 to 1.5" / 2.5 to 3.8 cm Track Distance of 24.5 to 25" / 62.2 to 63.5 cm |
| Material of Construction | Platform: Wood Chassis: Metal |
| Height From Ground | 8.3" / 21 cm |
| Wheel Dimensions | Diameter: 11" / 28 cm Thickness: 4" / 10.2 cm Silver Steel Rim: 5" / 12.7 cm |
| Weight | Not Specified by Manufacturer |
| Weight Capacity | 441 lb / 200 kg |
| Bowl | 100 mm |
| Material of Construction | CNC-Machined Aluminum |
| Height | Minimum Height: 32" / 81 cm Maximum Height: 46" / 117 cm |
| Weight | Not Specified by Manufacturer |
| Package Weight | 148 lb |
| Box Dimensions (LxWxH) | 51.75 x 40.25 x 33.25" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
