Description
Pro Co Sound EC11-10 Overview
Pro Co Sound brings multi-tasking to their line of cables with Siamese Twin Cables. They are a unique combination of balanced audio and AC electrical power carried through the same cable assembly with individual shielded lines that prevent EMI/RFI from disturbing the audio signal. Its ingenious construction is extremely useful for providing power to self-powered, full-range, and bi-amplified loudspeaker systems from manufacturers like Turbosound, JBL, EON, EAW, Meyer, Mackie and others.
This design combination of balanced audio and AC electrical power flowing from a set of components aids in reducing cable snarls. Each cable has a fanout of connectors that provide enough reach for the lines to connect to the power and audio ports which may or may not be near each other. The cable ends are color-coded for easy identification and the cable body has a rugged jacket that protects the individual lines inside.
In the Box

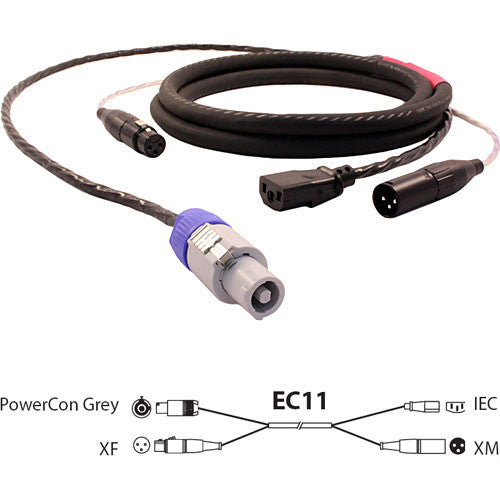

- Pro Co Sound EC11 Siamese Twin AC and Audio Combo Cable (10')
- 20-Year Manufacturer's Warranty
- Limited Lifetime Manufacturer Warranty
Pro Co Sound EC11-10 Specs
| Connector 1 |
1 x XLR 3-Pin Male Straight
1 x IEC Female Straight |
| Connector 2 |
1 x XLR 3-Pin Female Straight
1 x Edison Plug Male Straight |
| Contact Plating |
Silver
|
| Cable Length |
10' / 3 m
|
| Conductor Material |
Bare Annealed Copper (BAC)
|
| Wire Gauge |
24 AWG
|
| Wire Stranding |
40 x Strands of 40 AWG
|
| Outer Diameter |
0.16" / 4.06 mm
|
| Jacket Type |
Polyvinyl Chloride (PVC)
|
| Color |
Black
|
| Shielding |
100% Polyvinyl Chloride (PVC)
|
| Insulation Type |
Polyvinyl Chloride (PVC)
|
| Nominal Impedance |
50 Ohms
|
| Conductor Capacitance |
54 pF/ft at 1 kHz
|
| Lay Length |
2" / 50.8 mm
|
| Maximum Voltage |
300 V
|
| Operating Temperature |
167°F / 75°C
|
