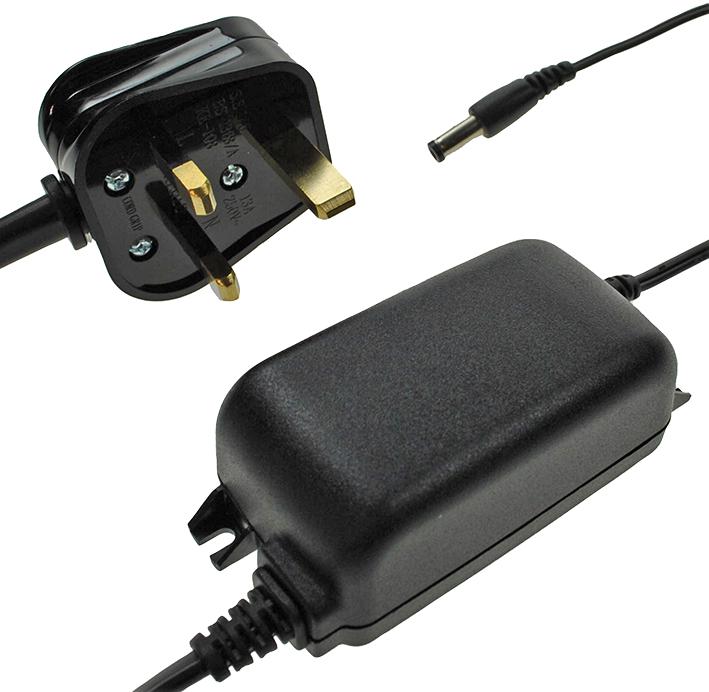

The UKR006-57?K is a lugged power supply unit that provides a 12Vdc voltage regulated output at up to 1A (12W). It features a fixed input cable to help prevent accidental disconnection of the input lead from the mains supply. The fixing lugs, which have been moulded as an integral part of the case, enable you to secure the power supply down to any flat clean surface making it ideal for a wide variety of installations and applications.
- Lugged case for fixing to flat surface
- 1.8m moulded DC cord
- 1.5m moulded AC cord
- 2.1 x 5.5 x 12mm DC Plug +ve centre
- Automatic built in short circuit, over voltage and over current protection
- Meets ErP Level VI
- Flame retardant UK94V-0 case & PCB material
- CE & RoHS Compliant
Product details
| No. of Outputs |
1 Output |
| Output Power Max |
12W |
| Output Voltage - Output 1 |
12V |
| Output Current - Output 1 |
1A |
| Output Voltage - Output 2 |
- |
| Output Current - Output 2 |
- |
| Output Connector |
Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm |
| Output Voltage - Output 3 |
- |
| Output Current - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Input Voltage AC Min |
90V |
| Input Voltage AC Max |
264V |
| Product Range |
- |
| Plug Type |
UK |
Other details
| Brand |
POWERPAX |
| Part Number |
UKR006-57-K |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
