The LYTSwitch�-6 series family of ICs dramatically simplifies the development and manufacturing of off-line LED drivers, particularly those in compact enclosures or with high efficiency requirements. The LYTSwitch-6 architecture is revolutionary in that the devices incorporate both primary and secondary controllers, with sense elements and a safety-rated feedback mechanism into a single IC.
- Up to 94% efficiency across full load range
- Incorporates a multi-mode Quasi-Resonant (QR)/CCM/DCM flyback controller, 650V or 725V MOSFET, secondary-side control and synchronous rectification driver
- Integrated FluxLink�, HIPOT-isolated, feedback link
- Designs using LYTSwitch-6 easily meet Energy Star and all global lighting energy efficiency regulations
- Input line OV with auto-restart
- Output fault OVP/UVP with auto-restart
- Open SR FET gate detection
- Input voltage monitor with accurate brown-in
- Reinforced insulation
- Isolation voltage 4000VAC
Applications
LED Lighting
Product details
| Device Topology |
Flyback |
| Input Voltage Min |
85V |
| Input Voltage Max |
305V |
| Output Voltage Max |
27V |
| Output Current Max |
- |
| Switching Frequency |
132kHz |
| No. of Outputs |
1Outputs |
| IC Mounting |
SMD |
| Driver Case Style |
InSOP-24D |
| No. of Pins |
24Pins |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
105°C |
| Product Range |
LYTSwitch-6 Family |
| Automotive Qualification Standard |
- |
| MSL |
MSL 3 - 168 hours |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
POWER INTEGRATIONS |
| Part Number |
LYT6075C-TL |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

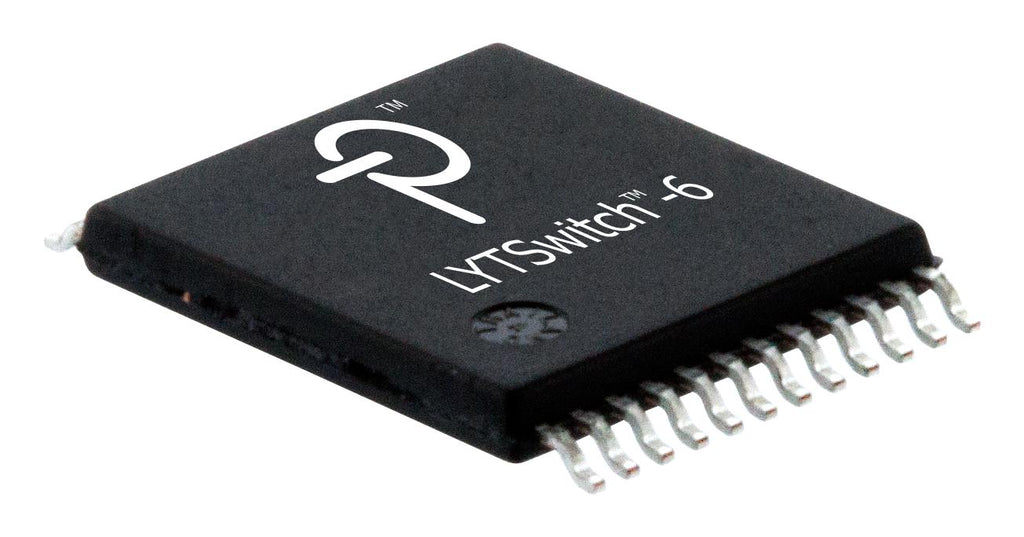

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
