Description

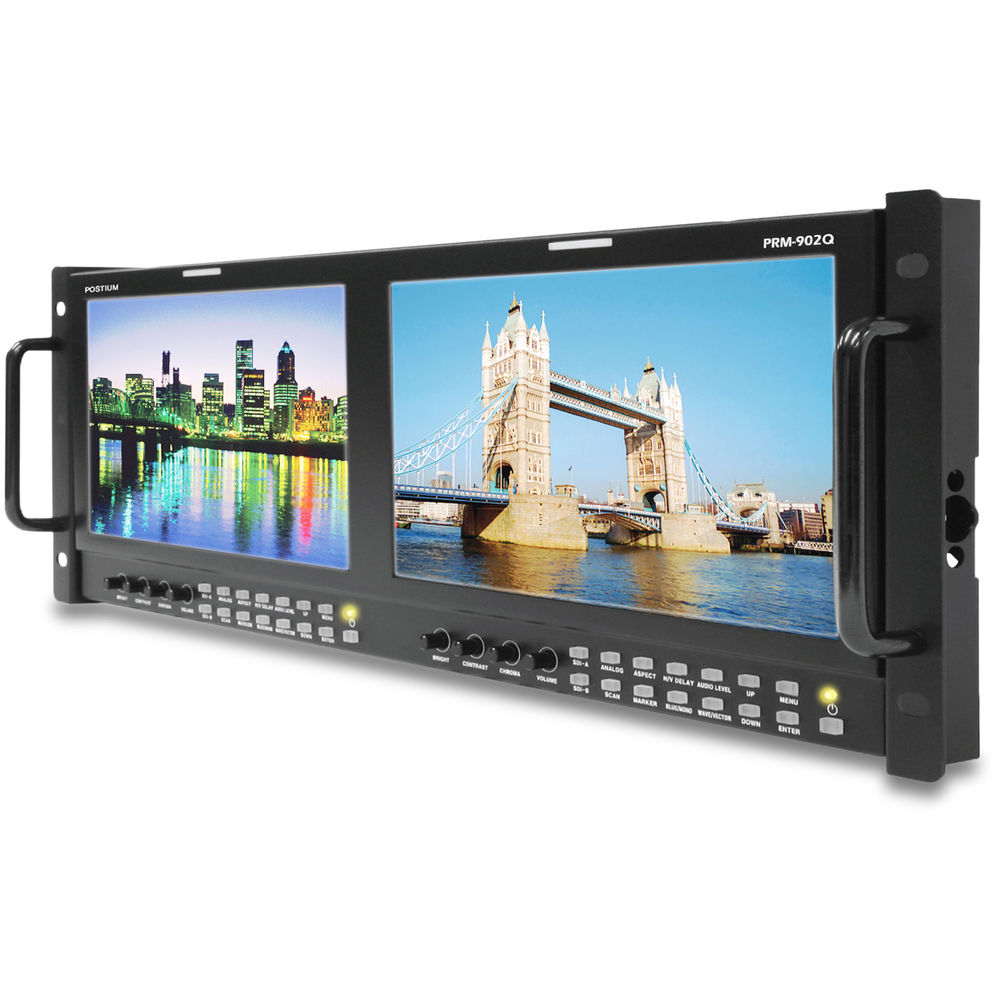

Postium Korea PRM-902Q Overview
The LCD 4RU Multi-Channel Rack Monitor from BON features two 9� 960 x 540 LED backlit LCD panels with 90° tilt range. It provides front panel individual control for brightness, contrast, chroma, SDI A/B select, analog, aspect select (16:9, 4:3), H/V delay, embedded audio level, scan (over, zero, 1:1), marker (user selectable), blue/mono, waveform (Y Cb Cr), and vectorscope. Inputs include two HD/SD-SDI with active loop, component, S-Video, RGB, RJ45 remote control, and a serial firmware upgrade port. Outputs include one SDI and one stereo mini audio out.
- Multi-format support (480i, 576i, 720p, 1080i, 1080p, 1080psf, 2K)
- 2x HD/SD-SDI inputs (Auto Detecting/Switching) with Active Loop Through
- Two HD 9� 960 x 540 resolution, 16.7 MP wide screens
- Analog inputs including, composite, S-Video, YPbPr, and RGB
- 4RU standard EIA 19� rack
- Closed caption CEA-608/708, AFD, and H/V delay mode
- Analog stereo audio out phone jack
- Internal left & right speakers (2 x 1W)
- Blue Only & Monochrome
- Markers & safety areas including user defined markers
- Source ID function (user defined in OSD function)
- 16-channel embedded audio level meter
- Timecode display (VITC & LTC)
- Selectable full & small size, waveform (Y Cb Cr), and vectorscope for SDI
UPC: 847983017935
In the Box
- Postium Korea Dual 9" LCD 4RU Multi-Channel Rack Monitor
- DC Power Adapter
- Limited 2-Year Warranty
Postium Korea PRM-902Q Specs
| Display Size (Diagonal) |
9.0" (23 cm)
|
| Display Size (HxV) |
7.87 x 4.37" (20.0 x 11.1 cm)
|
| Resolution |
960 x 540
|
| Aspect Ratio |
16:9
|
| Pixel Pitch (H x V) |
0.207 x 0.207 mm
|
| Color |
16.7 million true colors (24-bit)
|
| Viewing Angles (H/V) |
170/170°
|
| Luminance |
400 cd/m2 (center)
|
| Contrast |
1000:1
|
| Number of Screens |
2
|
| Input |
2 x BNC (SDI 2 Channel Input)
3 x BNC (Composite Inputs: S-Video, RGB, Component) |
| Output |
1 x BNC, SDI Channel (active throughout)
1 x Phone jack (analog stereo audio out) 2 x Speaker (1 W each) |
| Input Signal |
Analog: Composite (1.0 Vpp with Sync), S-Video (1.0 Vpp Y with Sync, 0.286 Vpp [C]), Component (1.0 Vpp Y with Sync, 0.7 Vpp [Pb,Pr]), RGB (1.0 Vpp G with Sync, 0.7 Vpp [B,R])
HD-SDI: 1.485 Gbps SD-SDI: 270 Mbps |
| SDI Input Signal Formats |
SMPTE-274: 1080i (60/59.94/50)
1080p (30/29.97/25/24/24sf/23.98/23.98sf) SMPTE-296M: 720p (60/59.94/50/30/29.97/25/24/23.98) SMPTE-260M: 1035i (60/59.94) SMPTE-125M: 480i (59.94) ITU-R.BT.656: 576i (50) 2K Format: 2048 x 1080 (24p/23.98p/24psf/23.98psf) |
| CVBS Input |
NTSC (525/59.94i), PAL (625/50i), PAL-M (525/59.94i)
|
| S-Video Input |
NTSC (525/59.94i) , PAL (625/50i), PAL-M (525/59.94i)
|
| Component Input |
480i (59.94), 576i (50), 480p (59.94), 576p (50)
1080i (60/59.94/50) 1080p (30/29.97/25/24/24sf/23.98/23.98sf) 720p (60/59.94/50) |
| Power |
2.4 A
|
| Power Consumption |
29 W
|
| Operating Temperature |
32 to 104°F (0 to 40°C)
|
| Storage Temperature |
-22 to 122°F (-30 to 50°C)
|
| Dimensions |
19 x 7.0 x 2.5" (48 x 18 x 6.3 cm)
|
| Weight |
8.8 lb (4.1 kg)
|
Packaging Info
| Box Dimensions (LxWxH) |
22 x 13.4 x 7.1"
|
