Description

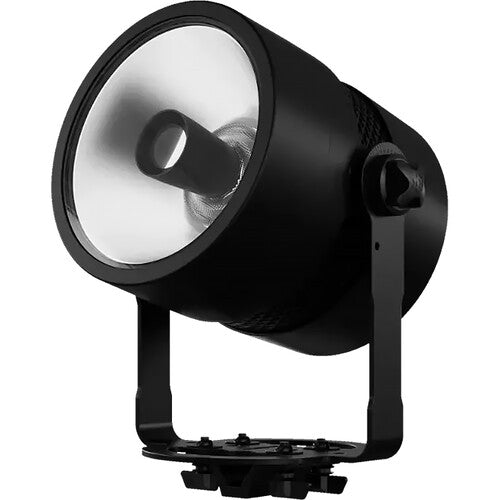

Portman Lights OMNIRAY Overview
Designed to create versatile lighting options with an IP65-rated housing for dust and rain protection, the OMNIRAY RGBW LED Luminaire from Portland Lights creates dimmable and bright color wash effects. This fixture is constructed with a powerful main 440W RGBWLA and a narrow 40W RGBW light source to produce an 8000-lumen output for illuminating indoor and outdoor productions. Suitable for concert stages and large productions, the OMNIRAY features 16-bit dimming and color mixing options with a high CRI 95 rating and silent fan mode to light a multitude of applications while maintaining accurate outputs. The light's 3.8° and 90° beam angles provide both narrow and broad lighting options. Incorporating multiple control options, including RDM, an optional CRMX module, and 8 DMX modes with 8-28 channels, it's simple to control the luminaire's color feedback system and mid-air effects. Designed with a magnetic lens overlay, it's quick and easy to attach separately available accessories for more refined outputs; the fixture includes an OMNICIRCLE decorative magnetic cover to protect the light when it's not in use. AC powered; the light includes a powerCON TRUE1 cable to withstand long hours of use. Use a separately available Omega bracket with 1/4 fast locks for an intuitive mounting option.
Items Included
- Portman Lights OMNIRAY RGBW LED Luminaire
- PowerCON TRUE1 AC Power Cord
- OMNICIRCLE Magnetic Cover
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Portman Lights OMNIRAY Specs
| Fixture Type |
Special Design
|
| Light Source |
Color LED - 440 W
Color LED - 40 W |
| Colors |
Amber, Blue, Green, Lime, Red, White
|
| Beam Angle |
85°
3.8° |
| Control Protocols |
DMX512, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
500 W (Max)
|
| Mounting |
Single Yoke Only
|
| Fixture Type |
Special Design
|
| Light Source |
Color LED - 440 W
Color LED - 40 W |
| Colors |
Amber, Blue, Green, Lime, Red, White
|
| Photometrics |
3.8°:
4276 fc / 46,035 Lux at 3.3' / 1 m 475 fc / 5115 Lux at 9.8' / 3 m 171 fc / 1841 Lux at 16.4' / 5 m 85°: 920 fc / 9911 Lux at 3.3' / 1 m 102 fc / 1101 Lux at 9.8' / 3 m 36 fc / 396 Lux at 16.4' / 5 m |
| Color Temperature |
2000 to 6500K
|
| Beam Angle |
85°
3.8° |
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
No
|
| Dimming |
16-Bit
|
| Operating Modes |
DMX
|
| Gobos |
No
|
| Color Resolution |
16-Bit per Color
|
| Color Accuracy Index |
CRI: > 95
|
| Control Protocols |
DMX512, RDM
|
| DMX Channel Modes |
8 Mode(s)
|
| Display / Controls |
OLED Touchscreen
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output 1 x USB-A Service Input |
| Wireless |
No
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON TRUE1
Output: 1x powerCON TRUE1 Plug Type: Unterminated/Bare Wire |
| Power / Current Consumption |
500 W (Max)
|
| Environmental Resistance |
Dust/Water-Resistant (IP65)
|
| Mounting |
Single Yoke Only
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Fan
|
| Certifications |
CE, ETL, RoHS, UKCA, UL
|
| Dimensions |
17.3 x 15.7 x 11.4" / 44 x 40 x 29 cm
|
| Weight |
30.8 lb / 14 kg
|
