| ₹ 269390.0 includes GST and import duties. | |
| B2B customers can avail ₹ 41081.98 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

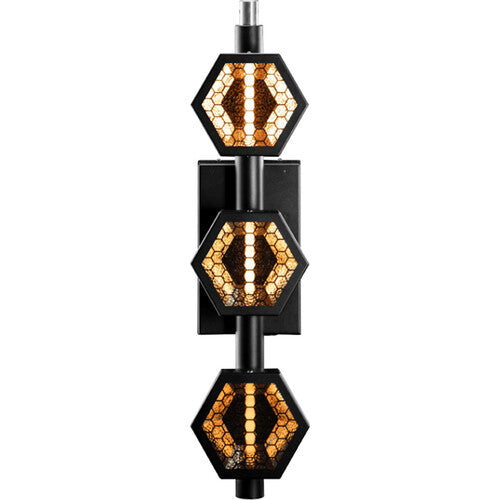

Portman Lights EVO Element Overview
Portman Lights EVO Element Specs
Key Specs
| Fixture Type |
Special Design
|
| Light Source |
3x White LED - 60 W
3x Color LED - 12 W |
| Colors |
Blue, Green, Red, White
|
| Pixel Configuration |
3x Zone
|
| Beam Angle |
94°
|
| Control Protocols |
DMX512, W-DMX, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
240 W
|
| Mounting |
Mounting Bracket
|
Light
| Fixture Type |
Special Design
|
| Light Source |
3x White LED - 60 W
3x Color LED - 12 W |
| Colors |
Blue, Green, Red, White
|
| Pixel Configuration |
3x Zone
|
| Photometrics |
99 fc / 1068 Lux at 6.6' / 2 m
24 fc / 267 Lux at 13.1' / 4 m 11 fc / 119 Lux at 19.7' / 6 m |
| Color Temperature |
1600 to 3200K
|
| Beam Angle |
94°
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
No
|
| Dimming |
16-Bit 0 to 100%
|
Performance
| Operating Modes |
DMX, Primary/Secondary
|
| Macros / Programs |
FX Macros
|
| Effects |
Strobe
|
| Gobos |
No
|
| Color Accuracy Index |
CRI: > 90
|
Control
| Control Protocols |
DMX512, W-DMX, RDM
|
| DMX Channel Modes |
6 Mode(s):
9 / 15 / 22 / 23 / 37 / 39-Channel |
| Display / Controls |
LCD
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output 1 x etherCON/RJ45 Network Input |
| Wireless |
Wireless DMX
|
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON TRUE1
Output: 1x powerCON TRUE1 |
| Fuse |
No
|
| Power / Current Consumption |
240 W
|
Physical
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Operating Conditions |
Up to 113°F / 45°C
|
| Mounting |
Mounting Bracket
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Max Housing Temperature |
158°F / 70°C
|
| Certifications |
CE, UKCA
|
| Dimensions |
34.1 x 8.1 x 7.4" / 866 x 205 x 189 mm
|
| Weight |
11.4 lb / 5.2 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 264002.2 |
| 3-5 | ₹ 261308.3 |
| 5-10 | ₹ 255920.5 |
| 10+ | ₹ 250532.7 |
Bulk discount will be automatically applied during checkout based on quantity.
