Description
PORTKEYS PT6 Overview
- 1Description
- 23D LUT Output
- 3Vertical Stretch
- 4Up to 4K HDMI Input
- 5Wide Color Gamut
- 6Anamorphic HDMI Output
- 7Touchscreen
- 8Imaging Tools

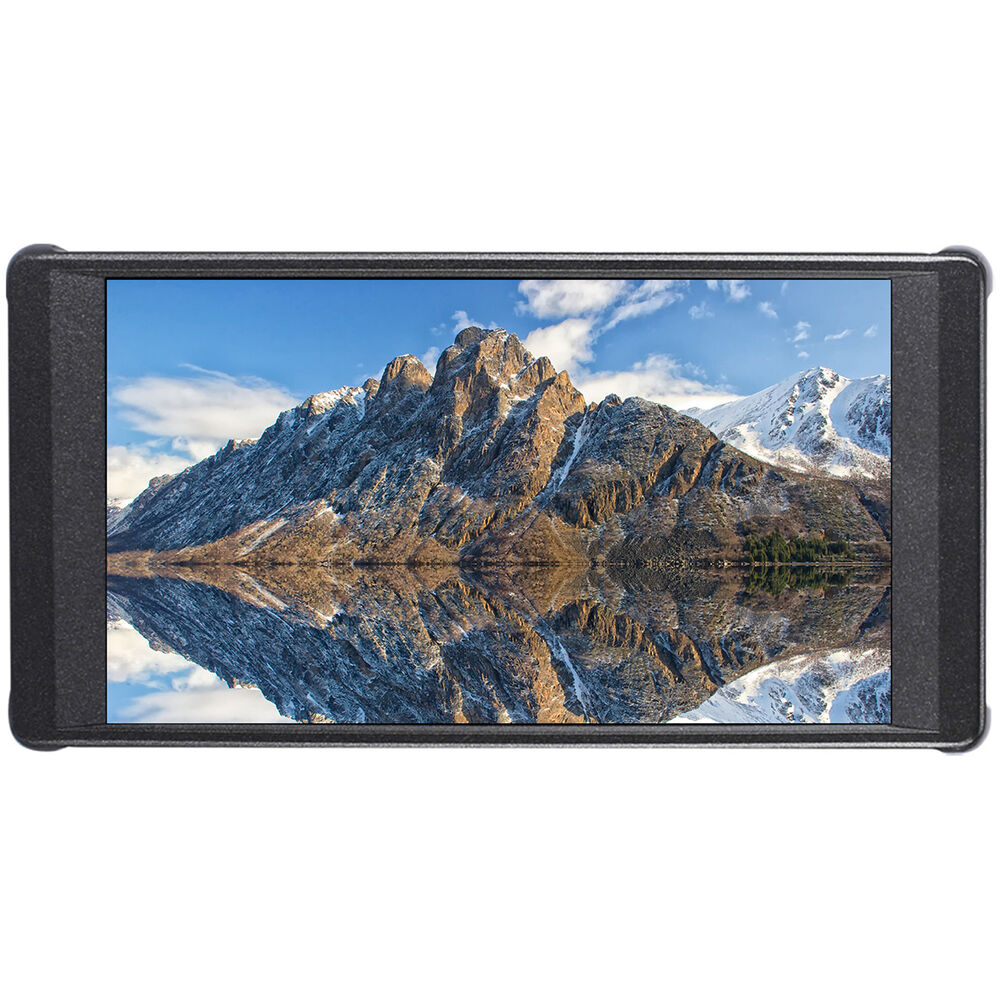

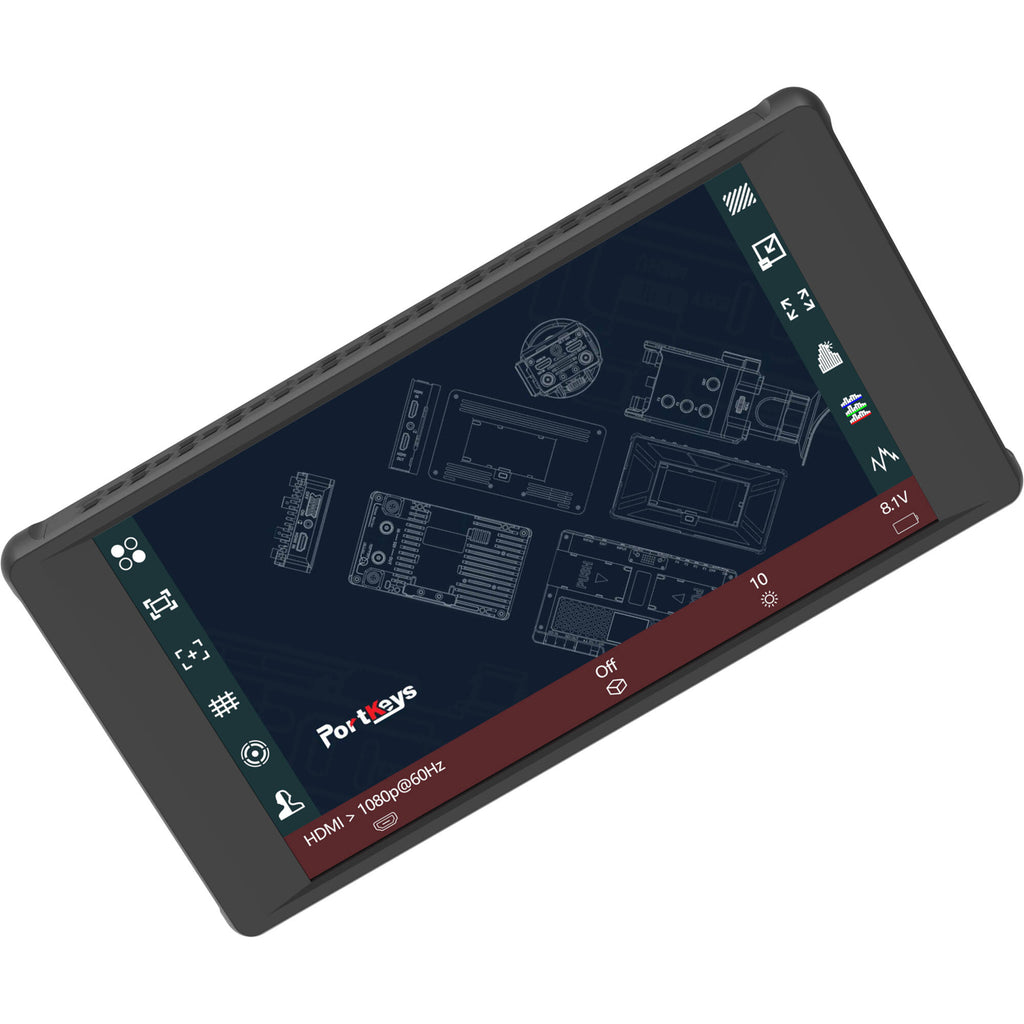

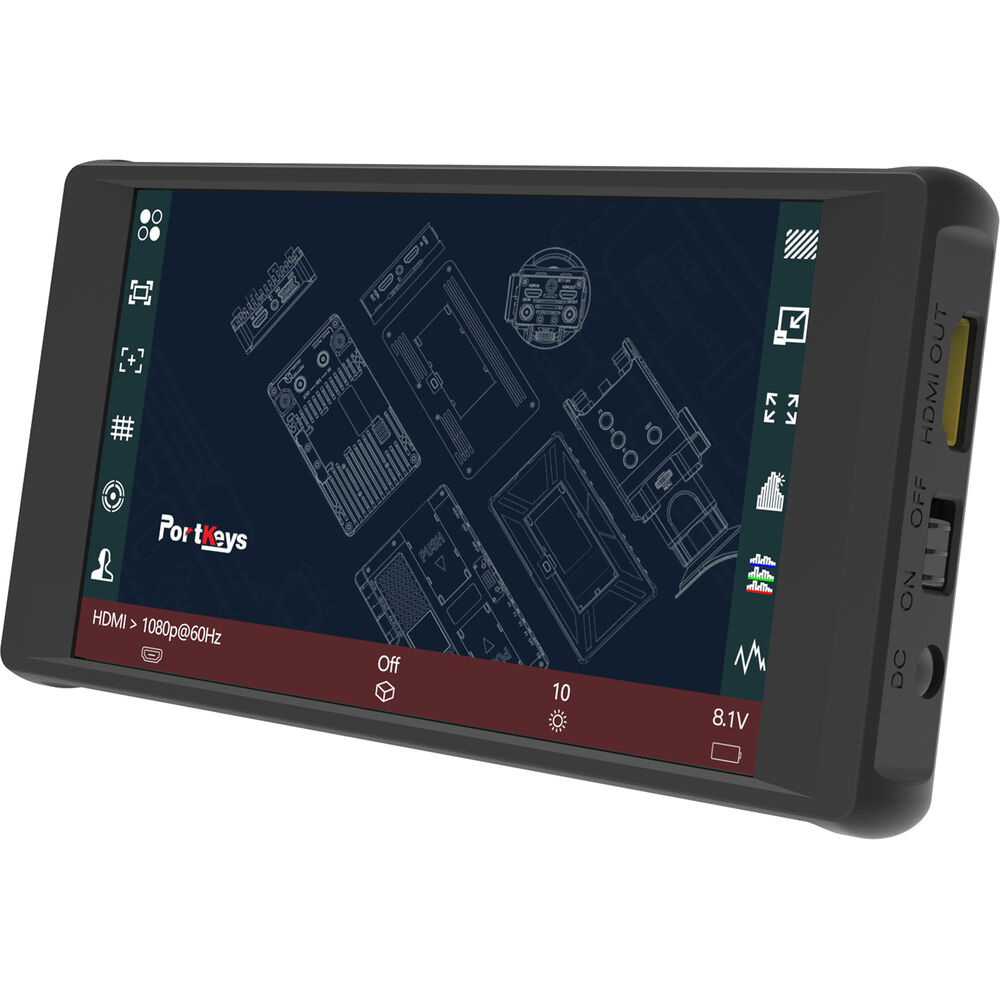

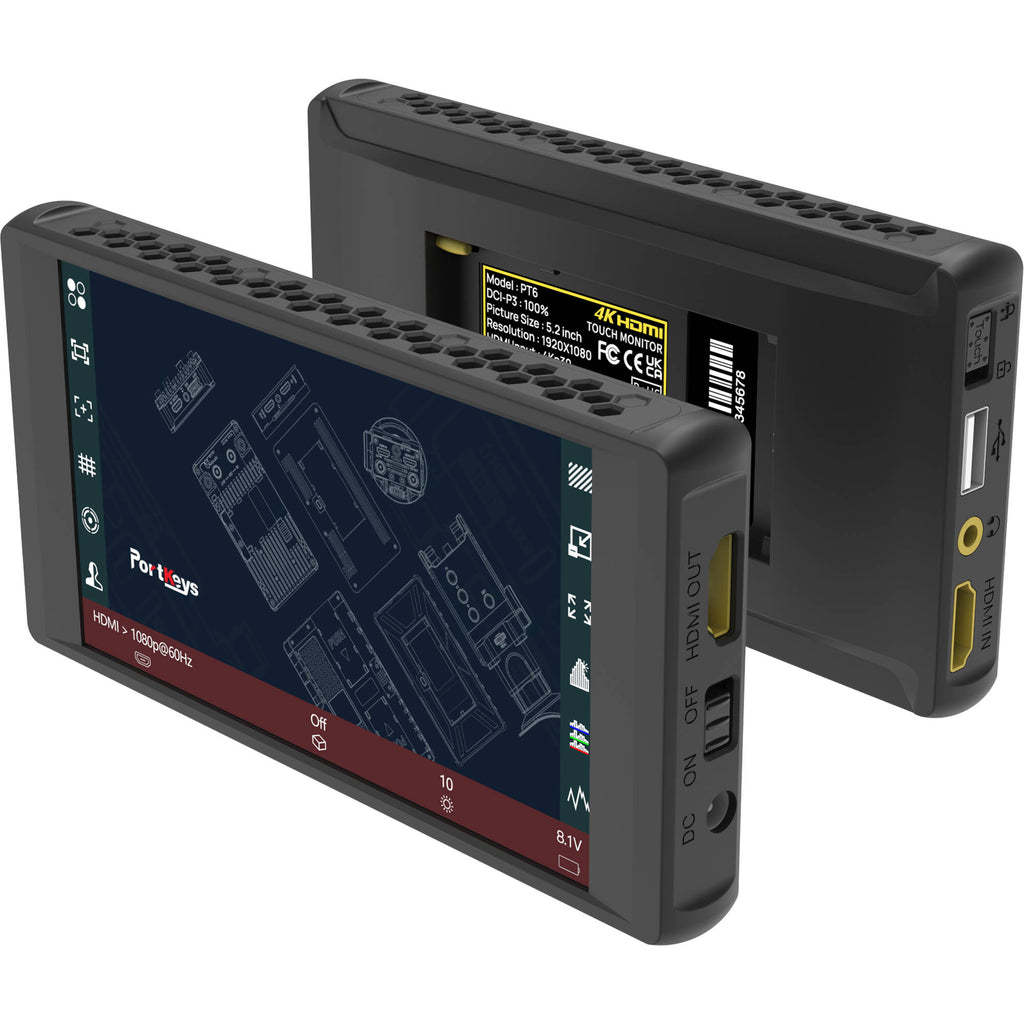

Add nuanced, LUT-enhanced imagery to your video monitoring using the PT6 5.2" 4K HDMI Touchscreen Monitor from PORTKEYS. This compact, 5.2" touchscreen monitor supports the DCI-P3 wide color gamut and offers a host of imaging tools like focus peaking, image cropping, and anamorphic output. It features up to 4K30 HDMI input and 1080p60 output, UI output, and a stretch function for vertical monitoring.
3D LUT Output
Provides the ability to output 3D LUTs for customized, nuanced monitoring.

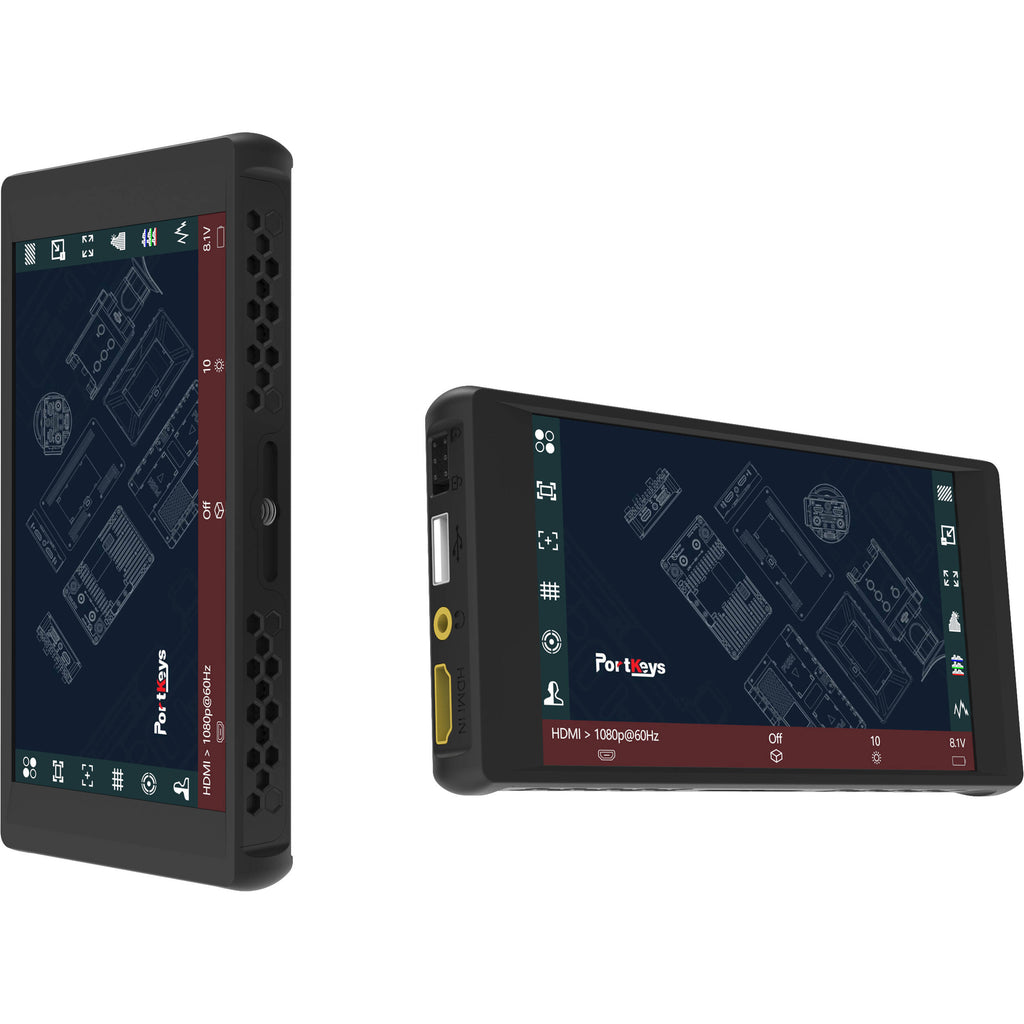

Vertical Stretch
Real-time image stretching for vertical-mode capture.
Up to 4K HDMI Input
Supports up to DCI 4K30 input and 1080p60 output, both via HDMI.
Wide Color Gamut
Covers 100% of the DCI-P3 wide color gamut, producing detailed, refined images.
Anamorphic HDMI Output
- Calibrates anamorphic lenses, outputs via HDMI.
- Supports 1.0/1.33/1.4/1.5/1.6/1.85/2/2.35x ratios and 0.25-4x user-defined adjustment range.
Touchscreen
Bright, compact, 5.2" touchscreen for on-camera monitoring.
Imaging Tools
- 3D LUTs, anamorphic calibration
- Vertical extension for portrait mode
- Exposure: RGB and luma waveforms
- Luma histogram, zebra
- ARRI false color, false color
- Focus: Zoom functions, customized peaking
- Cropping: Customized cropping for viewing image details
- Framing: Check field, grids, image flip, and crosshair marks
- Display: Anamorphic, color temperature, contrast, and sharpness
- Display: Brightness, tint, backlight, and underscan
- Battery: Remaining power
- Audio: Metering
In the Box
- PORTKEYS PT6 5.2" 4K HDMI Touchscreen Monitor
- Sunshade
- HDMI Cable
- Micro-HDMI to HDMI Cable
- 2 x Rubber Cover
- MH-2 Mount
- Storage Box
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Batteries & Chargers (Not Included)
Table of Contents
- Description
- 3D LUT Output
- Vertical Stretch
- Up to 4K HDMI Input
- Wide Color Gamut
- Anamorphic HDMI Output
- Touchscreen
- Imaging Tools

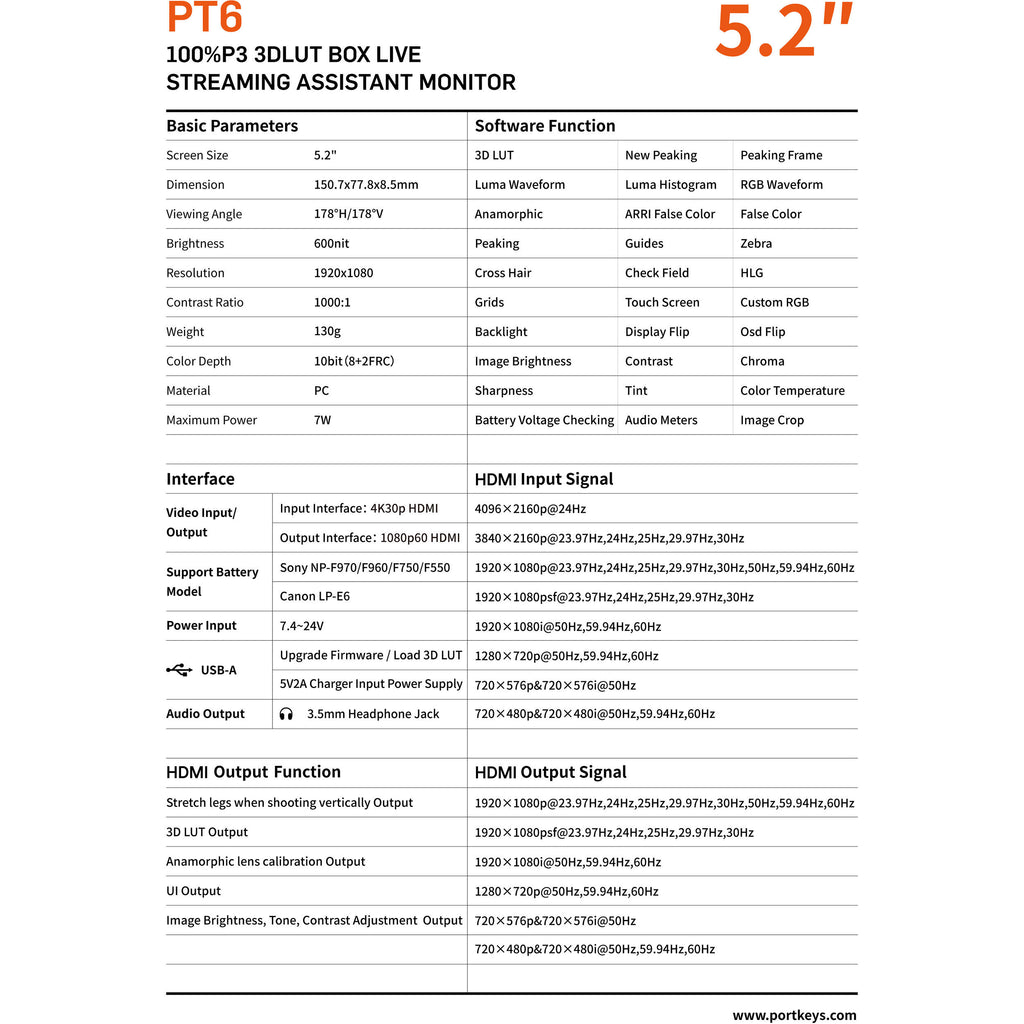

PORTKEYS PT6 Specs
Display
| Panel Type | IPS-Type LCD |
| Display Size | 5.2" / 13.2 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | Yes |
| Maximum Brightness | 600 nits / cd/m2 |
| Contrast Ratio | 1500:1 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| HDR Compatibility | Yes |
| Pixels Per Inch (ppi) | 423 ppi |
| Color Gamut | 100% DCI-P3 100% Rec. 709 |
| Real-Time LUT Monitoring | SDR, HDR |
| Image Controls | Anamorphic De-Squeeze, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, Pixel Zoom, R/G/B/Chroma Only, RGB Parade, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra |
Inputs / Outputs
| Video I/O | 1 x HDMI Input 1 x HDMI Output |
| Embedded Audio | HDMI |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel (24 VDC) Input |
| Other I/O | 1 x USB-A 2.0 Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Bluetooth | None |
| Mobile App Compatible | No *As of October, 2022: Check with manufacturer for the most up-to-date compatibility |
Format Support
| Video Format | HDMI (10-Bit 4:4:4/4:2:2) DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94 |
| Gamma Curve | HDR-HLG |
Power
| DC Input Power | 7 to 24 VDC |
| Battery Type | 1 x LP-E6, L-Series |
| Power Consumption | 6 W (Maximum) |
| Mounting | 1 x 1/4"-20 Female |
General
| Material of Construction | Plastic, Polycarbonate |
| Dimensions | 5.9 x 3.1 x 0.3" / 150.7 x 77.8 x 8.5 mm |
| Weight | 6.0 oz / 170 g |
Packaging Info
| Package Weight | 1.15 lb |
| Box Dimensions (LxWxH) | 8.5 x 5.6 x 2.4" |
