Description
PORTKEYS PT5 III Overview
The

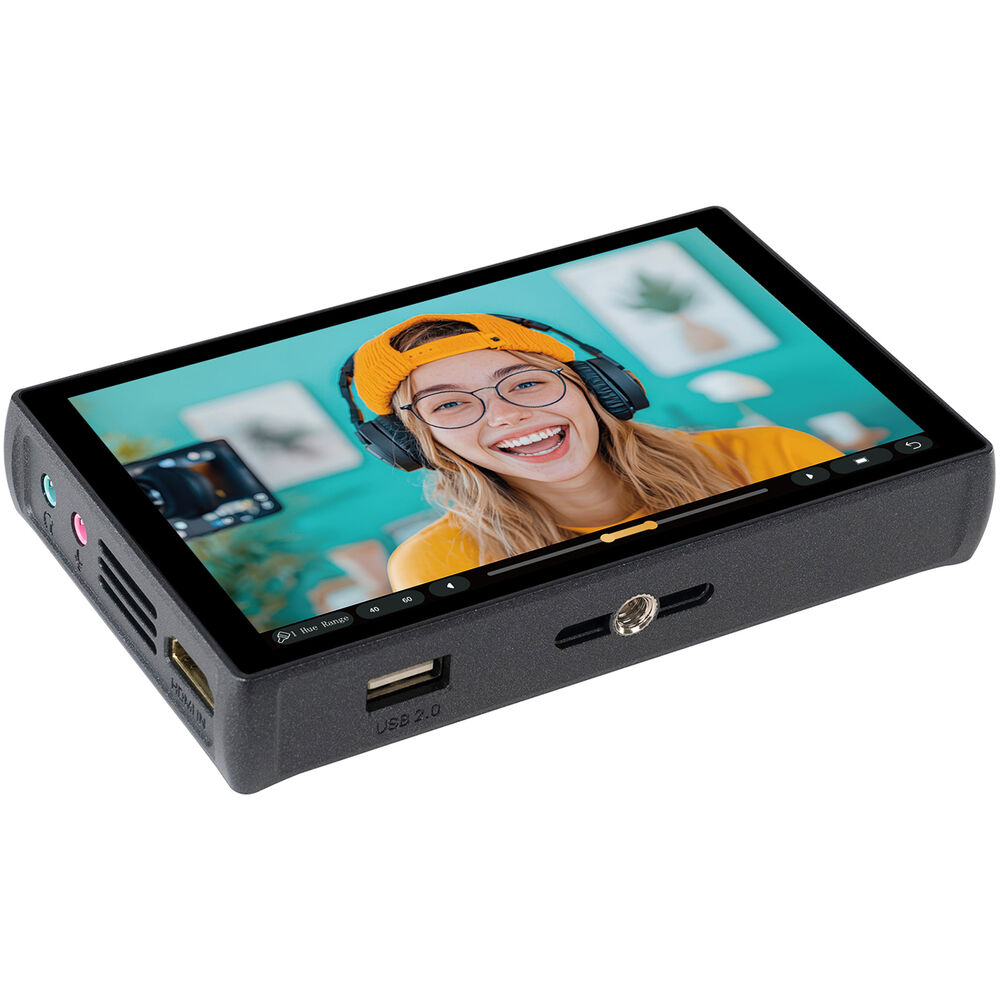

PT5 III 5.4" 4K Touchscreen Monitor from
PORTKEYS is a compact touchscreen monitor offering bright on-camera monitoring in any shooting environment. It features HDMI input and output, 3D LUT input via USB, audio I/O, L-series battery/USB-C power, and support for up to DCI 4K30 video signals.
Bright Display with 4K Support

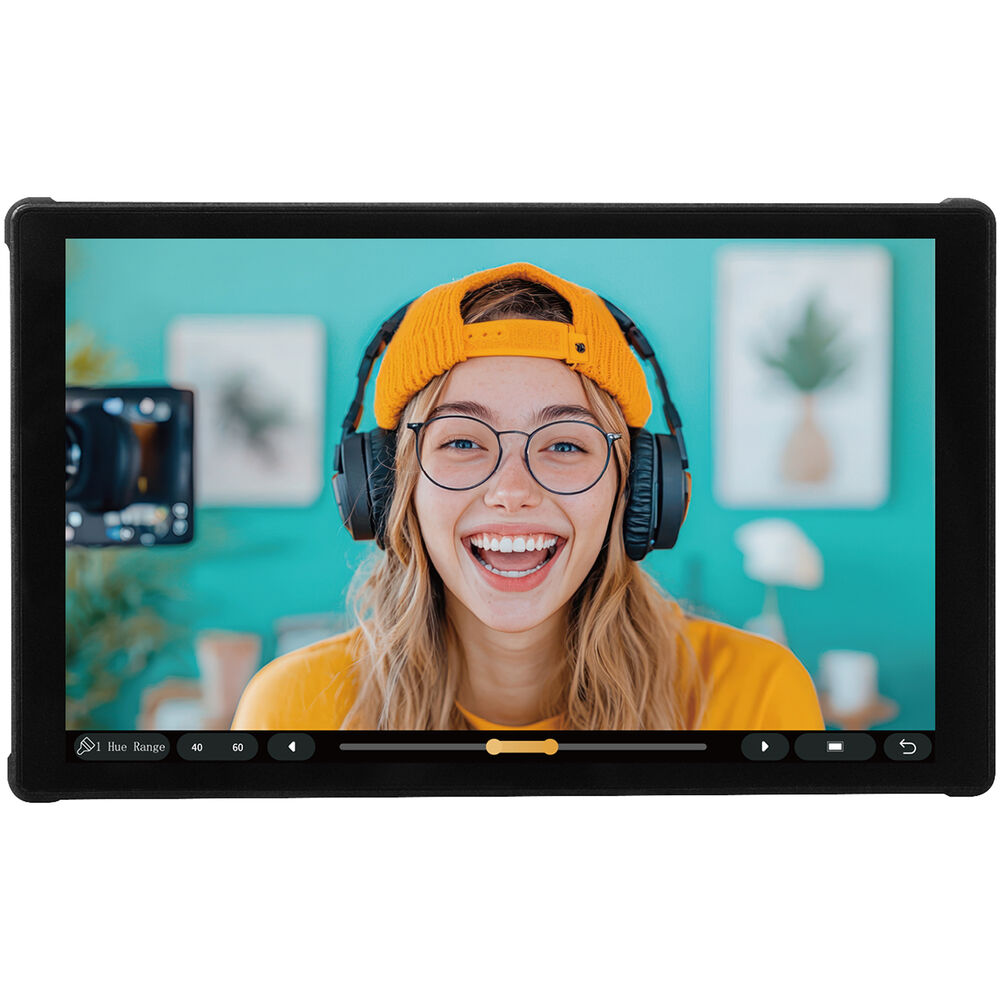

This PT5 III has a 5.4" 8-bit touchscreen LCD that features a resolution of 1920 x 1152, a peak brightness of 800 cd/m?, a contrast ratio of 1000:1, and a wide 178? viewing angle.
3D LUT Input

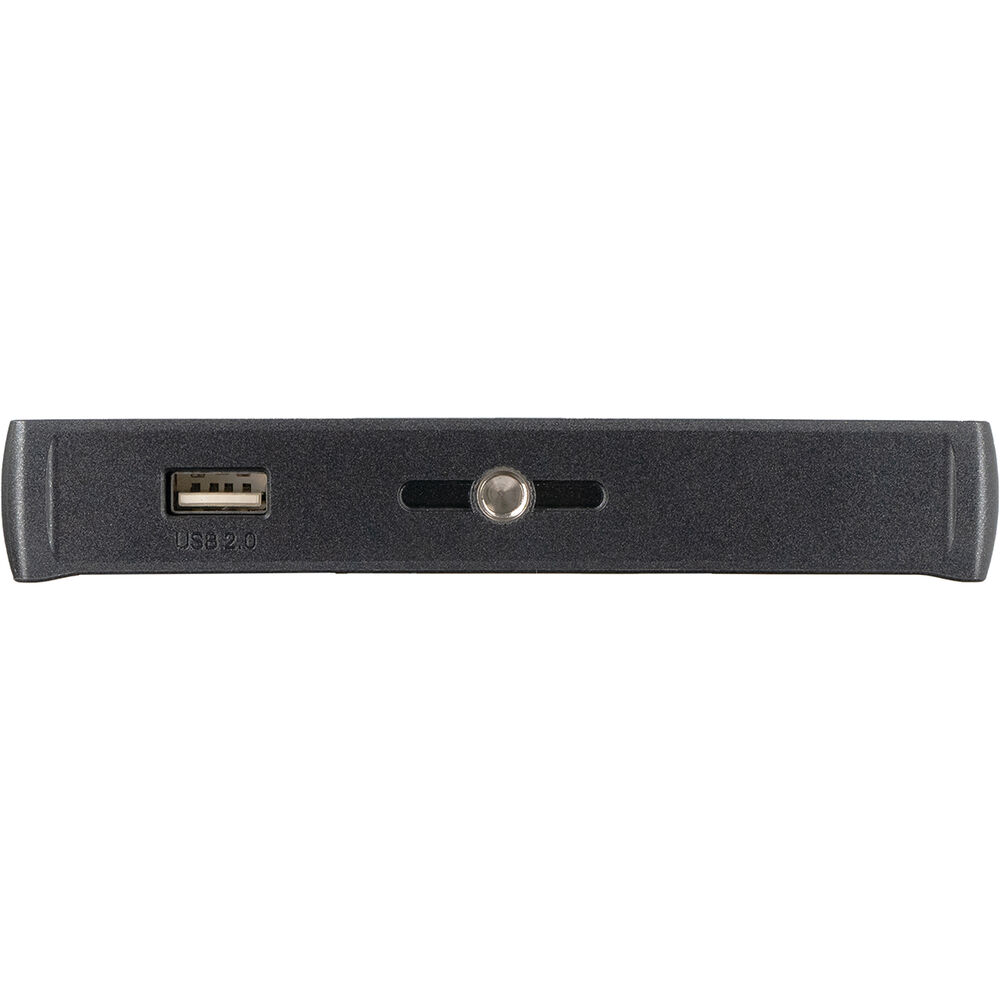

You can upload your 3D LUTs via the USB-A port for customized viewing options and for viewing on the HDMI output.
A/V Connections

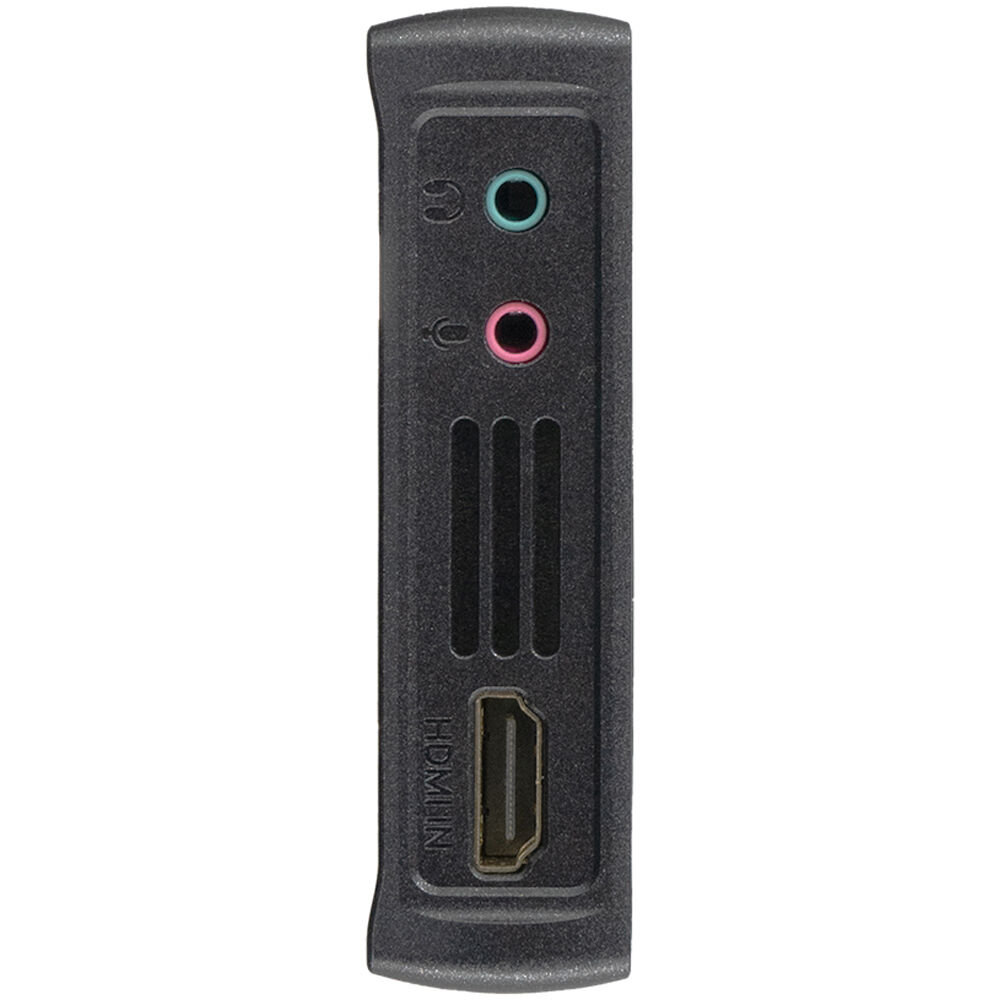

The HDMI video input supports resolutions up to DCI 4K30, and the HDMI output port supports resolutions up to 1080p60.
There is also a 3.5mm headphone jack and a 3.5mm microphone input for audio options.
Power Options
One USB-C port can be used to power the monitor externally via a power bank or V-mount/Gold Mount battery.

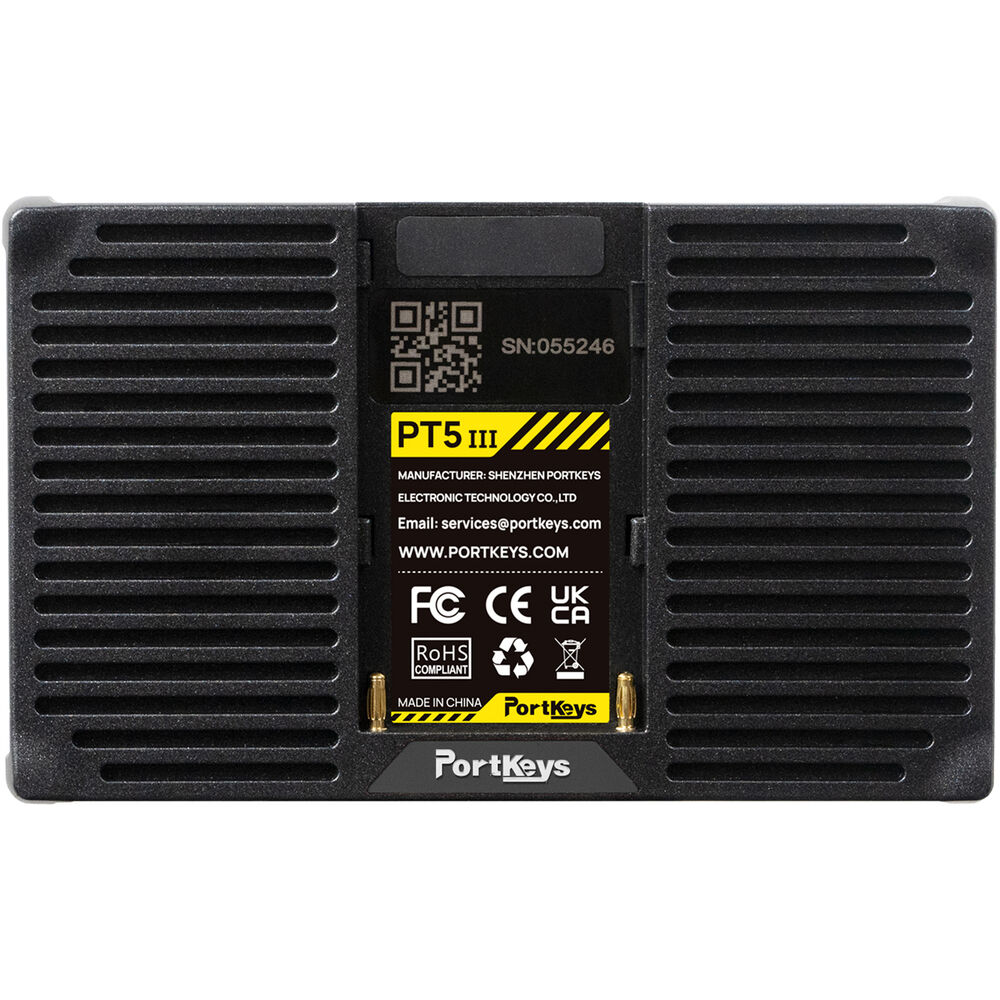

You can also power the monitor via the L-series/NP-F battery plate on the back.
Imaging Tools
- Exposure: RGB and luma waveforms, zebra, false color, and histogram
- Focus: peaking and zoom functions
- Framing: check field, grids, image flip, and crosshair marks
- Display: anamorphic, color temperature, contrast, and sharpness
- Display: brightness, tint, backlight, and underscan
- Battery: remaining power
- Audio: metering
Items Included
- PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
- Sun Hood
- MH-2 Tilting Shoe Mount
- HDMI Type A Cable
- Micro-HDMI Cable
- Safety Case
- Rubber Cover (Pair)
- Limited 1-Year Manufacturer Warranty
Additional Resources
PORTKEYS PT5 III Specs
Key Specs
| Display Size |
5.4" / 13.7 cm
|
| Native Resolution |
1920 x 1152
|
| Touchscreen |
Yes
|
| HDR Support |
Yes: Hybrid Log Gamma
|
| Video I/O |
1x HDMI 1.4 Input
1x HDMI 1.4 Output |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI (8-Bit)
DCI 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Battery |
1x L-Series Mount on Fixed Plate
|
| Power Consumption |
7.5 W
|
Display
| Panel Type |
LCD
|
| Display Size |
5.4" / 13.7 cm
|
| Native Resolution |
1920 x 1152
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 178?
Vertical: 178? |
| Touchscreen |
Yes
|
| Maximum Brightness |
800 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Color Support |
16.7 Million Colors (8-Bit+FRC)
|
| HDR Support |
Yes: Hybrid Log Gamma
|
| Color Gamut |
85% NTSC
|
| LUT Support |
Yes
|
| Image Controls |
Color Temperature Selection, False Color, Focus Peaking, Histogram, Waveform
|
Inputs/Outputs
| Video I/O |
1x HDMI 1.4 Input
1x HDMI 1.4 Output |
| Embedded Audio |
HDMI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
1x 1/8" / 3.5 mm Mic Input |
| Built-In Speaker |
No
|
| Power I/O |
1x USB-C (5 VDC) Input
|
| Other I/O |
1x USB-A (Firmware/LUT Upload)
|
| Media/Memory Card Slot |
No
|
Wireless
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI (8-Bit)
DCI 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
Power
| Input Power |
7 to 24 VDC
|
| Battery |
1x L-Series Mount on Fixed Plate
|
| Power Consumption |
7.5 W
|
Mounting
| Tripod/Accessory Mounting |
Bottom
1x Anti-Twist 1/4"-20 Female Right 1x Anti-Twist 1/4"-20 Female |
General
| Environmental Resistance |
No
|
| Material of Construction |
Plastic, Polycarbonate
|
| Dimensions |
5.3 x 3.2 x 0.9" / 135.1 x 82.5 x 22 mm
|
| Weight |
5.7 oz / 162.00 g
|
Packaging Info
| Package Weight |
1.21 lb
|
| Box Dimensions (LxWxH) |
8.8 x 4.9 x 2.6"
|
