Description
PORTKEYS PT5 Overview
- 1Description
- 2Redesigned Enclosure
- 3Up to 4K HDMI Input
- 4Touchscreen
- 53D LUT Input
- 6Imaging Tools
The PT5 II 5" 4K HDMI Touchscreen Monitor from PORTKEYS is a compact, 5" touchscreen monitor offering bright on-camera monitoring. It features HDMI input and output, 3D LUT input via a USB Type-A port, and support for up to DCI 4K24 video signals. The PT5 II has been updated with improved heat dissipation with added holes on its enclosure to keep the monitor cool.
Redesigned Enclosure
The PT5 II enclosure has been redesigned for better cooling with additional vents
Up to 4K HDMI Input
Supports up to DCI 4K24 input via HDMI
Touchscreen
Bright, compact, 5" touchscreen for on-camera monitoring
3D LUT Input
Upload your 3D LUT via the USB Type-A port for customized viewing
Imaging Tools
- Exposure: RGB and luma waveforms, zebra, false color, and histogram
- Focus: Peaking and zoom functions
- Framing: Check field, grids, image flip, and crosshair marks
- Display: Anamorphic, color temperature, contrast, and sharpness
- Display: Brightness, tint, backlight, and underscan
- Battery: Remaining power
- Audio: Metering
In the Box
- PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support

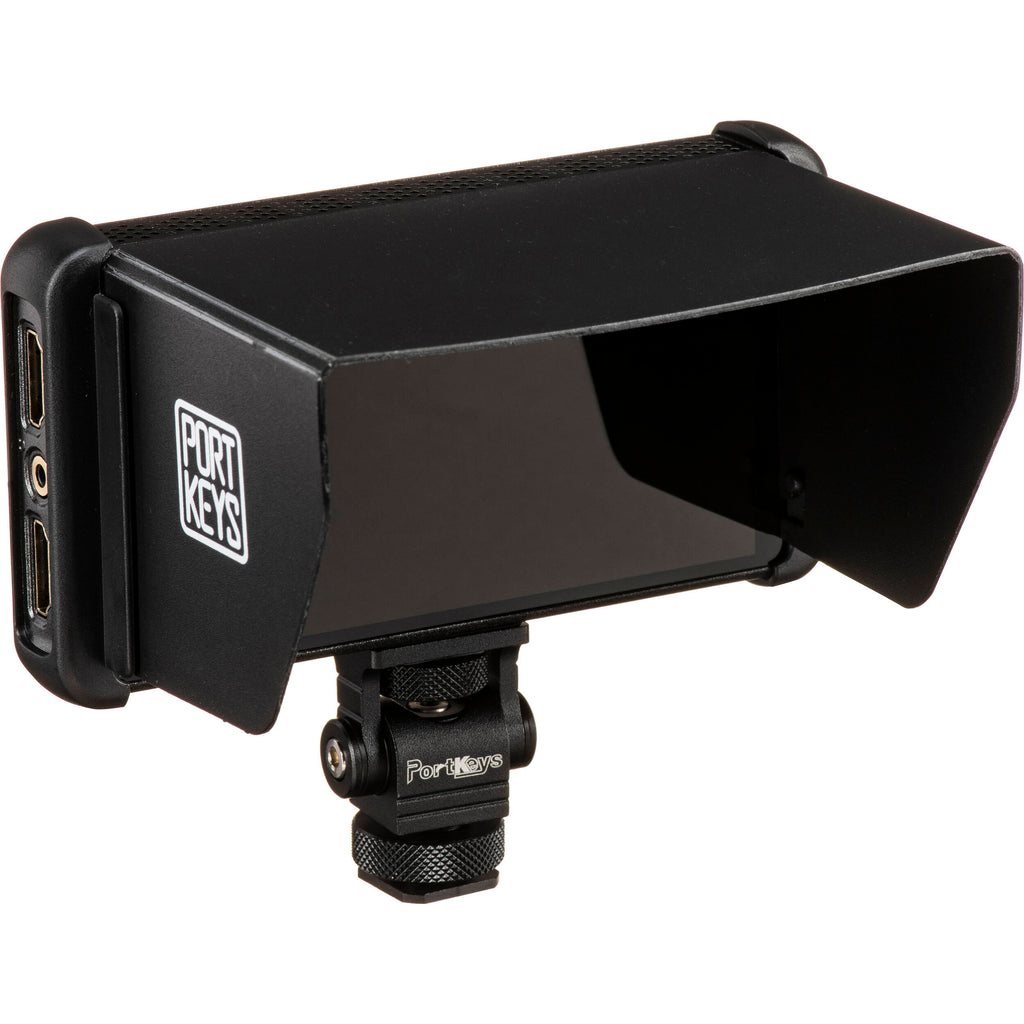

- Sun Hood Kit
- Tilting Shoe Mount
- HDMI Type-A Cable
- Micro-HDMI Cable
- Safety Case
Table of Contents
- Description
- Redesigned Enclosure
- Up to 4K HDMI Input
- Touchscreen
- 3D LUT Input
- Imaging Tools
PORTKEYS PT5 Specs
Display
| Panel Type | IPS-Type LCD |
| Display Size | 5.0" / 12.7 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | Yes |
| Maximum Brightness | 500 cd/m2 |
| Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 441 ppi |
| Real-Time LUT Monitoring | SDR |
| Image Controls | Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Pixel Zoom, R/G/B/Chroma Only, Screen Markers, Underscan, Vectorscope, Waveform, Zebra |
| Video I/O | 1 x HDMI Input 1 x HDMI Output |
| Embedded Audio | HDMI |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel (24 VDC) Input |
| Other I/O | 1 x USB-A Input/Output |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
Format Support
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94/50 480i: 60/59.94/50 |
Power
| DC Input Power | 7 to 24 VDC |
| Battery Type | 1 x LP-E6 or L-Series |
| Power Consumption | 7 W |
General
| Material of Construction | Plastic |
| Dimensions | 5.4 x 2.8 x 0.7" / 136 x 72 x 17 mm |
| Weight | 4.6 oz / 130 g |
Packaging Info
| Package Weight | 1.105 lb |
| Box Dimensions (LxWxH) | 9 x 5 x 2.4" |
