Description
PORTKEYS LH7P Overview
- 1Description
- 2Wireless Camera Control Functions
- 3High-Bright 7" Touchscreen Monitor
- 4DCI/UHD 4K Video
- 5Sony L-Series Battery Plate
- 6Image Tools

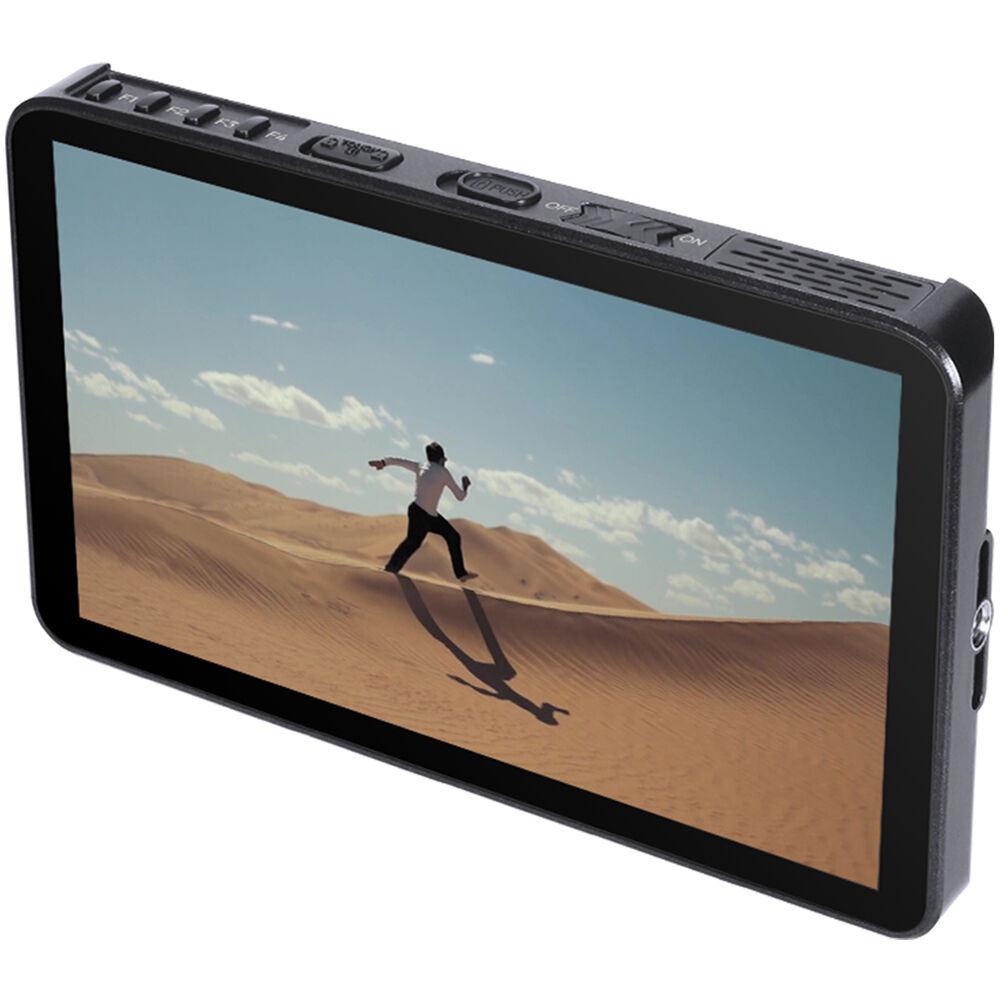

Add pro monitoring tools and control for select Sony cameras to your camera rig with the LH7P 7" High-Bright Touchscreen Monitor with Wireless Control from PORTKEYS. This bright, 7" on-camera touchscreen display offers 1920 x 1080 resolution, 1000 cd/m² brightness, and the ability to input and output up to DCI 4K24 or UHD 4K30 video via HDMI. The monitor comes in a black color.
Compatible with Sony and Blackmagic Design cameras with wireless control capability, this monitor features a built-in wireless module that enables select camera functions, and a separately available control cable also allows you to connect your device to the monitor. Other features include 3D LUT support, vertical shooting stretching, anamorphic correction on HDMI output, cropping, and a variety of image monitoring tools, including peaking, color temperature, waveform, histogram, and more.
Wireless Camera Control Functions
Camera control is available via the integrated wireless module for Blackmagic Design cameras such as the Pocket Cinema Camera 4K/6K/6K Pro and Sony cameras, including the a1, a9, a7C, FX3, FX10, a7S III, a7 IV, RX0, and a7 III.
Control functions include iris, shutter, zoom, frame rate, ISO, color temperature, focus, and more.
High-Bright 7" Touchscreen Monitor
This 7" LCD on-camera monitor features 1000 cd/m² and a 1000:1 contrast ratio for daylight visibility.
DCI/UHD 4K Video
Supports HDMI input and output up to DCI 4K24 or UHD 4K30.
Sony L-Series Battery Plate

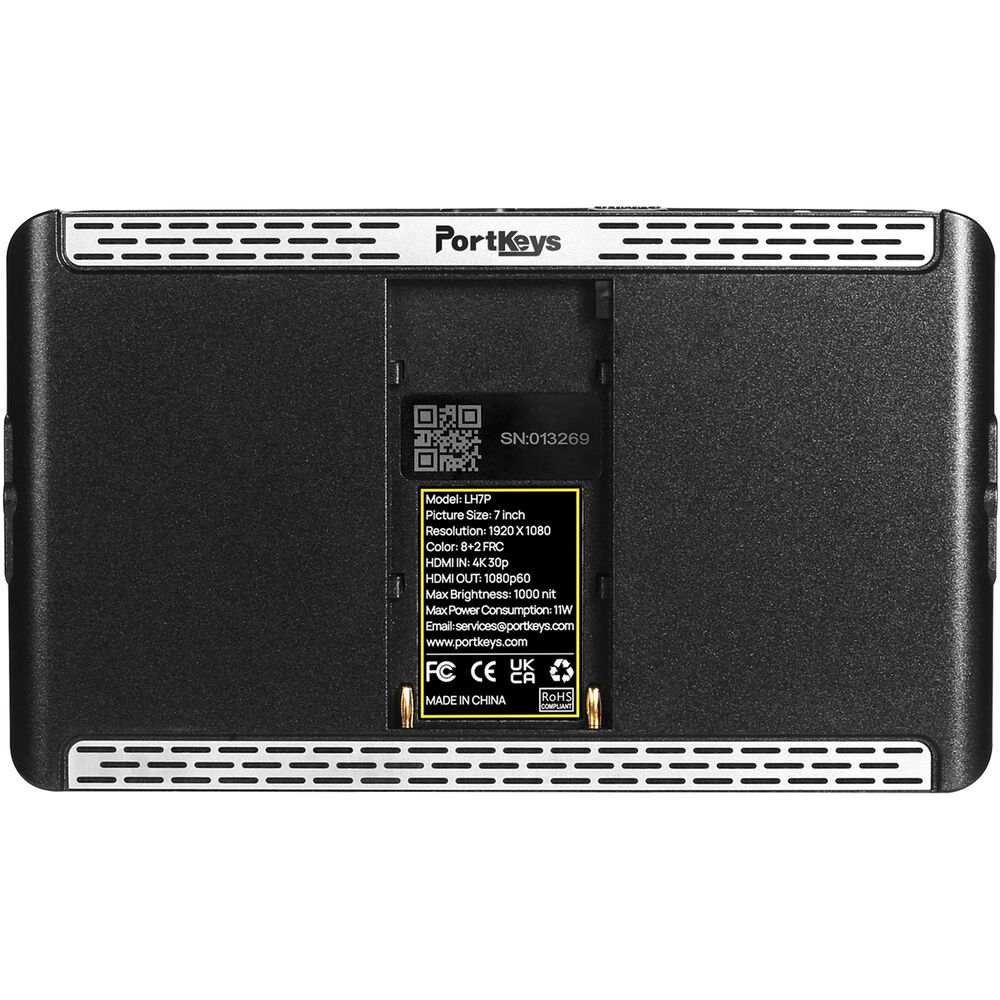

Power with the built-in L-Series battery plate or power your camera with a separately available dummy battery using the DC output.
Image Tools
- 3D LUT support with custom LUTs via USB
- Peaking
- False color
- Luma
- Waveform
- Real-time eye focus
- Anamorphic de-squeeze
- Anamorphic lens calibration
- Frame guides, crosshairs, grids
- Color temperature
- Brightness
- Sharpness
- Cropping
- Check field
- Zebra
- Luma histogram
- Custom RGB
- Audio meters
- HDR/HLG support
In the Box
- PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
- Micro-USB Flash Drive
- HDMI Cable
- Cleaning Cloth
- Storage Box
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Wireless Camera Control Functions
- High-Bright 7" Touchscreen Monitor
- DCI/UHD 4K Video
- Sony L-Series Battery Plate
- Image Tools
PORTKEYS LH7P Specs
Key Specs
| Display Size |
7.0" / 17.8 cm
|
| Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Compatibility |
Yes
|
| Video I/O |
1 x HDMI 1.4 Input
1 x HDMI 1.4 Output |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI
DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94/50 480i: 60/59.94/50 |
| Battery Type |
1 x L-Series
|
| Power Consumption |
9 W
|
| Mounting |
2 x 1/4"-20 Female
|
Display
| Panel Type |
LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 170° (85/85)
Vertical: 170° (85/85) |
| Touchscreen |
Yes
|
| Maximum Brightness |
1000 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Bit Depth / Color Support |
8-Bit+FRC (1.07 Billion Colors)
|
| HDR Compatibility |
Yes
|
| Pixels Per Inch (ppi) |
314 ppi
|
| Real-Time LUT Monitoring |
HDR
|
| Image Controls |
Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Focus Peaking, Histogram, Image Flip, Waveform, Zebra
|
Inputs / Outputs

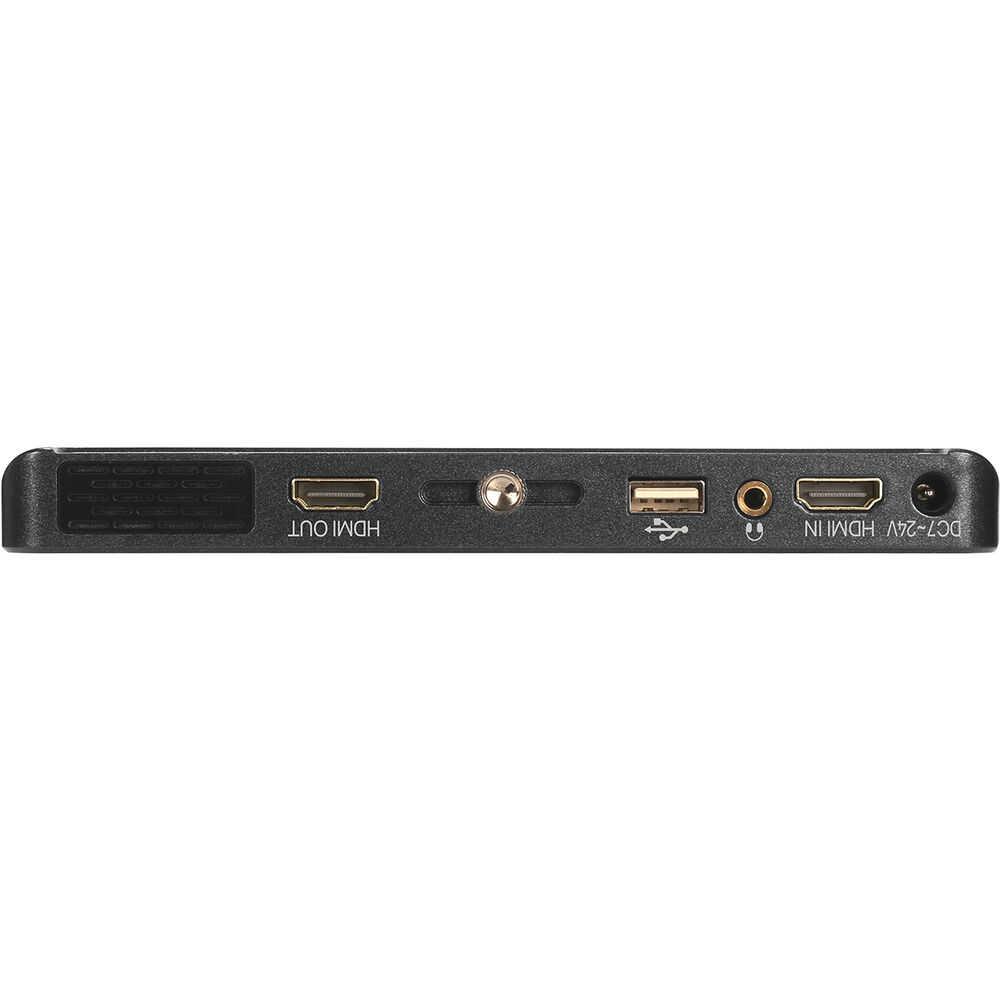

| Video I/O |
1 x HDMI 1.4 Input
1 x HDMI 1.4 Output |
| Embedded Audio |
HDMI
|
| Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1 x Barrel (24 VDC) Input
1 x USB-A (2 A / 5 VDC) Input |
| Other I/O |
1 x USB-A (Firmware), (LUT Upload) [Shared with USB-A Power Input]
|
| Media/Memory Card Slot |
No
|
| Wi-Fi |
Yes
|
| Bluetooth |
Yes
|
| Mobile App Compatible |
No
*As of August, 2023: Check with manufacturer for the most up-to-date compatibility |
Format Support
| Video Format |
HDMI
DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94/50 480i: 60/59.94/50 |
Power
| DC Input Power |
7 to 24 VDC
|
| Battery Type |
1 x L-Series
|
| Power Consumption |
9 W
|
Mounting
| Mounting |
2 x 1/4"-20 Female
|
General
| Material of Construction |
Plastic
|
| Dimensions |
6.9 x 4.1 x 0.7" / 176.2 x 103.8 x 18.4 mm
|
| Weight |
8.6 oz / 245 g
|
Packaging Info
| Package Weight |
1.255 lb
|
| Box Dimensions (LxWxH) |
8.3 x 5.6 x 2.4"
|
