Description
PORTKEYS LEYE SDI Overview

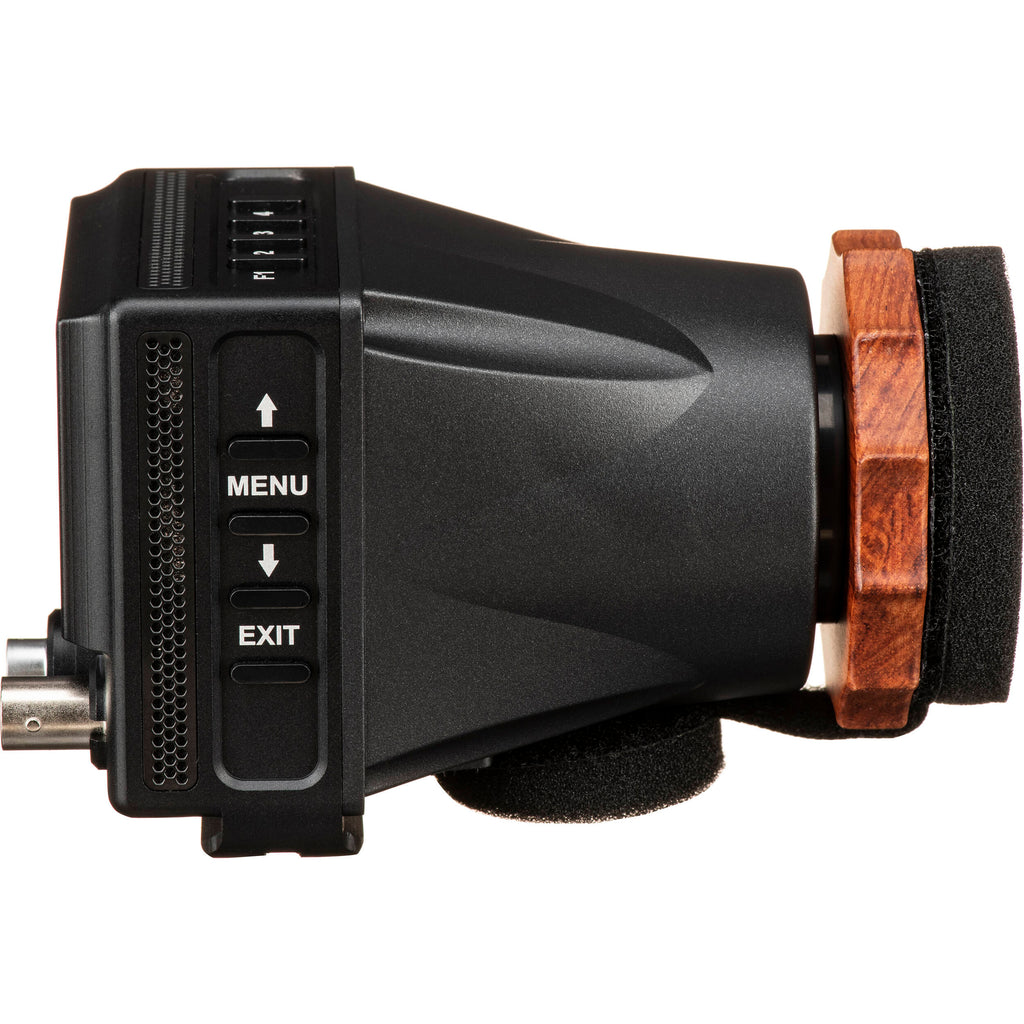

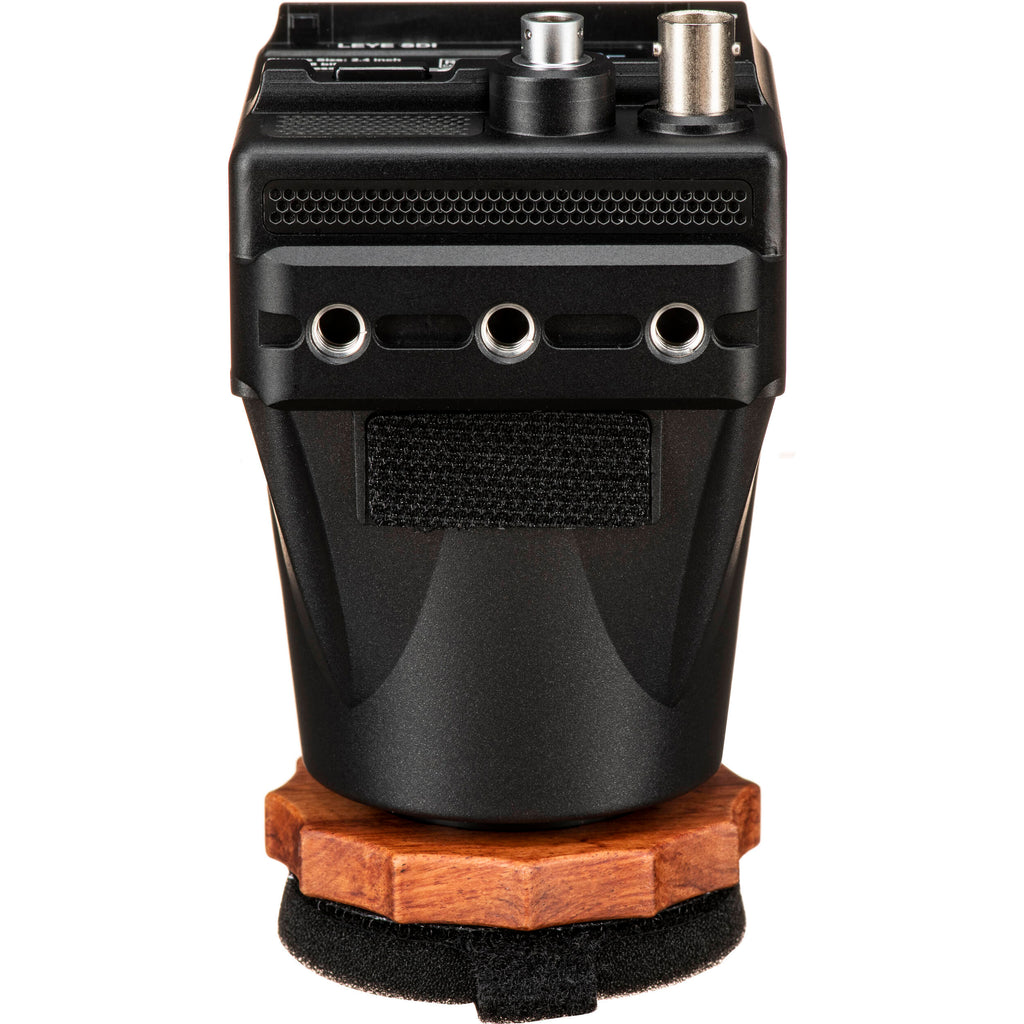

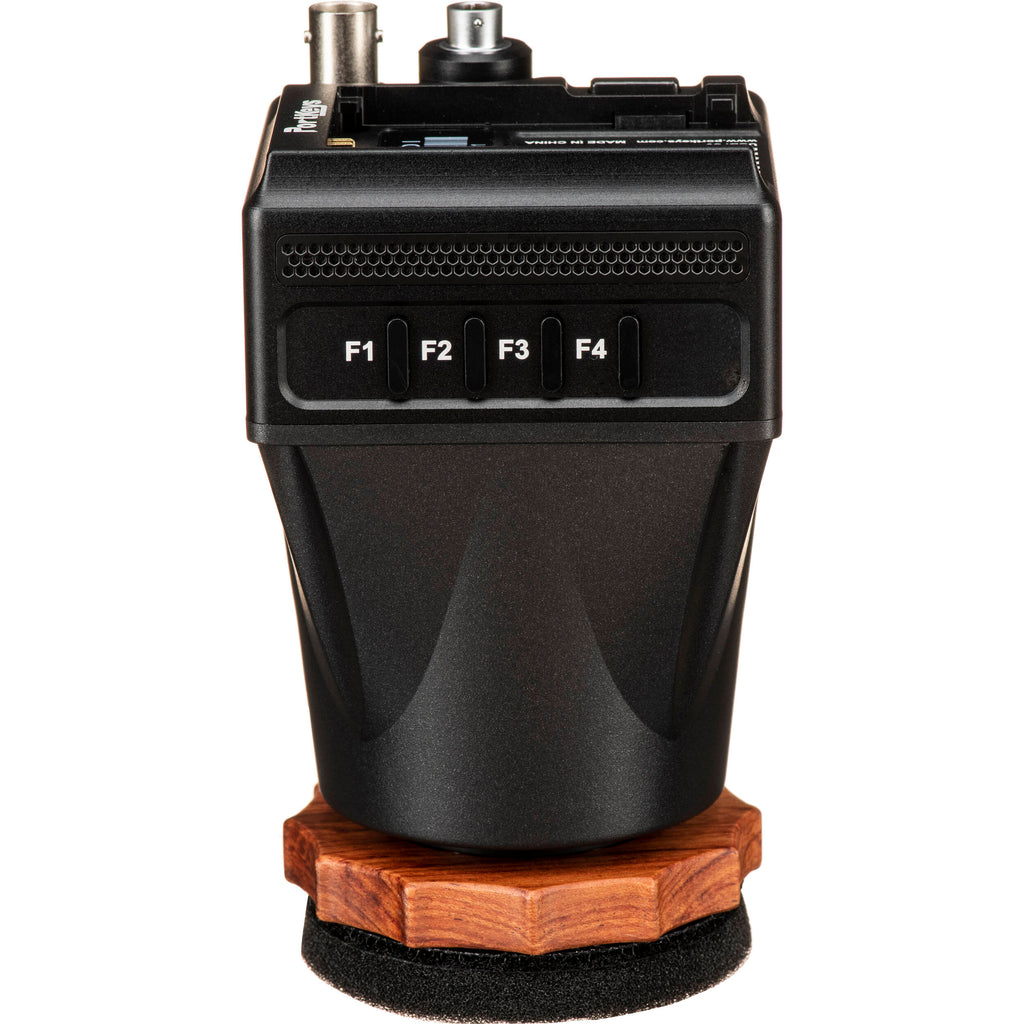

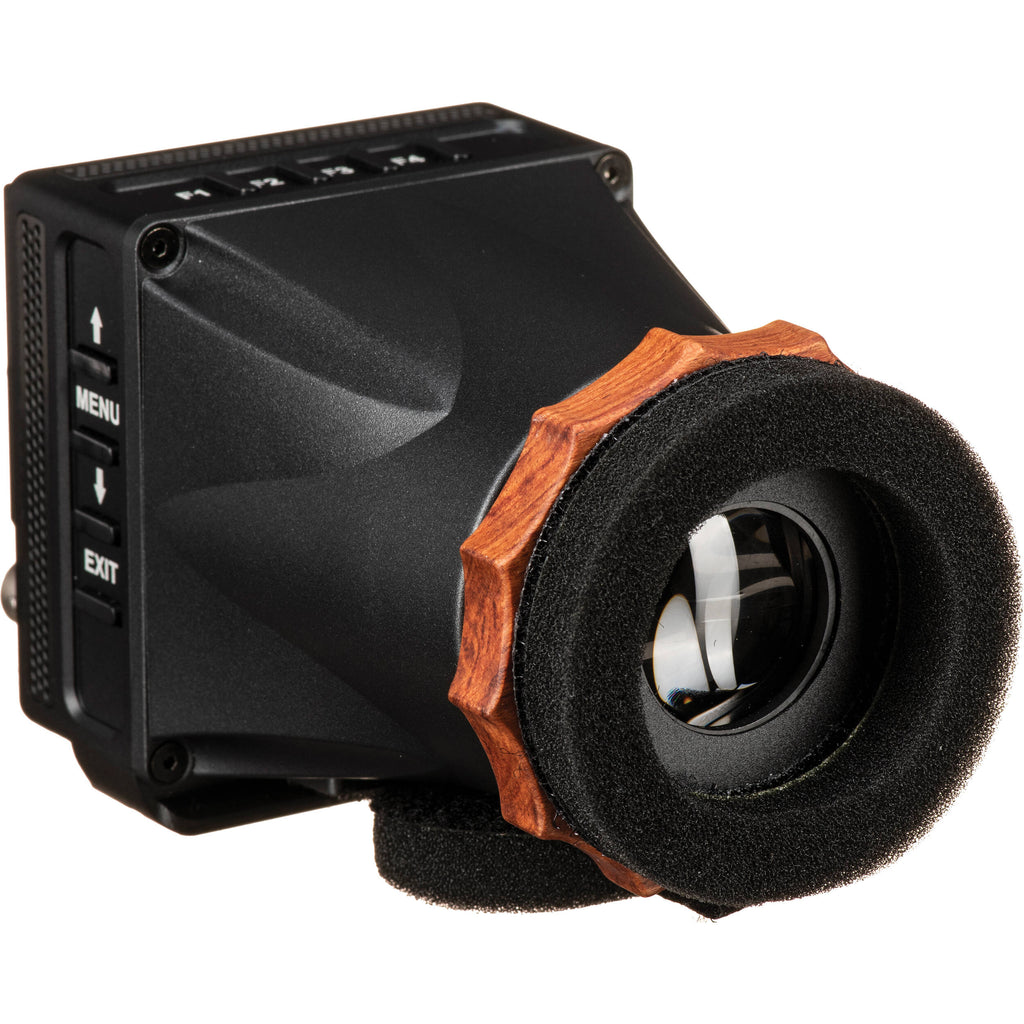

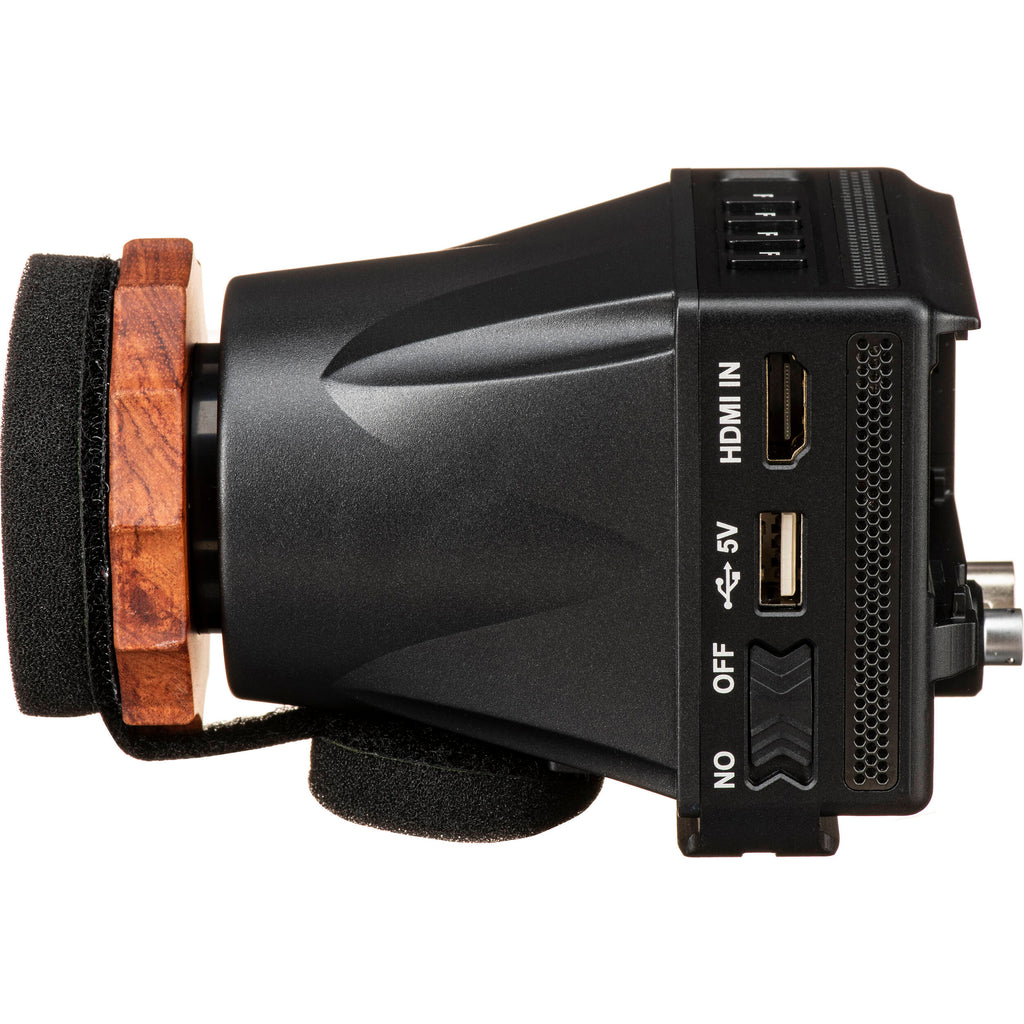

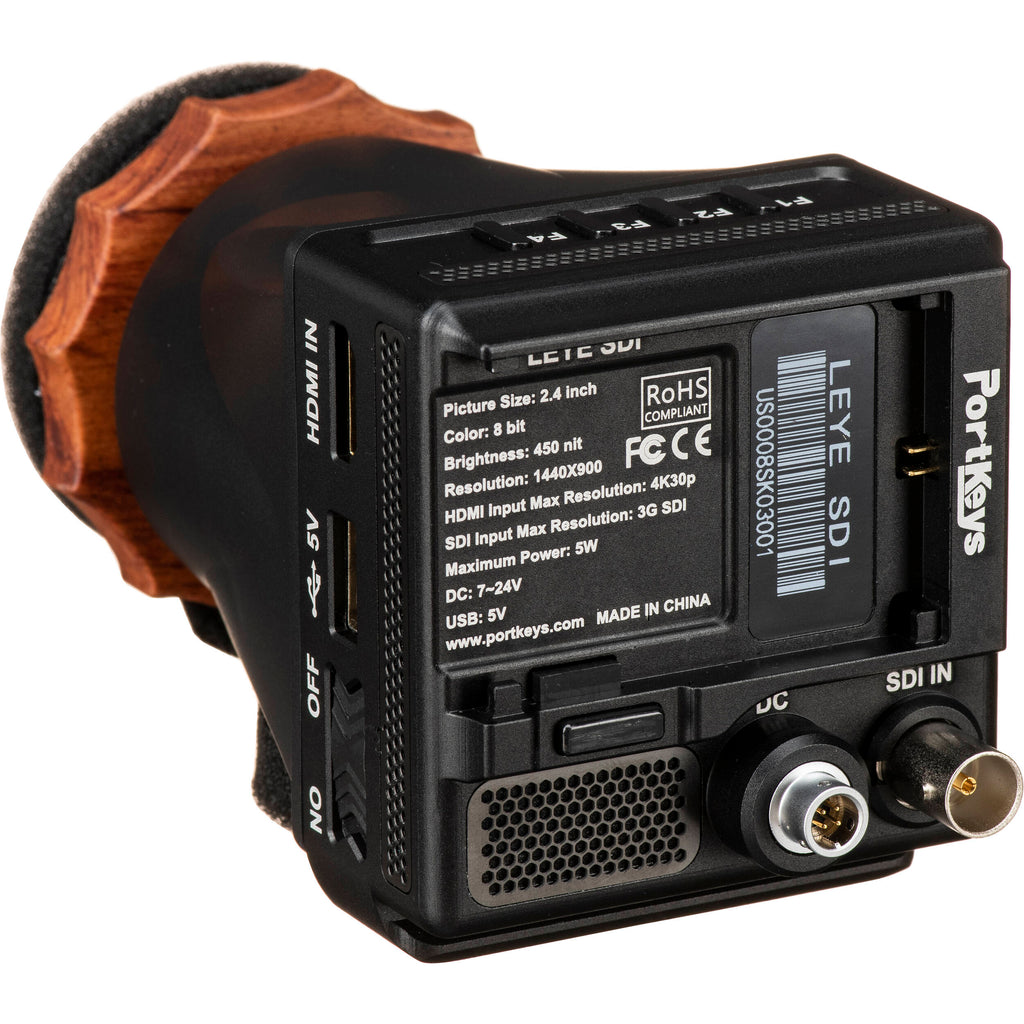

The LEYE 3G-SDI & HDMI 2.4" LCD Electronic Viewfinder from PORTKEYS expands upon the capabilities of the previous model by adding a 3G-SDI input and an integrated LP-E6 battery plate to the interface. The 3G-SDI input supports up to 1080p video, while the HDMI input supports up to UHD 4K. This viewfinder features a 2.4" LCD screen with 1440 x 900 resolution, 450 cd/m² brightness, and 1100:1 contrast for viewing images clearly in bright conditions. A round sponge eye mask further ensures viewability by preventing direct sunlight from burning the LCD screen.
Several mounting options are integrated into the viewfinder for attachment to your camera rig configuration: a rosette, three 1/4"-20 threads, and a NATO rail. Various video assist functions can be enabled to monitor the quality of your image, and a -3 to +8 diopter range allows you to adjust focus to comfortably suit your vision. Power for the device, when not provided with an LP-E6 compatible battery or power bank, can also be achieved with the self-locking 4-pin aviation connector input. You can upload custom 3D LUTs of your choice to the viewfinder or upgrade the firmware using the USB Type-A input.
In the Box
- PORTKEYS LEYE 3G-SDI & HDMI 2.4" LCD Electronic Viewfinder
- Limited 1-Year Manufacturer Warranty
PORTKEYS LEYE SDI Specs
| Color/Monochrome | Color |
| Panel Type | LCD |
| Display Size | 2.4" / 6.1 cm |
| Screen Resolution | 1440 x 900 |
| Viewing Angle | Horizontal: 160° Vertical: 160° |
| Touchscreen | No |
| Maximum Brightness | 450 nits / cd/m2 |
| Contrast Ratio | 1100:1 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Pixels Per Inch (ppi) | 728 ppi |
| Image Controls | Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, R/G/B/Chroma Only, Underscan, Waveform, Zebra |
| Video I/O | 1 x BNC Input 1 x HDMI Input |
| Video Format | SDI (8-Bit) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 720p: 60/59.94/50 480i: 59.94 576i: 50 HDMI (8-Bit) UHD 4K: 30/25/24/23.98 DCI 4K: 24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94/50 480i: 60/59.94/50 |
| Power I/O | 1 x Unspecified 4-Pin (24 VDC) Input |
| Other I/O | 1 x USB-A 2.0 Input |
| Diopter Correction | -3.0 to +8.0 |
| Field of View | 178° |
| DC Input Power | 7 to 24 VDC |
| Battery Type | 1 x LP-E6 |
| Power Consumption | 5 W (Maximum) |
| Mounting | 1 x NATO Rail 3 x 1/4"-20 Female 1 x Rosette |
| Material of Construction | Aluminum, Plastic |
| Dimensions | 4.9 x 3.1 x 2.8" / 125 x 78 x 70 mm |
| Weight | 9.3 oz / 265 g |
| Package Weight | 0.9 lb |
| Box Dimensions (LxWxH) | 6.4 x 4.5 x 4" |
