Description
PORTKEYS HD7H Overview

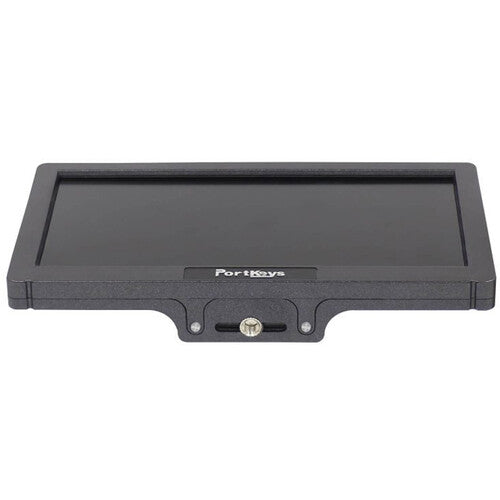

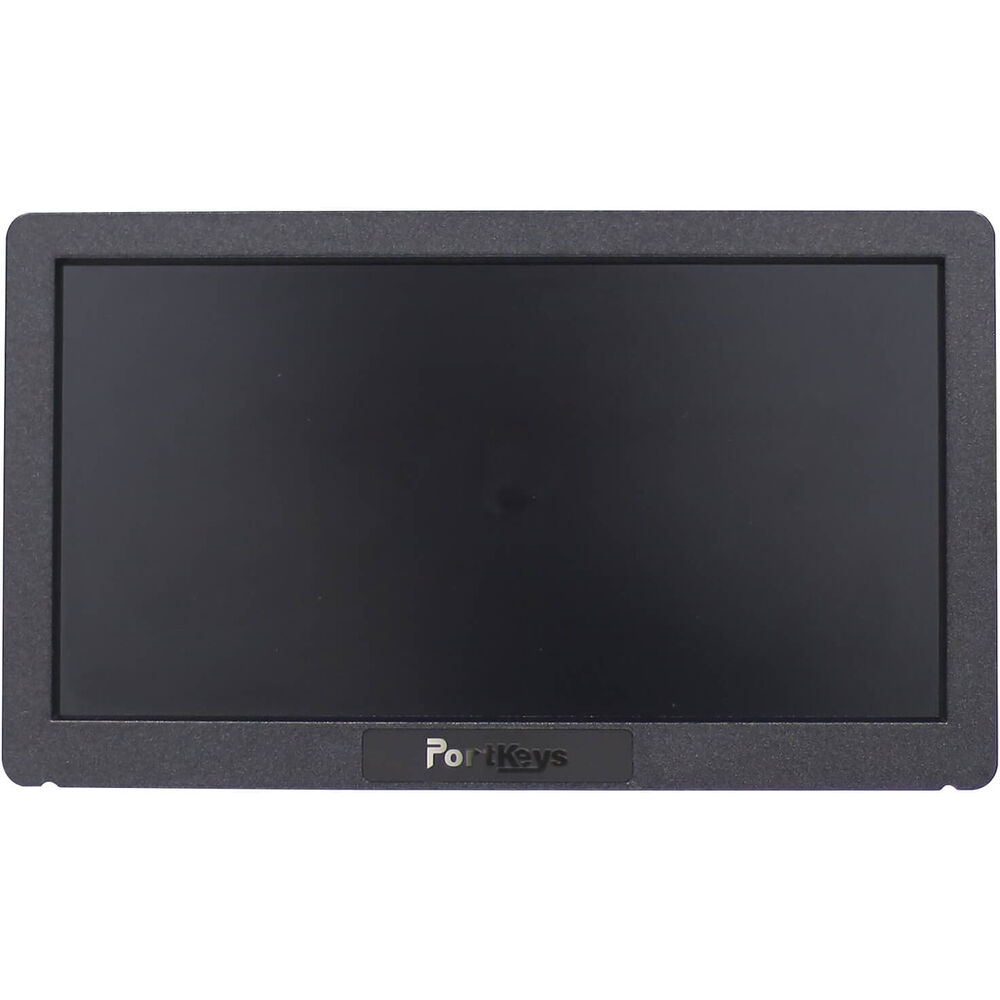

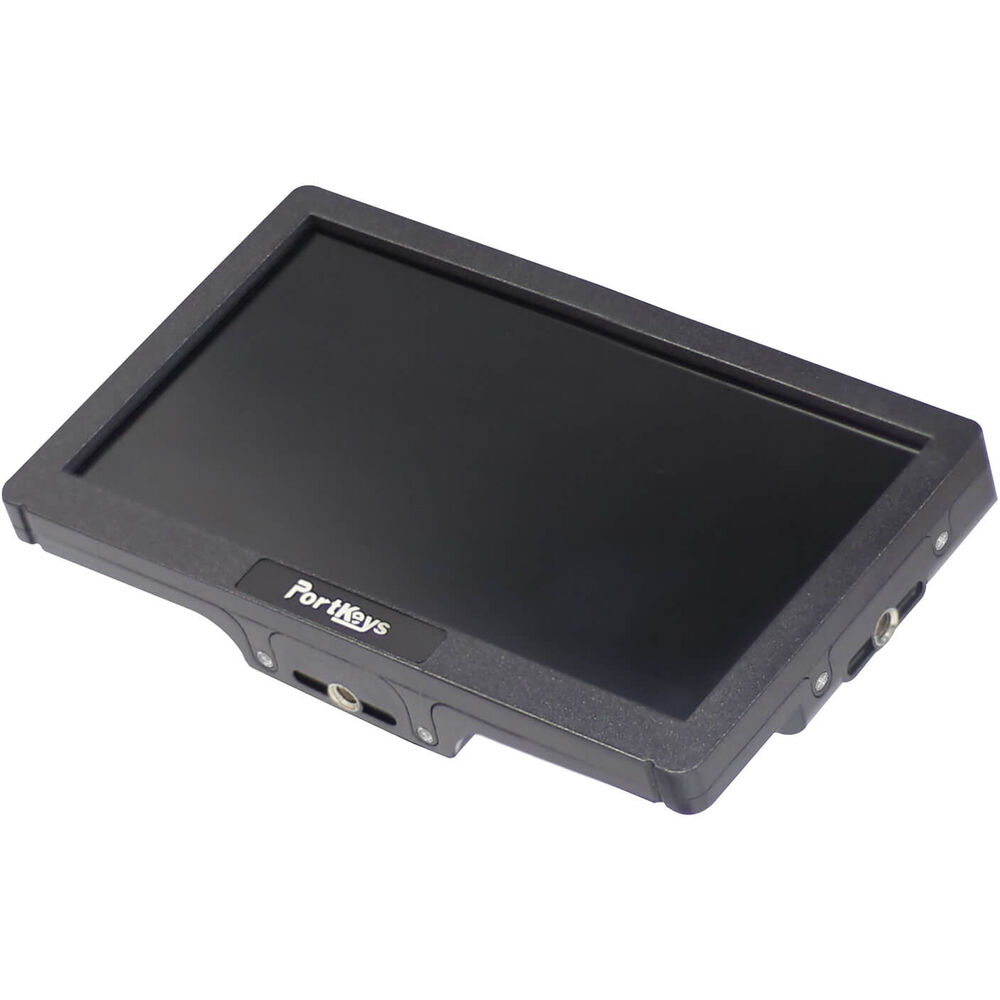

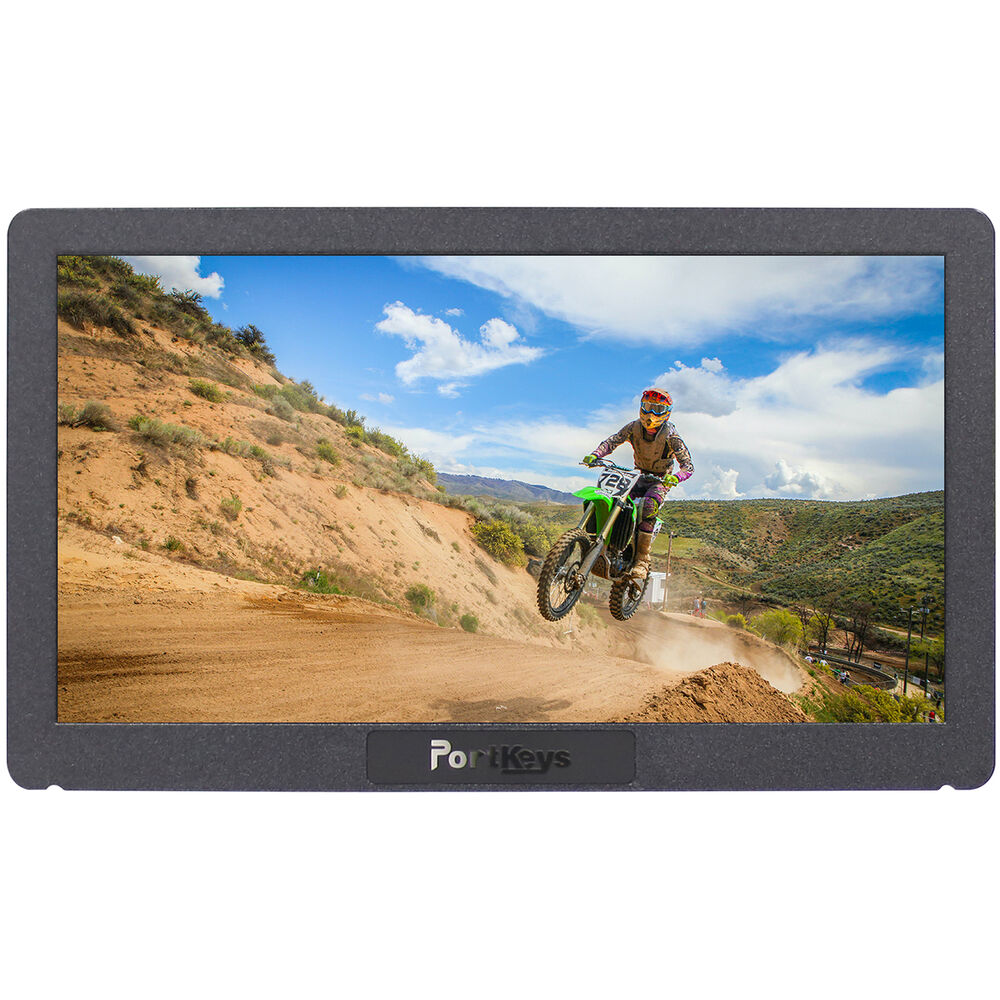

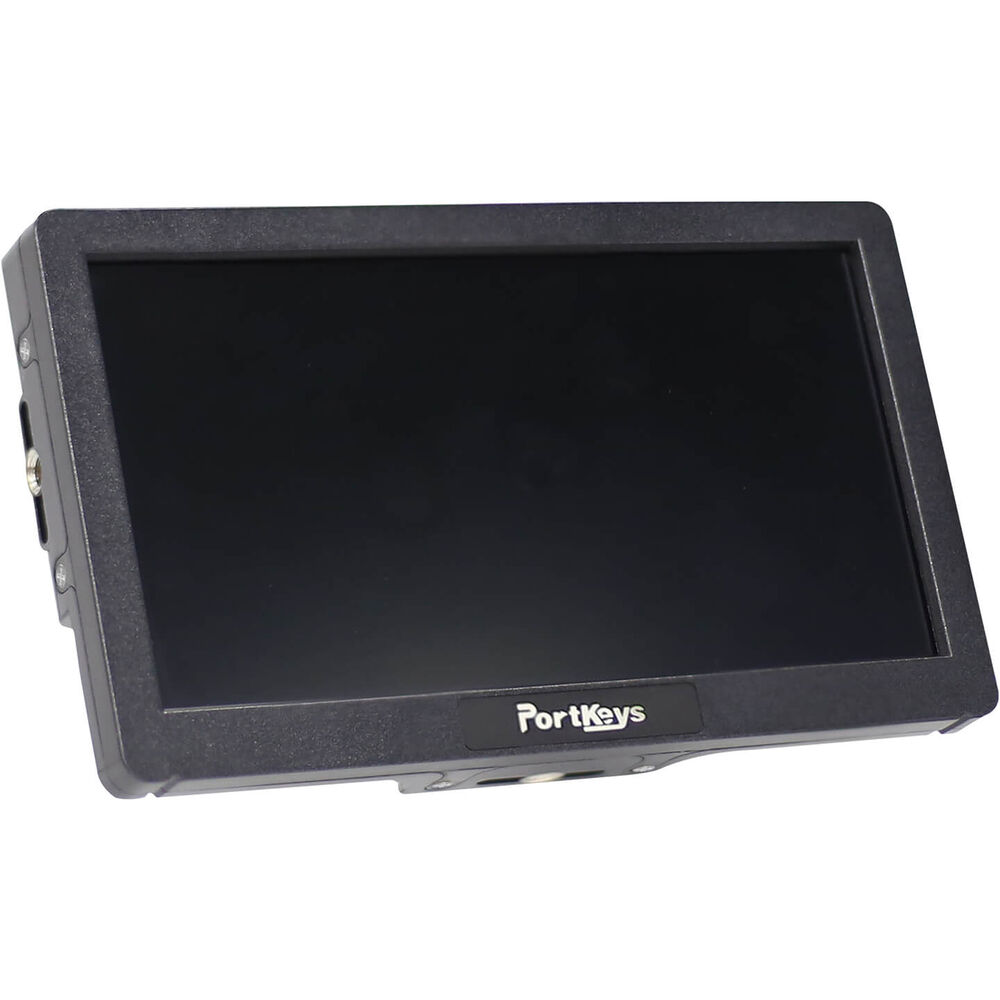

The HD7H 7" High-Bright HDMI Monitor from PORTKEYS enables you to view up to DCI 4K24 or UHD 4K30 video even in bright locations. This 1280 x 720 LCD panel features one HDMI input and one AV input, a 16:9 aspect ratio, a 1000:1 contrast ratio, and a 1000 cd/m² brightness for easy viewing outdoors as well as inside. The LCD provides a 178° viewing angle, enabling you to see an image without being directly in front of the monitor.
Power this monitor using the one Sony L-series-type battery or a separately available power supply. Control buttons are located on top of the monitor with a built-in speaker and a headphone output providing audio monitoring. The HD7H monitor features a variety of image-evaluating tools, including a histogram, false color, exposure, focus peaking, anamorphic de-squeezing, and frame markers.
Items Included
- PORTKEYS HD7H 7" High-Bright HDMI Monitor
- HDMI to Mini HDMI Cable
- Rubber Sunshade
- HDMI to HDMI Cable
- HDMI to Micro-HDMI Cable
- AV Cable
- Ball Head Mount
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
PORTKEYS HD7H Specs
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1280 x 720
|
| Touchscreen |
No
|
| HDR Support |
No
|
| Video I/O |
1x HDMI (Unspecified Signal) Input
1x 1/8" / 3.5 mm TRRS A/V Input |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI
DCI 4K: 24 UHD 4K: 30 |
| Battery Type |
1x L-Series
|
| Power Consumption |
10 W
|
| Mounting |
1x 1/4"-20 Female
|
| Panel Type |
LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1280 x 720
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 178°
Vertical: 178° |
| Touchscreen |
No
|
| Maximum Brightness |
1000 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Color Support |
16.7 Million Colors (8-Bit)
|
| HDR Support |
No
|
| Pixels Per Inch (ppi) |
210 ppi
|
| Color Gamut |
75% Rec. 709
|
| LUT Support |
No
|
| Image Controls |
Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, OSD Flip, Screen Markers, Zebra
|
| Video I/O |
1x HDMI (Unspecified Signal) Input
1x 1/8" / 3.5 mm TRRS A/V Input |
| Embedded Audio |
HDMI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
Mono
|
| Other I/O |
1x USB-A
|
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
HDMI
DCI 4K: 24 UHD 4K: 30 |
| Input Power |
7 to 24 VDC
|
| Battery Type |
1x L-Series
|
| Power Consumption |
10 W
|
| Mounting |
1x 1/4"-20 Female
|
| Material of Construction |
Aluminum
|
| Dimensions |
7 x 4.1 x 1" / 178 x 104 x 25.8 mm
|
| Weight |
9.81 oz / 278.00 g
|
| Package Weight |
1.37 lb
|
| Box Dimensions (LxWxH) |
8.3 x 7.9 x 1.8"
|
