Description

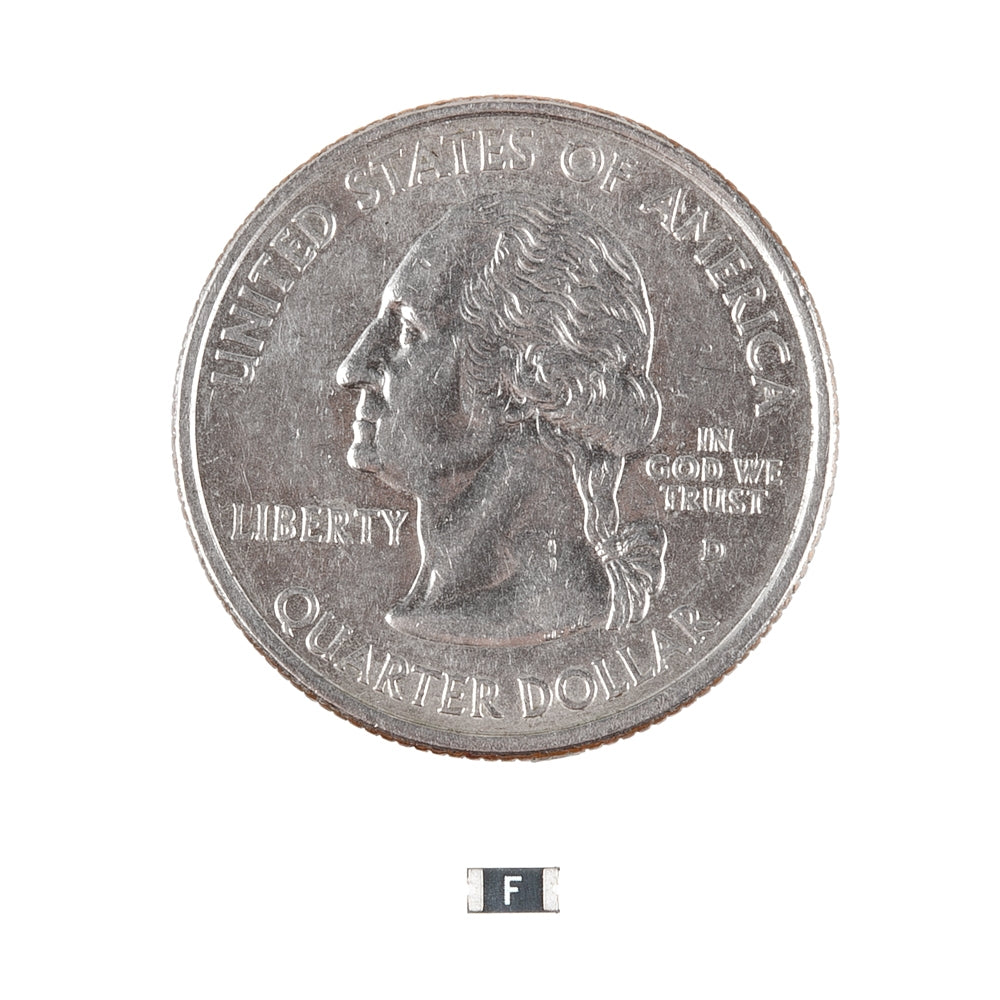

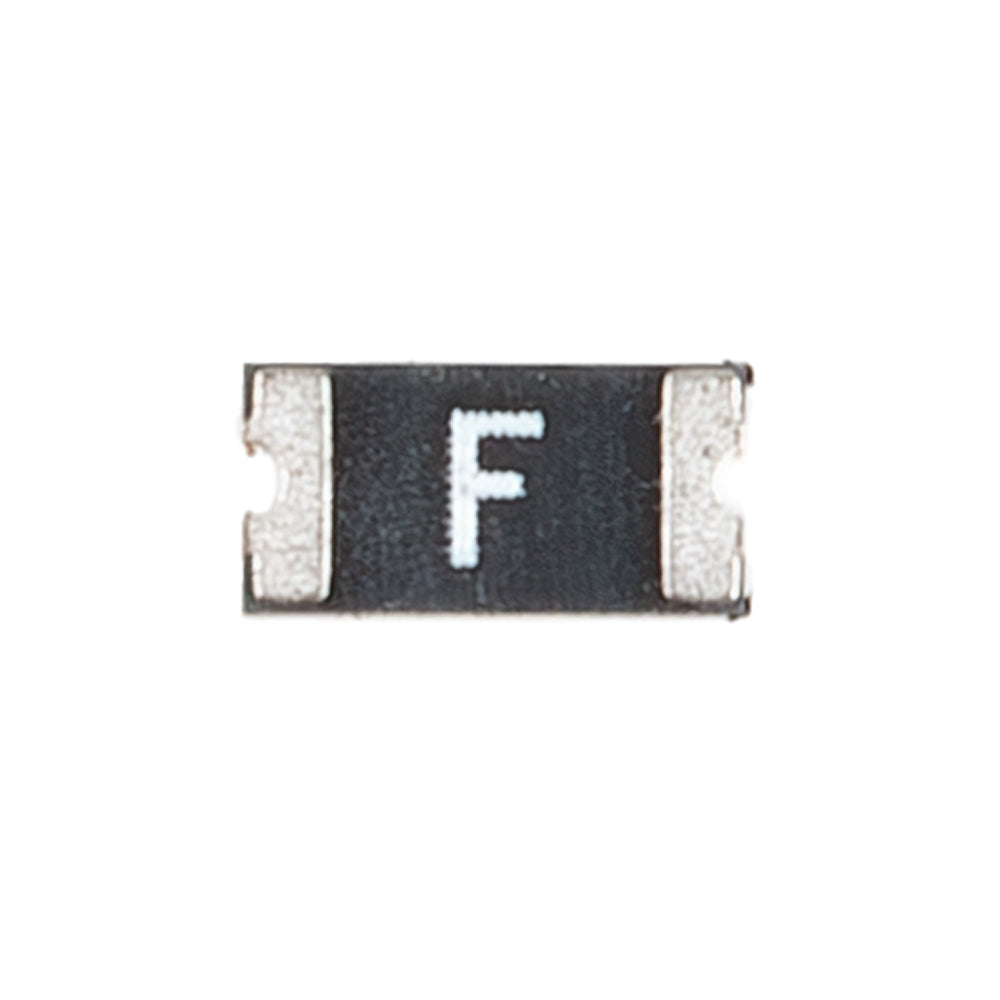

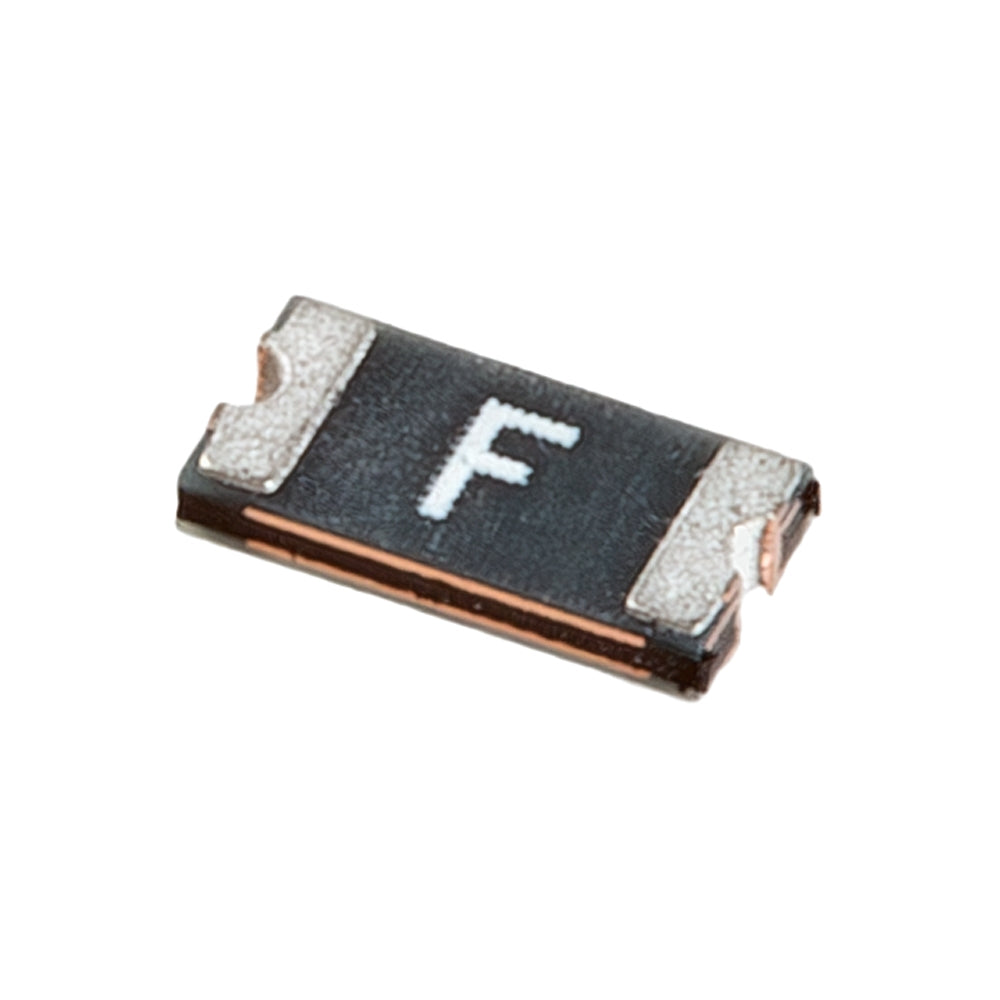

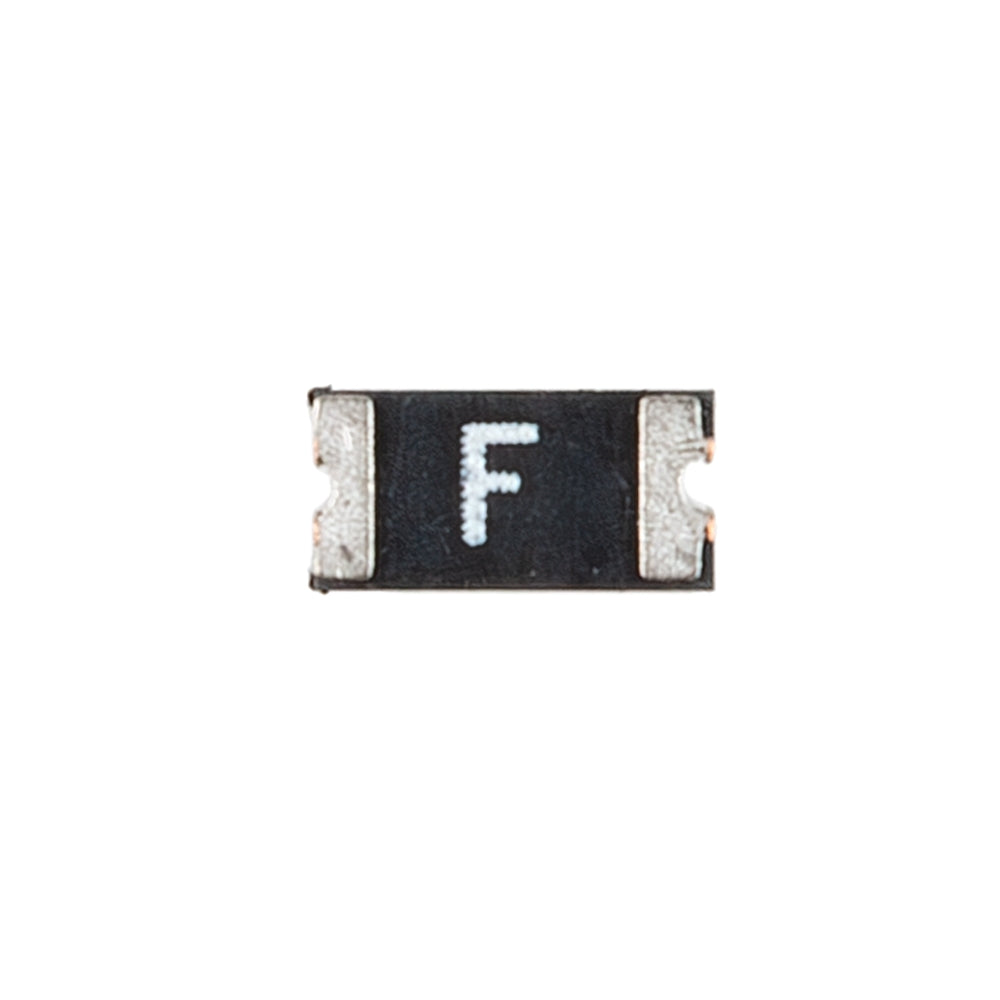

This is a handy little device that can save your system from smoking. A resettable fuse is a resistor that has very unique properties.
Features & Specs
- Type: Polymeric
- Voltage - Max: 6V
- Current - Hold (Ih) (Max): 500mA
- Current - Trip (It): 1A
- Current - Max: 100A
- Time to Trip: 100ms
- Resistance - Initial (Ri) (Min): 150mOhms
- Resistance - Post Trip (R1) (Max): 700mOhms
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Dimensions: 0.126" L x 0.065" W (3.20mm x 1.65mm)
- Thickness: 0.030" (0.75mm)
- Mfg Part #: 1206L050YR
Features & Specs
- Type: Polymeric
- Voltage - Max: 6V
- Current - Hold (Ih) (Max): 500mA
- Current - Trip (It): 1A
- Current - Max: 100A
- Time to Trip: 100ms
- Resistance - Initial (Ri) (Min): 150mOhms
- Resistance - Post Trip (R1) (Max): 700mOhms
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Dimensions: 0.126" L x 0.065" W (3.20mm x 1.65mm)
- Thickness: 0.030" (0.75mm)
- Mfg Part #: 1206L050YR
