Point Source Audio CO-8WLH Overview
-
1Description
-
2IP57 Waterproof Rating
-
3High-Sensitivity Version
-
4Easily Concealed
-
5Omnidirectional Pickup Pattern
-
6Interchangeable X-Connector
The black Point Source Audio Series8 CO-8WLh Omnidirectional High-Sensitivity Waterproof Lavalier Microphone (Sony) is a miniature mic designed to deliver a natural vocal sound for recording and broadcast applications, including presentations, interviews, public speaking, and more. Featuring an unobtrusive mic element with only 4mm in diameter, it offers a discreet visual appearance and can easily fit behind a button of the presenter's clothing.
This version of the lav is equipped with a more sensitive mic capsule, which requires less gain and is optimized for broadcast applications. The Series8 CO-8WLh's omnidirectional polar pattern allows for a variety of mic placement options as it picks up the voice from all directions equally and doesn't need to be lined up with the mouth. The mic offers an IP57 rating, which protects it against water, sweat, and makeup, commonly harmful to microphones.
The unit comes with a windscreen, cable clip, storage box, and an interchangeable 3.5mm locking X-Connector for Sony wireless systems.

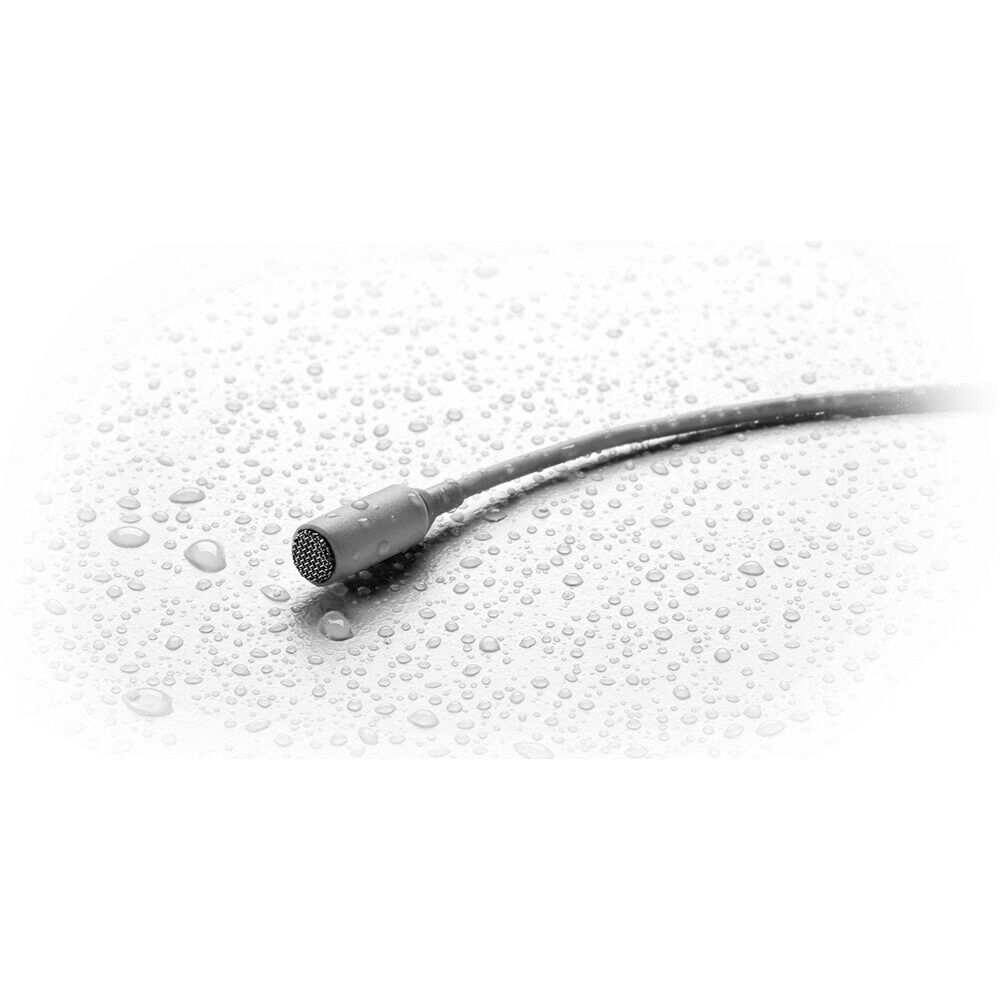

- Microphone can be briefly submersed in water up to 3.3", making it resistant to sweat, water, and makeup
- This version of the Series8 features a more sensitive microphone capsule designed for presentations, interviews, and broadcast work.
- The mic capsule can handle up to 118 dB SPL, sufficient headroom for standard speech levels.
- Mic element is only 0.16" / 4mm in diameter and easy to hide in a performer's clothing or hair
Omnidirectional Pickup Pattern
- Omnidirectional polar pattern picks up voice from all directions equally and doesn't need to be lined up with the mouth
- Allows for proximity to the sound source to provide ample gain-before-feedback
Interchangeable X-Connector
- Included interchangeable X-Connector with threaded screw is simple to remove and remains securely in place
In the Box
- Point Source Audio Series8 CO-8WLh Omnidirectional High-Sensitivity Waterproof Lavalier Microphone (Sony, Black)
- 3.5mm Locking Interchangeable X-Connector for Sony Wireless Systems

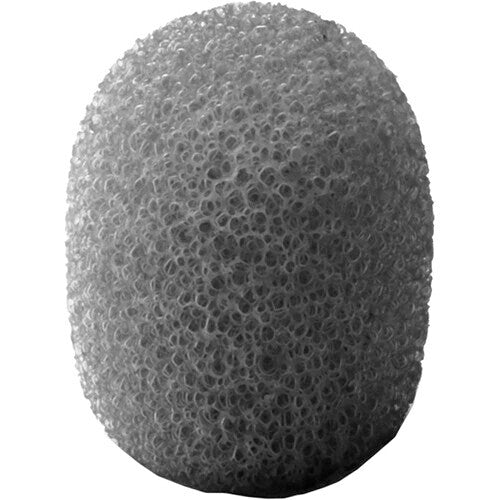

- Windscreen

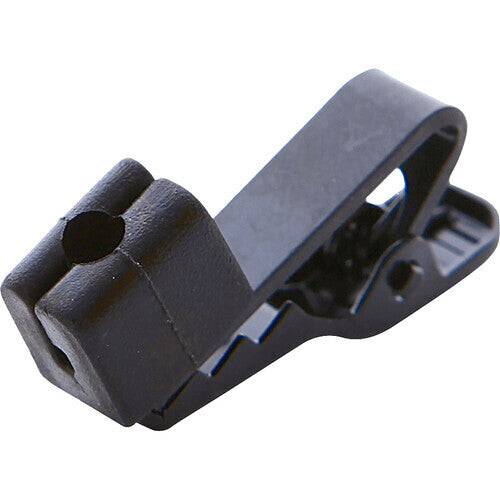

- Cable Clip
- Storage Box
Table of Contents
- Description
- IP57 Waterproof Rating
- High-Sensitivity Version
- Easily Concealed
- Omnidirectional Pickup Pattern
- Interchangeable X-Connector
Point Source Audio CO-8WLH Specs
Microphone
| Sound Field |
Mono |
| Capsule |
Electret Condenser |
| Diaphragm |
0.2" / 4 mm (Electret Condenser) |
| Polar Pattern |
Omnidirectional |
| Windscreen |
Foam (Included) |
Performance
| Frequency Range |
20 Hz to 20 kHz |
| Maximum SPL |
118 dB SPL |
| Impedance |
1.4 Kilohms |
| Sensitivity |
-32 dB at 1 kHz |
Connectivity
| Outputs |
1 x Proprietary Coaxial Male Unbalanced (on Attached Cable) |
| Headphone Connector |
None |
| Cable Length |
4' / 1.2 m |
Power
| Operating Voltage |
1 to 10 V |
Physical
| Color |
Black |
| Mounting |
Alligator Clip (Included) |
| IP Rating |
IP57 |
| Weight |
0.6 oz / 17.01 g |
