Point Source Audio CO8WLH Overview
-
1Description
-
2IP57 Waterproof Rating
-
3High-Sensitivity Version
-
4Easily Concealed
-
5Omnidirectional Pickup Pattern
-
6Interchangeable X-Connectors for Transmitters
-
7Kit Includes Assortment of Accessories
SERIES8 miniature microphones by Point Source Audio
The black Point Source Audio Series8 CO-8WLh High-Sensitivity Lavalier Switch Kit (Shure and Line 6) is a miniature mic designed to deliver a natural vocal sound for recording and broadcast applications including presentations, interviews, public speaking, and more. Featuring an unobtrusive mic element with only 4mm in diameter, it offers a discreet visual appearance and can easily fit behind a button of the presenter's clothing.
This version of the lav is equipped with a more sensitive mic capsule, which requires less gain and is optimized for broadcast applications. The Series8 CO-8WLh's omnidirectional polar pattern allows for a variety of mic placement options as it picks up the voice from all directions equally and doesn't need to be lined up with the mouth. The mic offers an IP57 rating, which protects it against water, sweat, and makeup, commonly harmful to microphones.
This kit configuration of the microphone includes a wide variety of useful mounting and wind-reduction accessories, some in multiple colors, along with two interchangeable X-Connectors: one with a 3.5mm TRRS connector for mobile devices, and a second with a TA4F connector for Shure and Line 6 wireless systems.
IP57 Waterproof Rating
- Microphone can be briefly submersed in water up to 3.3', making it resistant to sweat, water, and makeup
High-Sensitivity Version
- This version of the Series8 features a more sensitive microphone capsule designed for presentations, interviews, and broadcast work.
- The mic capsule can handle up to 118 dB SPL, sufficient headroom for standard speech levels.

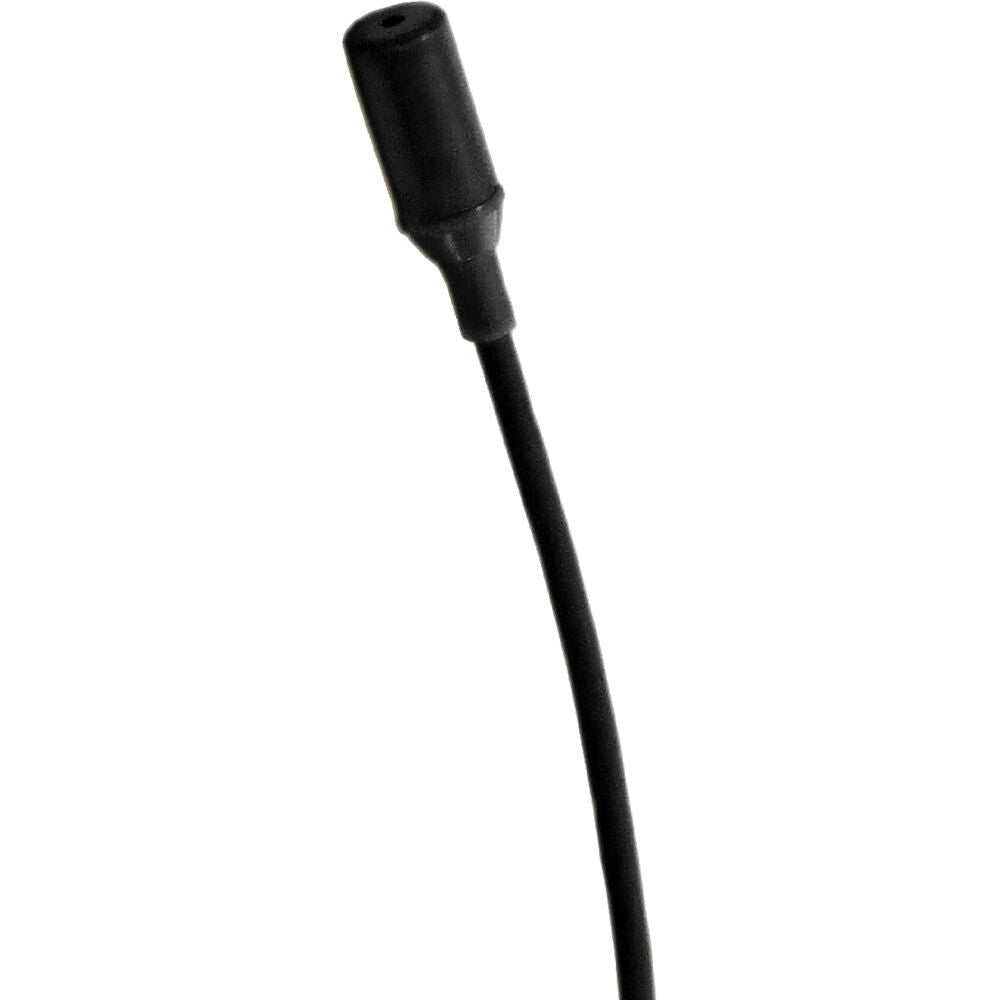

Easily Concealed

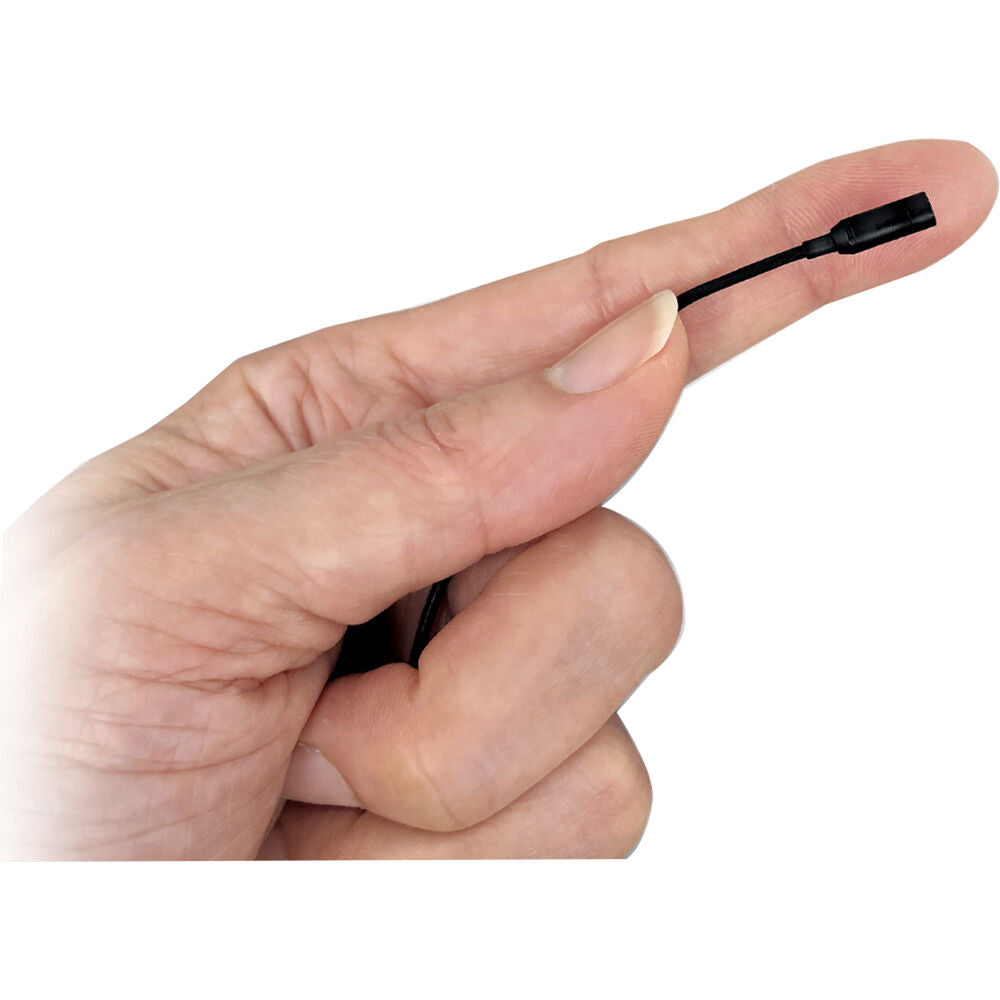

- Mic element is only 0.16" / 4mm in diameter and easy to hide in a performer's clothing or hair
Omnidirectional Pickup Pattern
- Omnidirectional polar pattern picks up voice from all directions equally and doesn't need to be lined up with the mouth
- Allows for proximity to the sound source to provide ample gain-before-feedback
Interchangeable X-Connectors for Transmitters
- Modular microphone system uses X-Connector adapters allowing you to adapt the mic to work with different transmitters
- Included interchangeable X-Connectors feature a threaded screw that is simple to remove and remains securely in place
- Mic operates on 1 to 10V plug-in power from the transmitter

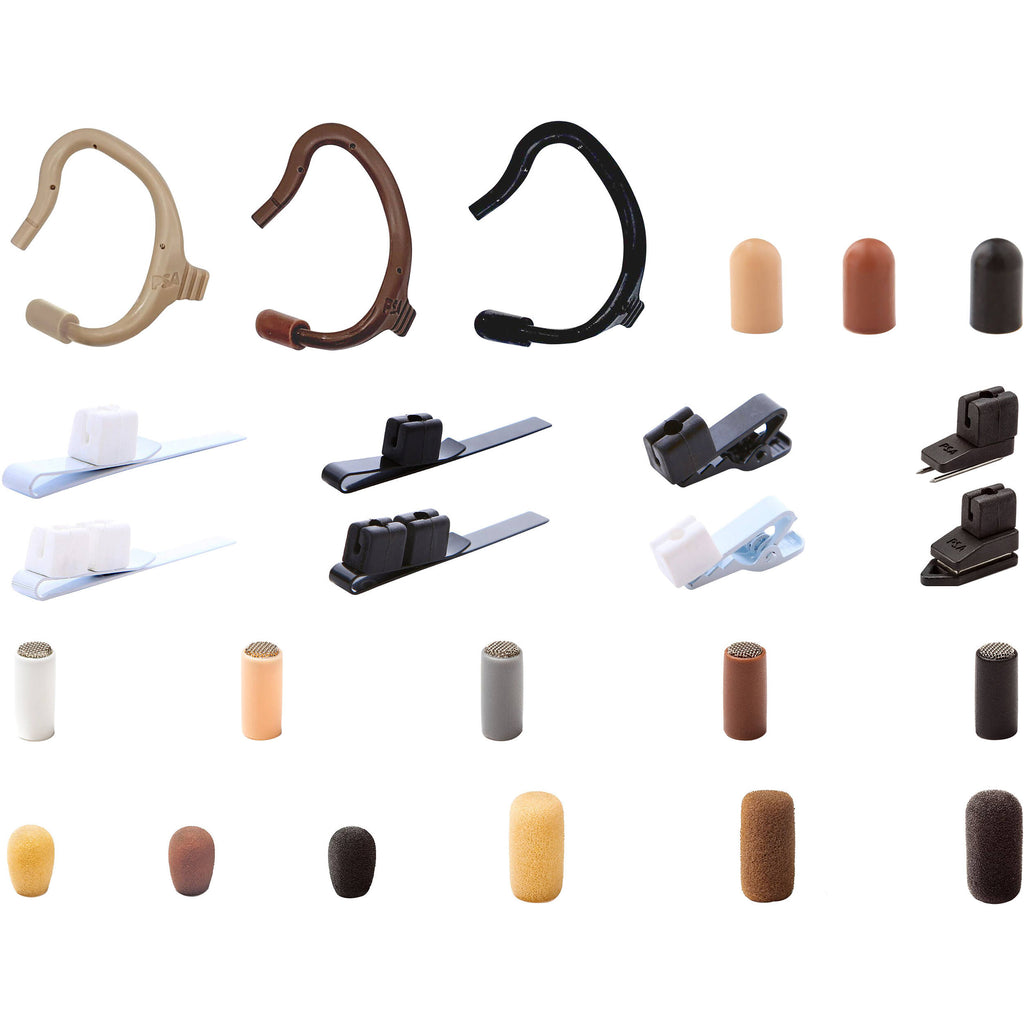

Kit Includes Assortment of Accessories
This configuration of the Series8 lav includes a vast assortment of useful accessories for connection, mounting, wind reduction, and transportation/storage.
- X-CON: TA4F X-Connector for Shure, Line 6, JTS, Trantec, Carvin, and Beyerdynamic TG Gray Switch transmitters
- XPH: X-Connector with 3.5mm TRRS termination for mobile devices and computers
- WSNx: Large windscreens in three colors
- WSN: Small windscreens in three colors
- WSC: Windscreen caps in five colors
- EMB: EMBRACE earmount in three colors (trimmed and ready for use)
- SLIDER1: Single mic holder in two colors
- SLIDER2: Double mic holder in two colors
- M-CLIP: Magnet clip
- V-CLIP: Vampire clip
- B-CLIP: Alligator clip in two colors
- Accessories organizer: Zippered case for lav and accessories
In the Box
- Point Source Audio Series8 CO-8WLh High-Sensitivity Lavalier Switch Kit (Shure and Line 6, Black)

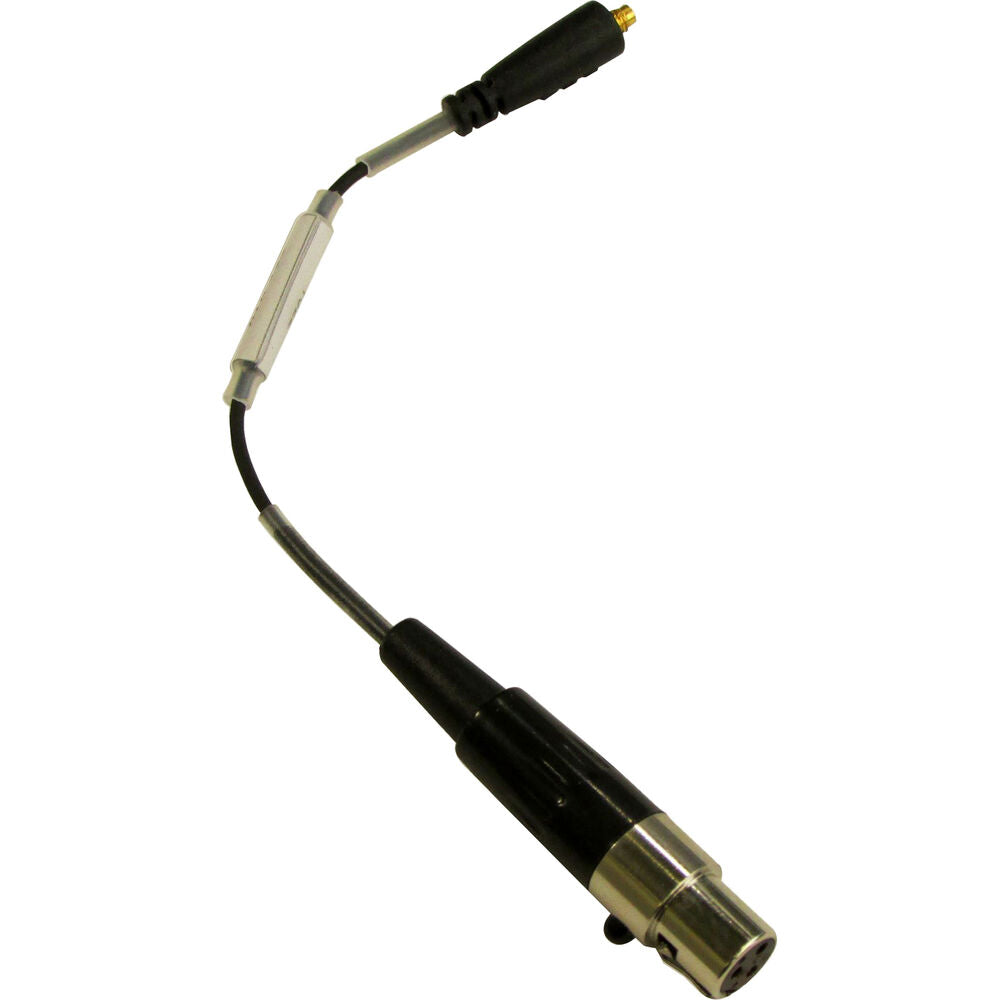

- TA4F/Mini XLR Interchangeable X-Connector for Shure and Line 6 Wireless Systems

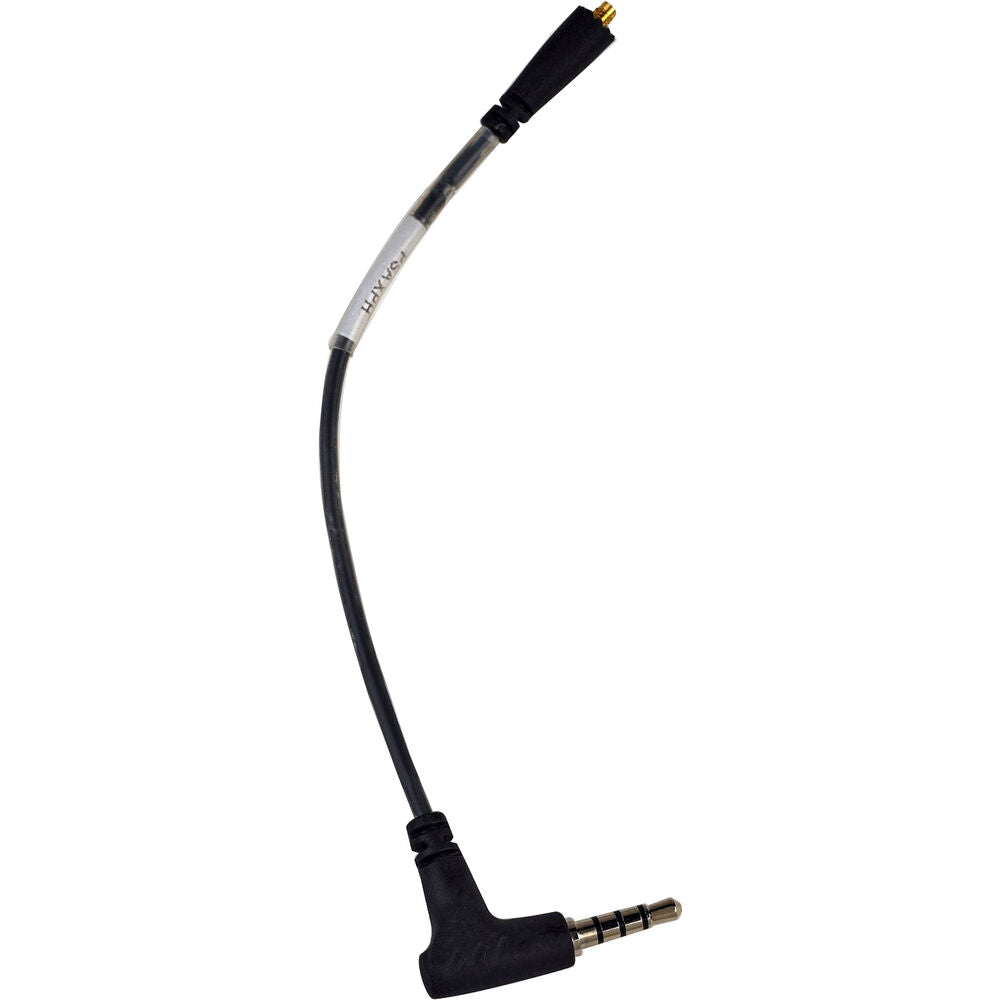

- 3.5mm TRRS Interchangeable X-Connector for Mobile Devices
- 3 x EMBRACE Earmounts (Black, Beige, Brown)
- 3 x Large Windscreens (Black, Beige, Brown)
- 3 x Small Windscreens (Black, Beige, Brown)
- 5 x Windscreen Caps (Black, Beige, Brown, Gray, White)
- 2 x Single-Mic Slider-Type Holders (Black, White)
- 2 x Dual-Mic Slider-Type Holders (Black, White)
- 2 x Magnet Clips (Black, White)
- 2 x Vampire Clips (Black, White)
- Zippered Carrying Case
- Limited 1-Year Warranty
Table of Contents
- Description
- IP57 Waterproof Rating
- High-Sensitivity Version
- Easily Concealed
- Omnidirectional Pickup Pattern
- Interchangeable X-Connectors for Transmitters
- Kit Includes Assortment of Accessories
Point Source Audio CO8WLH Specs
Microphone
| Form Factor |
Lavalier |
| Sound Field |
Mono |
| Capsule |
Electret Condenser |
| Diaphragm |
0.2" / 4 mm (Electret Condenser) |
| Polar Pattern |
Omnidirectional |
| Windscreen |
Foam (Included) |
Performance
| Frequency Range |
20 Hz to 20 kHz |
| Maximum SPL |
118 dB SPL |
| Impedance |
1.4 Kilohms |
| Sensitivity |
-32 dB at 1 kHz |
Connectivity
| Output Connectors |
1 x TA4/Mini XLR 4-Pin Female Unbalanced |
| Headphone Connector |
None |
| Cable Length |
4' / 1.2 m |
Power
| Operating Voltage |
1 to 10 V |
Physical
| Color |
Black |
| Mounting |
Alligator Clip (Included) |
| IP Rating |
IP57 |
| Weight |
0.6 oz / 17.01 g |
