Point Source Audio CO8WL Overview
-
1Description
-
2IP57 Waterproof Rating
-
3Low-Sensitivity Version
-
4Easily Concealed
-
5Omnidirectional Pickup Pattern
-
6Interchangeable X-Connectors for Transmitters
-
7Kit Includes Assortment of Accessories
SERIES8 miniature microphones by Point Source Audio
The black Point Source Audio Series8 CO-8WL Low-Sensitivity Lavalier Switch Kit is a miniature mic designed to deliver a natural vocal sound for recording and broadcast applications including presentations, interviews, public speaking, and more. Featuring an unobtrusive mic element with only 4mm in diameter, it offers a discreet visual appearance and can easily fit behind a button of the presenter's clothing.
This version of the lav is equipped with a less sensitive mic capsule, which offers more headroom for louder speech and vocals for theatrical applications. The Series8 CO-8WL's omnidirectional polar pattern allows for a variety of mic placement options as it picks up the voice from all directions equally and doesn't need to be lined up with the mouth. The mic offers an IP57 rating, which protects it against water, sweat, and makeup, commonly harmful to microphones.
This kit configuration of the microphone includes a wide variety of useful mounting and wind-reduction accessories, some in multiple colors, along with two interchangeable X-Connectors: one with a 3.5mm TRRS connector for mobile devices, and a second with a locking 3.5mm connector wired for Sony wireless systems.
IP57 Waterproof Rating
- Microphone can be briefly submersed in water up to 3.3', making it resistant to sweat, water, and makeup
Low-Sensitivity Version
- This version of the Series8 features a less sensitive microphone capsule well suited to louder speakers and presenters as well as theatrical performers and vocalists
- The mic capsule can handle up to 136 dB SPL, providing additional headroom before distortion occurs
Easily Concealed

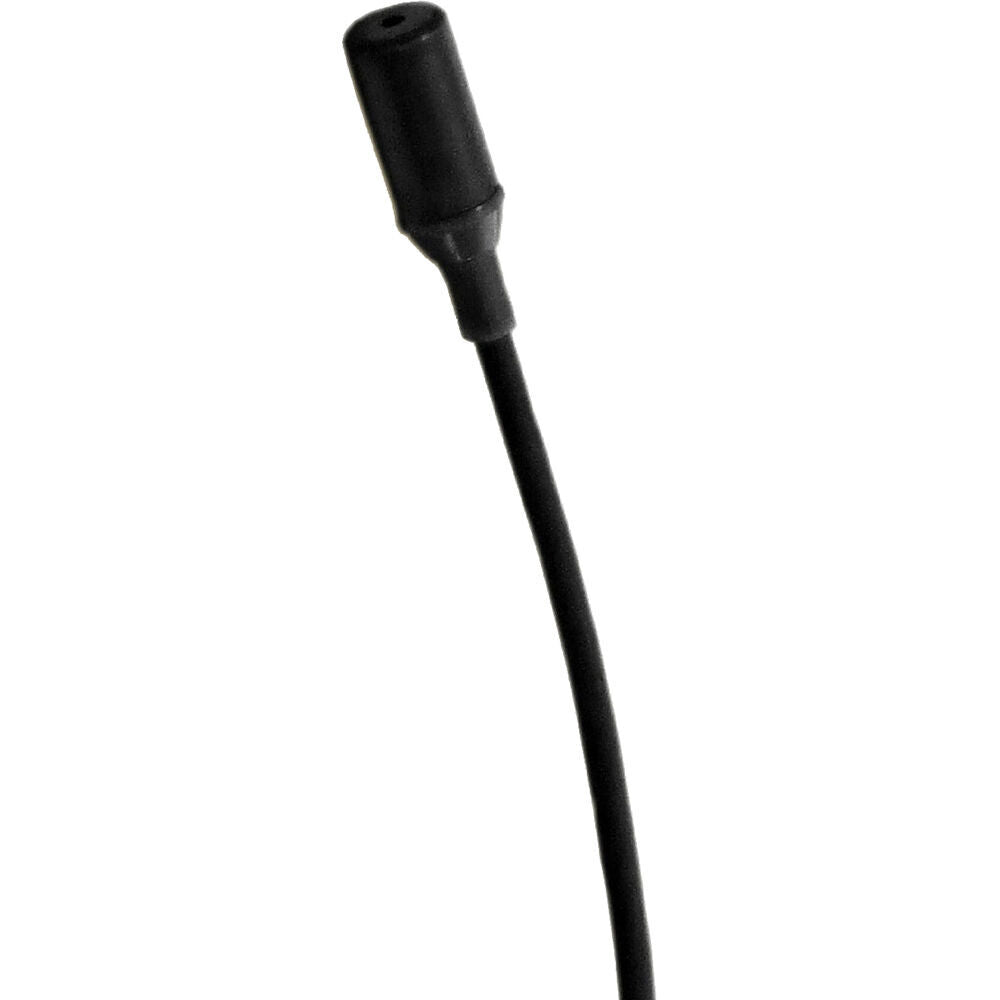

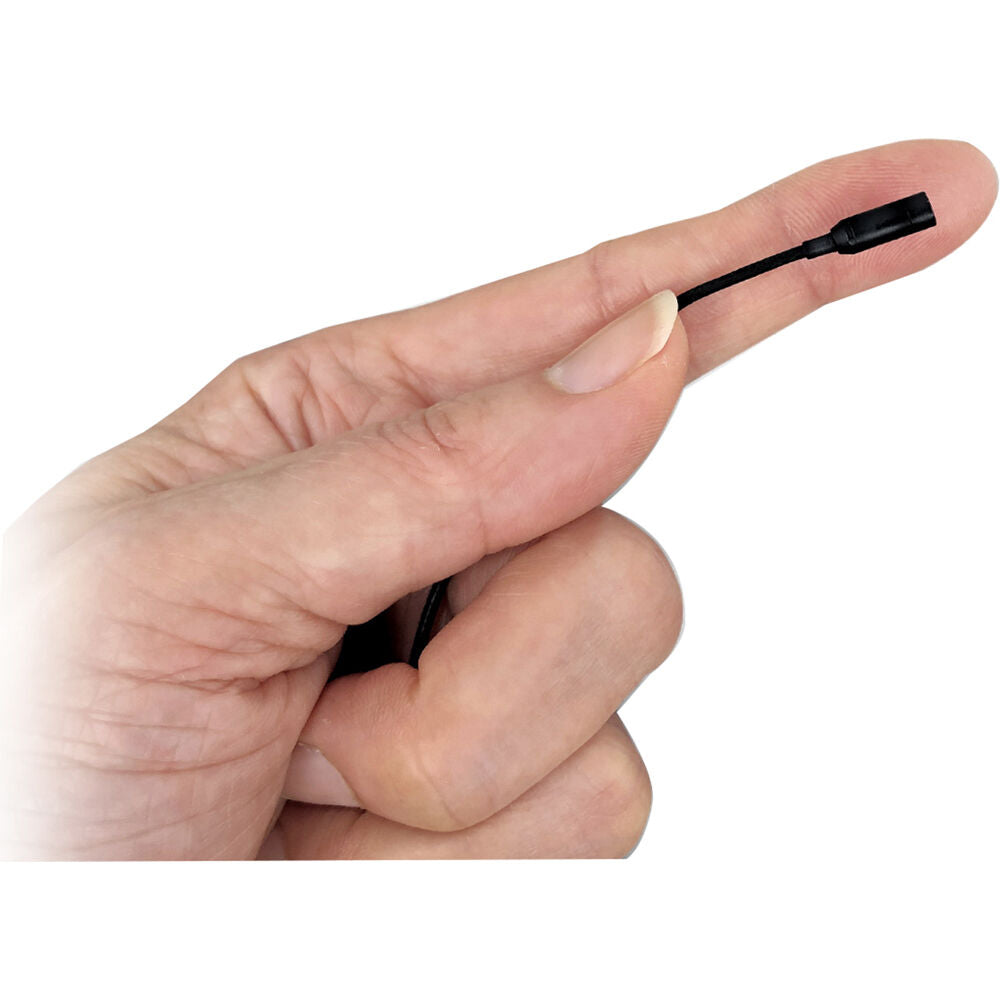

- Mic element is only 0.16" / 4mm in diameter and easy to hide in a performer's clothing or hair
Omnidirectional Pickup Pattern
- Omnidirectional polar pattern picks up voice from all directions equally and doesn't need to be lined up with the mouth
- Allows for a wide variety of placement options for talent
Interchangeable X-Connectors for Transmitters
- Modular microphone system uses X-Connector adapters allowing you to adapt the mic to work with different transmitters
- Included interchangeable X-Connectors feature a threaded screw that is simple to remove and remains securely in place
- Mic operates on 1 to 10V plug-in power from the transmitter
Kit Includes Assortment of Accessories

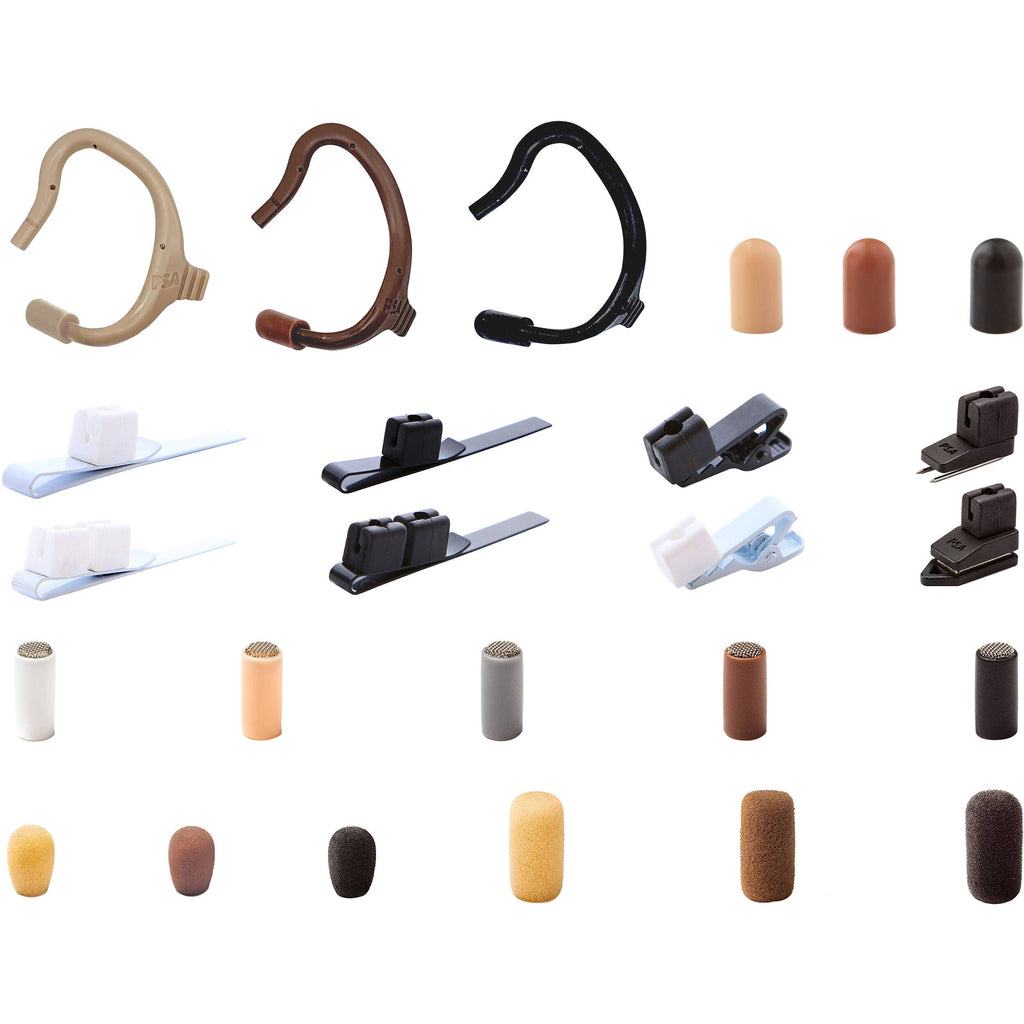

This configuration of the Series8 lav includes a vast assortment of useful accessories for connection, mounting, wind reduction, and transportation/storage

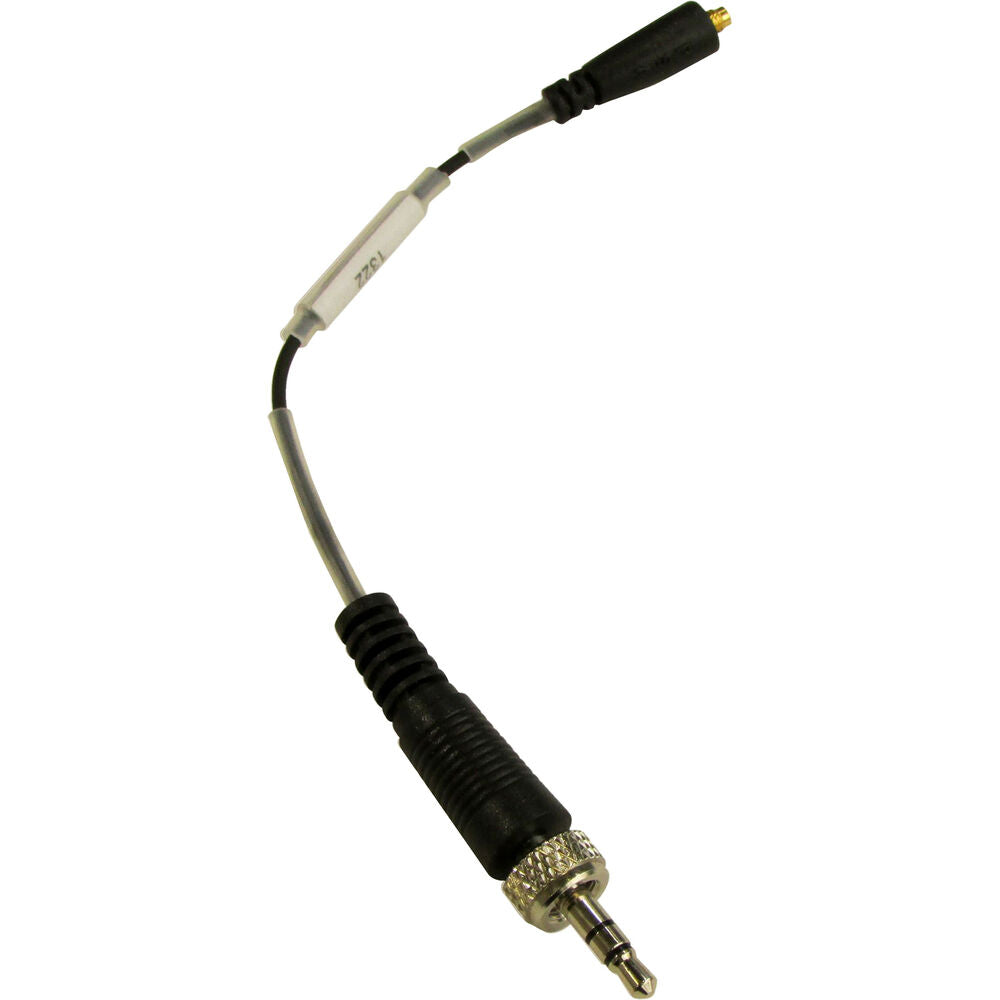

- X-CON: Sony 3.5mm X-Connector for Sony UWP-D transmitters

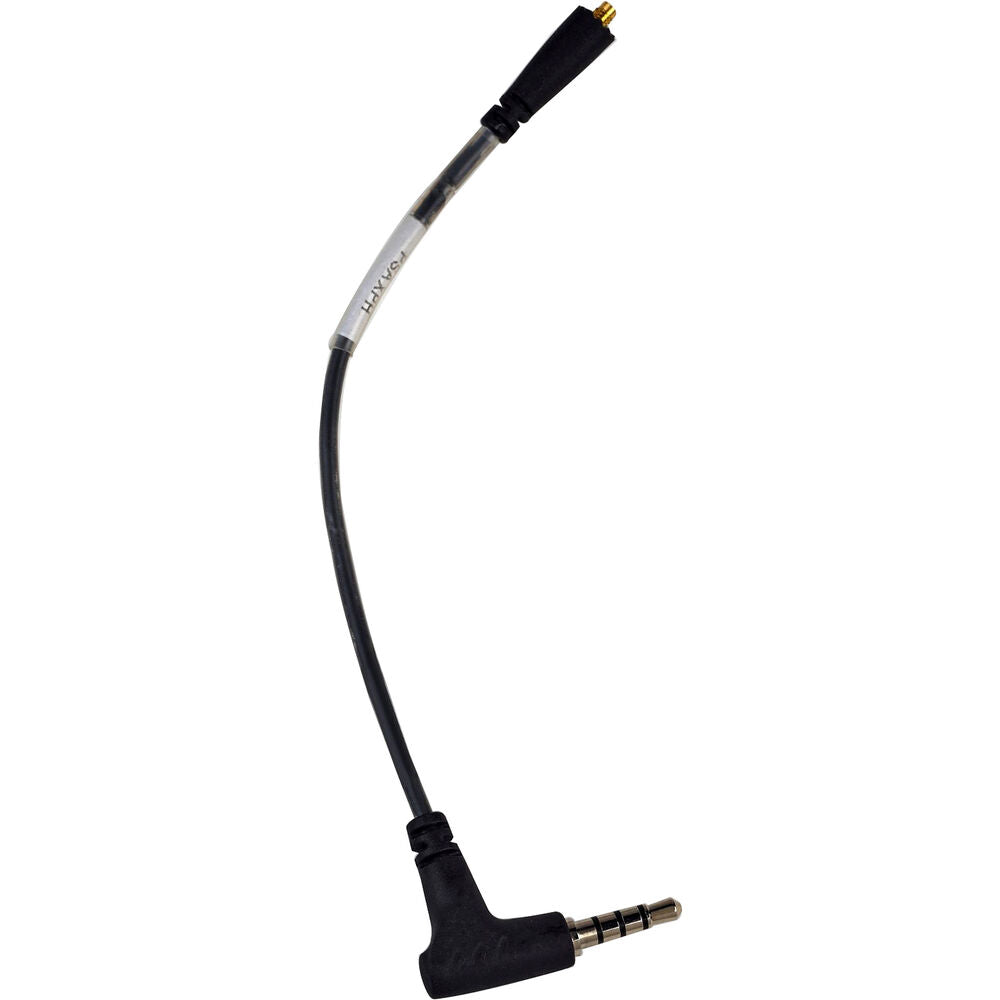

- XPH: X-Connector with 3.5mm TRRS termination for mobile devices and computers
- WSNx: Large windscreens in three colors
- WSN: Small windscreens in three colors
- WSC: Windscreen caps in five colors
- EMB: EMBRACE earmount in three colors (trimmed and ready for use)
- SLIDER1: Single mic holder in two colors
- SLIDER2: Double mic holder in two colors
- M-CLIP: Magnet clip
- V-CLIP: Vampire clip
- B-CLIP: Alligator clip in two colors
- Accessories organizer: Zippered case for lav and accessories
In the Box
- Point Source Audio Series8 CO-8WL Low-Sensitivity Lavalier Switch Kit (Sony, Black)
- 3.5mm Locking Interchangeable X-Connector for Sony UWP-D Wireless Systems
- 3.5mm TRRS Interchangeable X-Connector for Mobile Devices
- 3 x EMBRACE Earmounts (Black, Beige, Brown)
- 3 x Large Windscreens (Black, Beige, Brown)
- 3 x Small Windscreens (Black, Beige, Brown)
- 5 x Windscreen Caps (Black, Beige, Brown, Gray, White)
- 2 x Single-Mic Slider-Type Holders (Black, White)
- 2 x Dual-Mic Slider-Type Holders (Black, White)
- 2 x Magnet Clips (Black, White)
- 2 x Vampire Clips (Black, White)
- Zippered Carrying Case
- Limited 1-Year Warranty
Table of Contents
- Description
- IP57 Waterproof Rating
- Low-Sensitivity Version
- Easily Concealed
- Omnidirectional Pickup Pattern
- Interchangeable X-Connectors for Transmitters
- Kit Includes Assortment of Accessories
Point Source Audio CO8WL Specs
Microphone
| Form Factor |
Lavalier |
| Sound Field |
Mono |
| Capsule |
Electret Condenser |
| Diaphragm |
0.2" / 4 mm (Electret Condenser) |
| Polar Pattern |
Omnidirectional |
| Windscreen |
Foam (Included) |
Performance
| Frequency Range |
20 Hz to 20 kHz |
| Maximum SPL |
136 dB SPL |
| Impedance |
1.4 Kilohms |
| Sensitivity |
-43 dB at 1 kHz |
Connectivity
| Output Connectors |
1 x 1/8" / 3.5 mm 1-Pin Male Unbalanced |
| Headphone Connector |
None |
| Cable Length |
4' / 1.2 m |
Power
| Operating Voltage |
1 to 10 V |
Physical
| Color |
Black |
| Mounting |
Alligator Clip (Included) |
| IP Rating |
IP57 |
| Weight |
0.6 oz / 17.01 g |
