Point Source Audio EO-8WLH Overview

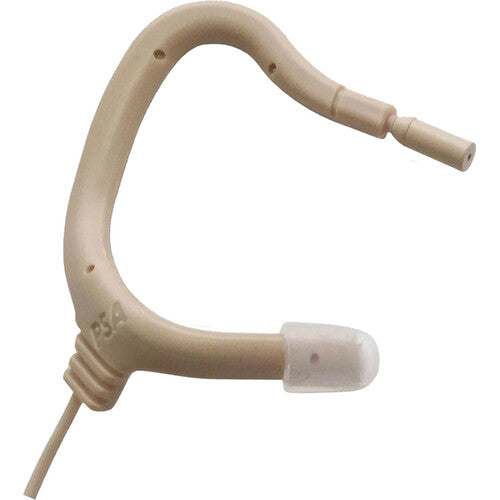

The beige Point Source Audio EO-8WLH EMBRACE High-Sensitivity Omnidirectional Earmount Lavalier Microphone is an ear-mounted microphone that provides pristine sound quality with a secure and comfortable fit. It is ideal for capturing presentations and typical speech levels for TV, broadcast, educational, and corporate applications where the presenter's microphone needs to be concealed.
This sensitive omnidirectional Series8 mic capsule delivers 118 dB maximum SPL with a 20 Hz to 20 kHz frequency response and high-gain before feedback, making it well suited for use in TV studios and interview environments where the user is speaking at standard volume levels. It is mounted on a flexible boom, which bends up to 360° and allows the miniaturized capsule to maintain consistent placement right at the hairline for an even sound quality, regardless of head movement.
The EO-8WLH boasts an IP57 waterproof rating and is protected against water, sweat, and makeup. For a precise custom fit, you can bend, shape, and trim the included earmounts, and choose between left- or right-ear placement.
This headset comes with a TA4F connector for use with Shure wireless transmitters. A windscreen, two clothing clips, and a cable clip are also included.
Earmount lavalier microphone with high-sensitivity Series8 capsule for standard speech and presentations; well suited for broadcast studios and television production
Optimal gain before feedback
Super Flex bendable boom is unbreakable up to 360°�maintains consistent placement from the mouth, even with head movement
Includes two EMBRACE earmounts for left and right wearing placement�bend, shape, and trim earmounts for a precise custom fit
Accepts theatrical color markers of almost any color for theater, television, and other applications where the microphone must be completely camouflaged
Includes a modular TA4F X-Connector for Shure wireless transmitters
Modular system allows you to use mic with various transmitters simply by swapping out the X-Connector
X-Connector has a threaded screw connection�simple to remove and remains secure while in use
IP57 waterproof rating against water, sweat, and makeup
Includes two slider clips for traditional mounting on clothing and one alligator cable clip
In the Box
- Point Source Audio EO-8WLH EMBRACE High-Sensitivity Omnidirectional Earmount Lavalier Microphone with TA4F X-Connector for Shure Wireless Transmitters (Beige)
- Point Source Audio XSH Series8 X-Connector for Shure, Line6, JTS, Trantec, and Carvin Wireless Transmitters
- 2 x EMBRACE Earmount (Left/Right, Beige)
- Cable Clip
- 2 x Slider Clip
- Windscreen (Beige)
Point Source Audio EO-8WLH Specs
Microphone
| Sound Field |
Mono |
| Capsule |
Electret Condenser |
| Polar Pattern |
Omnidirectional |
| Windscreen |
Foam (Included) |
Performance
| Frequency Range |
20 Hz to 20 kHz |
| Maximum SPL |
118 dB SPL |
| Impedance |
1400 Ohms |
| Sensitivity |
-32 dB at 1 kHz |
Connectivity
| Outputs |
1 x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable, on Detachable Cable) |
| Headphone Connector |
None |
| Cable Length |
4' / 1.2 m |
Power
| Operating Voltage |
1 to 10 V |
Physical
| Color |
Beige |
| Mounting |
Over-Ear (Single) (Included) |
| Weight |
0.6 oz / 17 g |
Packaging Info
| Package Weight |
0.395 lb |
| Box Dimensions (LxWxH) |
7.5 x 5.6 x 1.1" |
